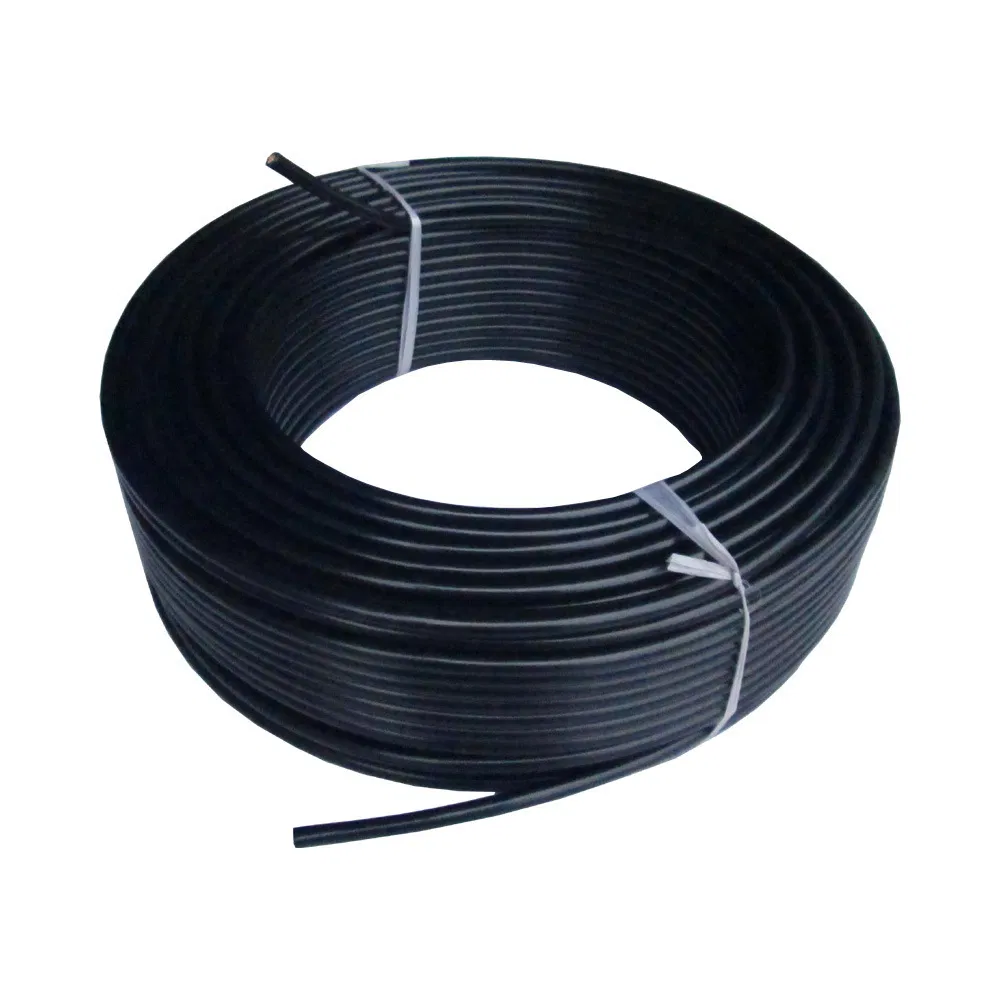

Silicone Insulated Wire 18AWG with UL3123
Silicone Insulated WIRE 18AWG with UL3123Nominal voltage: 600vTemperature range: -60º C-+150º CO. D. Tolerance: ± 0.1mmTesting voltage: 1500vConductor: Nickel copperInsulator: Silicone rubber.Color: White-blue-red-black-brown-yellow-green-yellow/green-transparentConstruc......
Send Inquiry
Product Description
Silicone Insulated WIRE 18AWG with UL3123
Nominal voltage: 600v
Temperature range: -60º C-+150º C
O. D. Tolerance: ± 0.1mm
Testing voltage: 1500v
Conductor: Nickel copper
Insulator: Silicone rubber.
Color: White-blue-red-black-brown-yellow-green-yellow/green-transparent
Construction of the conductor: 34/0.18
The diameter: 1.14mm
Thickness of insulator: 0.76mm
Over diameter: 2.69mm
The packing: 305/coils
They are the same with the tempereture connect wires for home appliance, headlamp, industrial machine, electrothermal products and so on
Nominal voltage: 600v
Temperature range: -60º C-+150º C
O. D. Tolerance: ± 0.1mm
Testing voltage: 1500v
Conductor: Nickel copper
Insulator: Silicone rubber.
Color: White-blue-red-black-brown-yellow-green-yellow/green-transparent
Construction of the conductor: 34/0.18
The diameter: 1.14mm
Thickness of insulator: 0.76mm
Over diameter: 2.69mm
The packing: 305/coils
They are the same with the tempereture connect wires for home appliance, headlamp, industrial machine, electrothermal products and so on
