PVC Insulated Overhead Power Cable Flame Retardant Electrical Wires Low Voltage Factory Low Price

Product Description

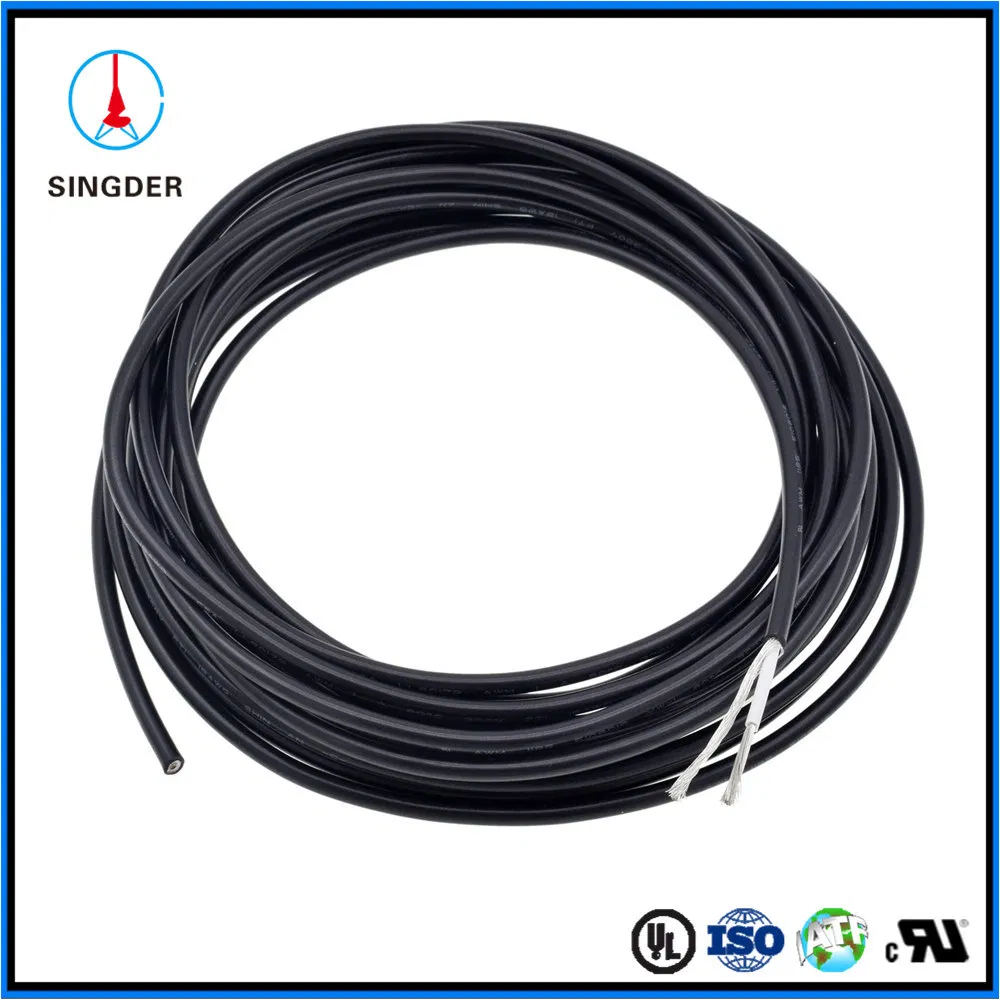

UL1185 18AWGx1C+SP OD3.5 PVC Insulated Cable
-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

Conductor			Insulation		Spiral Shield		Jacket		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
28	7/0.127	0.38	0.43	1.24	38/0.1	1.44	0.45	2.34	239
26	7/0.16	0.48	0.43	1.34	45/0.1	1.54	0.45	2.44	150
24	11/0.16	0.61	0.43	1.47	46/0.1	1.67	0.46	2.58	94.2
22	17/0.16	0.76	0.43	1.62	54/0.1	1.82	0.46	2.74	59.4
20	26/0.16	0.94	0.43	1.80	56/0.1	2.00	0.46	2.92	36.7
18	41/0.16	1.18	0.43	2.04	64/0.1	2.24	0.46	3.16	23.2
16	26/0.254	1.49	0.43	2.36	74/0.1	2.56	0.46	3.48	14.6
