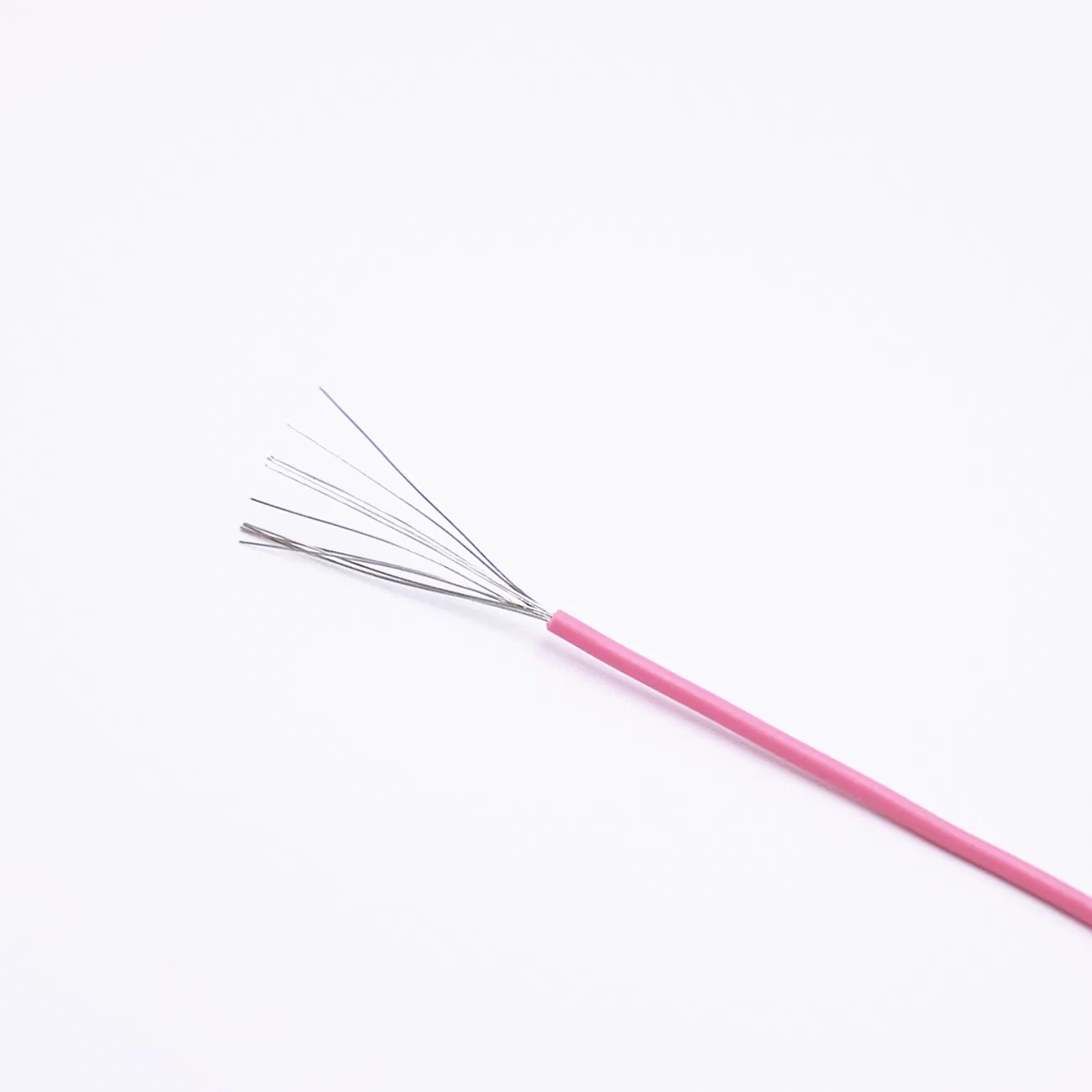

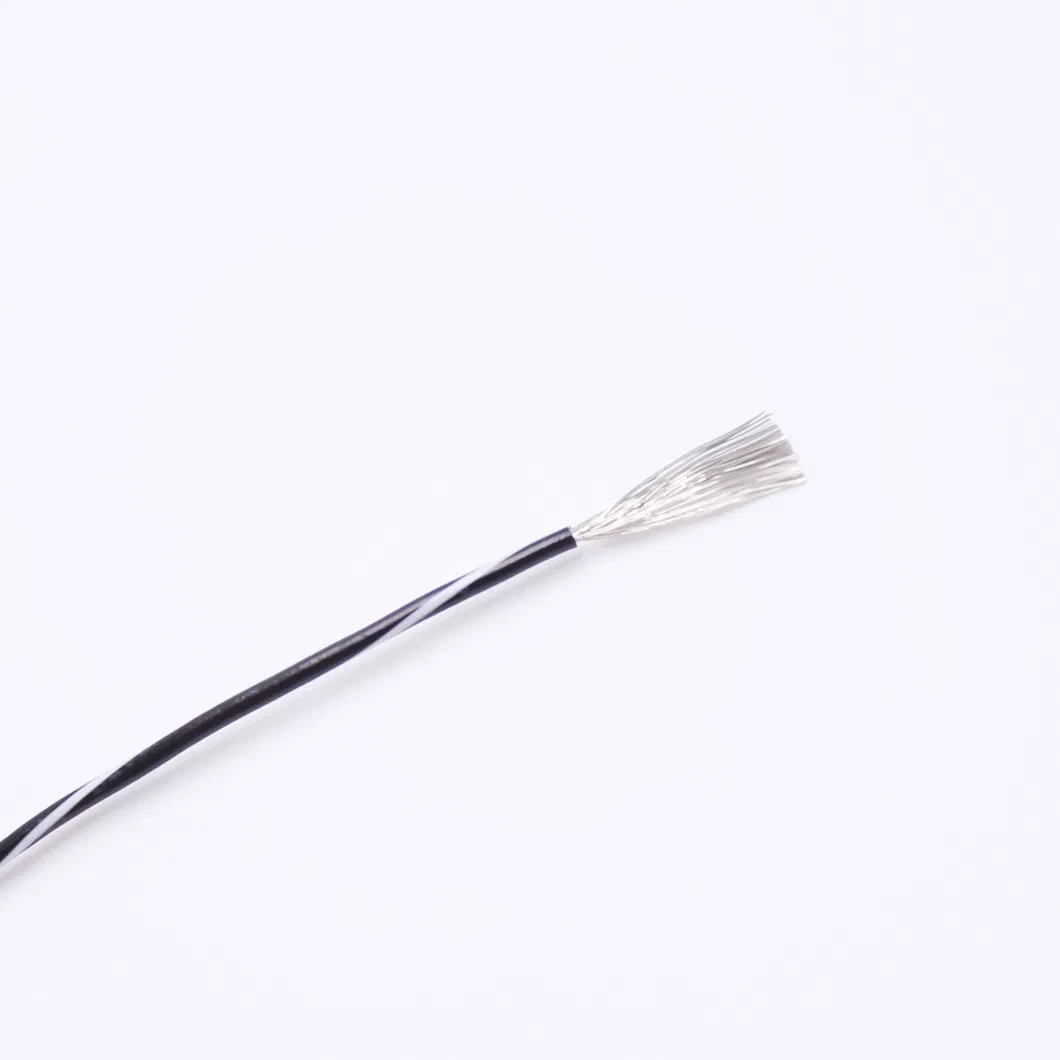

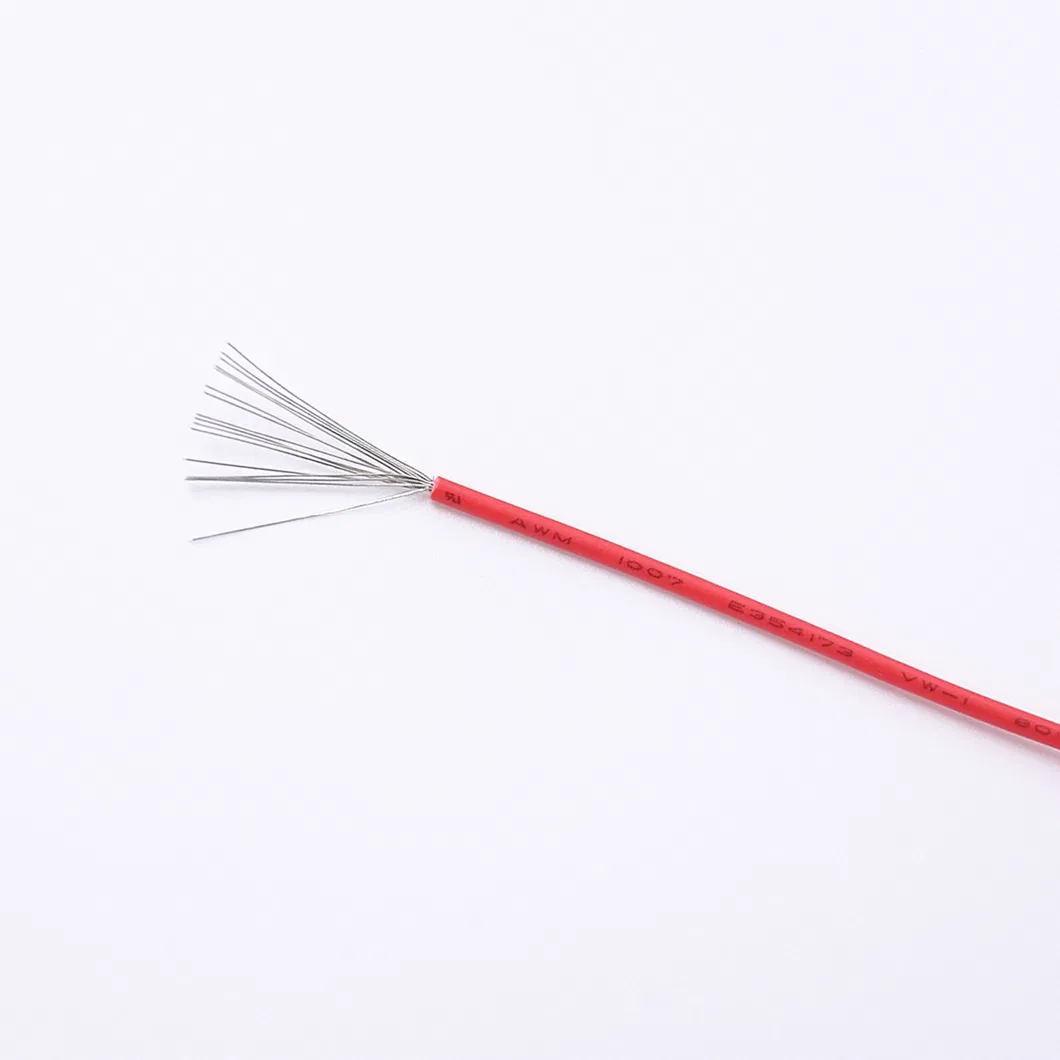

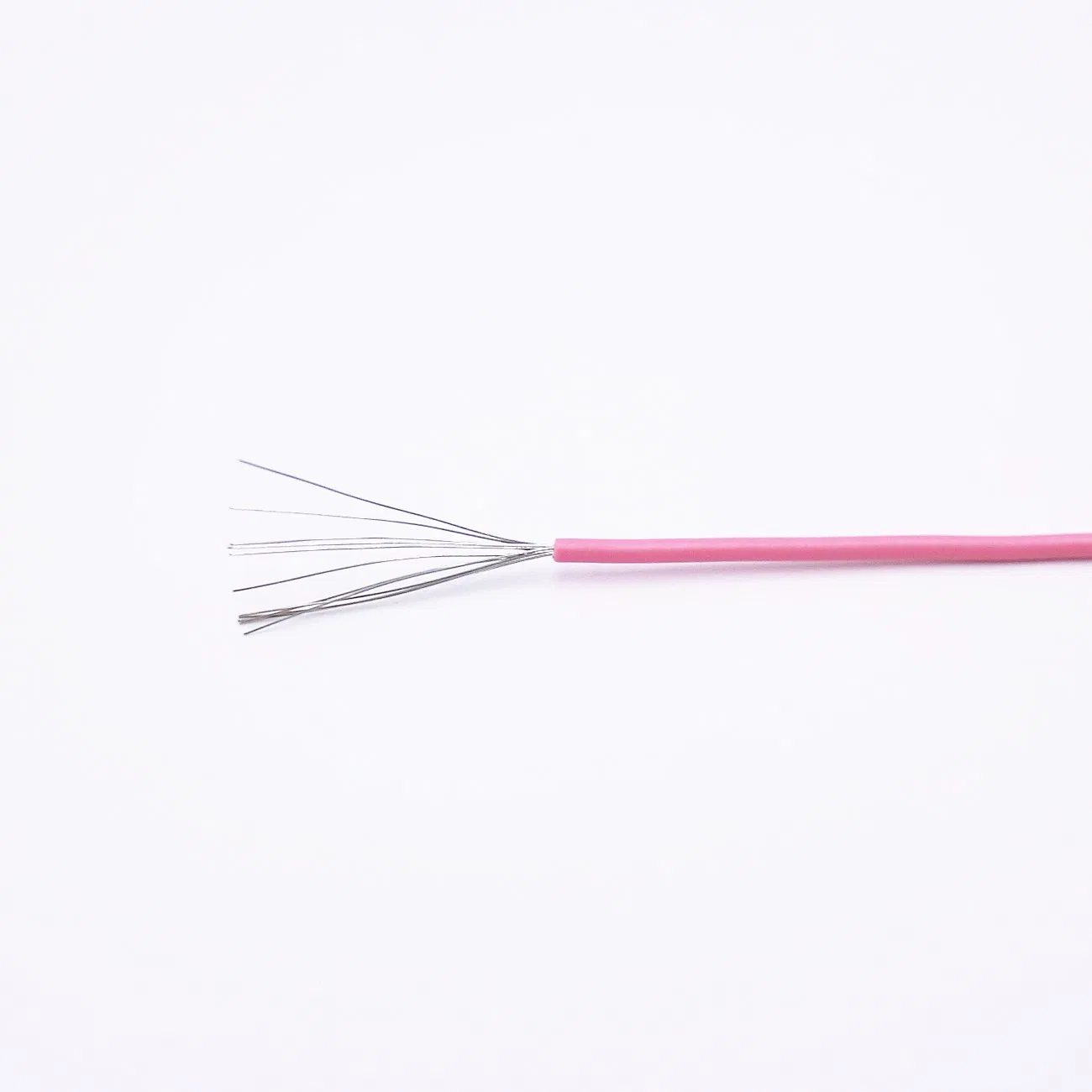

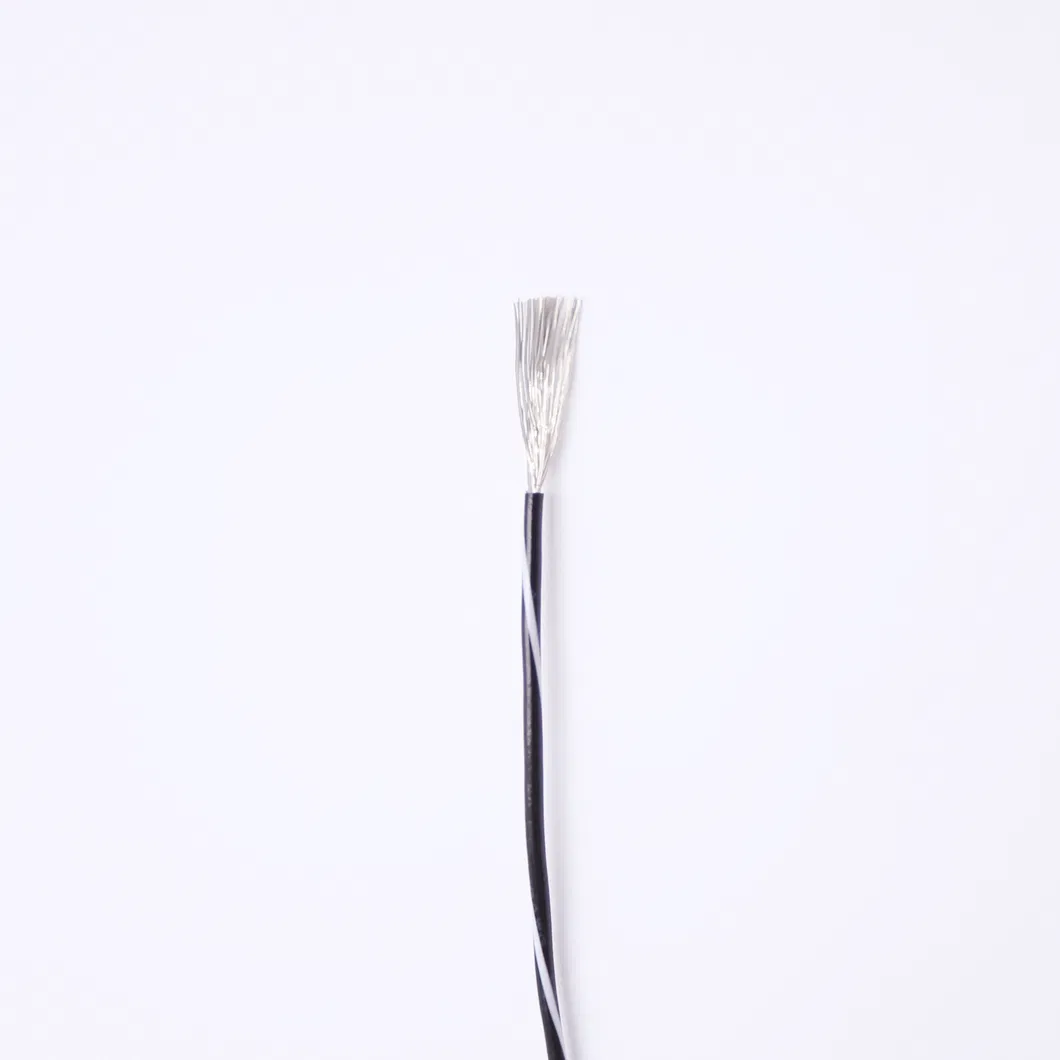

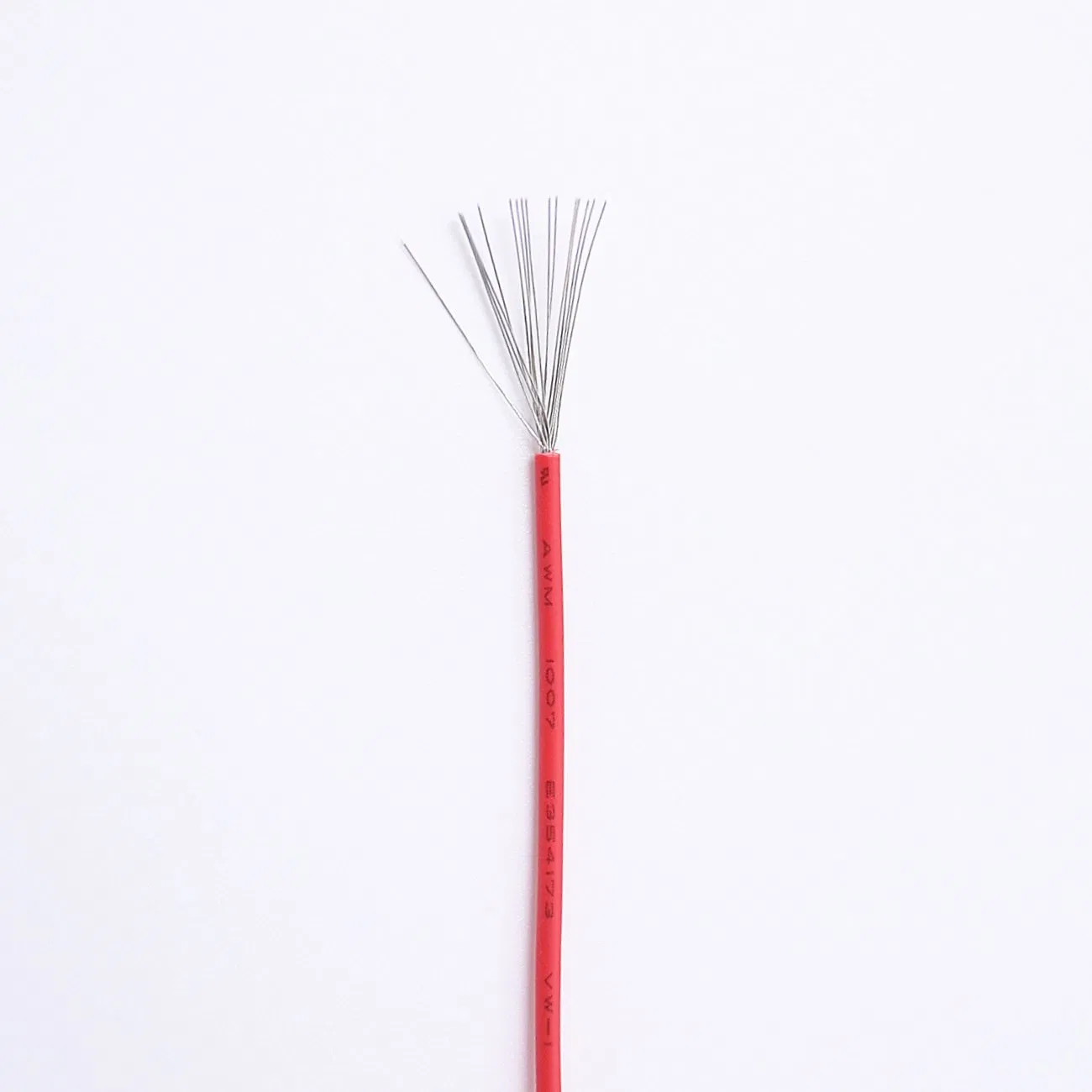

PVC Coated 22AWG Solid Insulated Wire UL1007 Single Core Copper PVC Wire Round Flexible Custom Electric Awn Wire
Product Descriptionelectronic lighting cable 3core flexible 3pin awg24 UL1007 flat rainbow cable flat ribbon cable Rated temperature:80ºCRated voltage:300VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGPVC insulation, comply with ......
Send Inquiry
Product Description
electronic lighting cable 3core flexible 3pin awg24 UL1007 flat rainbow cable flat ribbon cable
Rated temperature:80ºC
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
PVC insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FTI and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:For general purpose internal wiring of appliance
UL Type | Conductor | Insulation | (Max.cond. Resistance) | (Dielectric Strength) | |||
1007 | AWG | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
30 | 7/0.10 | 0.30 | 0.40 | 1.10 | 381 | 2000 | |
28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 | 2000 | |
26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 | 2000 | |
24 | 11/0.16 | 0.61 | 0.40 | 1.40 | 94.2 | 2000 | |
22 | 17/0.16 | 0.76 | 0.42 | 1.60 | 59.4 | 2000 | |
20 | 26/0.16 | 0.94 | 0.43 | 1.80 | 36.7 | 2000 | |
18 | 41/0.16 | 1.20 | 0.45 | 2.10 | 23.2 | 2000 | |
16 | 26/0.254 | 1.49 | 0.46 | 2.40 | 14.6 | 2000 | |
