Micc Rtd FEP/Cub/Sil-4*7/0.12mm Thermocouple Extension Wire
MICC Rtd FEP/Cub/Sil-4*7/0.12mm Thermocouple Extension WireSubjectThis specification covers the requirements for FEP insulated, copper sheathedand silicon rubber braid RTD extension cable, 4*7/0.12mm, stranded wire, twisted construction.Product showTechnical featureA. Conductors:Nickel plated cooper......
Send Inquiry
Product Description
MICC Rtd FEP/Cub/Sil-4*7/0.12mm Thermocouple Extension Wire
Subject
This specification covers the requirements for FEP insulated, copper sheathed
and silicon rubber braid RTD extension cable, 4*7/0.12mm, stranded wire, twisted construction.

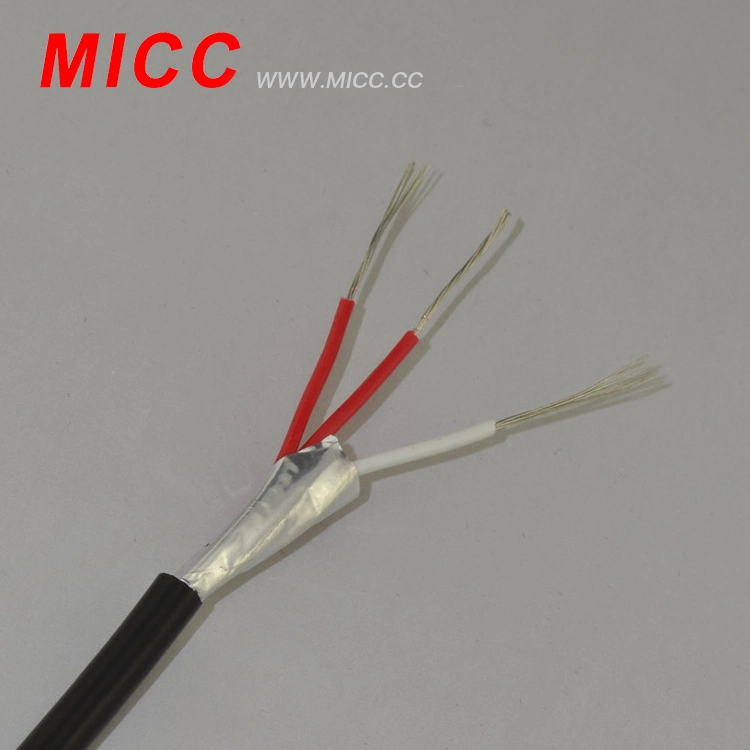

Product show
Technical feature
A. Conductors:
Nickel plated cooper, stranded wire
B. Insulation:
Extruded FEP (200ºC)
C. Assembly:
Four conductors (cores) twisted construction.
D. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage
E. Overall Jacket
Extruded SIL(200ºC)
Dimension tolerance
Subject
This specification covers the requirements for FEP insulated, copper sheathed
and silicon rubber braid RTD extension cable, 4*7/0.12mm, stranded wire, twisted construction.

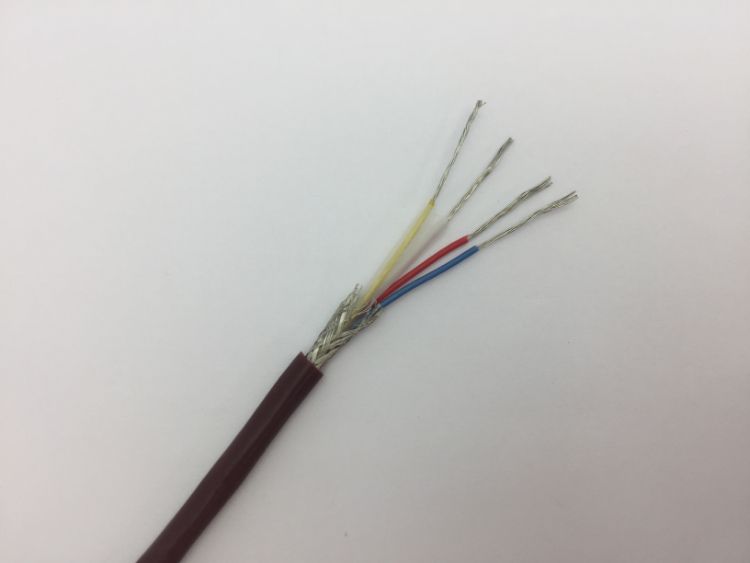

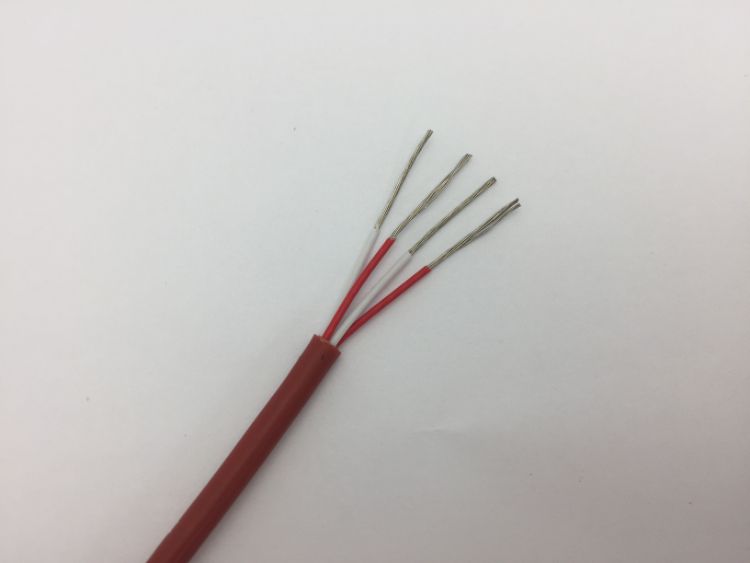

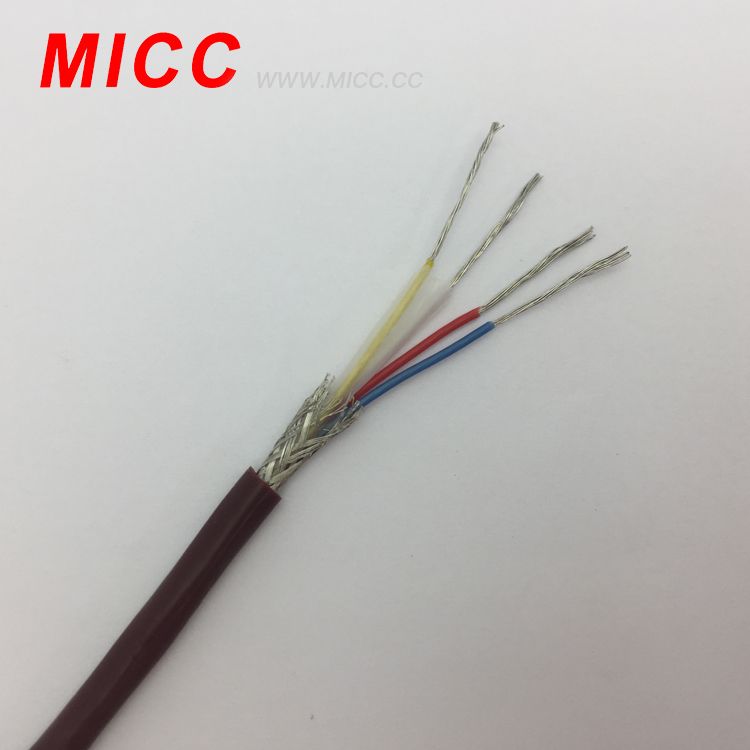

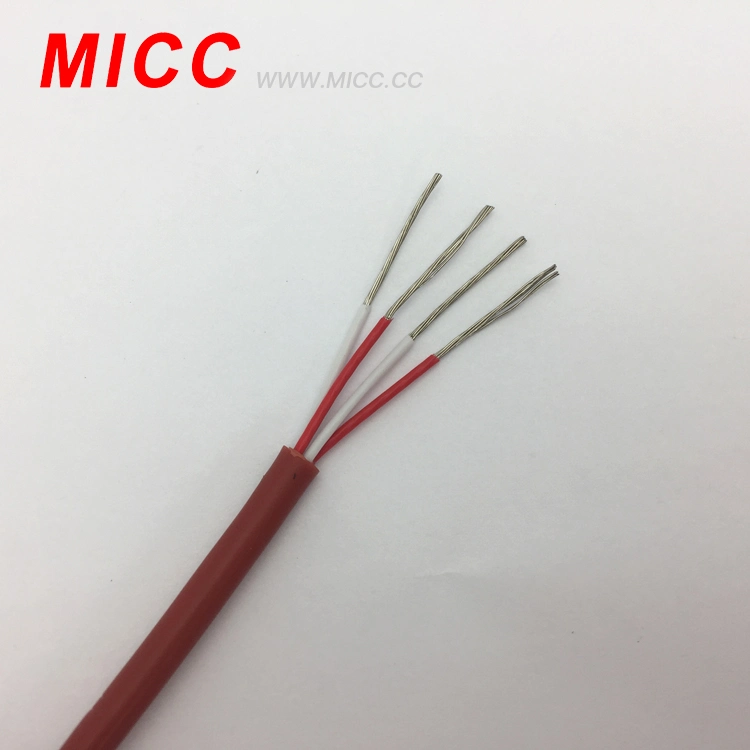

Product show
Technical feature
A. Conductors:
Nickel plated cooper, stranded wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 26 | 7/0.12mm |
B. Insulation:
Extruded FEP (200ºC)
| Nominal Insulation Thickness | 0.25mm±0.2 |
| Color code | 2 cores red and 2 cores white |
C. Assembly:
Four conductors (cores) twisted construction.
D. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage
E. Overall Jacket
Extruded SIL(200ºC)
| Nominal Insulation Thickness | 0.75mm±0.2 |
| Color code | black |
Dimension tolerance
| Dimensions/tolerances(mm) | Ø4.5±0.25 |
