Product Description

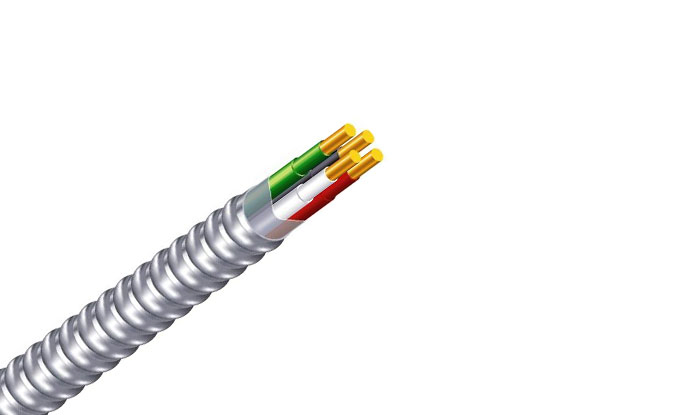

MC Cable with THHN Ground UL certificate

Application:

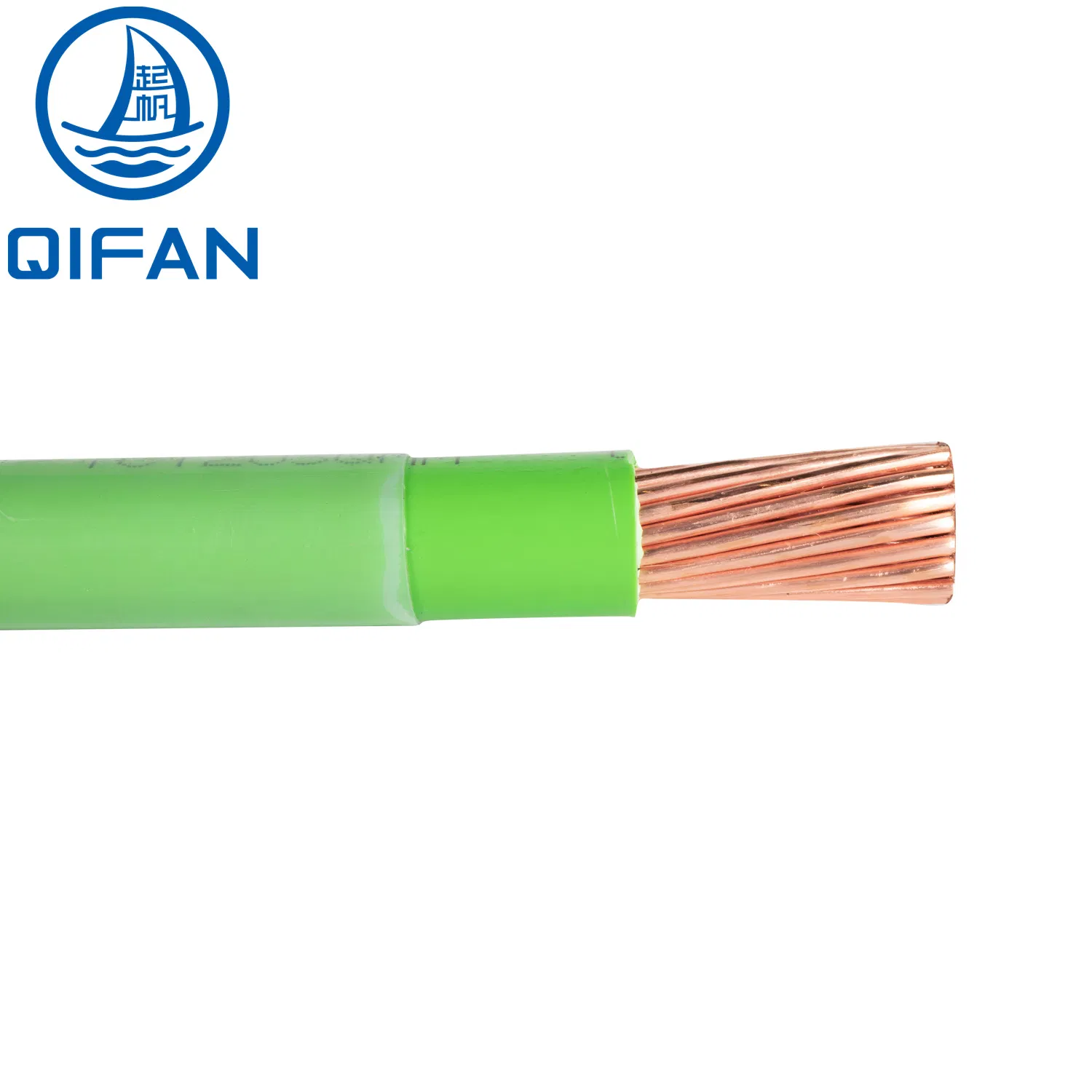

THHN wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring

Construction:

1. Conductor: Highly conductive copper or AA-8000 aluminum
2. Insulation: Color-coded, heat and moisture resistant PVC

3. Jacket: Transparent self-lubricated nylon

Features:

VW-1 flame rating

THHN wire is often dual rated: 90ºC dry and 75ºC wet

Oil resistant: 75ºC for 60d

Furthermore, resistant to acid, abrasion, alkalis, gas, and UV

Standard:

Conductor: It's available for both of American Wire Gauge and Philippine National Code

(UL83, ASTM B3, ASTM B8, ASTM B801, PEC)

Insulation: UL83

Jacket: UL83

Color:
To costumer request

Technical Specification Data

Part No.	Conductor				Insulation		Jacket		Max dia- meter (mm)	Ref.WT (kg/km)
Part No.		Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Nominal Diameter (mm)	Minimum Thickness At any point (mm)	Nominal Diameter (mm)	Max dia- meter (mm)	Ref.WT (kg/km)
THHN-14B		14	7/0.62	1.86	0.38	2.66	0.10	2.90	3.3	25
THHN-14B1		14	19/0.38	1.90	0.38	2.70	0.10	2.94	3.4	25
THHN-12B		12	7/0.78	2.34	0.38	3.14	0.10	3.38	3.8	38
THHN-12B1		12	19/0.47	2.35	0.38	3.15	0.10	3.39	3.8	38
THHN-10B		10	7/0.98	2.94	0.51	4.00	0.10	4.24	4.8	59
THHN-10B1		10	19/0.60	3.00	0.51	4.06	0.10	4.30	4.8	59
THHN-8B		8	7/1.23	3.69	0.76	5.25	0.13	5.55	6.2	97
THHN-8B1		8	19/0.75	3.75	0.76	5.31	0.13	5.61	6.3	96
THHN-6B		6	7/1.56	4.68	0.76	6.24	0.13	6.54	7.3	147
THHN-6B1		6	19/0.95	4.77	0.76	6.33	0.13	6.63	7.4	146
THHN-4B		4	7/1.96	5.88	0.76	7.44	0.13	7.74	8.7	135
THHN-4B1		4	19/1.19	5.95	0.76	7.51	0.13	7.81	8.7	135
THHN-3B		3	7/2.20	6.60	1.02	8.68	0.15	9.02	10.0	292
THHN-3B1		3	19/1.33	6.65	1.02	8.73	0.15	9.07	10.0	291
THHN-2B		2	7/2.47	7.41	1.02	9.49	0.15	9.83	11.0	361
THHN-2B1		2	19/1.50	7.50	1.02	9.58	0.15	9.92	11.0	361
THHN-1B		1	19/1.68	8.40	1.02	10.48	0.18	10.88	12.1	457
THHN-1/0B		1/0	19/1.89	9.45	1.27	12.03	0.18	12.43	13.8	585
THHN-2/0B		2/0	19/2.12	10.60	1.27	13.18	0.18	13.58	15.1	724
THHN-3/0B		3/0	19/2.38	11.90	1.27	14.48	0.18	14.88	16.5	900
THHN-4/0B		4/0	19/2.67	13.35	1.27	15.93	0.18	16.33	18.1	1118
THHN-14A		14	1/1.63	1.63	0.38	2.43	0.10	2.67	3.1	22
THHN-12A		12	1/2.05	2.05	0.38	2.85	0.10	3.09	3.5	36
THHN-10A		10	1/2.59	2.59	0.51	3.65	0.10	3.89	4.4	57
THHN-8A		8	1/3.26	3.26	0.76	4.82	0.13	5.12	5.7	94

------Our Feature------

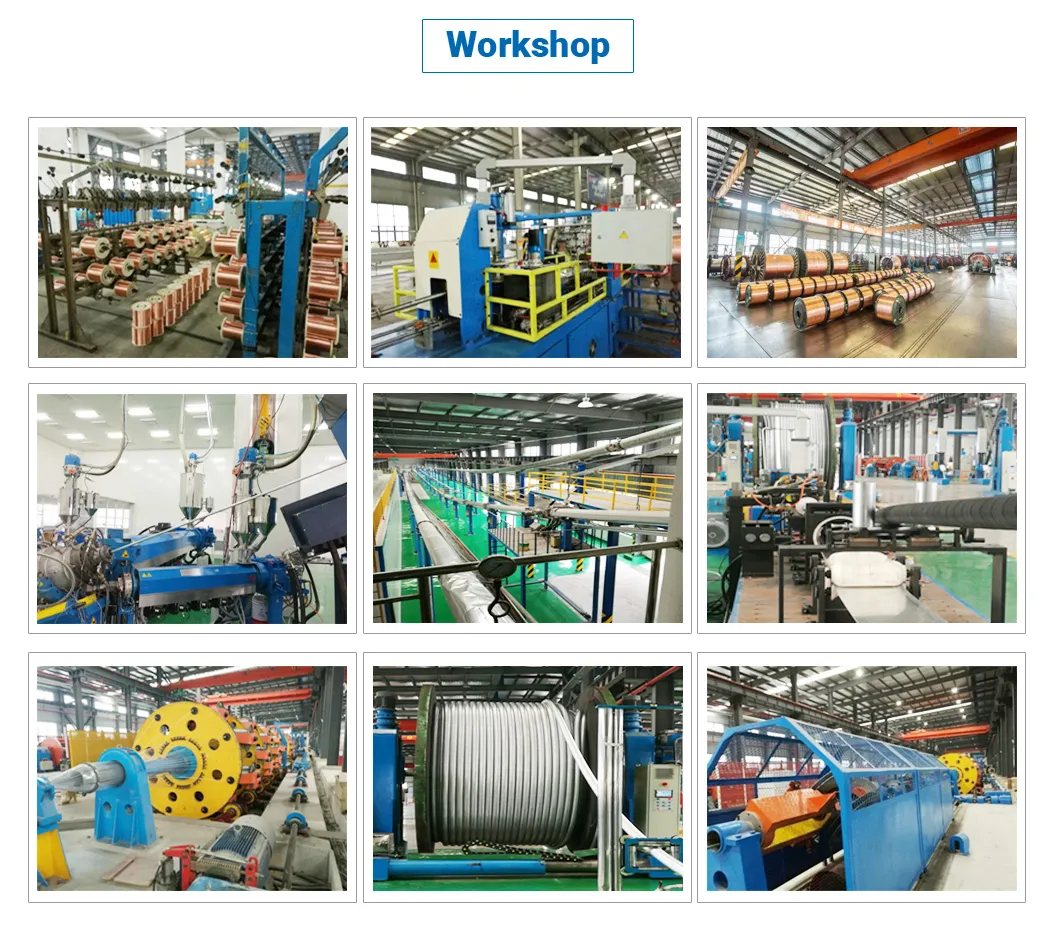

Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
Perfect Production system

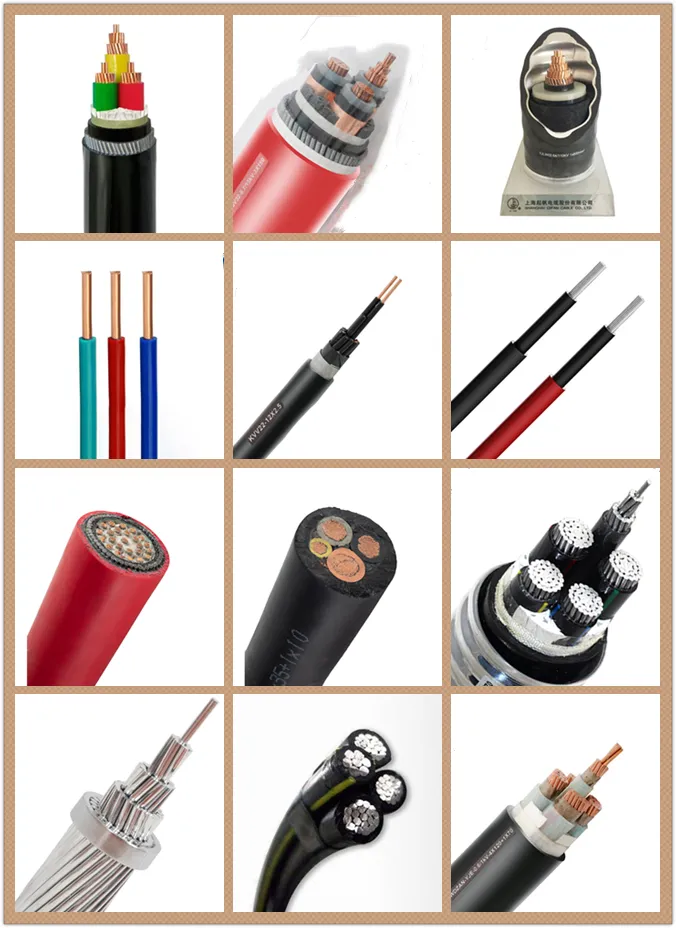

Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
