Product Description

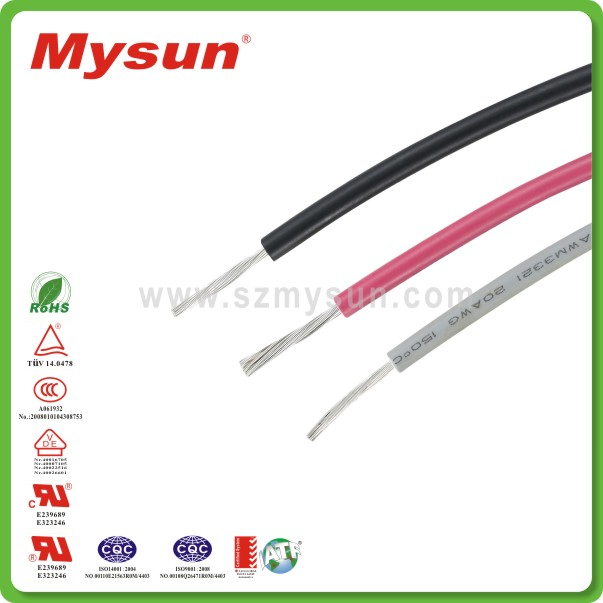

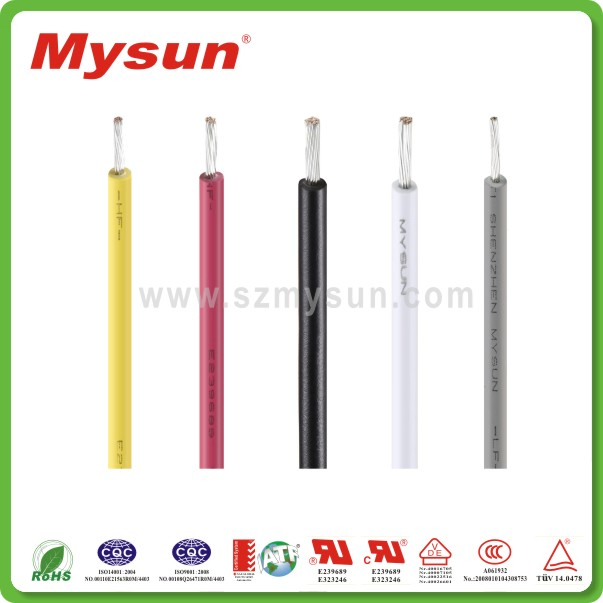

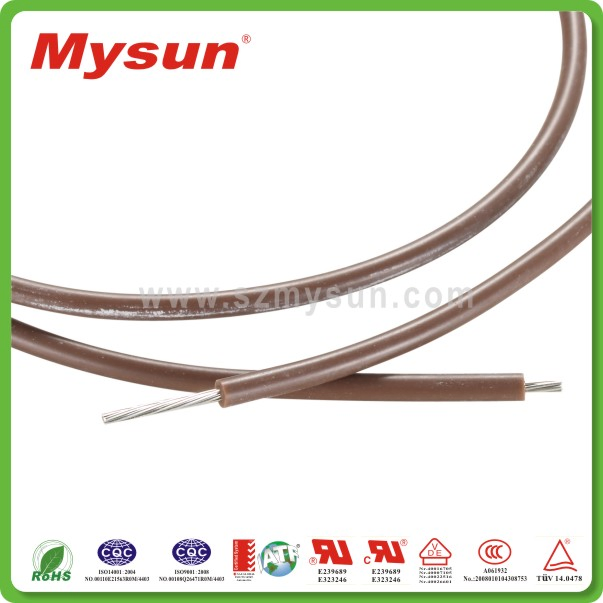

Low price,18AWG PVC Electrical wire for wire harness
Specifications:
Nominal voltage: 300V
Temperature range: 80C
Standard: UL 758
Conductor: Tinned copper
Insulation: PVC
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) | Unit Length (m)(Ft) | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 32 | 7/0.08 | 0.24 | 0.38 | 1.00 | 542 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 1.06 | 347 | ||
| 28 | 7/0.127 | 0.38 | 1.14 | 218 | ||
| 26 | 7/0.16 | 0.48 | 1.24 | 138 | ||
| 24 | 11/0.16 | 0.61 | 1.37 | 85.9 | 305/1000 | |
| 22 | 17/0.16 | 0.76 | 1.52 | 54.3 | ||
| 20 | 21/0.18 | 0.95 | 1.71 | 33.9 | ||
| 18 | 34/0.18 | 1.21 | 1.97 | 21.4 | ||
| 16 | 26/0.254 | 1.50 | 2.26 | 13.5 | ||
