Industry Control Cables Special PUR Cables Coil Spiral Telephone Cable
Flexible High Elastic Coiled Cables Spiral Cable 1. Application:For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.2. Structure & Specificati......
Send Inquiry
Product Description

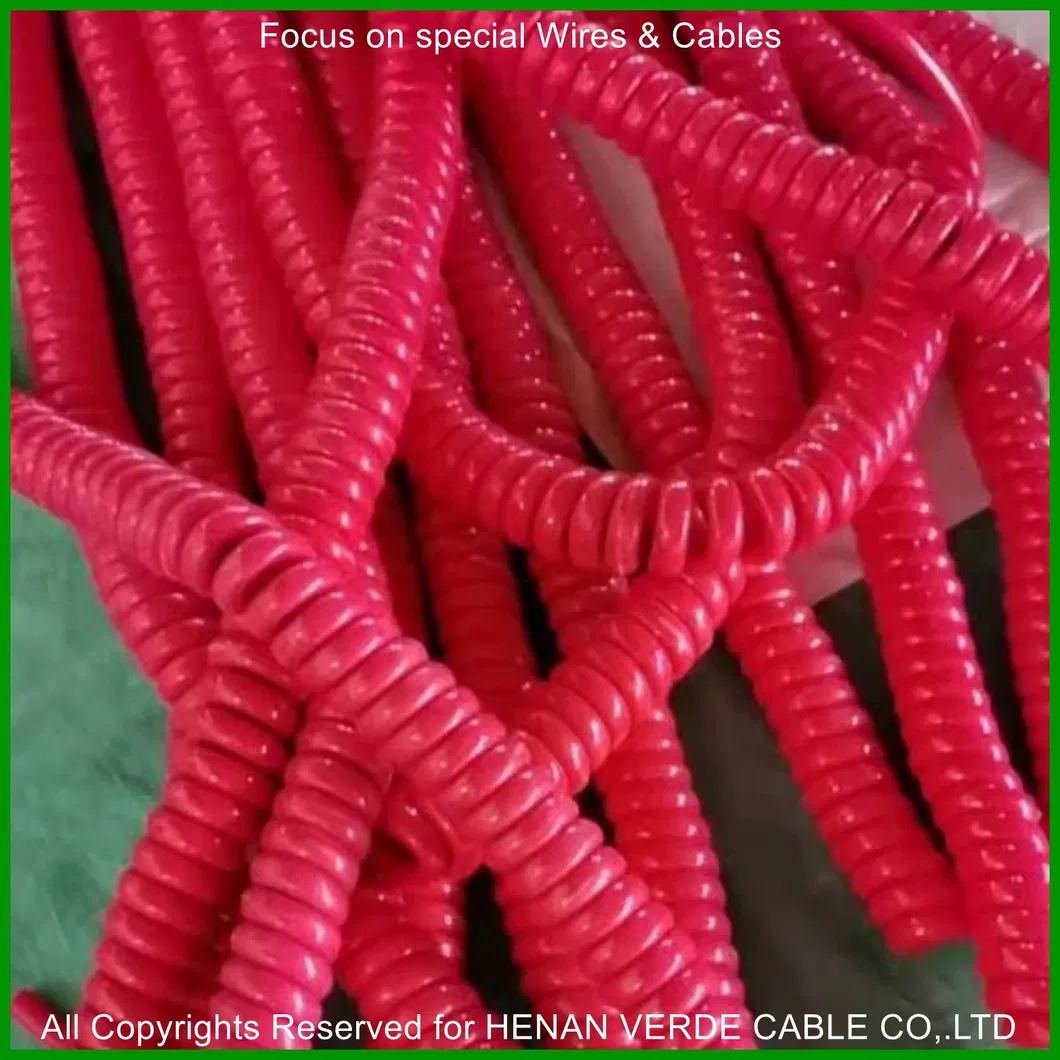

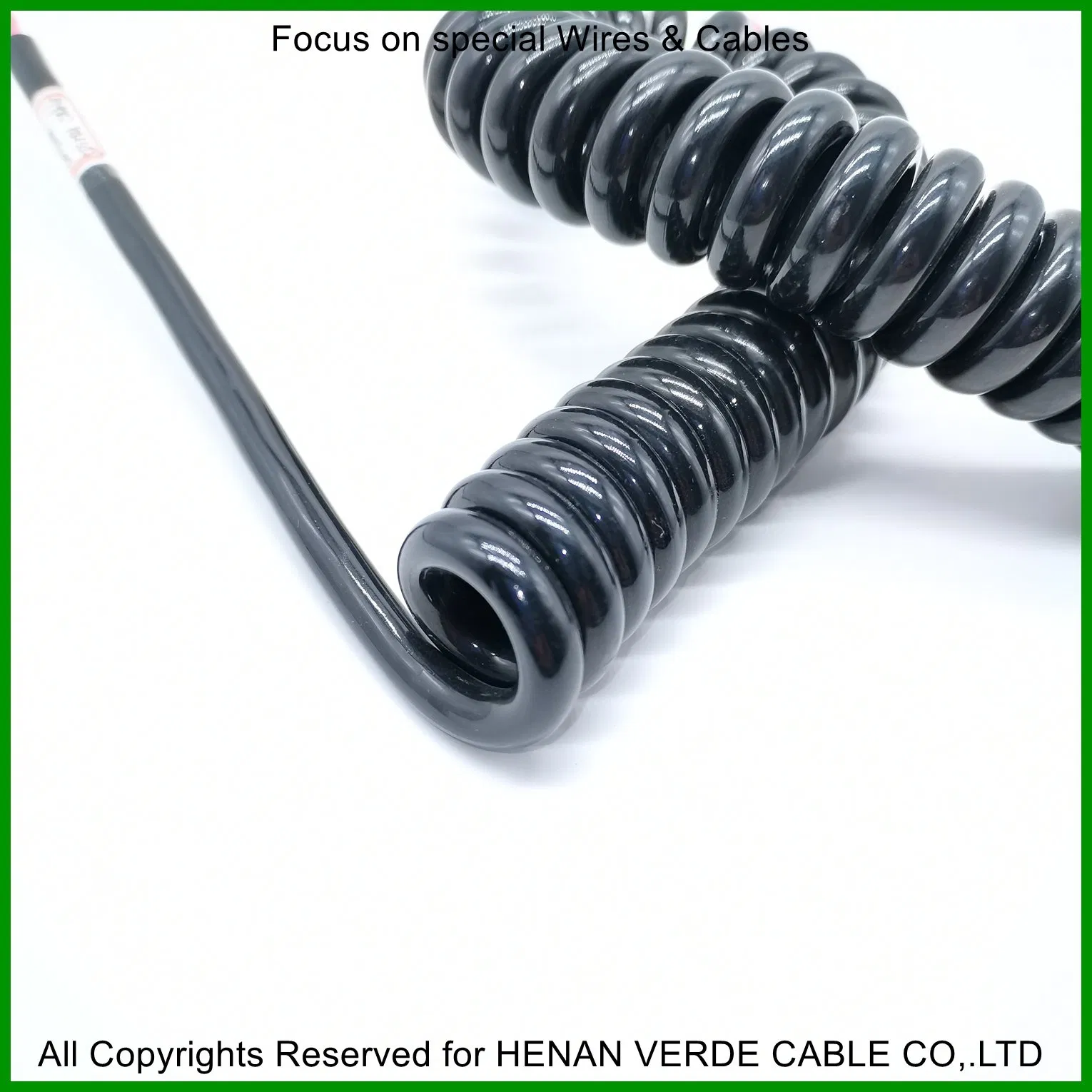

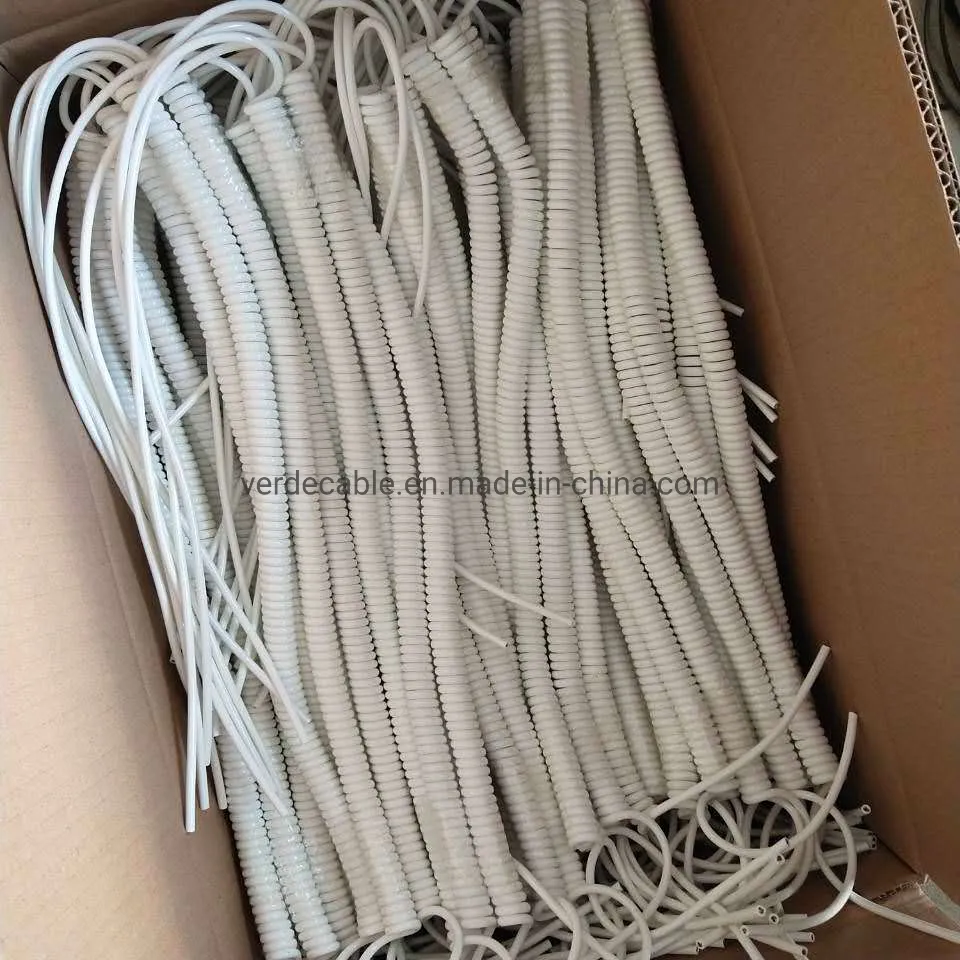

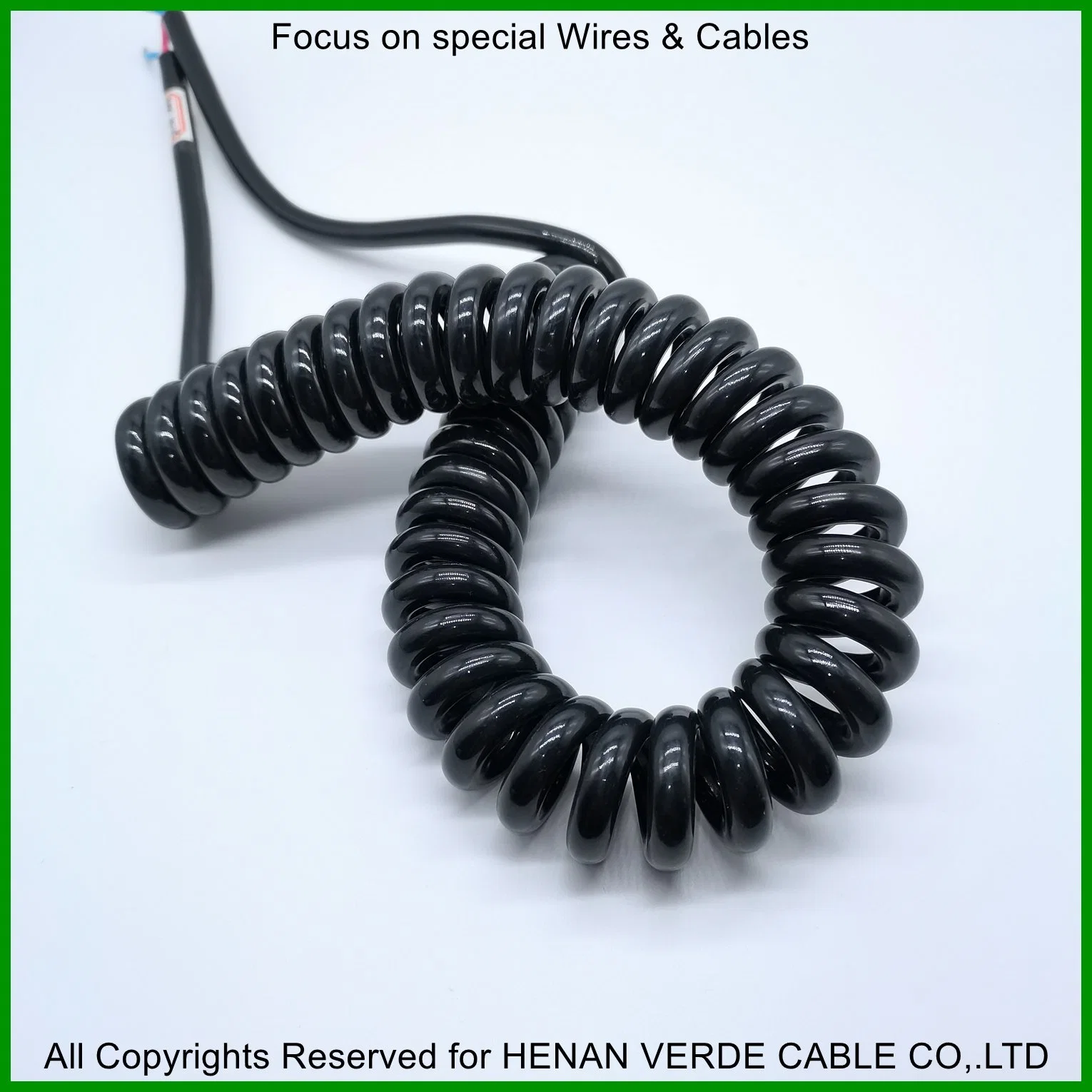

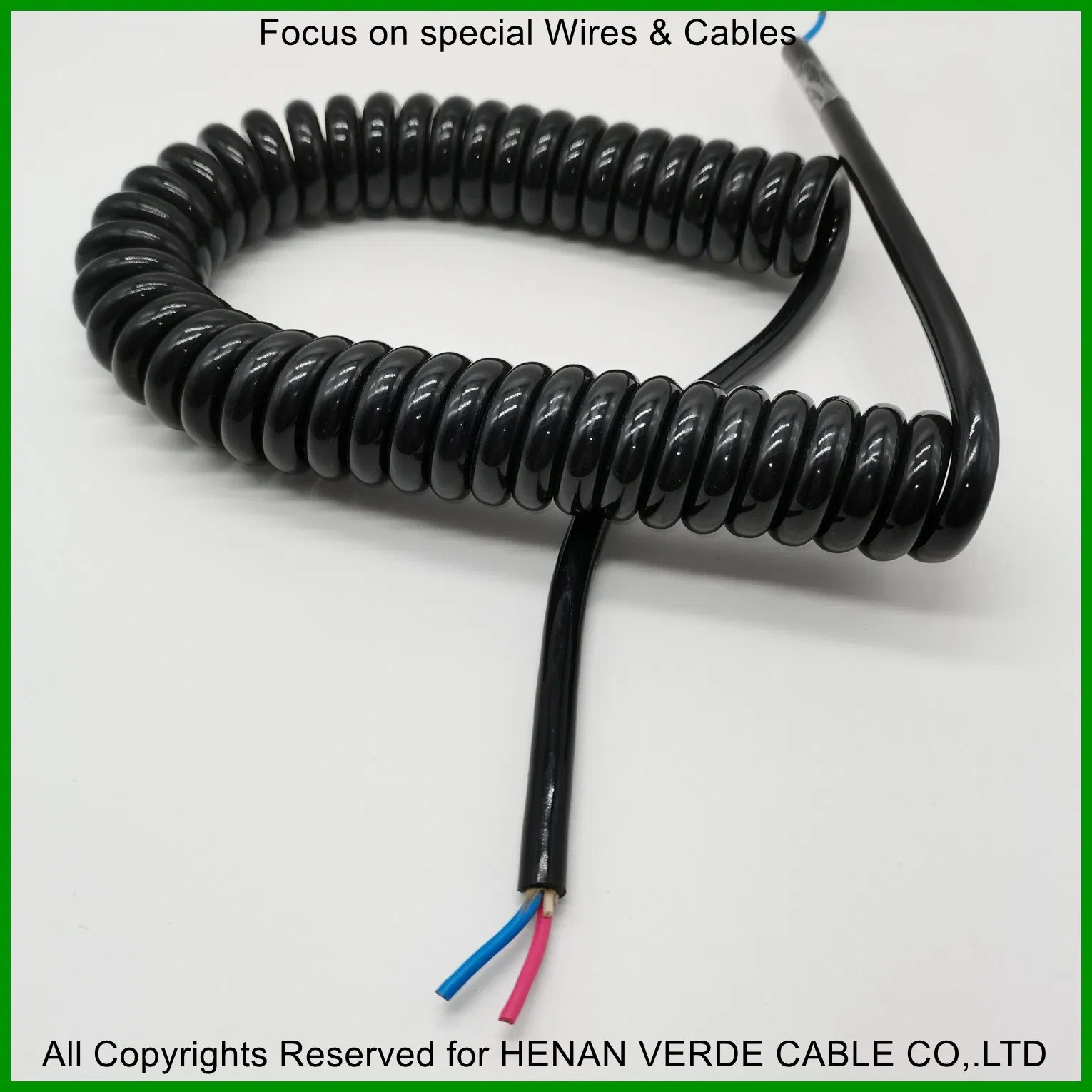

Flexible High Elastic Coiled Cables Spiral Cable
1. Application:
For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.
2. Structure & Specifications:
Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP / PU /TPE
Sheath material: PU / TPEE / PVC
Expanding length: 1.0 m-25.5m
Color: black , Red, Gre en, Blue , Orange , White, different colors can be customized.
Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

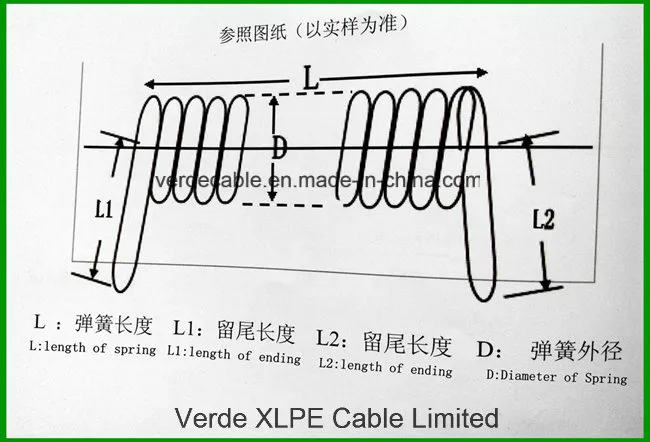

Spring Length: arbitrary (customized according to customer requirements)

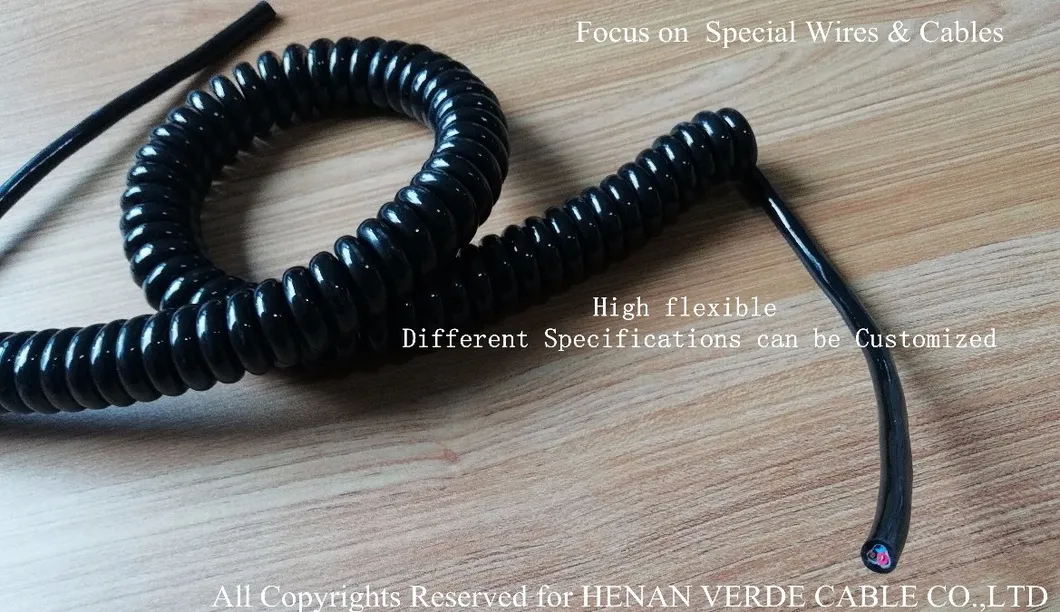

Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.
3. Range we can produce:
Nominal cross section: 0.12~4mm2
Nmubers of cores: 1~30 core
Length of Spring: customized as per your request
If you want to know more about us and our products,pls contact us.
