Flexible Single Core PVC PE FEP PFA Electric Cable Hook up Electrical Wire

Product Description

Flexible Single Core PVC PE FEP PFA Electric Cable Hook up Electrical Wire

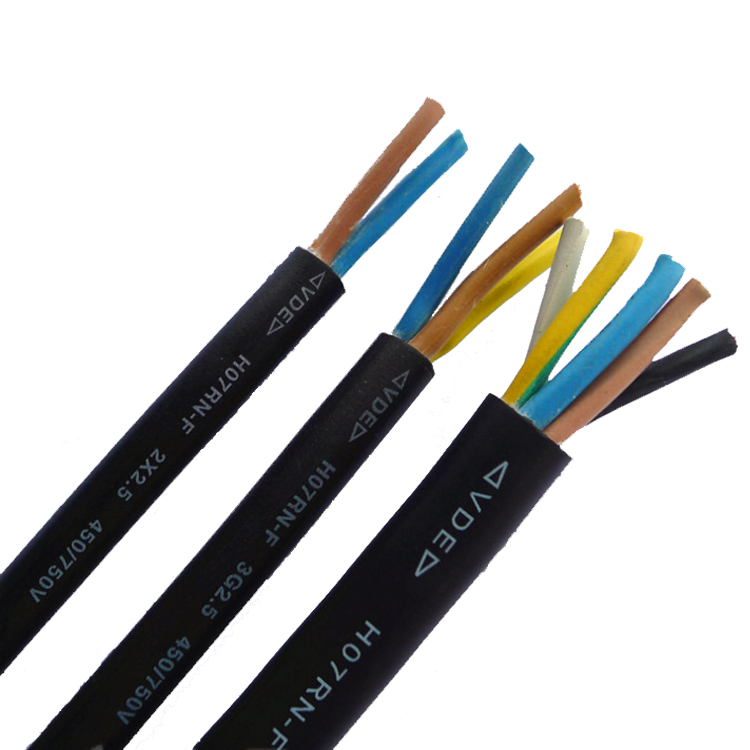

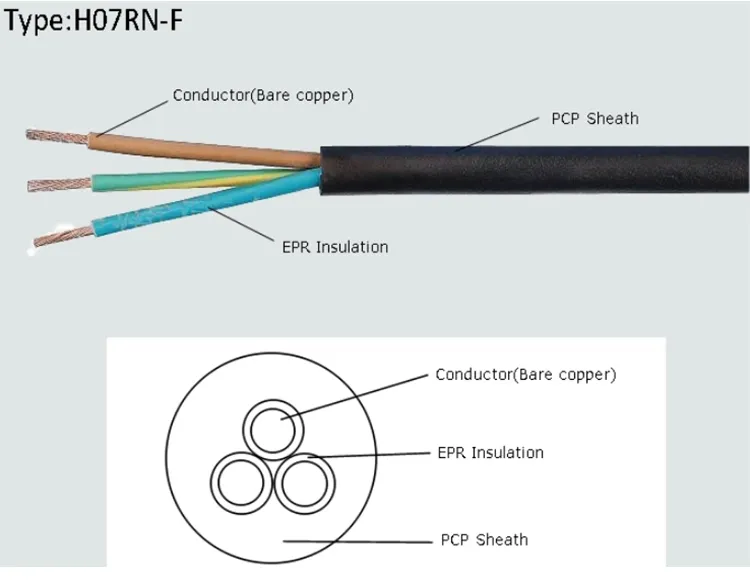

H07RN-F Cable Construction:
Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
Conductor Stranding: from 2 conductors stranded in layers
Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
Jacket Color: Black
H07RN-F Cable Technical Data:
Nominal Voltage: Uo/U 450/750 volts
Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
Min. Bending Radius: 15 x O.D.
H07RN-F Cable Ratings & Approvals:
Temperature Range: -25°C to +60°C
VDE
HAR
CE
Working temperature:
H07RN-F  model rated voltage U0/U IS 450/750V
H05RN-F  model rated voltage U0/U IS 300/500V
H05RR-F  model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
Flexible Single Core PVC PE FEP PFA Electric Cable Hook up Electrical Wire

Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245 IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
H01N2-D	60245 IEC 82(YHF)	polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable	100/100V	10-120
