China Flame Retardant Tinned Copper Conductor Silicone Electrical Wire

Product Description

High Temperature Resistance Flexible Silicone Wire Cable

Different Specifications can be Customized according to your special requirement.

1.Description:
Rated Voltage:300/500V,0.6/1kV, 10KV 20KV 30KV 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC

2.Cable Structure:
Conductor: Annealed Copper,Tinned Copper, Silver plated Copper
Multi Strand

Insulation: Silicone Rubber

If need as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber

3.Standard:
1).UL ,IEC60502
2).Different specification and standard can be customized.

4. Main Technical Data For one part of Silicone wire.
If you want to know more technical specification, pls directly contact us.

Conductor			Insulation
Conductor			3KV		6KV		10KV		20KV		50KV
AWG	Conductor construction NO. *φ mm	Diameter mm	Insulation Thick mm	Overall Diameter mm	Insulation Thick mm	Overall Diameter mm	Insulation Thick mm	Overall Diameter mm	Insulation Thick mm	Overall Diameter mm	Insulation Thick mm	Overall Diameter mm
26	7*0.15	0.49	0.5	1.49	0.7	1.89	1	2.49	1.3	3.09	2.5	5.49
24	7*0.20	0.6	0.5	1.6	0.7	2	1	2.6	1.3	3.2	2.5	5.6
22	7*0.26	0.78	0.5	1.76	0.7	2.14	1	2.78	1.3	3.36	2.5	5.76
20	7*0.30	0.91	0.5	1.91	0.7	2.31	1	2.91	1.3	3.51	2.5	5.91
18	7*0.40	1.17	0.5	2.17	0.7	2.57	1	3.17	1.3	3.77	2.5	6.17
16	7*0.50	1.5	0.5	2.5	0.7	2.9	1	3.5	1.3	4.1	2.5	6.5
14	43*0.25	1.83	0.6	3.03	0.8	3.43	1.2	4.23	1.5	4.83	3	7.83

5.Type Description &Specification Range we produce

Type & Description we can supply	Core Number	Nominal cross section area (mm2)
Tinned copper conductor Silicone Rubber Insulation and sheathed cable	1, 2, 3, 4, 5, 3+1,3+2, 4+1	1.5~to500 for single core 1.5 ~240 for multi-core
Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring	3, 4, 5, 3+1,3+2, 4+1	1.5~240
Flame Retardant Flexible Type Copper conductor Silicone Rubber Insulation and sheathed cable	1, 2, 3, 4, 5, 3+1,3+2, 4+1	1.5~500 for single core 1.5~240 for multi-core
Flame Retardant Copper conductor Silicone Rubber Insulation and sheathed rubber cable With Copper wire Braided Shielding Type	1, 2, 3, 4, 5, 3+1,3+2, 4+1	1.5~500 for single core 1.5~240 for multi-core
Copper conductor Silicone Rubber Insulation and sheathed rubber cable For Moving usage	1, 2, 3, 4, 5, 3+1,3+2, 4+1	1.5~500 for single core 1.5~240 for multi-core

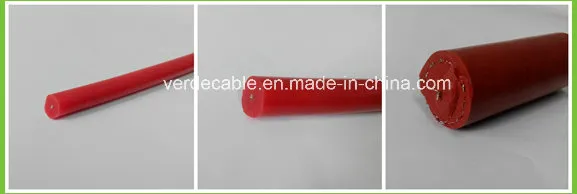

Silicone Cable with 10KV 20KV ~ 50KV
Flame Retardant Tinned Copper Conductor Silicone Electrical Wire

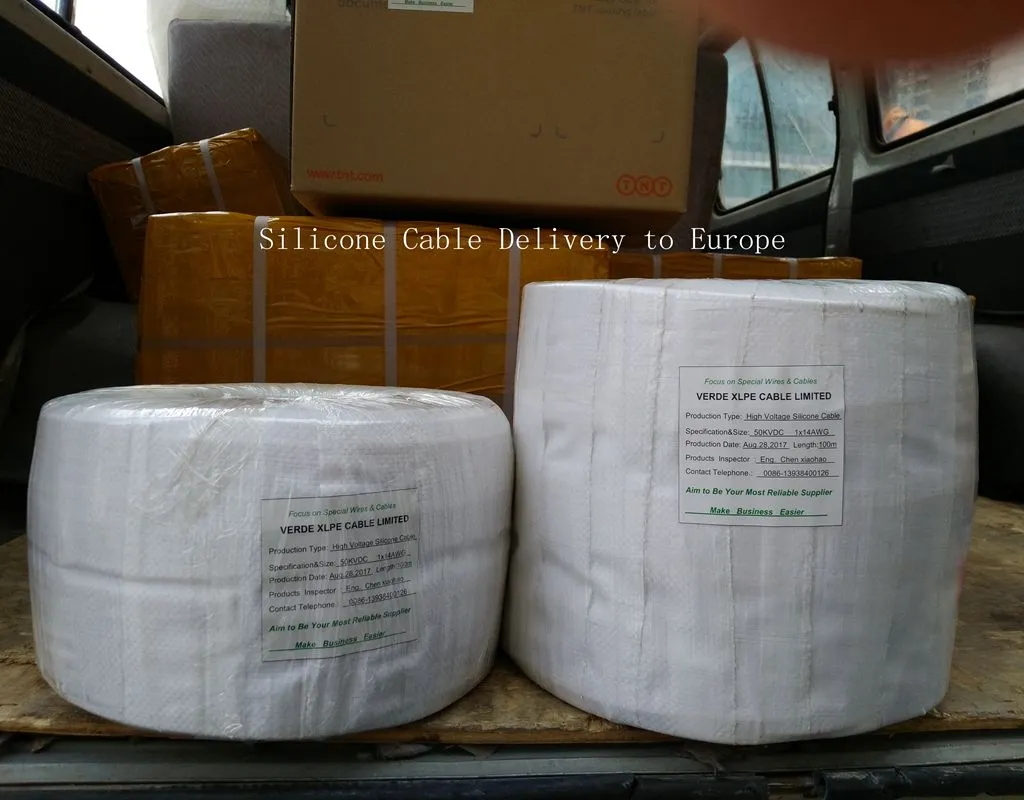

5.Delivery and packing:
Flame Retardant Tinned Copper Conductor Silicone Electrical Wire

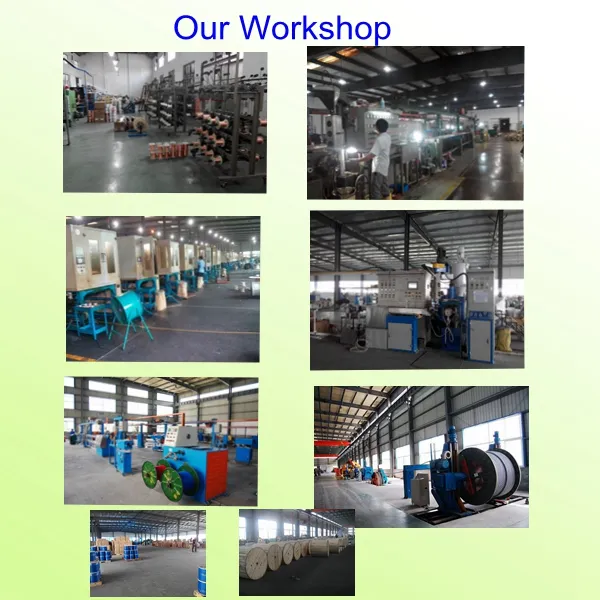

6.Our workshop
Flame Retardant Tinned Copper Conductor Silicone Electrical Wire

If you want to know more techincal information,pls contact us.
