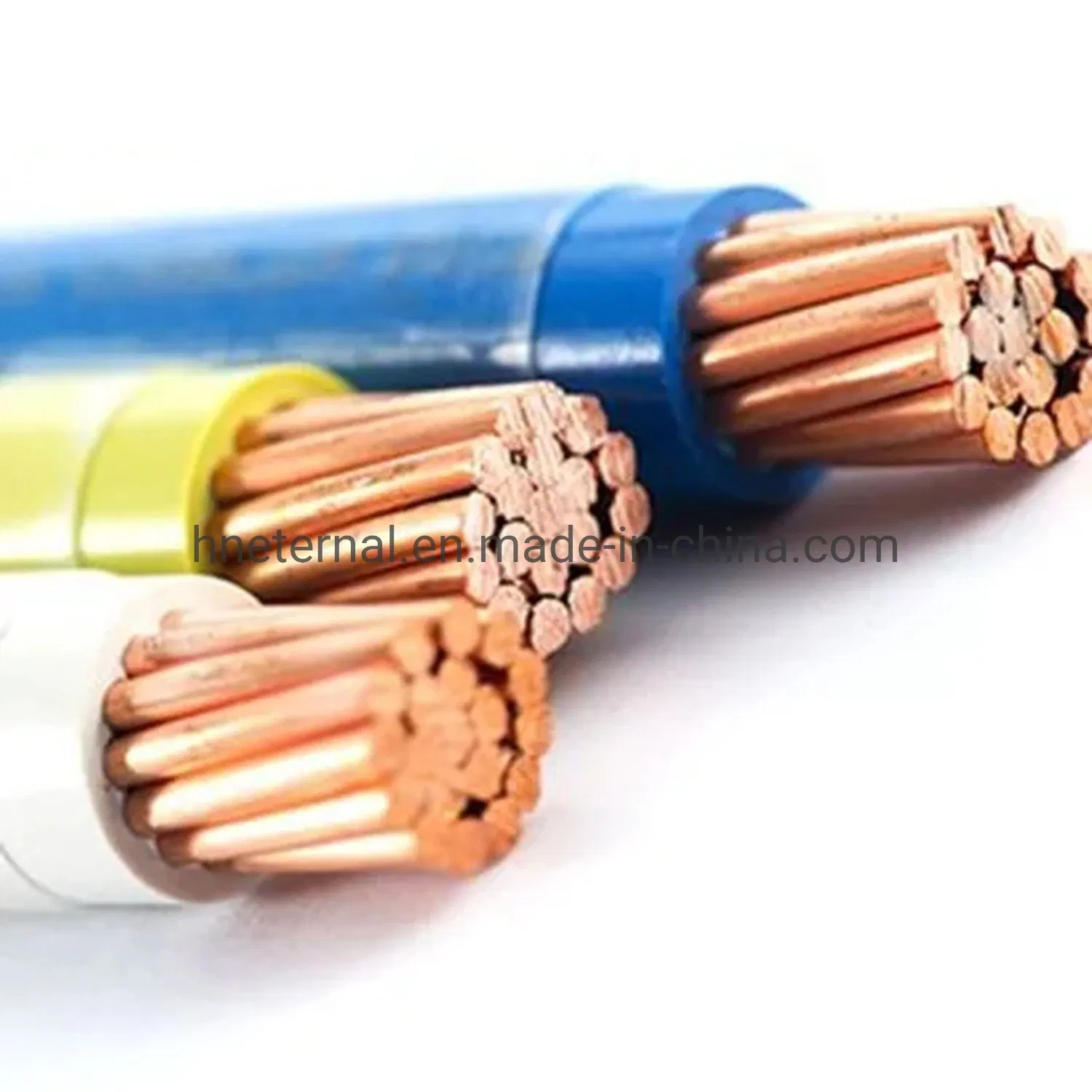

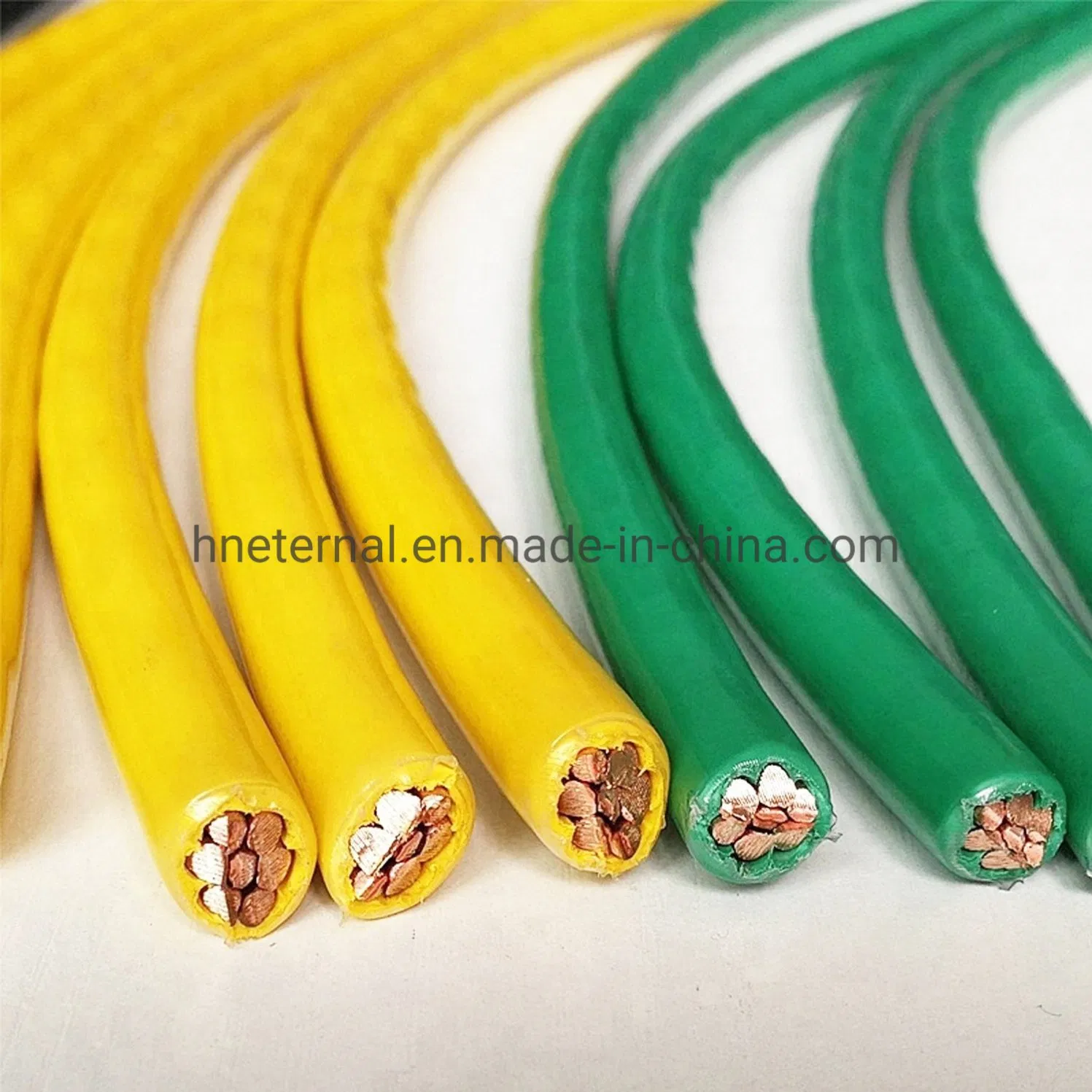

Electrical Stranded Copper Conductor PVC Insulation and Nylon Sheath Thhn/Thwn Cable Wire
Product DescriptionApplication:THHN wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiringConstruction:1. Conductor: Highly conductive copper or AA-8000 aluminum2. Insulatio......
Send Inquiry
Product Description
Application:
THHN wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring

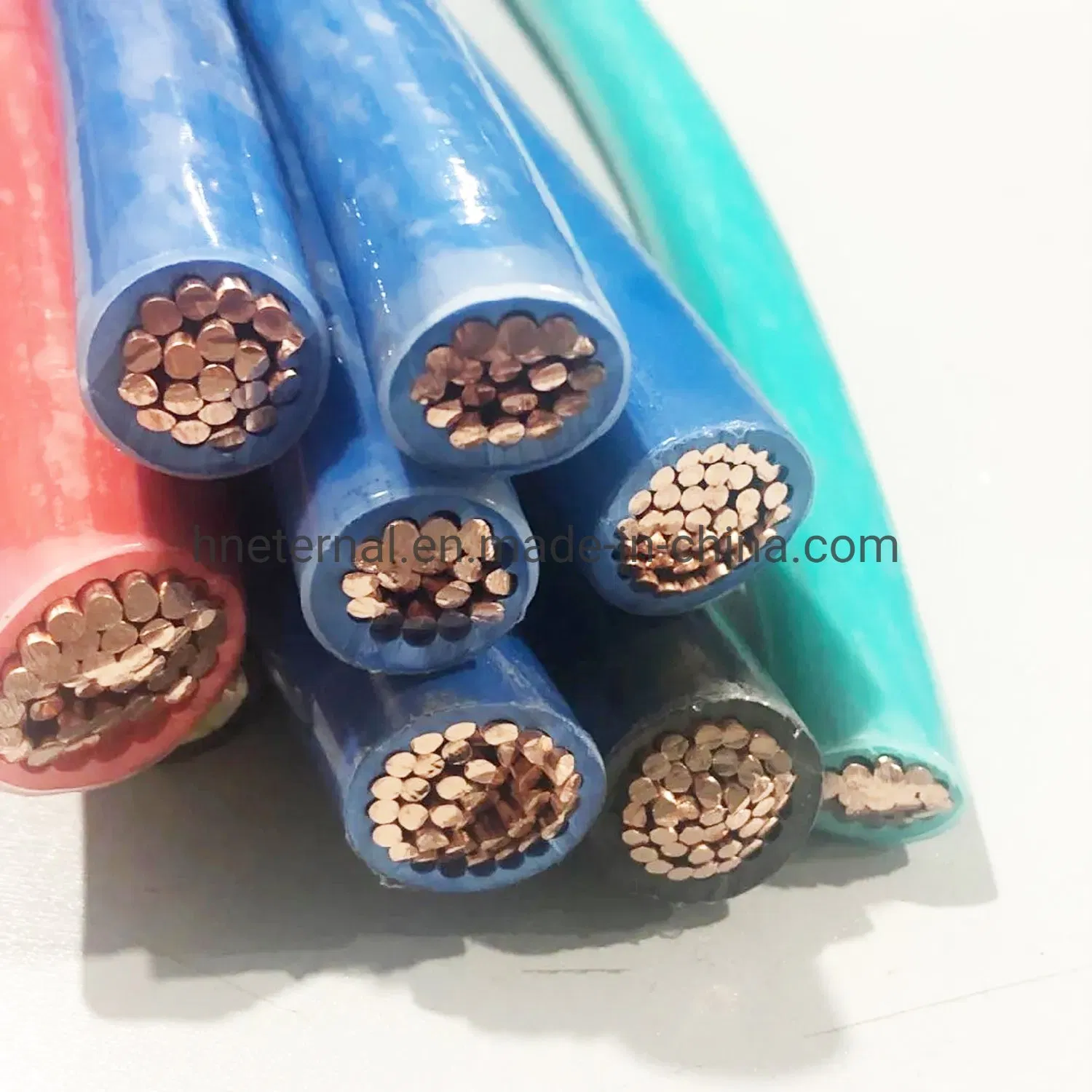

Construction:
1. Conductor: Highly conductive copper or AA-8000 aluminum
2. Insulation: Color-coded, heat and moisture resistant PVC
3. Jacket: Transparent self-lubricated nylon
Features:
VW-1 flame rating
THHN wire is often dual rated: 90ºC dry and 75ºC wet
Oil resistant: 75ºC for 60d
Furthermore, resistant to acid, abrasion, alkalis, gas, and UV
Standard:

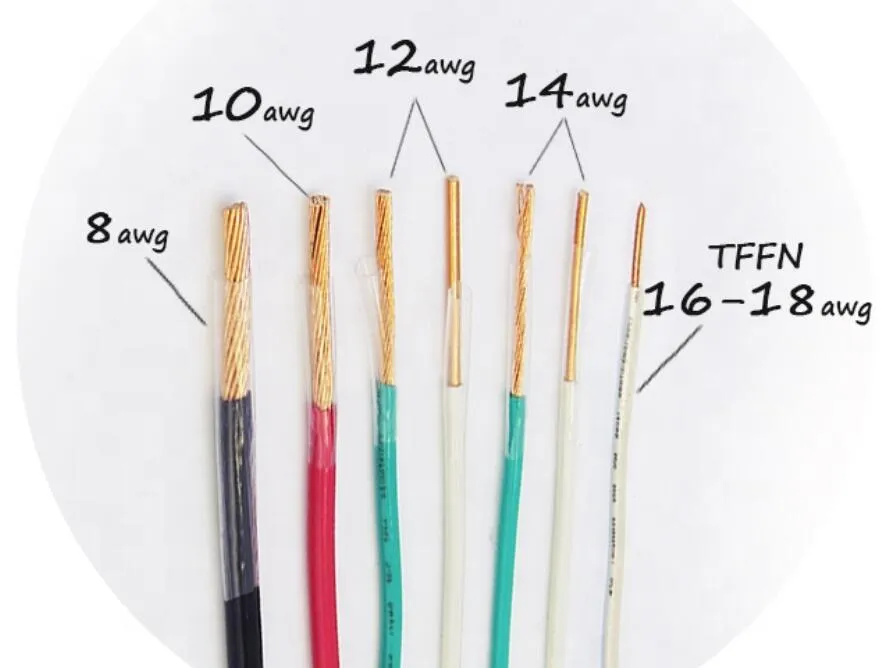

Conductor: It's available for both of American Wire Gauge and Philippine National Code
(UL83, ASTM B3, ASTM B8, ASTM B801, PEC)
Insulation: UL83
Jacket: UL83
Color:
To costumer request
| Part No. | Conductor | Insulation | Jacket | Max Dia-meter (mm) | Ref.WT (kg/km) | ||||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Nominal Diameter (mm) | Minimum Thickness At any point (mm) | Nominal Diameter (mm) | |||
| THHN-14B | 14 | 7/0.62 | 1.86 | 0.38 | 2.66 | 0.1 | 2.9 | 3.3 | 25 |
| THHN-14B1 | 14 | 19/0.38 | 1.9 | 0.38 | 2.7 | 0.1 | 2.94 | 3.4 | 25 |
| THHN-12B | 12 | 7/0.78 | 2.34 | 0.38 | 3.14 | 0.1 | 3.38 | 3.8 | 38 |
| THHN-12B1 | 12 | 19/0.47 | 2.35 | 0.38 | 3.15 | 0.1 | 3.39 | 3.8 | 38 |
| THHN-10B | 10 | 7/0.98 | 2.94 | 0.51 | 4 | 0.1 | 4.24 | 4.8 | 59 |
| THHN-10B1 | 10 | 19/0.60 | 3 | 0.51 | 4.06 | 0.1 | 4.3 | 4.8 | 59 |
| THHN-8B | 8 | 7/1.23 | 3.69 | 0.76 | 5.25 | 0.13 | 5.55 | 6.2 | 97 |
| THHN-8B1 | 8 | 19/0.75 | 3.75 | 0.76 | 5.31 | 0.13 | 5.61 | 6.3 | 96 |
| THHN-6B | 6 | 7/1.56 | 4.68 | 0.76 | 6.24 | 0.13 | 6.54 | 7.3 | 147 |
| THHN-6B1 | 6 | 19/0.95 | 4.77 | 0.76 | 6.33 | 0.13 | 6.63 | 7.4 | 146 |
| THHN-4B | 4 | 7/1.96 | 5.88 | 0.76 | 7.44 | 0.13 | 7.74 | 8.7 | 135 |
| THHN-4B1 | 4 | 19/1.19 | 5.95 | 0.76 | 7.51 | 0.13 | 7.81 | 8.7 | 135 |
| THHN-3B | 3 | 7/2.20 | 6.6 | 1.02 | 8.68 | 0.15 | 9.02 | 10 | 292 |
| THHN-3B1 | 3 | 19/1.33 | 6.65 | 1.02 | 8.73 | 0.15 | 9.07 | 10 | 291 |
| THHN-2B | 2 | 7/2.47 | 7.41 | 1.02 | 9.49 | 0.15 | 9.83 | 11 | 361 |
| THHN-2B1 | 2 | 19/1.50 | 7.5 | 1.02 | 9.58 | 0.15 | 9.92 | 11 | 361 |
| THHN-1B | 1 | 19/1.68 | 8.4 | 1.02 | 10.48 | 0.18 | 10.88 | 12.1 | 457 |
| THHN-1/0B | 1/0 | 19/1.89 | 9.45 | 1.27 | 12.03 | 0.18 | 12.43 | 13.8 | 585 |
| THHN-2/0B | 2/0 | 19/2.12 | 10.6 | 1.27 | 13.18 | 0.18 | 13.58 | 15.1 | 724 |
| THHN-3/0B | 3/0 | 19/2.38 | 11.9 | 1.27 | 14.48 | 0.18 | 14.88 | 16.5 | 900 |
| THHN-4/0B | 4/0 | 19/2.67 | 13.35 | 1.27 | 15.93 | 0.18 | 16.33 | 18.1 | 1118 |
| THHN-14A | 14 | 1/1.63 | 1.63 | 0.38 | 2.43 | 0.1 | 2.67 | 3.1 | 22 |
| THHN-12A | 12 | 1/2.05 | 2.05 | 0.38 | 2.85 | 0.1 | 3.09 | 3.5 | 36 |
| THHN-10A | 10 | 1/2.59 | 2.59 | 0.51 | 3.65 | 0.1 | 3.89 | 4.4 | 57 |
| THHN-8A | 8 | 1/3.26 | 3.26 | 0.76 | 4.82 | 0.13 | 5.12 | 5.7 | 94 |

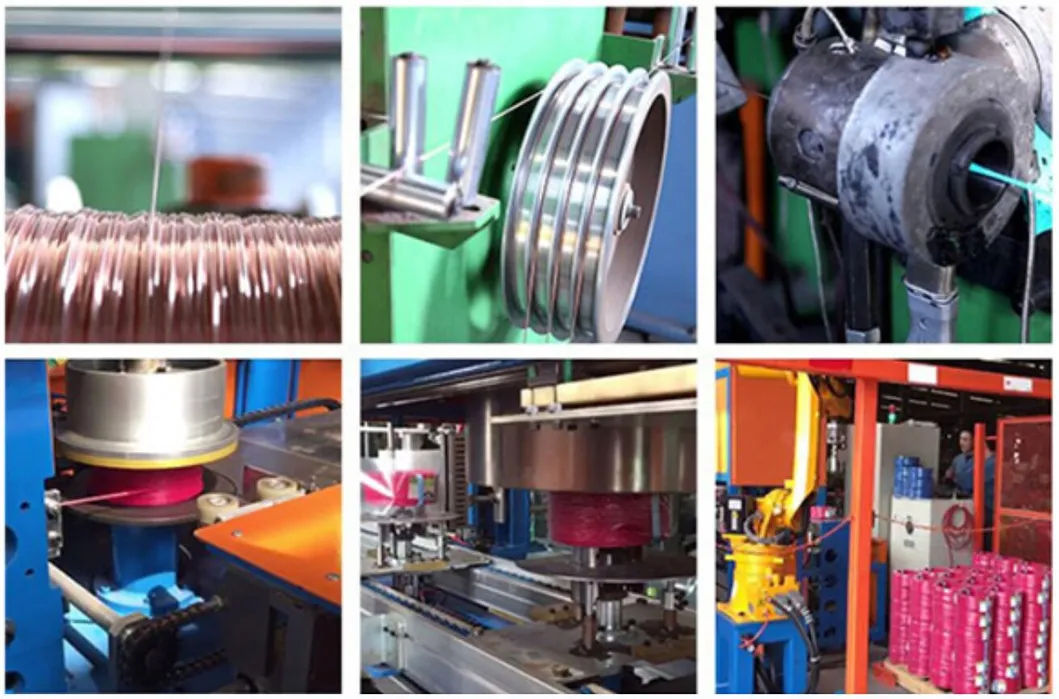

Production Process

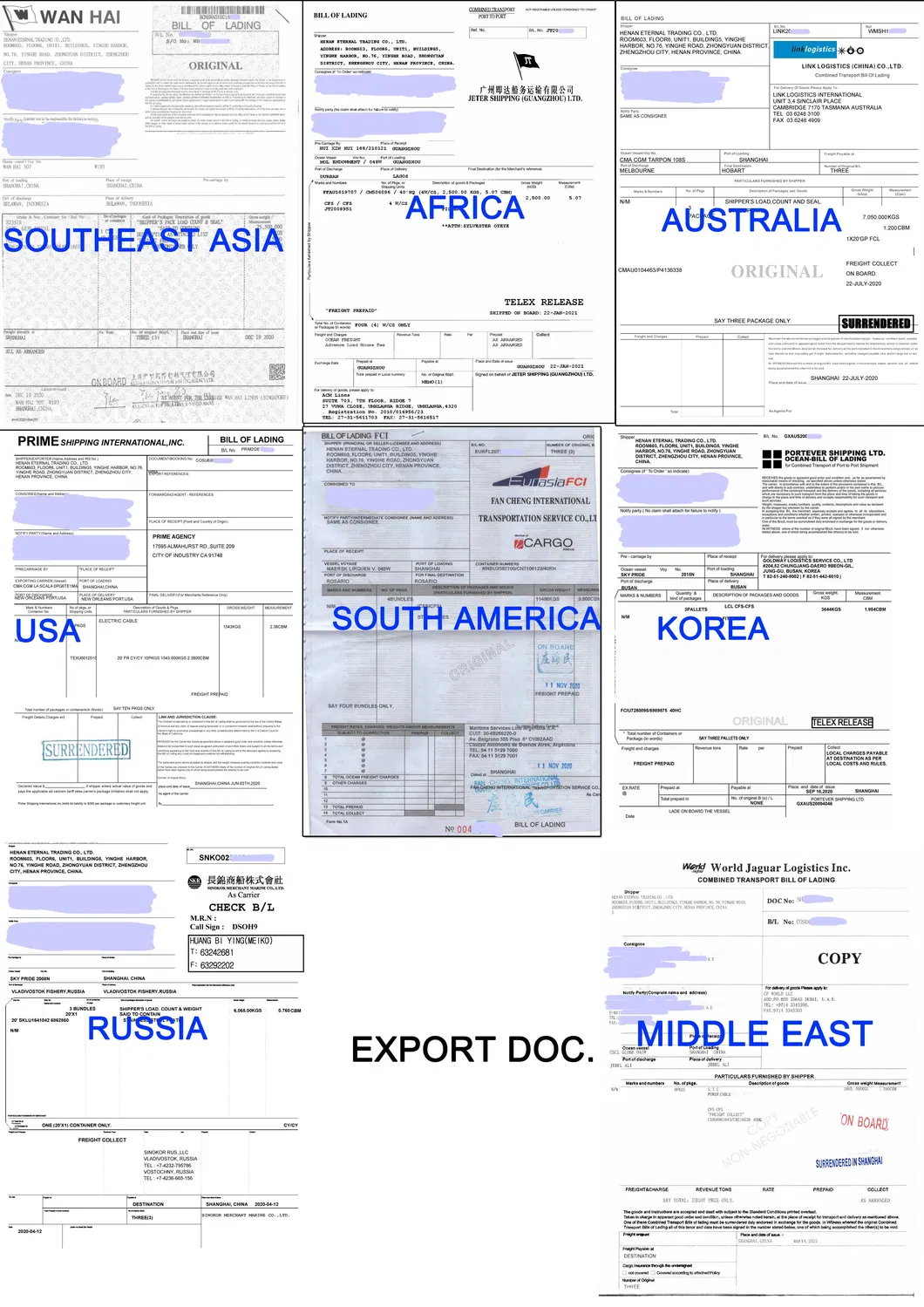

Partial Export Areas:

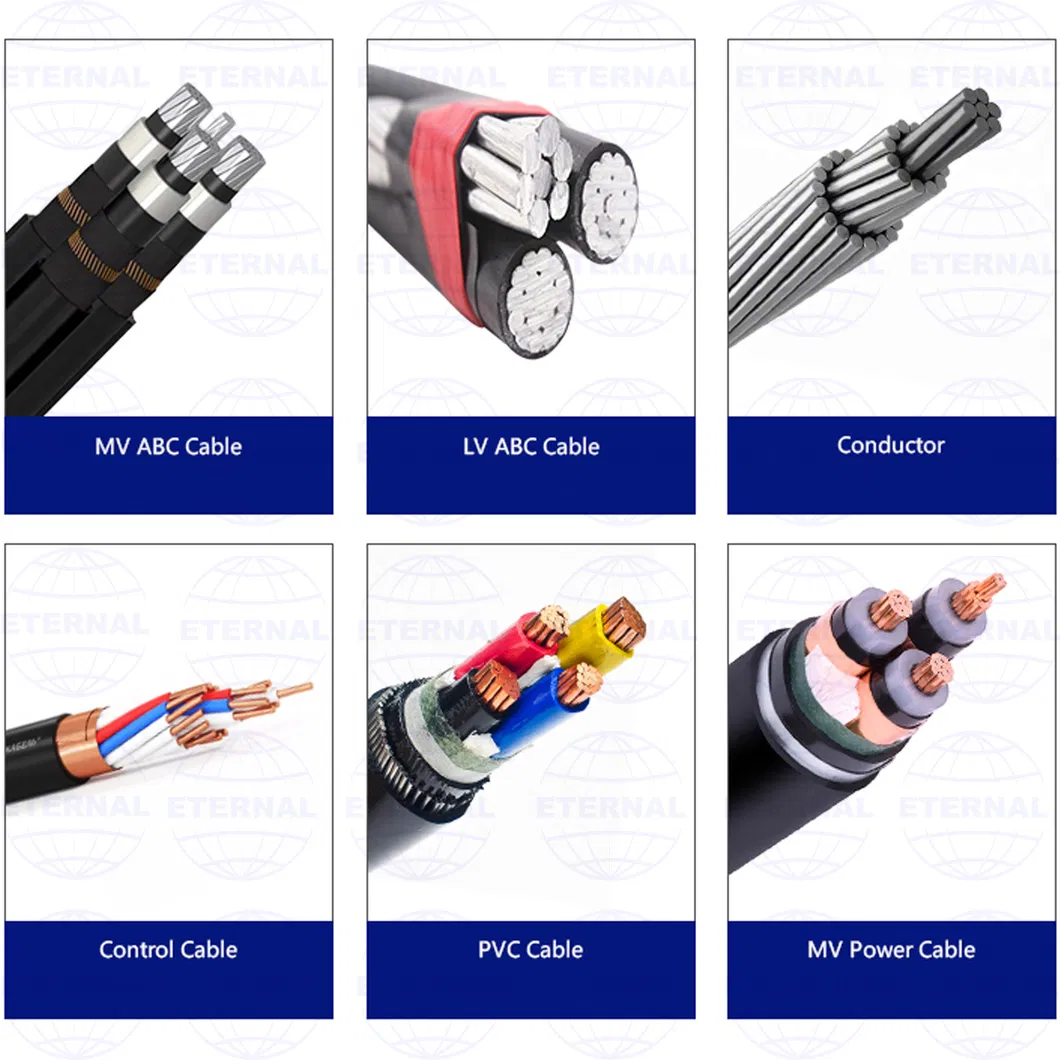

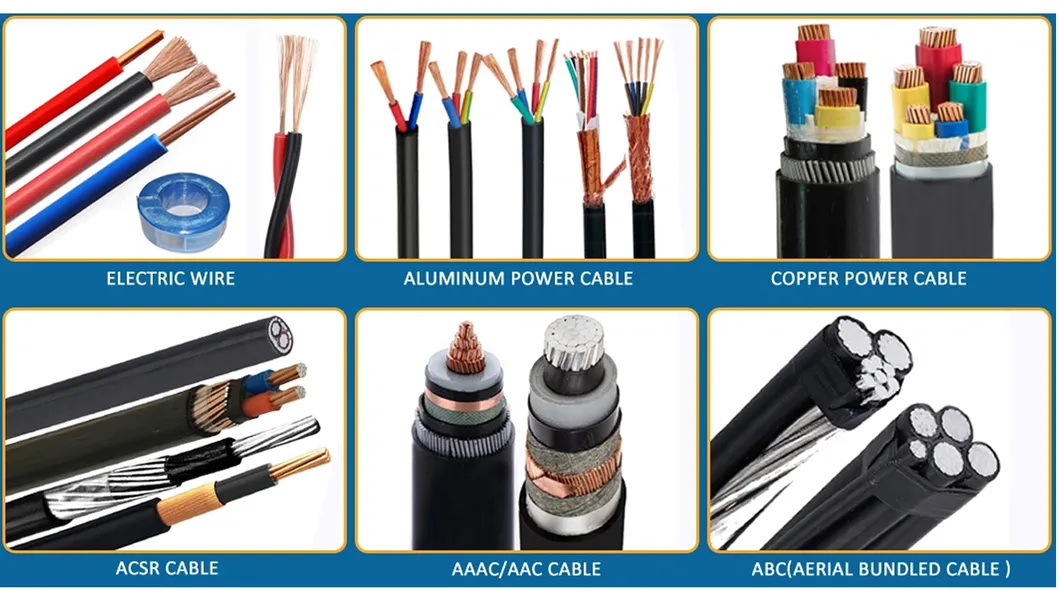

Related Products:
Why Choose Us:
1.Quickly and professional response
2. 17+ imports and export experiences
3. Excellent quality with reasonable price.
4. Sufficient support for our tendering representatives.
5. OEM service available based on official & legal authorization.
6. Strict quality control system.
7. Faster lead time than our competitors.
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10.12 months quality guarantee after delivery.
