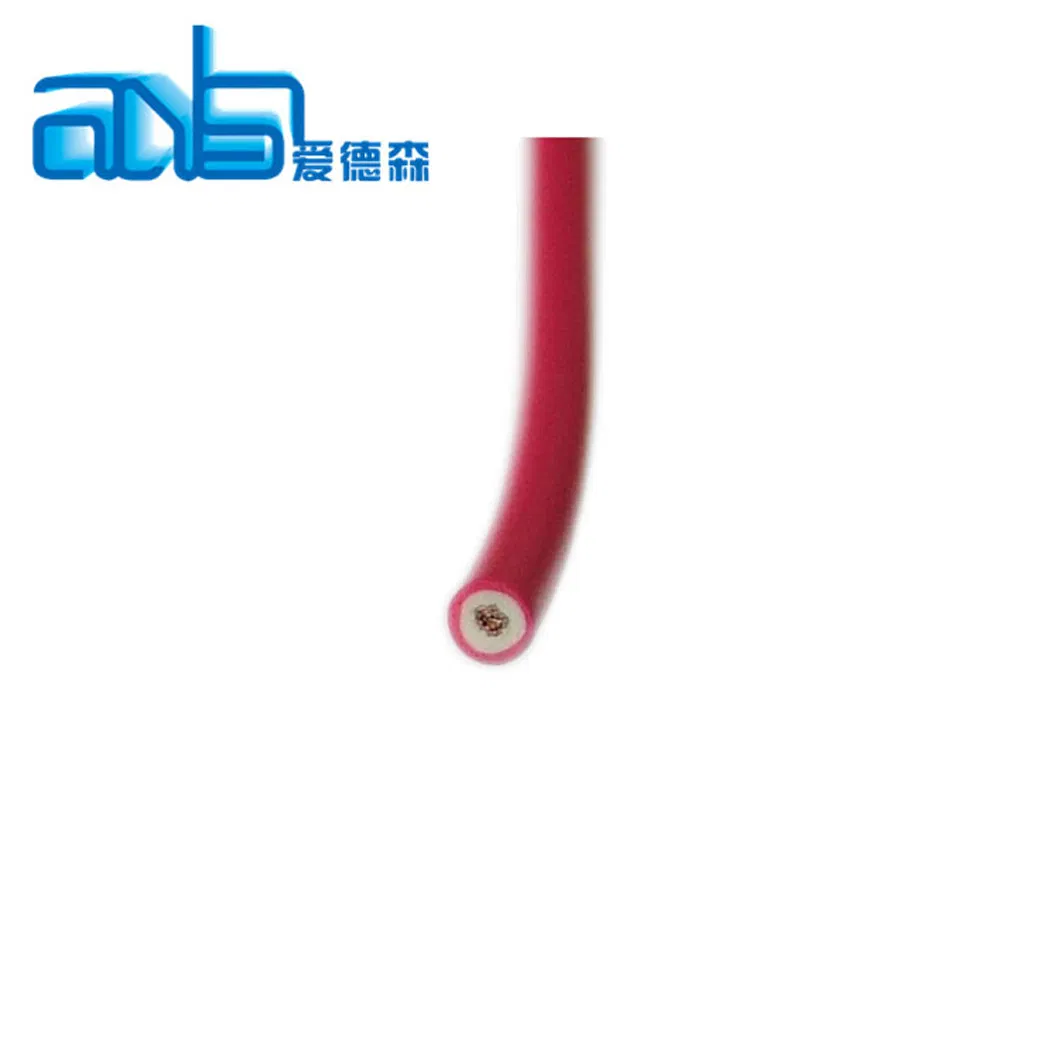

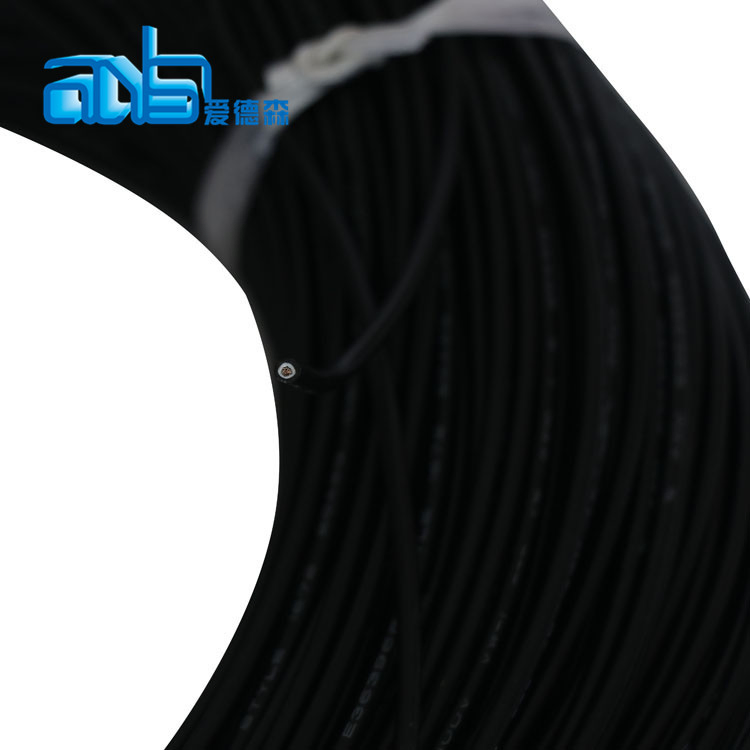

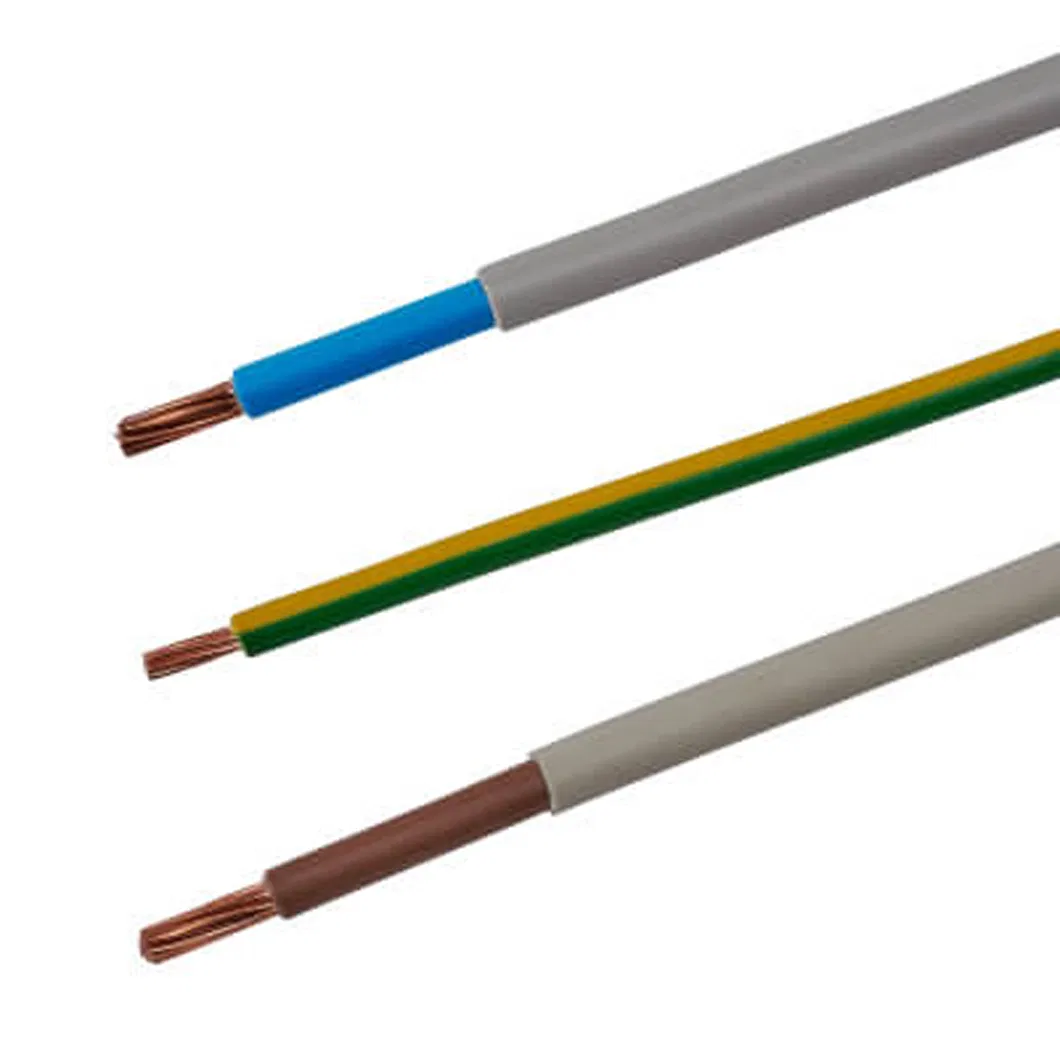

Double Insulated PVC Coated Strands Cppper Electrical Wire UL1672
PRODUCT DESCRIPTION ConductorSolid or stranded , tinned or bare copper conductor 28AWG~14AWGInsulationPVC insulationRated Temperature105ºCRated voltage300VInsulationExtruded PVC or XLPVC. 5 mils minimum thickness at any point, 40 mils maximum thickness.MarkingGeneral.StandardUL758,UL1581Te......
Send Inquiry
Product Description
PRODUCT DESCRIPTION
| Conductor | Solid or stranded , tinned or bare copper conductor 28AWG~14AWG |
| Insulation | PVC insulation |
| Rated Temperature | 105ºC |
| Rated voltage | 300V |
| Insulation | Extruded PVC or XLPVC. 5 mils minimum thickness at any point, 40 mils maximum thickness. |
| Marking | General. |
| Standard | UL758,UL1581 |
| Test | VW-1 Horizontal flame Test |
| Certificate | UL ROHS |
| Color | White, blue, red, black,yellow,green,yellow-green and etc. |
| Application | Internal Wiring of Class 2 Circuits in electronic equipment. |

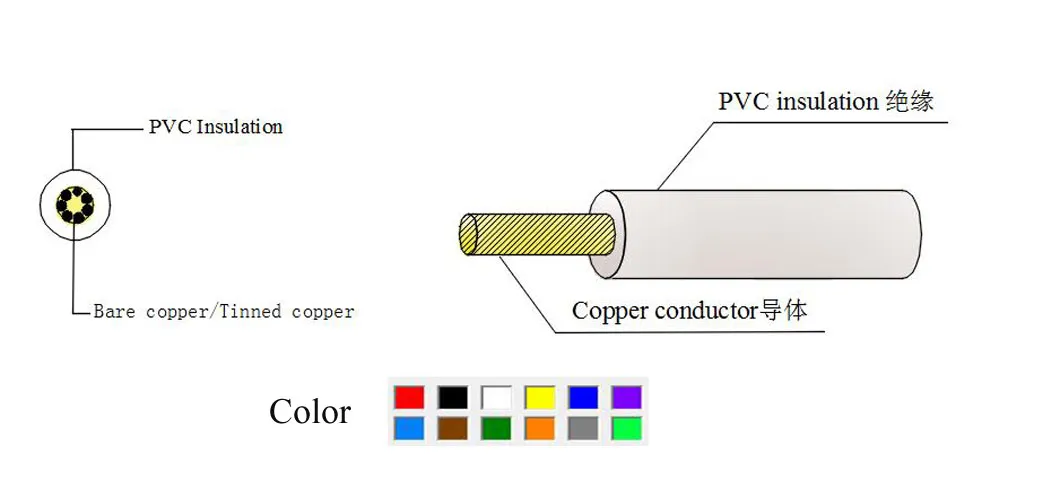

CABLE CONSTRUCTION
| UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor outer diameter (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance (Ω/kft ,20ºC | standard pup-up | |
| FT/ROLL | METER /ROLL | |||||||
| 1672 | 28 | 1/0.32 | 0.32 | 0.44 | 1.2 | 227 | 2000 | 610 |
| 7/0.127 | 0.38 | 0.46 | 1.3 | 239 | ||||
| 26 | 1/0.404 | 0.4 | 0.45 | 1.3 | 143 | |||
| 7/0.16 | 0.48 | 0.46 | 1.4 | 150 | ||||
| 24 | 1/0.511 | 0.51 | 0.49 | 1.5 | 89.3 | |||
| 11/0.16 | 0.61 | 0.49 | 1.6 | 94.2 | ||||
| 22 | 1/0.643 | 0.64 | 0.48 | 1.6 | 56.4 | |||
| 17/0.16 | 0.76 | 0.47 | 1.7 | 59.4 | ||||
| 20 | 1/0.813 | 0.81 | 0.44 | 1.7 | 35.2 | |||
| 26/0.16 | 0.94 | 0.48 | 1.9 | 36.7 | ||||
| 18 | 1/1.024 | 1.02 | 0.44 | 1.9 | 22.2 | 1000 | 305 | |
| 41/0.16 | 1.17 | 0.47 | 2.1 | 23.2 | ||||
| 7/0.404 OS-1 | 1.18 | 0.46 | 2.1 | 23.2 | ||||
| 16 | 1/1.129 | 1.29 | 0.46 | 2.2 | 14 | |||
| 26/0.254 | 1.49 | 0.46 | 2.4 | 14.6 | ||||
| 14 | 1/1.6 | 1.6 | 0.45 | 2.5 | 8.78 | |||
| 41/0.254 | 1.88 | 0.46 | 2.8 | 8.96 | ||||

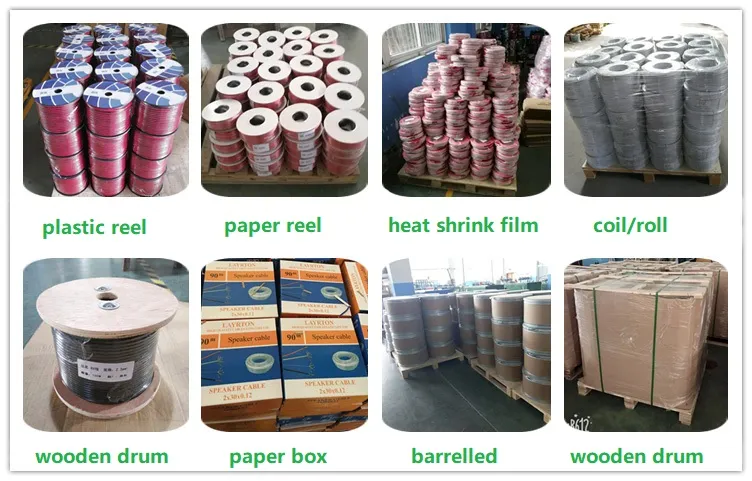

Packing

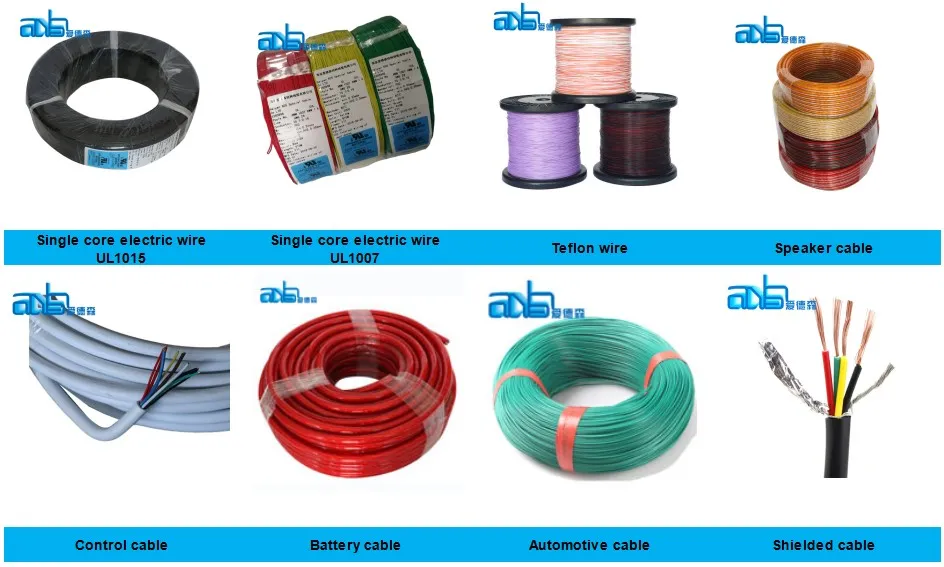

Main Products

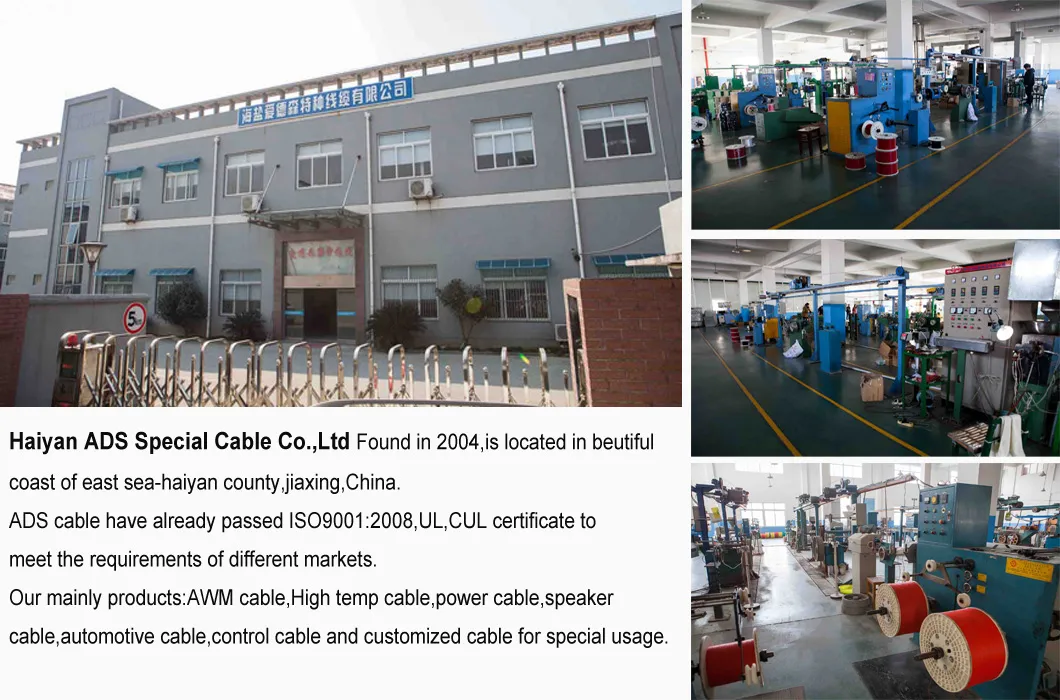

Company Introduction
Certificate

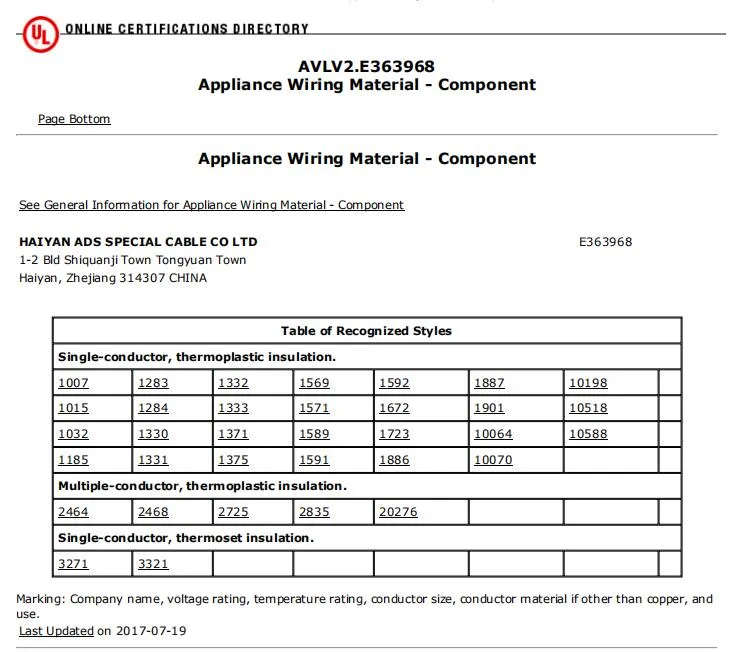

UL Certificate Items
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

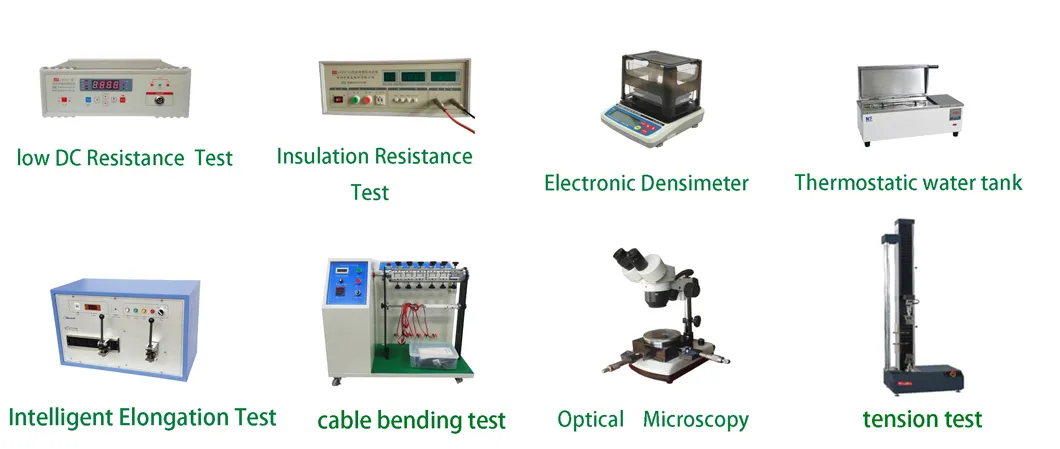

Test Equipment

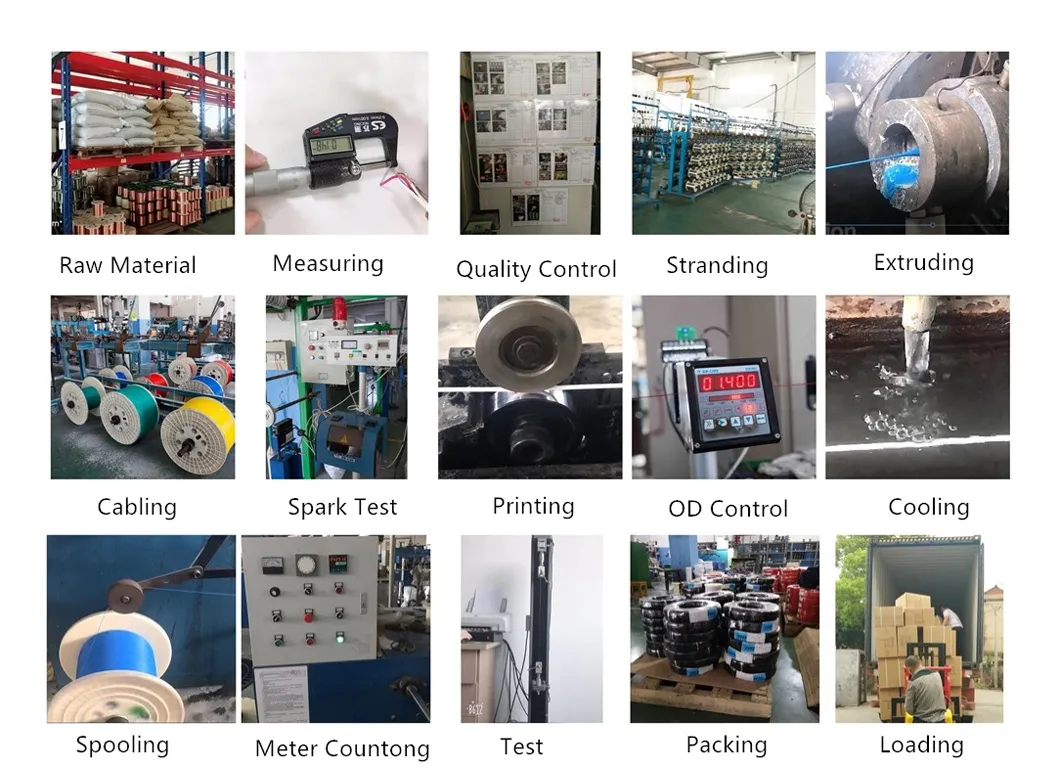

Production Process
Overseas Exibition
FAQ
Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
Q: Can I get some samples?
A: Yes, free samples with 10 meters if we have in stock, express fee on you which will be deducted from invoice value after order.
Q: Could I use my own LOGO (OEM) or design on goods?
A: Yes, Customized logo and designing on mass production are workable.
Q: Can I choose the color?
A: Yes, any color as you requirements.
Q: What is the delivery time?
A: Normally,within 2 weeks.But it need check with us when place order.
Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
