DIN 48201 Standard All Aluminium Alloy Conductor AAAC

Product Description

All aluminium alloy conductor AAAC with DIN 48201

AAAC--All Aluminum Alloy Conductor

APPLICATION:
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.

1.AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.

2.The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.

3.AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.

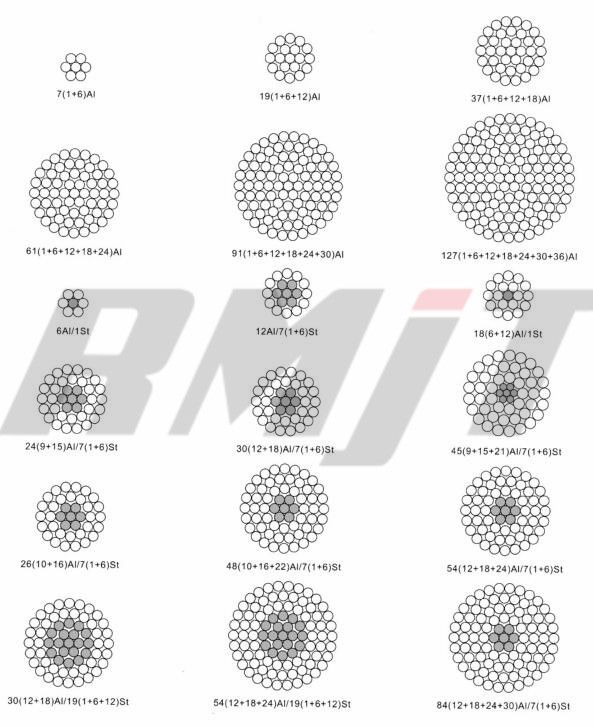

CONSTRUCTION:
AAAC is concentric-lay- stranded, similar in
construction and appearance with1350 grade aluminum conductors. They were developed to the need of economical conductor for overhead applications requiring higher strength than that of 1350 grade aluminum conductors, but without a steel core.

STANDARDS:
ASTM B399, BS EN50183 ,BS 3242,DIN 48201,IEC 61089

Code Number	Area.	No.of wires	Diameter		Linear Mass	Rated Tensile strengrh	DC Resistance at 20ºC
Code Number	Area.	No.of wires	Wire	Cond.	Linear Mass	Rated Tensile strengrh	DC Resistance at 20ºC
mm 2	mm 2		mm	mm	kg/km	daN	Ω/km
16	15.89	7	1.7	5.1	43.3	444	2.091
25	24.25	7	2.1	6.3	66.2	677	1.3703
35	34.36	7	2.5	7.5	93.8	960	0.9669
50	49.48	7	3	9	135.1	1382	0.6714
50	48.35	19	1.8	9	132.7	1350	0.6905
70	65.81	19	2.1	10.5	180.7	1838	0.5073
95	93.27	19	2.5	12.5	256	2605	0.3579
120	116.99	19	2.8	14	322	3268	0.2854
150	147.11	37	2.25	15.8	406	4109	0.2274
185	181.62	37	2.5	17.5	500.3	5073	0.1842
240	242.54	61	2.25	20.3	670.3	6774	0.1383
300	299.43	61	2.5	22.5	827	8363	0.112
400	400.14	61	2.89	26	1104	11176	0.0838
500	499.63	61	3.23	29.1	1379	13960	0.06709
625	626.2	91	2.96	32.6	1732	17490	0.054
800	802.09	91	3.35	36.9	2218	22402	0.0418
1000	999.71	91	3.74	41.1	2767	27922	0.0335

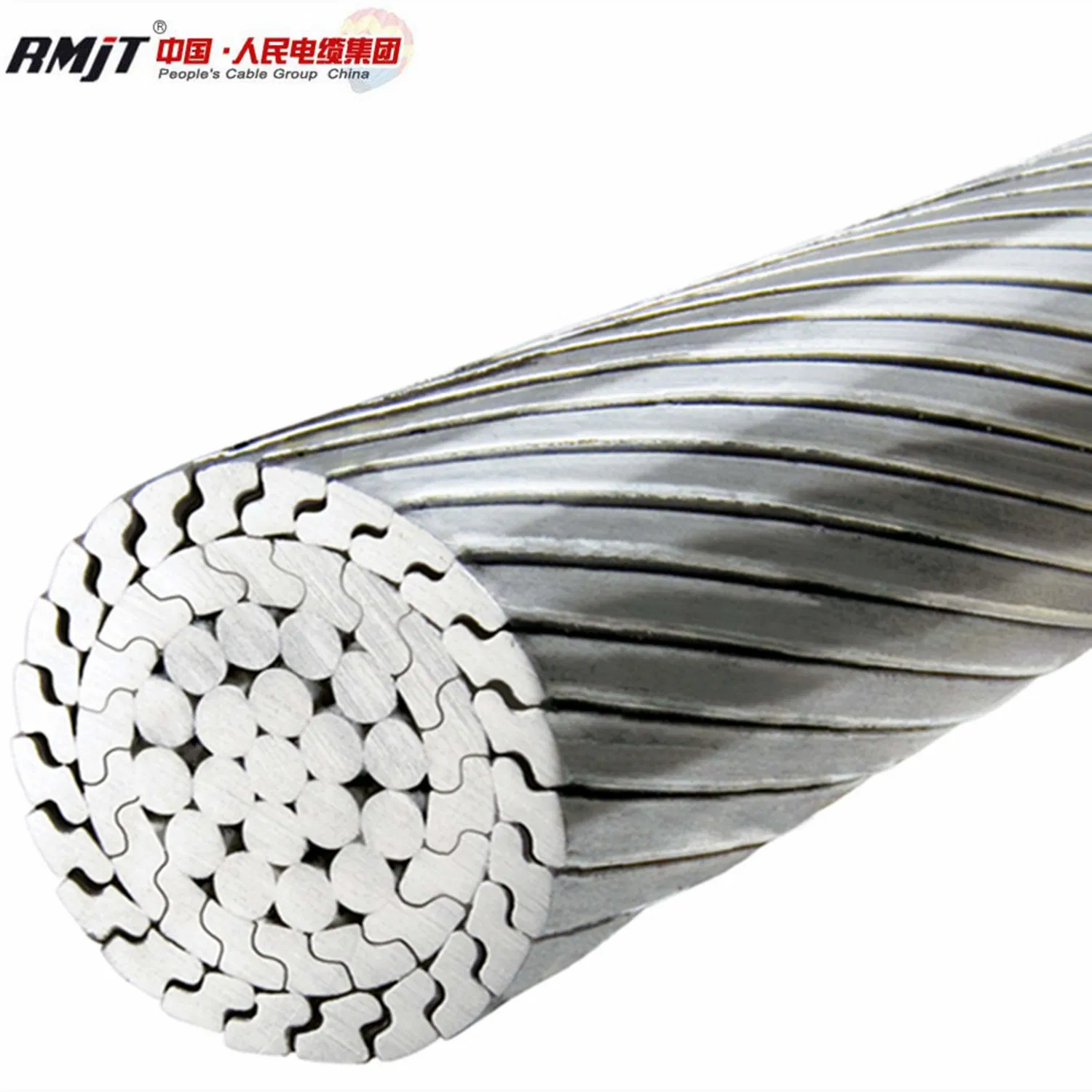

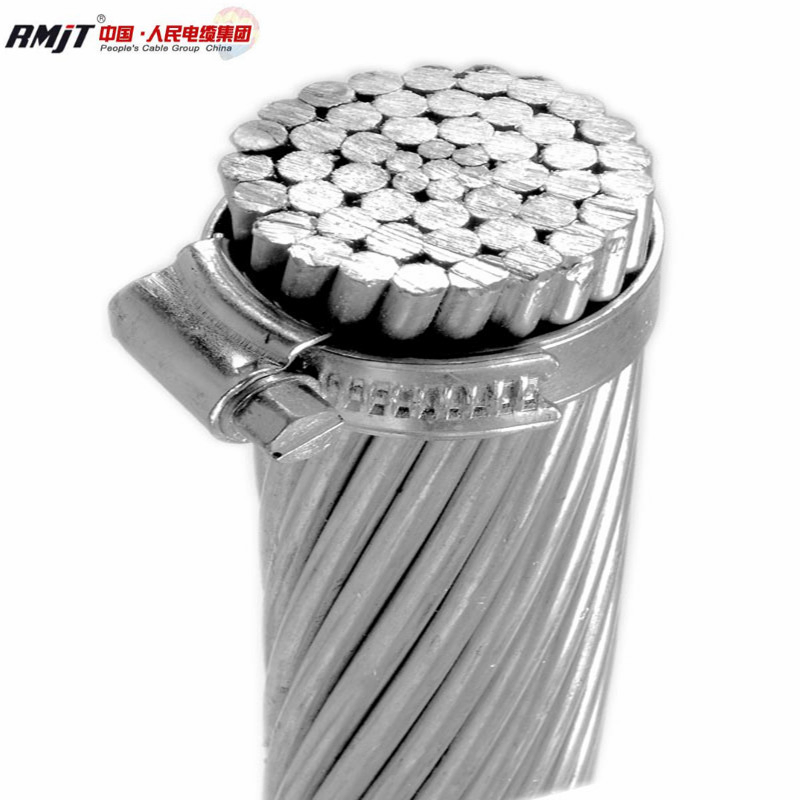

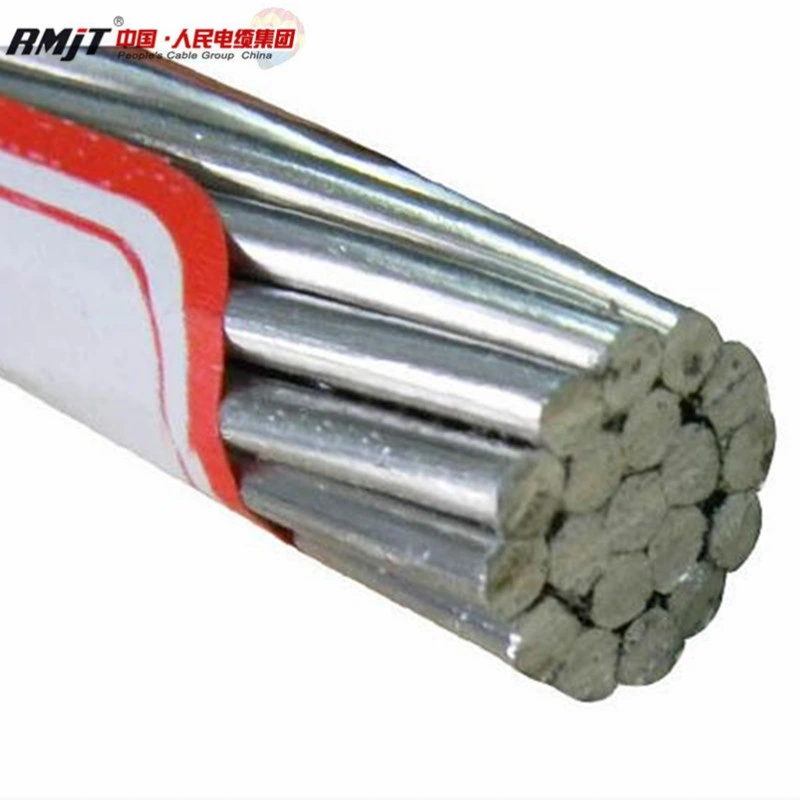

Detailed pictures
DIN 48201 Standard All Aluminium Alloy Conductor AAAC

Packing and Shipping:

Packing
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery
Port: Tianjin, or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

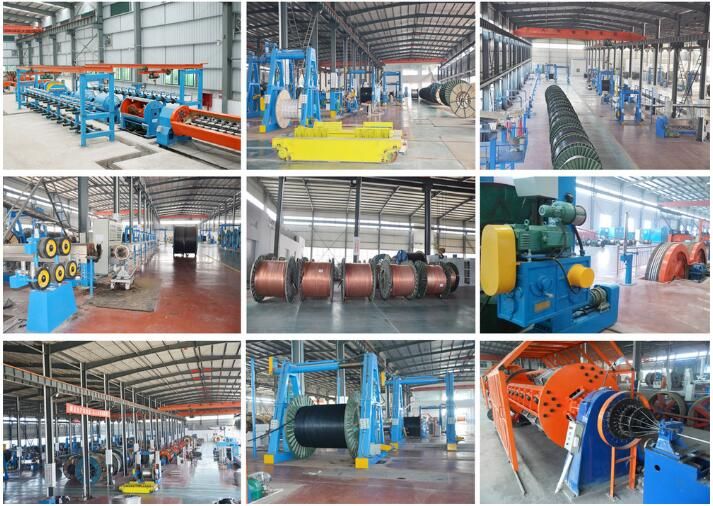

Production Line:
DIN 48201 Standard All Aluminium Alloy Conductor AAAC

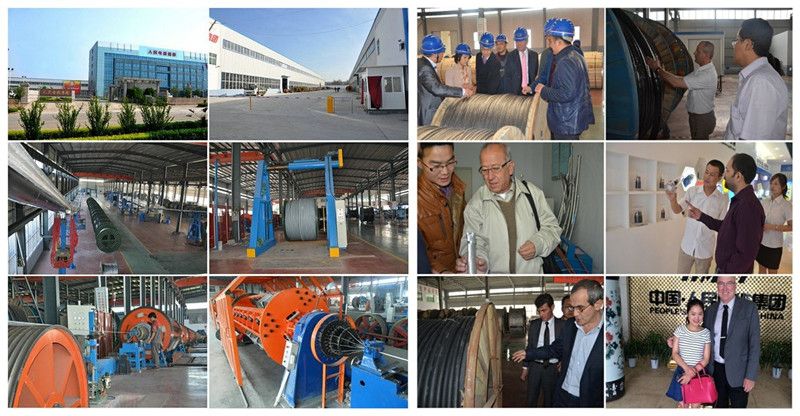

Our Company:

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

Our Advantages:

1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.

DIN 48201 Standard All Aluminium Alloy Conductor AAAC

FAQ and Contect information:

Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country

Ivan Fan | Sales Manager | People's Cable Group

T: 86-371-55632836 | M: 86-15637878931
Fax: 86-371-55632837
Web: renmincable.en.made-in-china.com

For more information, please kindly contact us freely!
Welcome your inquiry of bare overhead conductor, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
