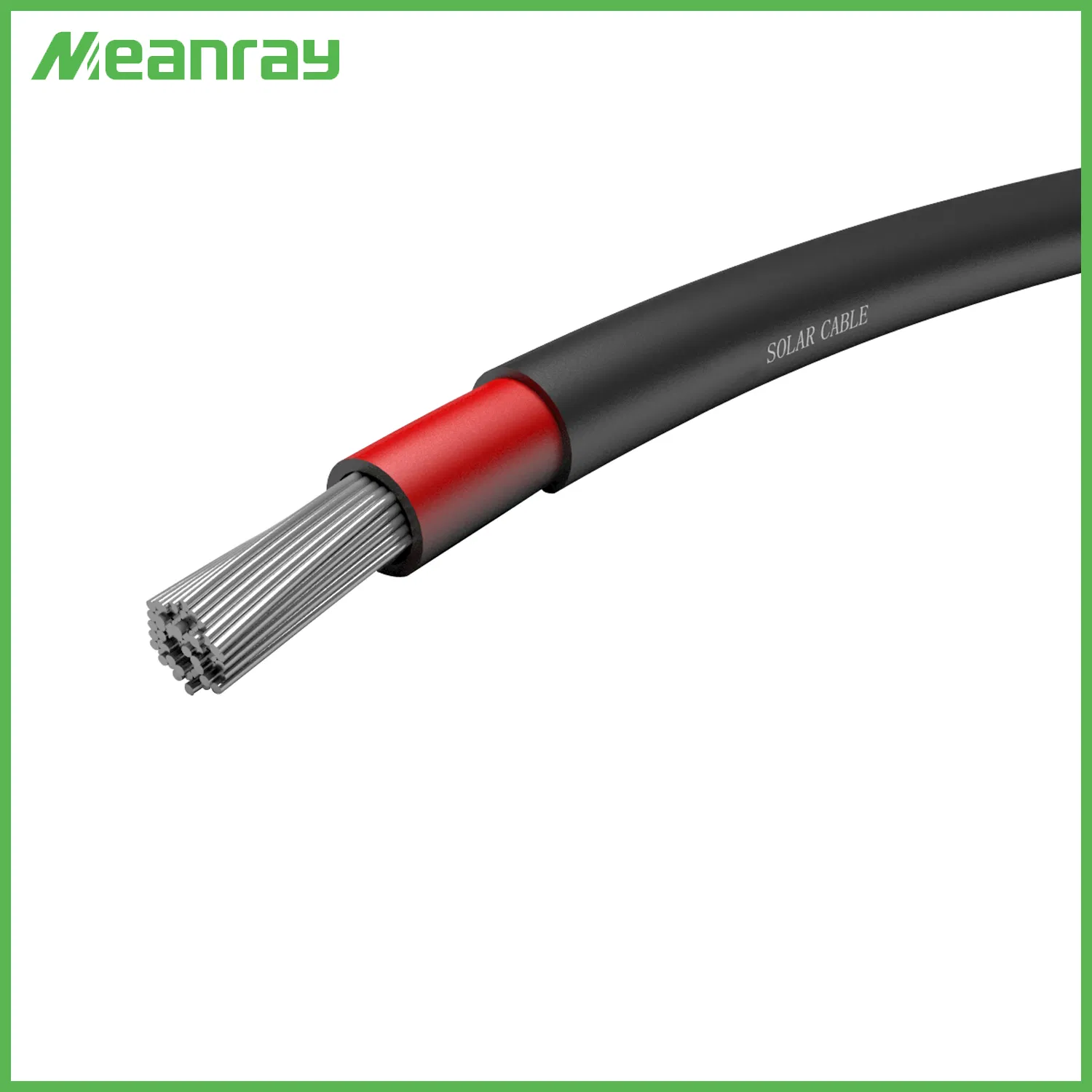

DC Wire Twin Core PV Cable 4mm2 Communication Cable

Product Description

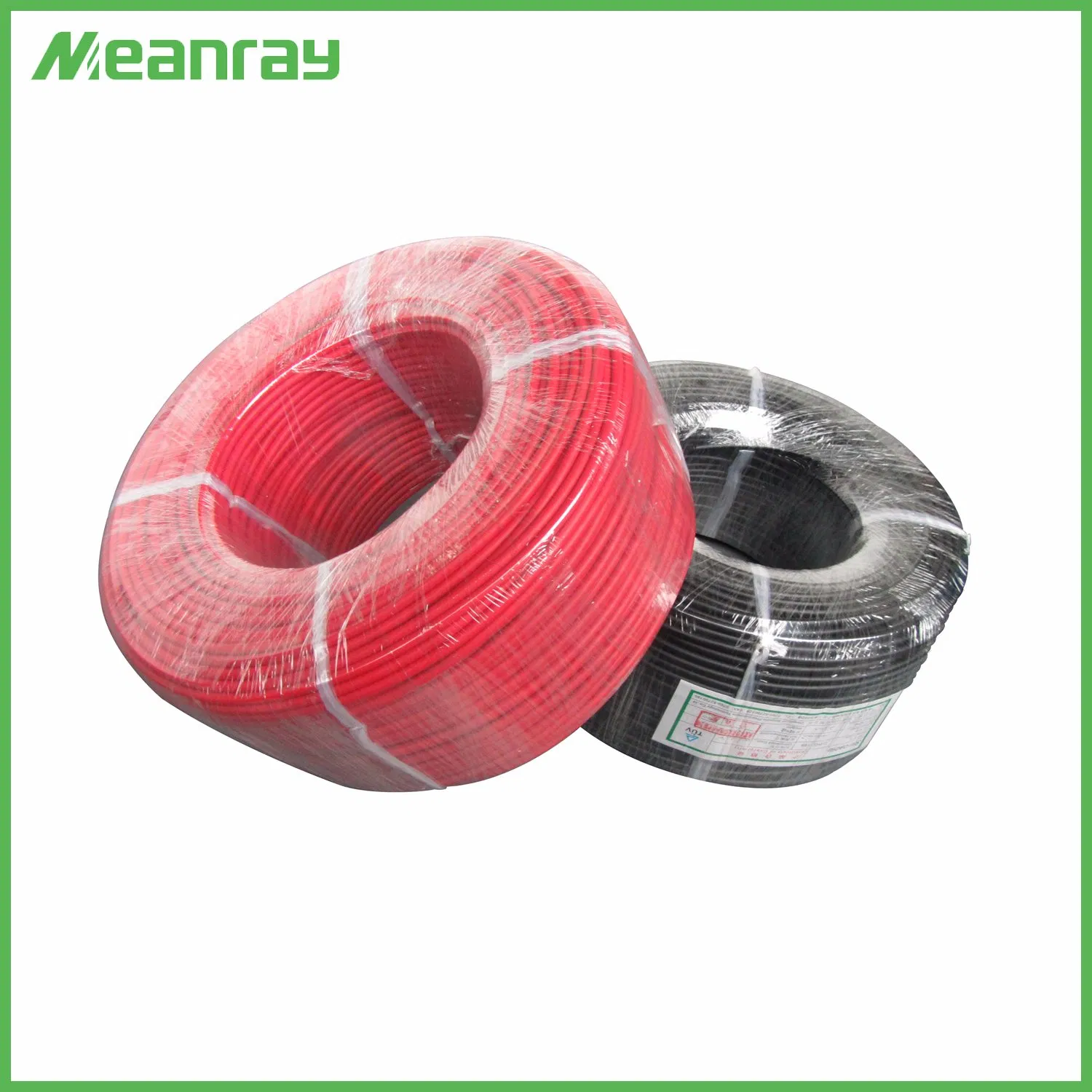

DC Wire Twin Core PV Cable 4mm2 Communication Cable

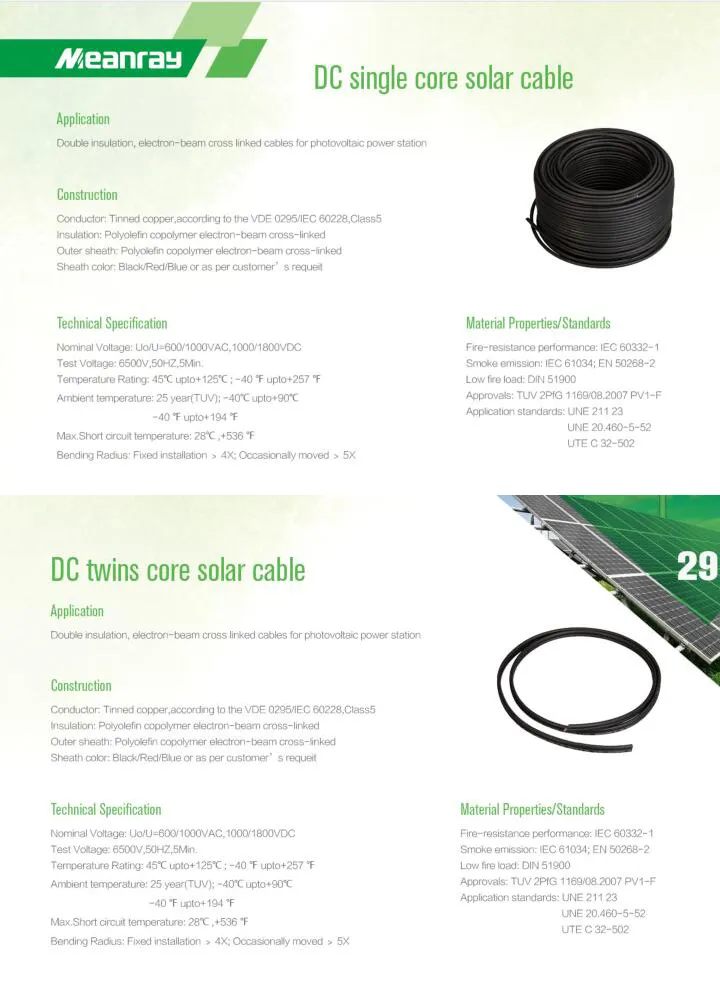

PV Cable 4mm2 Communication Cable Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1.
2.Smoke emission:IEC61034;EN50268-2
3.Low fire load:DIN51900
4.Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

PV Cable 4mm2 Communication Cable Technical Data:
1.Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2.Test Voltage:6500V,50Hz,5Min.
3.Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
5.Bending Radius:Fixed installation>4X Occasionally moved>5X

PV Cable 4mm2 Communication Cable Specification:

Construction	Conductor construction.	Conductor	Outer	Resistance Max.	Current Carring Capacity
nxmm2	n/m	mm	mm	Ω/Km	A
1X1.5	30/0.25	1.58	4.90	13.30	30
1x2.5	50/0.25	2.02	5.45	7.98	41
1x4	56/0.3	2.30	6.10	4.75	55
1x6	84/0.3	3.42	7.20	3.39	70
1x10.0	142/0.3	4.56	9.00	1.95	98
1x16.0	228/0.3	5.60	10.20	1.24	132
1x25.0	361/0.3	6.95	12.00	0.795	176
1x35.0	525/0.3	8.74	13.80	0.565	218
1x50.0	720/0.3	9.20	14.80	0.393	280
1x70.0	988/0.3	11.00	16.90	0.277	350
1x95.0	1349/0.3	12.50	18.70	0.21	410
1x120.0	1691/0.3	14.20	20.70	0.164	480

Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic:  Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c         -40°F upto +257°F
Ambient temperature:25years(TUV)      -40°c upto +90°c        -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X        Occasionally moved>5X

DC Wire Twin Core PV Cable 4mm2 Communication Cable

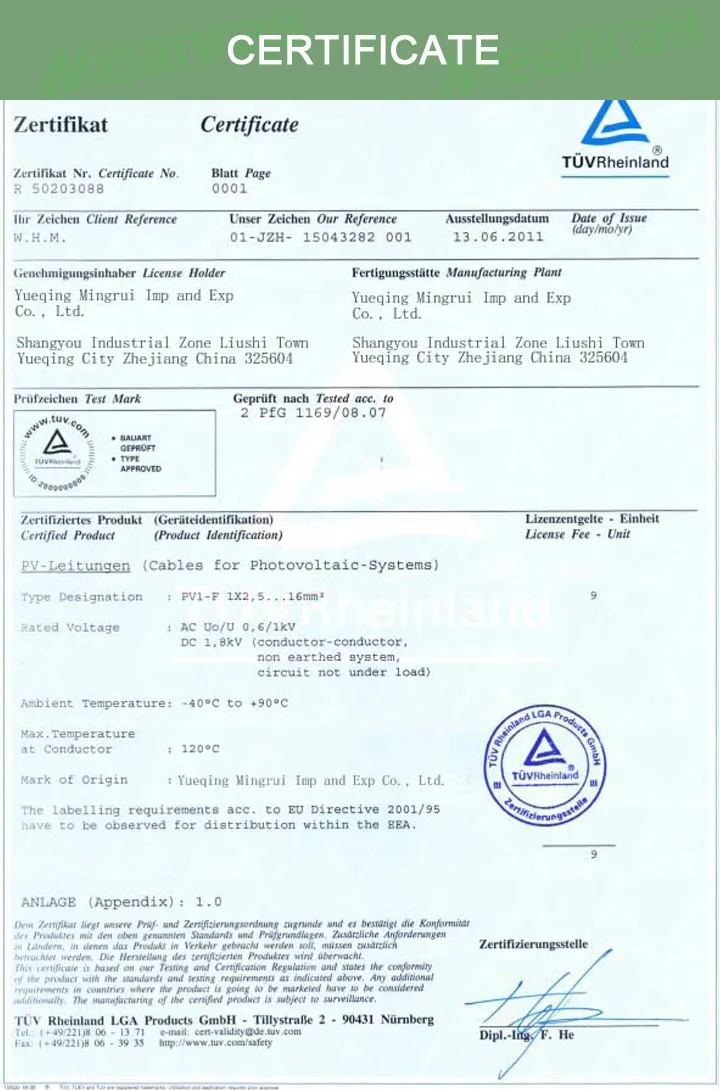

Solar Cable Certificate:

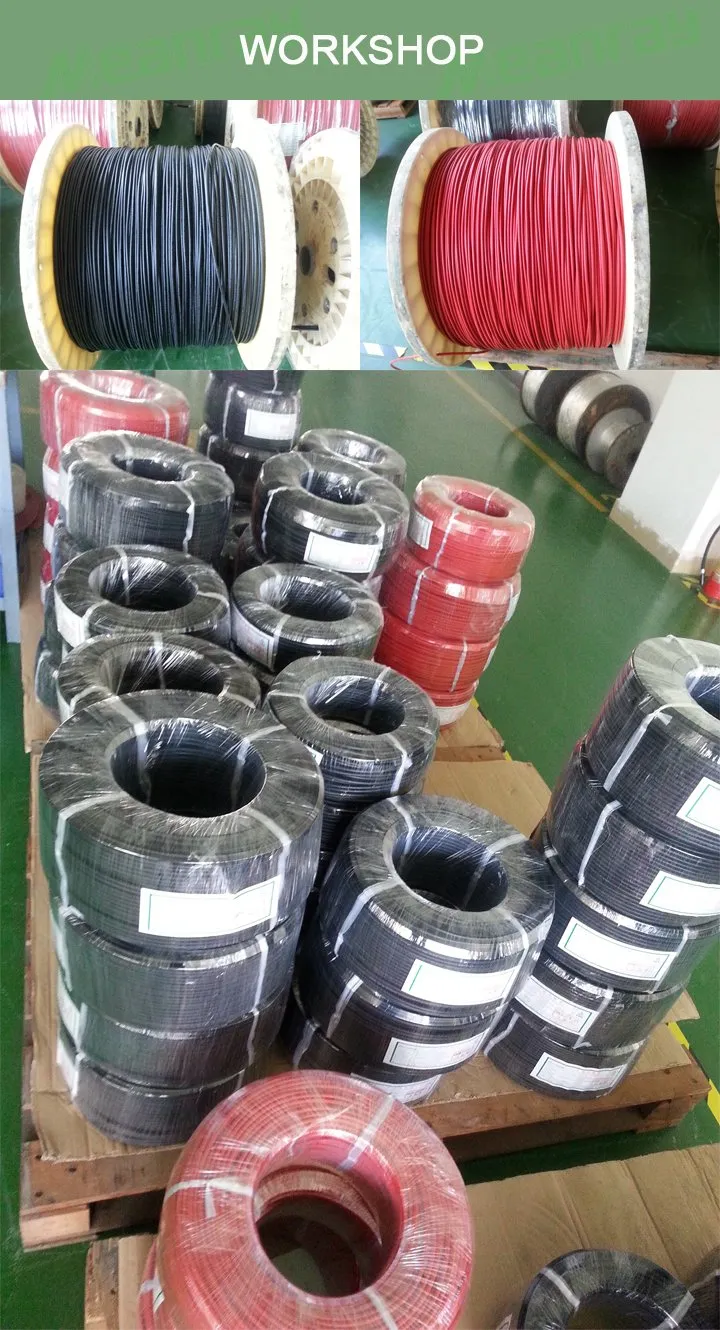

Solar Cable Workshop:
DC Wire Twin Core PV Cable 4mm2 Communication Cable

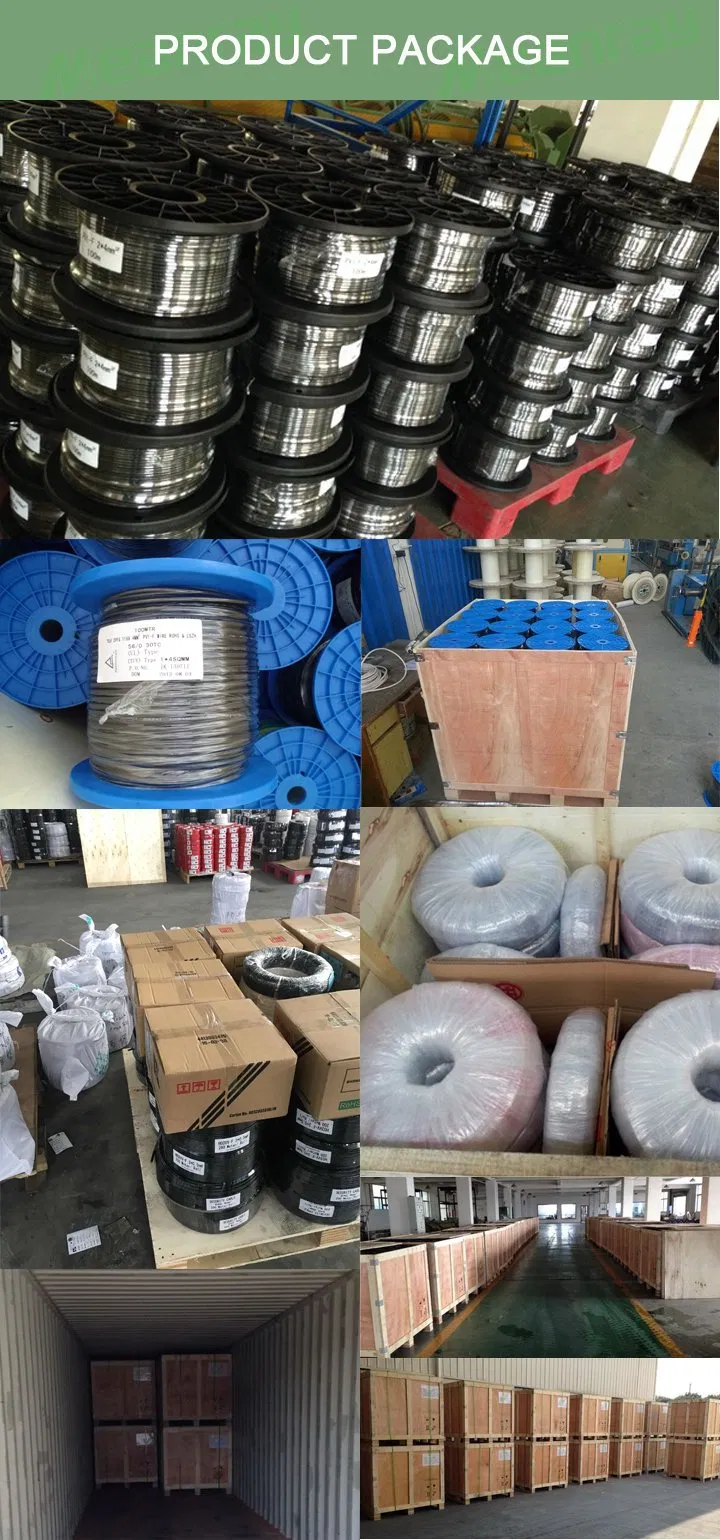

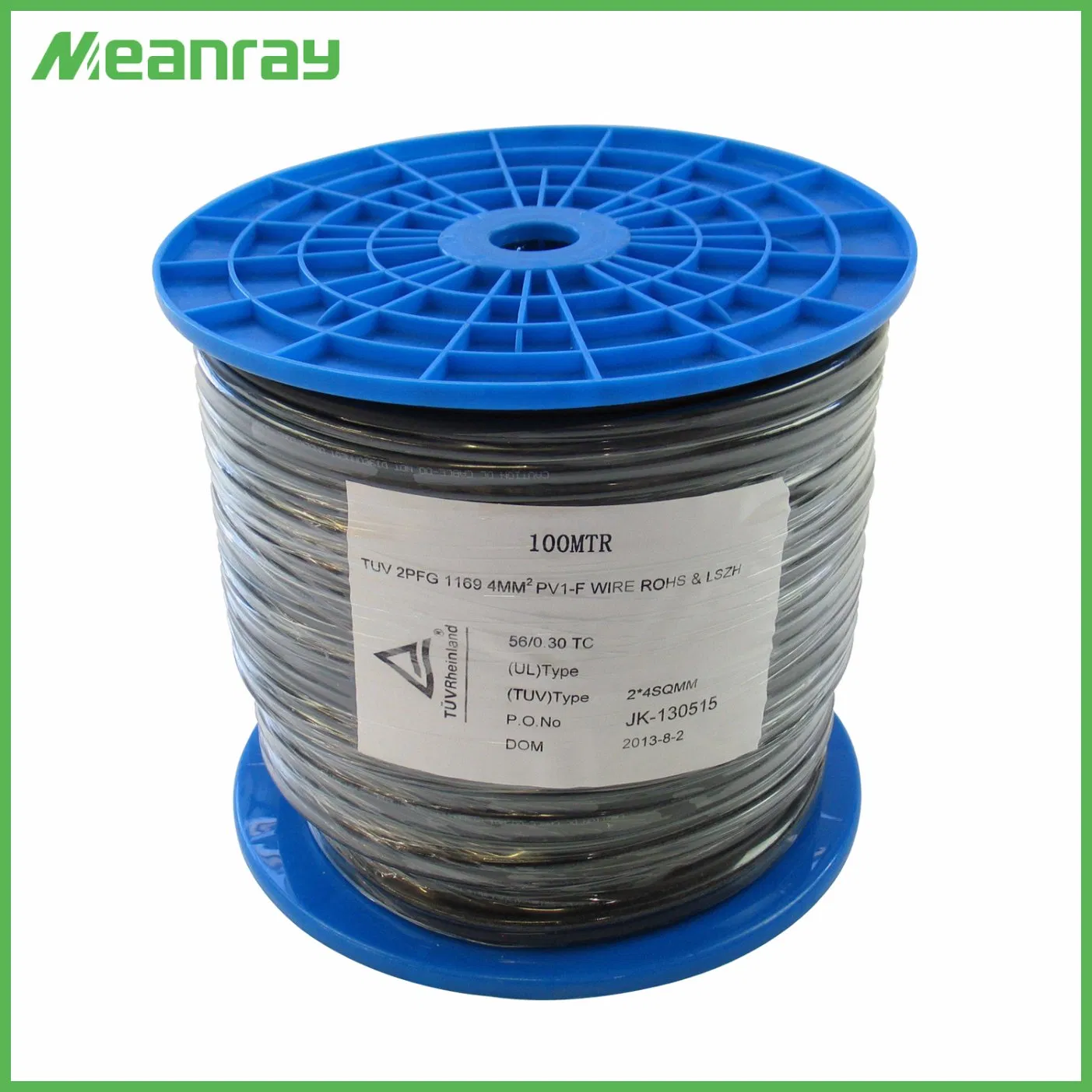

Solar Cable Package:
DC Wire Twin Core PV Cable 4mm2 Communication Cable

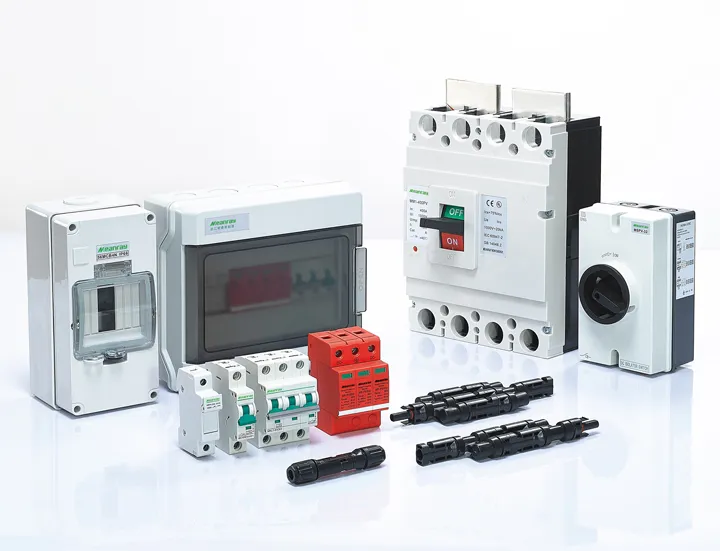

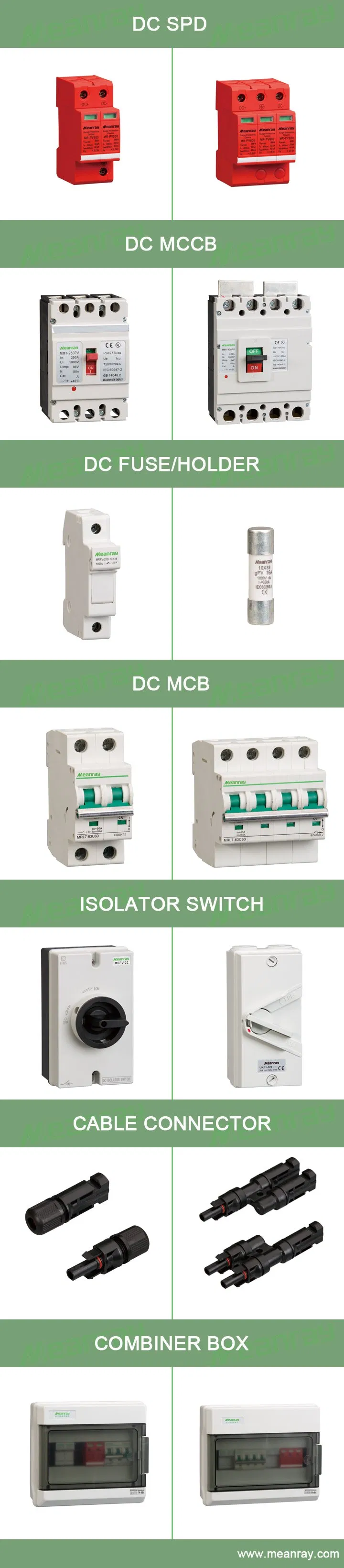

Related Products:
