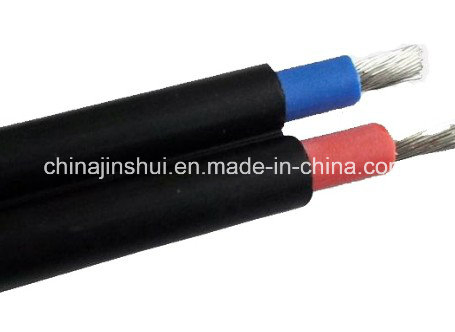

DC Solar Cable 1*10mm2 Single/2 Core Cu/Xlpo/Xlpo
dc/xlpe/xlpo 4mm 6mm 10mm 2 core cable solar cableProduct Description Application Used for interconnection wiring of grounded and ungrounded photovoltaic power systemsTechinical dataVoltage rating :600/1000V AC,1000/1800V DC Test voltage :AC 6.5 KVTemperature rating :-40ºC~90ºCSunl......
Send Inquiry
Product Description
dc/xlpe/xlpo 4mm 6mm 10mm 2 core cable solar cable
Product Description Application
Used for interconnection wiring of grounded and ungrounded photovoltaic power systems
Techinical data
Voltage rating :600/1000V AC,1000/1800V DC
Test voltage :AC 6.5 KV
Temperature rating :-40ºC~90ºC
Sunlight resistant
Flame rated : Vertical flame per IEC 60332-1

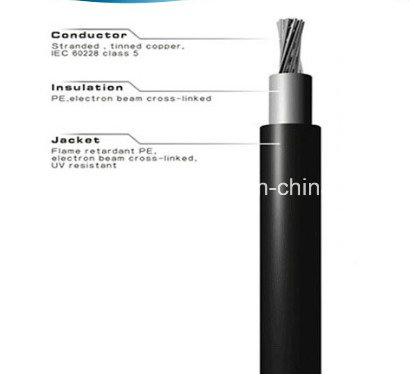

Products description
Conductor : Stranded ,tinned copper
Refer to IEC 60228 class 5
Inner insulation :XLPE/XLPO
Outer jackter :XLPE/XLPO

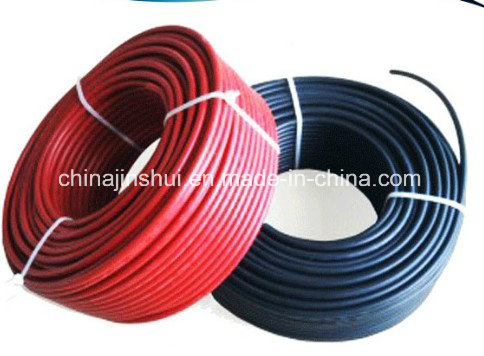

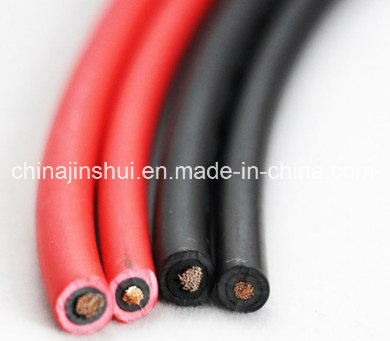

Colour :Black and red
Industry Standards
TUV 2Pfg 1169/08.2007
UL 4703
Specification:
| Nominal Section (mm²) | Rated Working Temperature (ºC) | Conductor Diameter (mm) | Insulation Thickness (mm) | Rated Voltage (kV) | Reference Overall Diameter (mm) | Conductor resistance at 20ºC≤(Ω/km) | Reference weight (kg/km) |
| PV1-F-1*1.5 | 125 | 1.5 | 0.7 | 0.6/1 | 4.3 | 13.7 | 30.8 |
| PV1-F-1*2.5 | 125 | 2 | 0.7 | 0.6/1 | 4.8 | 8.21 | 42.4 |
| PV1-F-1*4 | 125 | 2.4 | 0.7 | 0.6/1 | 5.2 | 5.09 | 57.6 |
| PV1-F-1*6 | 125 | 3.3 | 0.7 | 0.6/1 | 6.1 | 3.39 | 80.1 |
| PV1-F-1*10 | 125 | 4.5 | 1 | 0.6/1 | 8.1 | 1.95 | 135.2 |
| PV1-F-1*16 | 125 | 5.6 | 1 | 0.6/1 | 9.2 | 1.24 | 194.7 |
| PV1-F-1*25 | 125 | 7 | 1 | 0.6/1 | 10.6 | 0.0795 | 282.0 |
