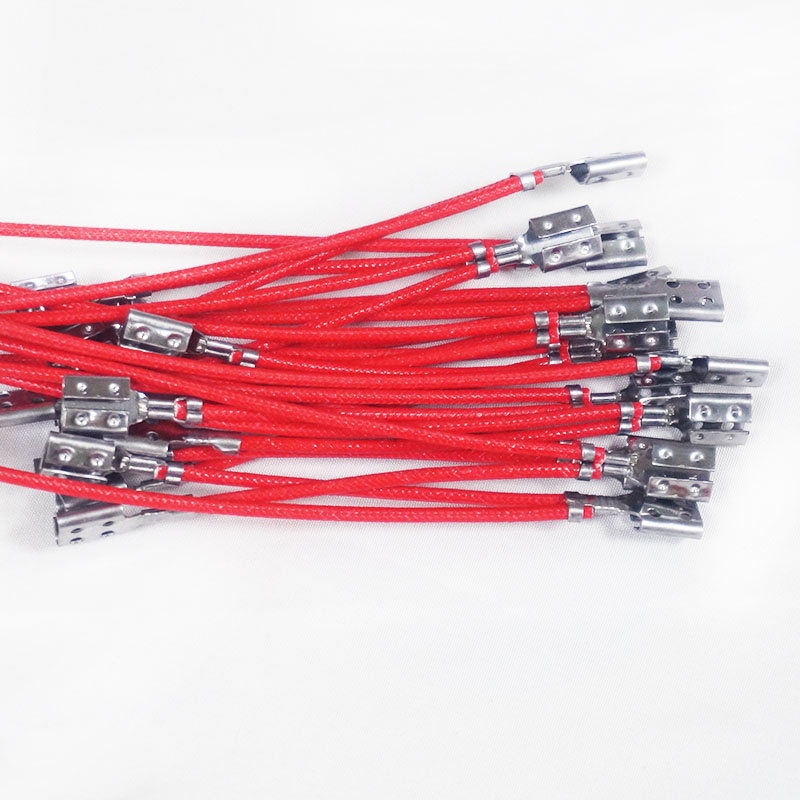

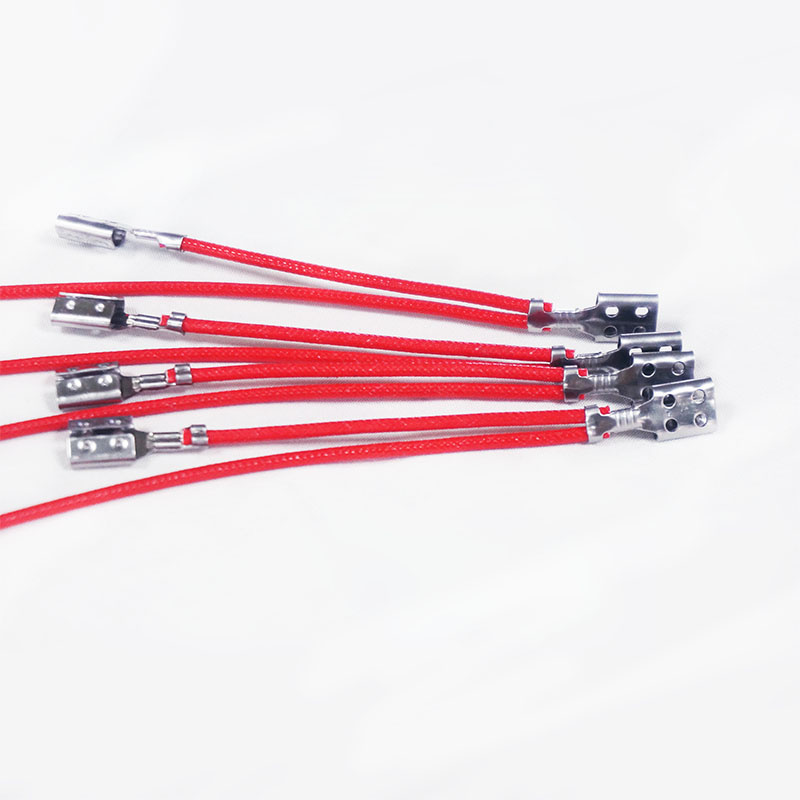

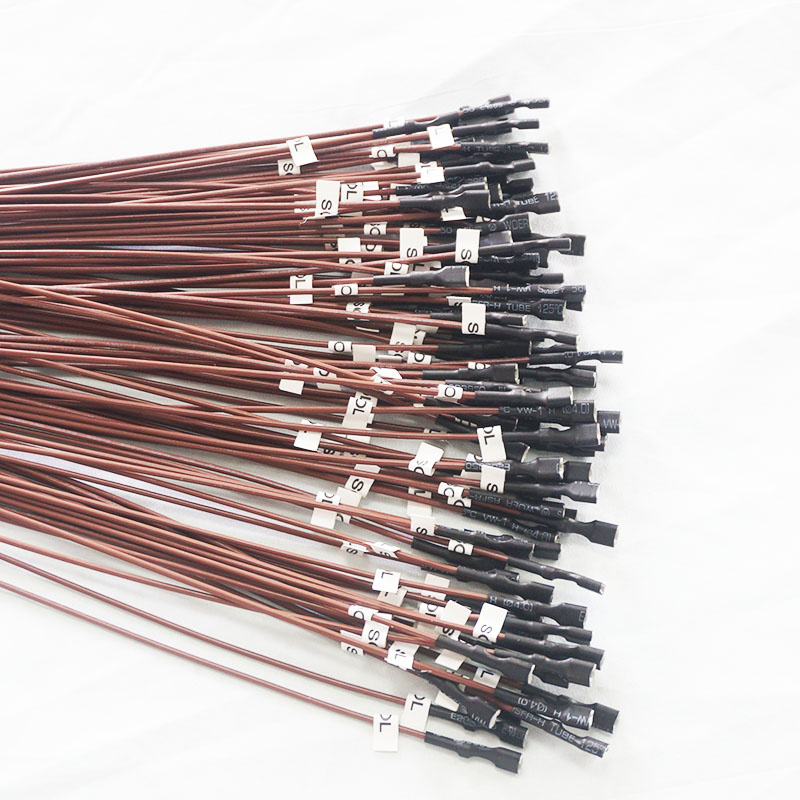

Customized Wiring Harness for Headlights Red, Brown with Connector
customized wiring harness for headlights red, brown with connectorSpecifications:Rated voltage:300V/600VRated temperature:80/90/105 cStandard:UL758Conductor:Tinned copperInsulation:PVCAppliance:The heater wire is the same with the inner fixed wires for the subassembly of the heating,the heat preserv......
Send Inquiry
Product Description
customized wiring harness for headlights red, brown with connector
Specifications:
Rated voltage:300V/600V
Rated temperature:80/90/105 c
Standard:UL758
Conductor:Tinned copper
Insulation:PVC
Appliance:
The heater wire is the same with the inner fixed wires for the subassembly of the heating,the heat preservation and the defroster etc. such as the refrigerator,the heating product,the rice cooker,the towel cabinet,the massor and the seating washer etc.
Product dimensions:
UL1015 600V 105c
| Conductor | Insulation | Max.Cond Resistance(Ω/KM) | Unit length(M)(Ft) | |||
| Size(AWG) | Construction(No./mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | ||
| 30 | 7/0.100 | 0.30 | 0.78 | 1.90 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.98 | 239 | 610/2000 |
| 26 | 7/0.160 | 0.48 | 0.78 | 2.08 | 150 | 610/2000 |
| 24 | 11/0.160 | 0.61 | 0.78 | 2.21 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.36 | 59.4 | 610/2000 |
| 20 | 21/0.180 | 0.95 | 0.78 | 2.55 | 36.7 | 610/2000 |
| 18 | 34/0.180 | 1.21 | 0.78 | 2.81 | 23.2 | 610/2000 |
UL1430 300V 105c
| Conductor | Insulation | Max.Cond Resistance(Ω/KM) | Unit length(M)(Ft) | |||
| Size(AWG) | Construction(No./mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | ||
| 30 | 7/0.10 | 0.30 | 0.38 | 1.10 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 | 610/2000 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.30 | 150 | 610/2000 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.40 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.38 | 1.60 | 59.4 | 610/2000 |
| 20 | 21/0.180 | 0.94 | 0.38 | 1.70 | 36.7 | 610/2000 |
FAQ

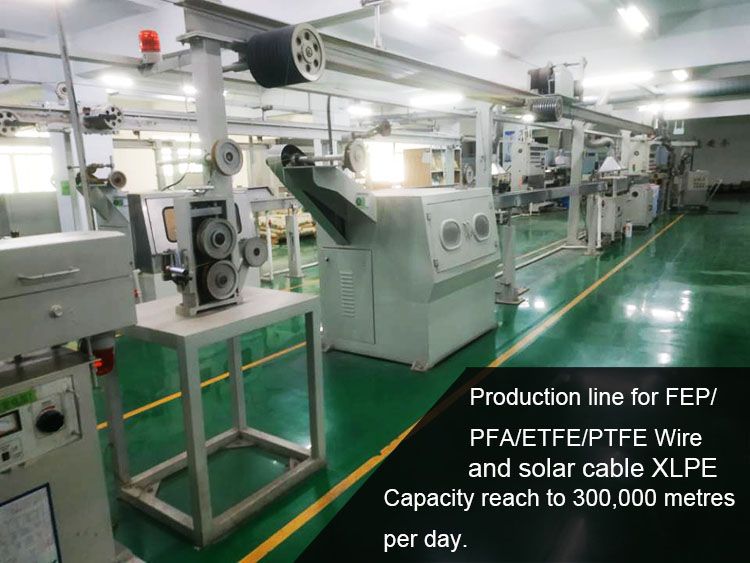

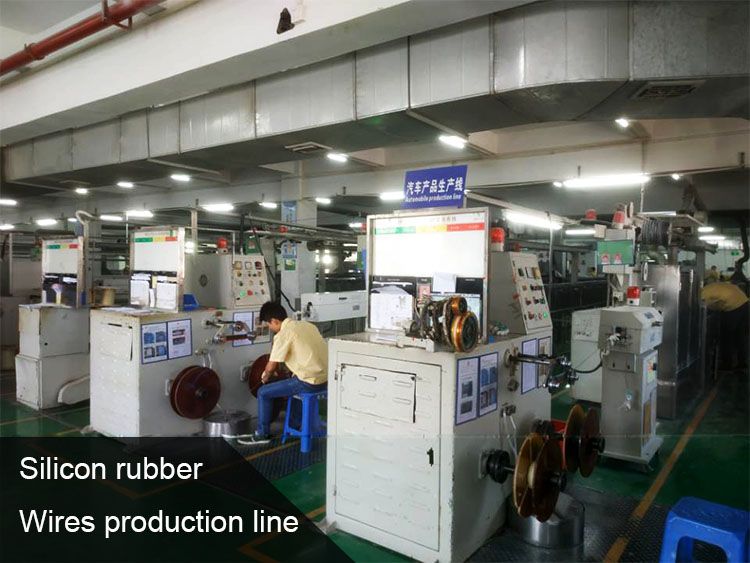

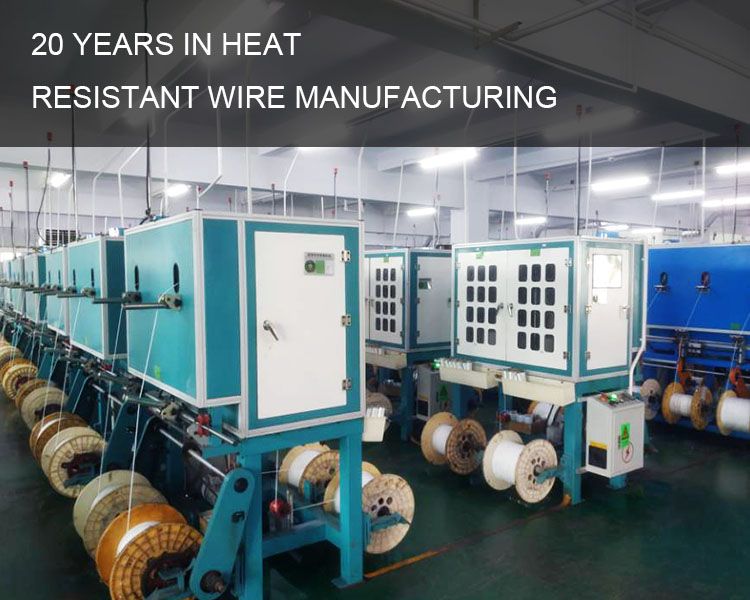

Shenzhen Mysun Insulation Materials Co. LTD is a comprehensive enterprise integrated with manufacture,distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to tests of UL,CUL,VDE.CE,CCC,SGS and Tuv ,and supply enterprises such as home appliance,electronics,lighting,medical unit,communication and office equipment with connecting wiring harness and processing service.
1.Do you accept partial shipment?
Yes, partial shipment is accepted. But the freight shall be covered by yourself.
2.When the goods have quality problem, will you send us the replacement?
If the cable has quality problem, please send us the details, like the quantity of defective cable, pictures and labels.
When we confirm it, the replacement will be shipped together with your next order.
3.Can I order the cable which is lower than your MOQ?
First, we will check the inventory. If it is in stock, sure, it is ok. But if it was out of stock. When your quantity is closed to our MOQ, it is ok.
If it is much less than our MOQ, we will take it as a sample order, so the price will be a little bit higher.
Service
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
