Conductor De Al. Tipo AAAC De 120mm2 Cableado De 19 Hilos

Product Description

Conductor de Al. Tipo AAAC de 120mm2, cableado de 19 hilos

Packaging & Delivery
Packaging Details:
Robust Construction Seaworthy Heated Treated Wooden Drums/Pallets
1.Certificates of Qualification Offered.
2.Certificates of Origin Offered(Upon Customers'requests)
3.Certificate of Fumigation Offered(Upon Customers'requests)
Delivery Detail:
Less than 500meters, 1-3 days;500-10,000 and above,1-3 weeks
Specifications
conductors aaac best quality
1.Conform to IEC,BS,ASTM etc
2.Prompt Delivery, Direct Factory Price
3.Best Service
ACSR/AAAC Conductor detail
Specifications

AAAC Cable
1.Conform to IEC,BS,ASTM etc
2.Prompt Delivery, Direct Factory Price
3.Best Service

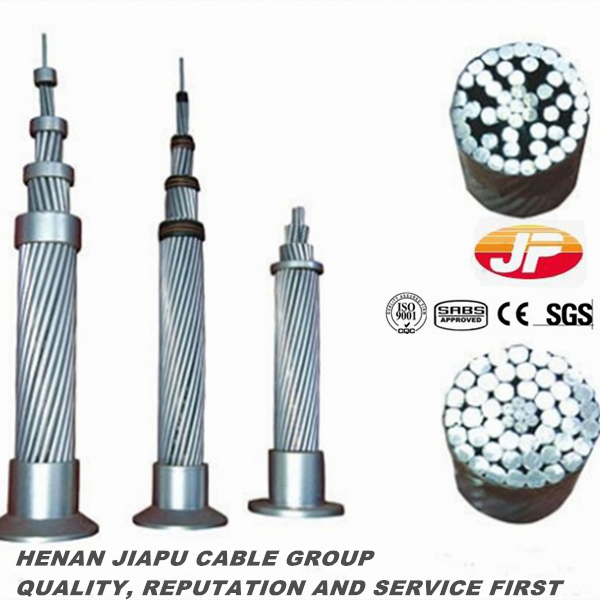

Bare Stranded All Aluminum Alloy Conductor/AAAC

Cable/AAAC Conductor

Introduction :

AAAC Conductor Cable have been widely used in power transmission lines with various voltage levels, and
also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics.
The conductor have excellent advantages of high strength, large current carrying capacity and good catenary
and maintenance, low cost for the line, large transmission capacity.

Specifications:

Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

The electrical performance of AAAC is indicated in DCΩ /km(20oC). The resistivity of aluminum

alloy wire for stranded wires is:
LHA1: not greater than 32.840nΩ . m
LHA2: not greater than 32.530nΩ . m

The rated tensile strength of AAAC is denoted with the result of total cross-section areas of all
aluminum alloy conductors multiplied by min. Tensile strength of corresponding size specified
in the standard for aluminum alloy wire.

Standard:

We can produce as per the standard of GB, IEC, ASTM,DIN,CSA,JIS and also particularly
customize and manufacture according to your special requirement.

Product details:

Conductor size (mm2)	Alloy area (mm2)	Number of wires	Overall diameter of conductor (mm)	Linear mass (kg/km)	Rated tensilestrength daN	Maximum resistance D.C. at 20°C (Ω/km)
16	15.89	7	5.1	43	444	2.091
25	24.25	7	6.3	66	677	1.3703
35	34.36	7	7.5	94	960	0.9669
50	49.48	7	9	135	1382	0.6714
50	48.35	19	9	133	1350	0.6905
70	65.81	19	10.5	181	1838	0.5073
95	93.27	19	12.5	256	2605	0.3579
120	116.99	19	14	322	3268	0.2854
150	147.11	37	15.8	406	4109	0.2274
185	181.62	37	17.5	500	5073	0.1842
240	242.54	61	20.3	670	6774	0.1383
300	299.43	61	22.5	827	8363	0.112
400	400.14	61	26	1104	11176	0.0838
500	499.63	61	29.1	1379	13960	0.0671
625	626.2	91	32.6	1732	17490	0.054
800	802.09	91	36.9	2218	22402	0.0418
1000	999.71	91	41.1	2767	27922	0.0335

AAAC Conductor Technical Characteristics Based on Standard NFC 34-125
Code number	Area	Number of wires	Wire diameter	Conductor diameter	Linear mass	Rated strength	D.C. resistance at 20oC
Code number	mm2	No.	mm	mm	kg/km	kN	Ω/km
ASTER 54.6	54.6	7	3.15	9.45	148.9	17.73	0.6042
ASTER 148	148.1	19	3.15	15.8	406.5	48.12	0.2239
ASTER 228	227.8	37	2.8	19.6	627.6	74.04	0.146
ASTER 288	288.3	37	3.15	22.1	794.3	93.71	0.1154
