AVS Automotive Wire Japanese Standard Low Voltage Wire PVC Flexible Cable PVC Insulated Wire Cable Copper Wire
Product DescriptionAVS automotive wire Japanese standard low voltage wire PVC flexible cableRated temperature:80ºCReference standard:JASOD 611/1994Solid or stranded, tinned or bare copper conductor 0.3-5mm2PVC insulation, comply with ROHS, REACH environmental standardPasses JASOD 611/1994 ......
Send Inquiry
Product Description

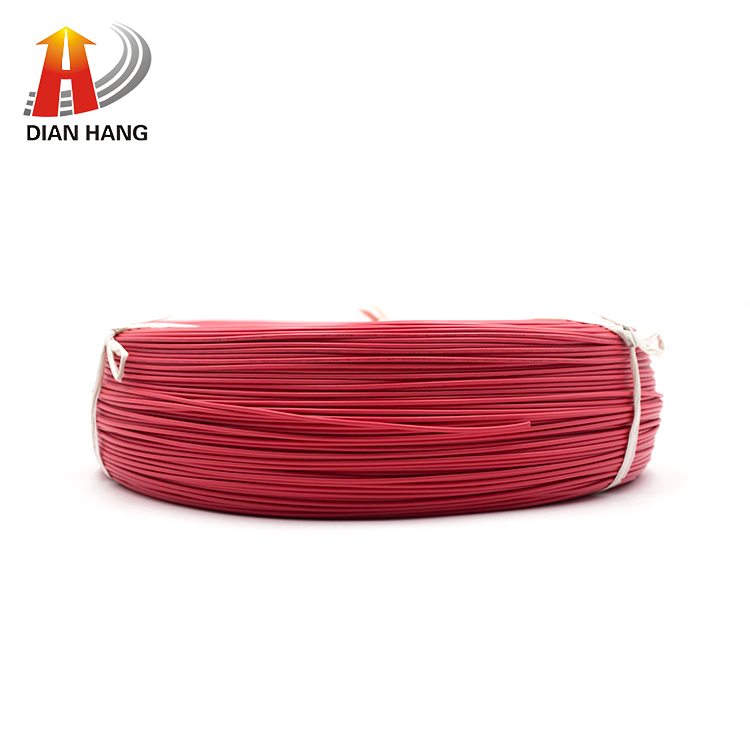

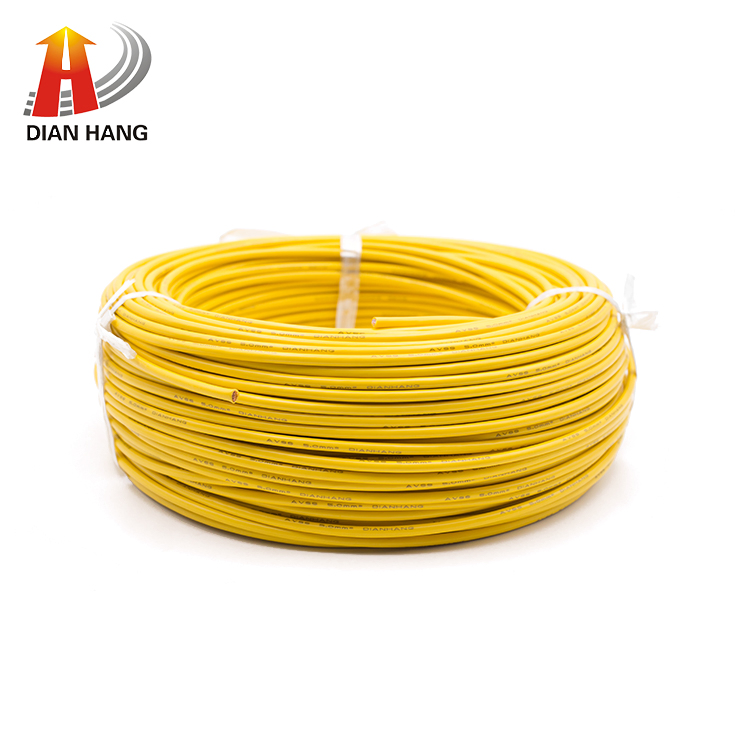

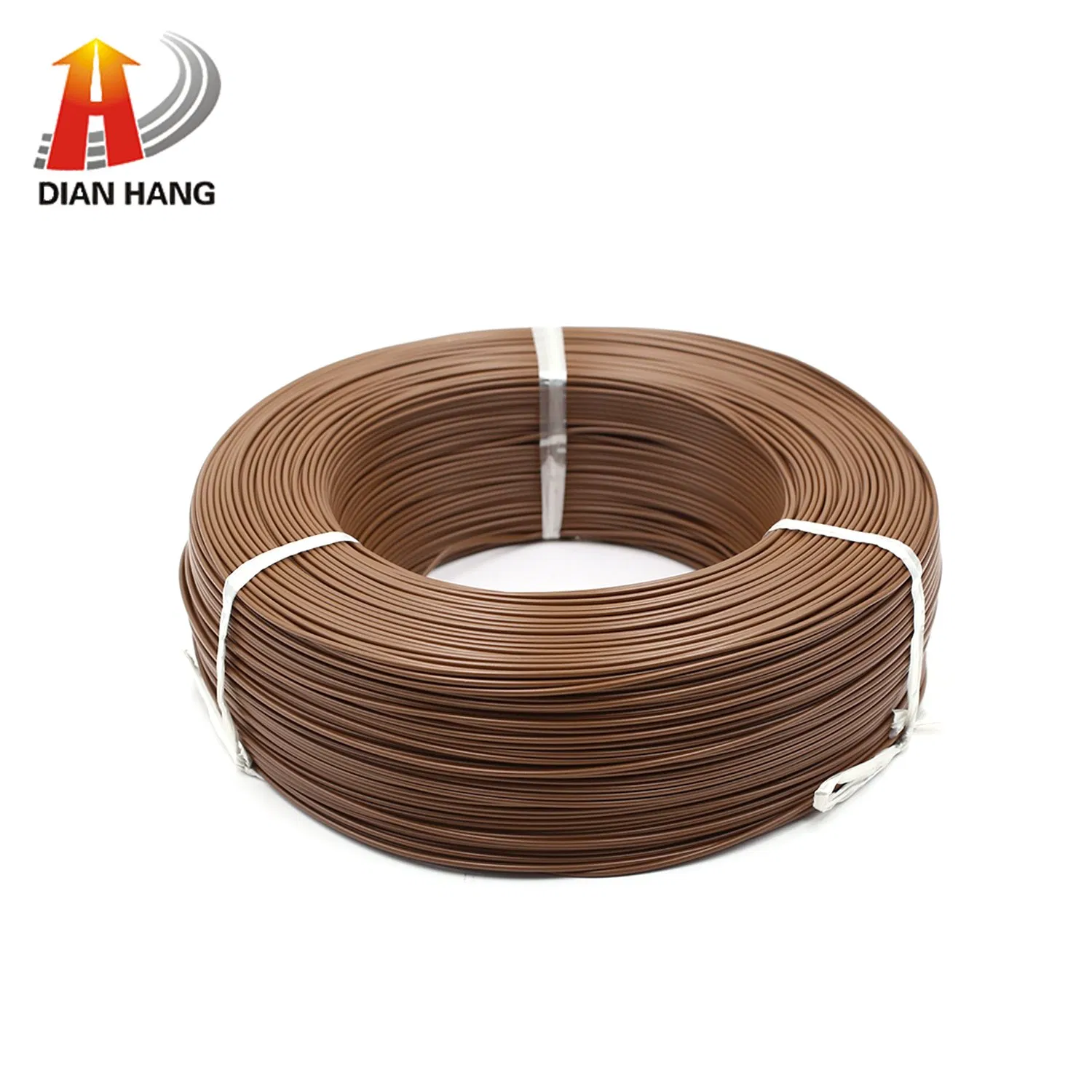

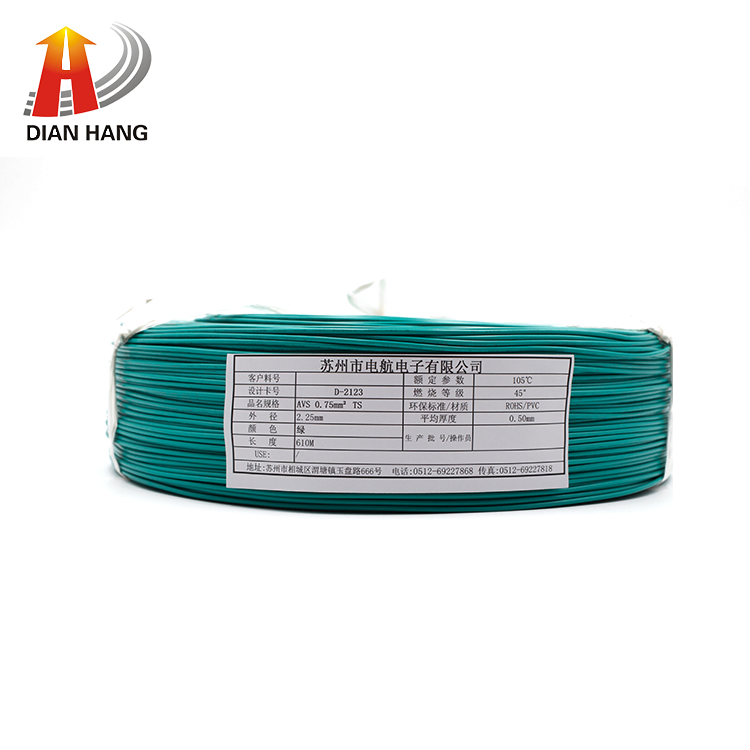

AVS automotive wire Japanese standard low voltage wire PVC flexible cable
Rated temperature:80ºC
Reference standard:JASOD 611/1994
Solid or stranded, tinned or bare copper conductor 0.3-5mm2
PVC insulation, comply with ROHS, REACH environmental standard
Passes JASOD 611/1994 flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:Used for internal wiring of automobiles
Product Type | Conductor | Insulation | Max.cond. Resistance | (Dielectric Strength) | |||
AVS | mm2 | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
0.3f | 12/0.18 | 0.80 | 0.53 | 1.85 | 48.9 | 1000 | |
0.3 | 7/0.26 | 0.78 | 0.54 | 1.85 | 50.2 | 1000 | |
0.5f | 20/0.18 | 0.93 | 0.56 | 2.05 | 36.7 | 1000 | |
| 0.5 | 7/0.32 | 0.96 | 0.55 | 2.05 | 32.7 | 1000 | |
| 0.75f | 30/0.18 | 1.14 | 0.56 | 2.25 | 24.4 | 1000 | |
0.85
| 16/0.26 | 1.20 | 0.53 | 2.25 | 22.0 | 1000 | |
11/0.32 | 1.22 | 0.52 | 2.25 | 20.8 | 1000 | ||
1.25f | 11/0.32 | 1.47 | 0.54 | 2.55 | 14.7 | 1000 | |
| 1.25 | 50/0.18 | 1.48 | 0.54 | 2.55 | 14.3 | 1000 | |
| 2f | 16/0.32 | 1.83 | 0.59 | 3.00 | 9.50 | 1000 |
2 | 37/0.26 | 1.88 | 0.56 | 3.00 | 8.81 | 1000 | |
3 | 26/0.32 | 2.36 | 0.67 | 3.70 | 5.59 | 1000 | |
