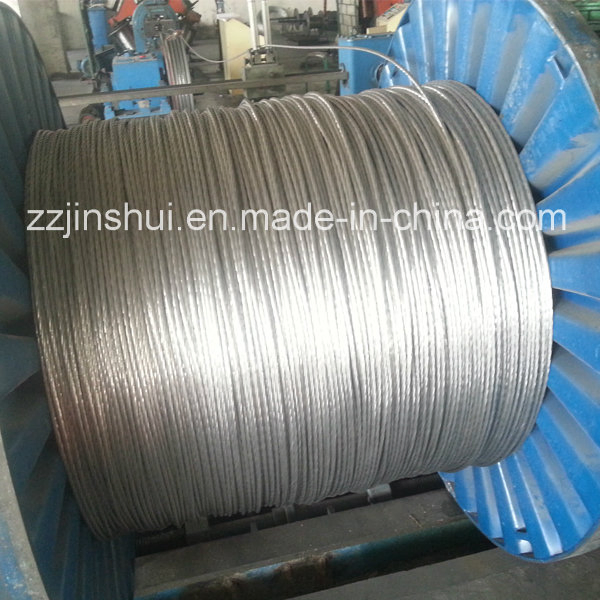

China ACSR Conductor (Aluminum Conduct Steel Reinforced)

Product Description

Specifications

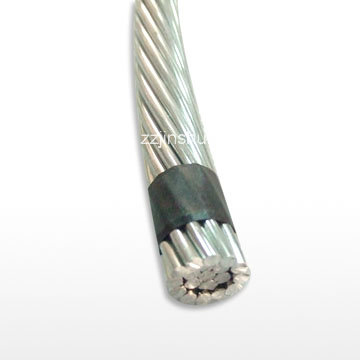

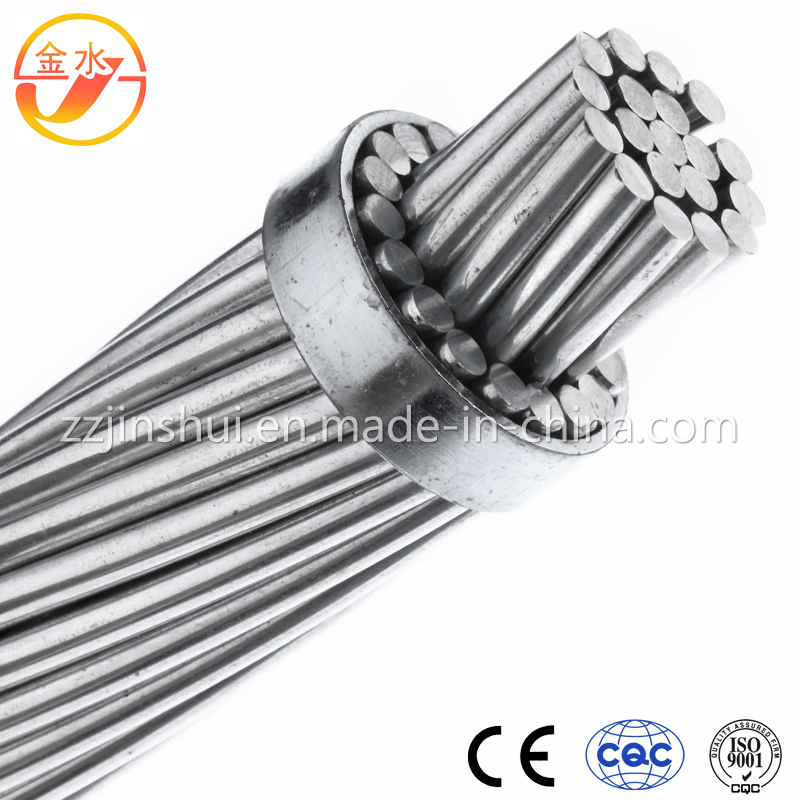

Aluminum conductor steel reinforced.
Biggest ACSR conductor supplier for China State Grid..
ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard.
British Sizes BS EN 50182:2001
STRANDARD:
BS 215 PART 2
code name: mole ,aquirrel ,gophel , weasel , fox , ferret , rabbit , minik , skunk , beaver , horse , racoon , otter , cat , hare , dog , coyote
ASTM B232
code name: turkey , swan , swanate , sparrow, robin , raven , quail , pigeon , penguin , waxwing , partridge , ostrich , merlin ,linner , oriole , chickadee , brant , ibis ,lark ,pelican , flicker , hawk ,hen ,osprey , parakeet , dove ,eagle ,peacock , squab , wood duck , teal , rook , grosbeak , swift ,scoter

Code Number	Stranding& Wire Diameter		Approx	Sectional Area			ApproxWeight	Breaking Load	DC Resistance
	Stranding& Wire Diameter		Overall	Sectional Area
	Al	Steel	Diameter	Al	Steel	Total
	mm	mm	mm	mm 2	mm 2	mm 2	Kg/km	KN	Ohm/km
16	6/1.84	1/1.84	5.53	16	2.67	18.7	64.6	6.08	1.7934
25	6/2.30	1/2.30	6.91	25	4.17	29.2	100.9	9.13	1.1478
100	6/4.61	1/4.61	13.8	100	16.7	117	403.8	34.33	0.2869
125	18/2.97	1/2.97	14.9	125	6.94	132	397.9	29.17	0.2304
160	18/3.36	1/3.36	16.8	160	8.89	169	509.3	36.18	0.18
250	22/3.80	7/2.11	21.6	250	24.6	275	880.6	68.72	0.1154
400	54/3.07	7/3.07	27.6	400	51.9	452	1510.3	123.04	0.0723
450	54/3.26	7/3.26	29.3	450	58.3	508	1699.1	138.42	0.0643
500	54/3.43	7/3.43	30.9	500	64.8	565	1887.9	153.8	0.0578
560	54/3.63	19/2.18	32.7	560	70.9	631	2103.4	172.59	0.0516
630	54/3.85	19/2.31	34.7	630	79.8	710	2366.3	191.77	0.0459
710	54/4.09	19/2.45	36.8	710	89.9	800	2666.8	216.12	0.0407
800	72/3.76	7/2.51	37.6	800	34.6	835	2480.2	167.41	0.0361
900	72/3.99	7/2.66	39.9	900	39.9	939	2790.2	188.33	0.0321
