76/132(145)kV High Voltage Oil-filled Outdoor Power Cable Terminations ( Composite) for Copper Laminated XLPE Cable 240-1600sq.mm
72.5kV, 110kV, 132kV High Voltage Outdoor Power Cable Terminations ( Composite )OverviewComposite termination is suitable for indoor and outdoor substations, suitable for busy neighborhoods, no explosion and splash hazards. Dry type (gel-filled) or oil filled type are both available. High mechanica......
Send Inquiry
Product Description

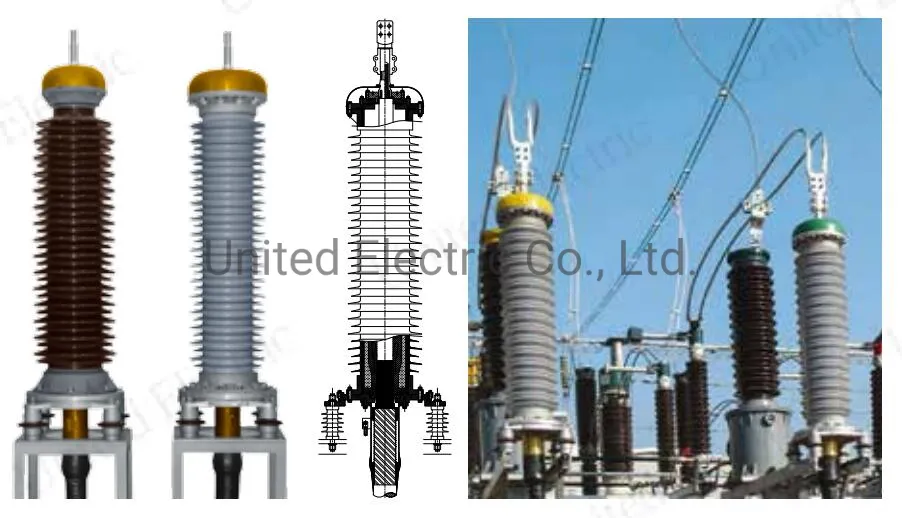

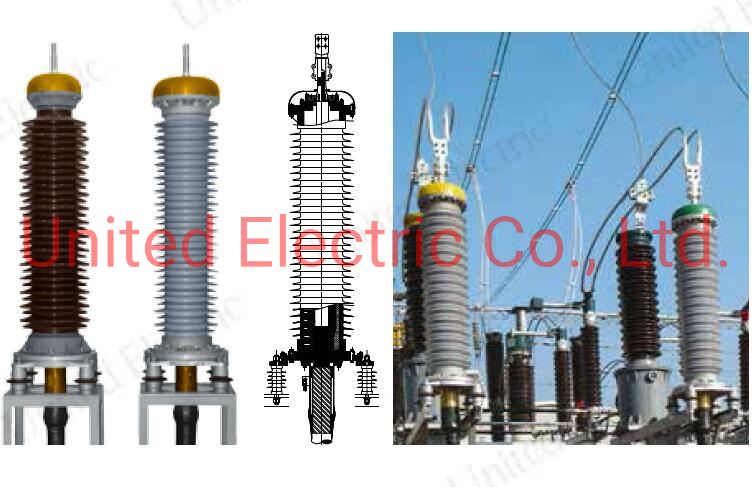

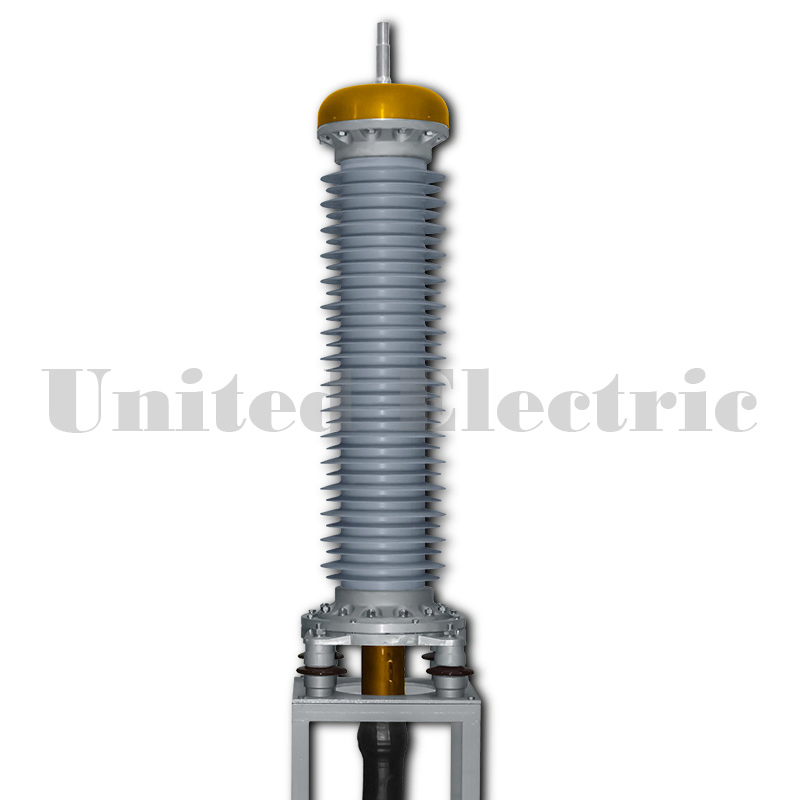

72.5kV, 110kV, 132kV High Voltage Outdoor Power Cable Terminations ( Composite )
Overview
Composite termination is suitable for indoor and outdoor substations, suitable for busy neighborhoods, no explosion and splash hazards. Dry type (gel-filled) or oil filled type are both available.
• High mechanical strength, the minimum withstand values of cantilever load is 2kN.
• With a certain degree of explosion-proof, no explosion or crack risk.
• Pressure-tight, light weight and less sensitive for outer damage composite housing, convenient to transport, operate and install.
• Pre-fabricated and factory-tested silicone rubber stress cone.
• Silicone rubber rain sheds have excellent anti-pollution performance.
• Suitable for transformer substation both indoor and outdoor.
• Available apply for downtown area or coastal typhoon area.
Key Features
Material:
Insulator: composite hollow insulator
stress relief cone: silicone rubber
Insulation Type: Dry Type(gel-filled)/oil-Filled
Connection voltage class(kV): ≤145kV
Conductor connection: compressed
Cross section range: 240-1600
Conductor: Copper / Aluminum
Creepage distance: up to 4500mm
Cable structure: Wire screen / Al-corrugated sheath / Lead sheath
Industry Standards: KEMA Type Test in accordance with with IEC60840: 2011
Specification
| Max. operating voltage Um(kV) | 72.5 | 126 | 145 |
| Standards | IEC 60840 | IEC 60840 | IEC 60840 |
| Rated voltage U (kV) | 60 - 69 | 110 - 115 | 132 - 138 |
| Rated lightning impulse withstand voltage (BIL) (kV) | 325 | 550 | 650 |
| Partial discharge measurement (pC) | < 5 | < 5 | < 5 |
Features of silicone gel
• Slicone gel instead of Si-oil or Polyisobutene to be filled inside the compsite housing having features below:
• A kind of cross interlink condensate from silicone rubber family with high insulation and excellent physicochemical properties.
• Soft, viscous and soakage material with reliable sticking and compatibility with the interfaces of silicone rubber stress cone, epoxy glass tubing and porcelain.
• No fluidness, no leakage.
• Unformed flexible material thus making compensation for volume change caused by temperature.
• Excellent electrical insulation, more reliable and better performance than silicone oil. A.C. Voltage Withstand and Impact Strength are higher than that of liquid filler. Its Dielectric loss and Dielectric Constant is more adaptable to high voltage. Dielectric strength: 23kV/mm; volume resistance(23°C): 1016Ωm; Dielectric constant (50Hz): 2.8.
•Low heat resistance modulus as coolant for termination, working temperature from -50~180°C.
Application

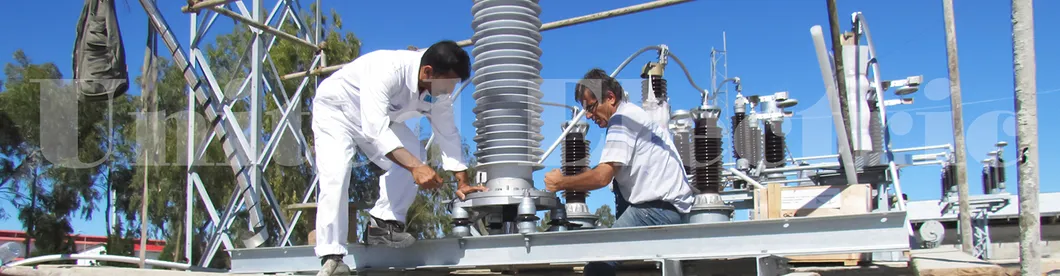

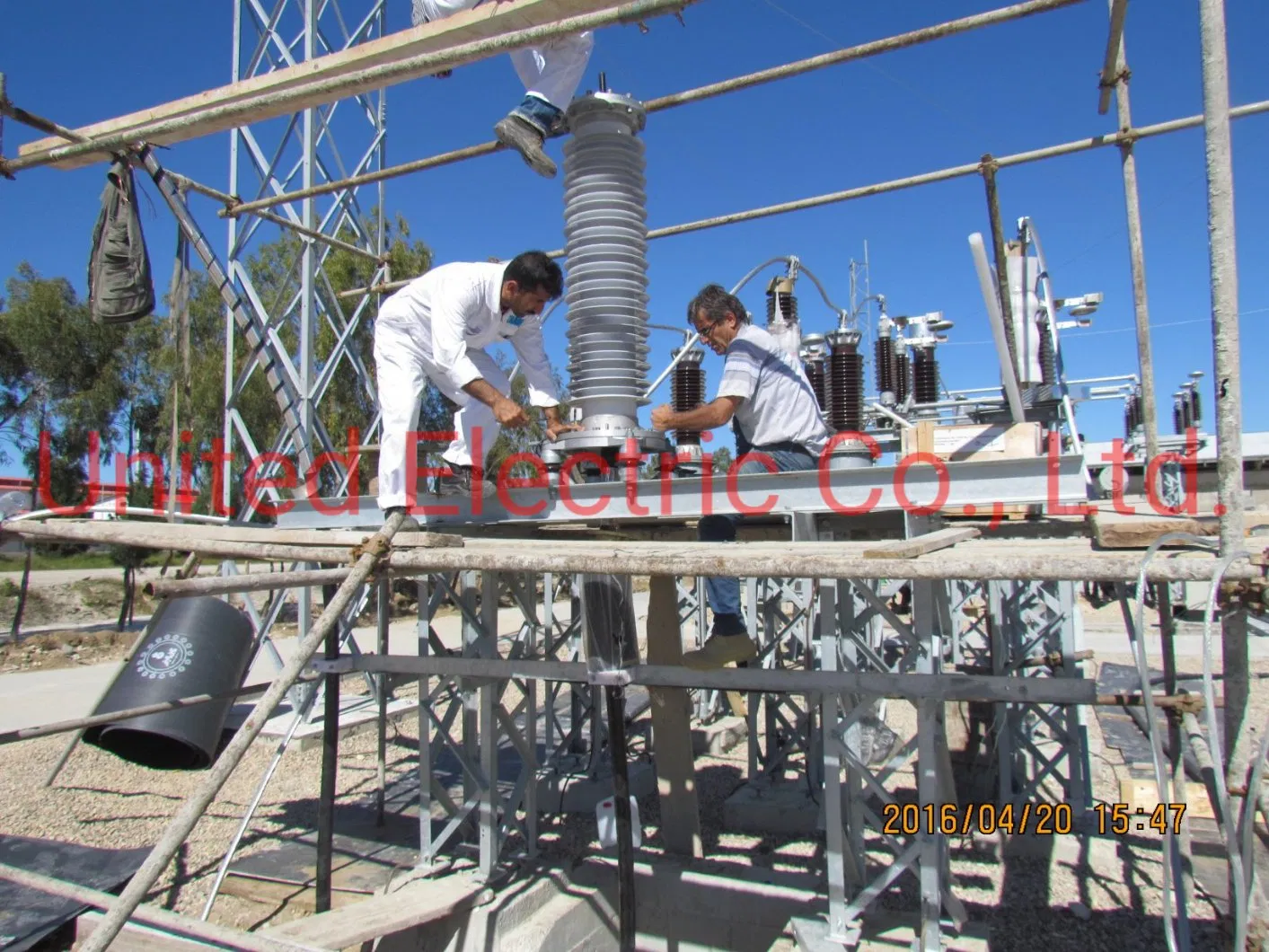

110kV Outdoor Composited Termination installed in Iran

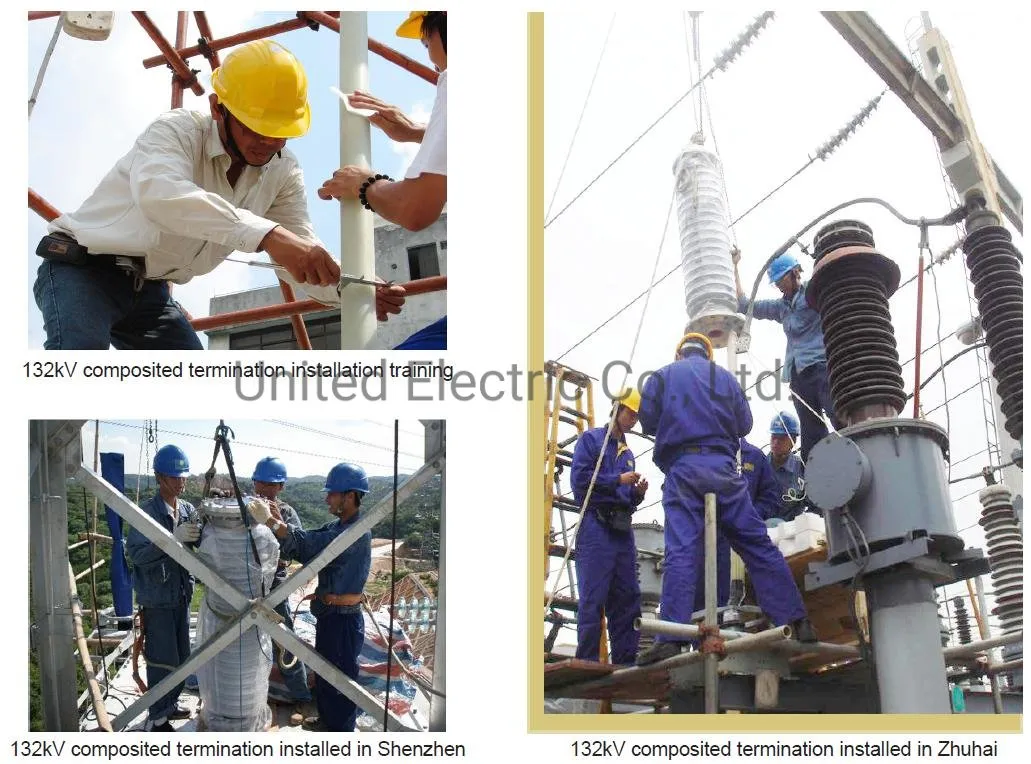

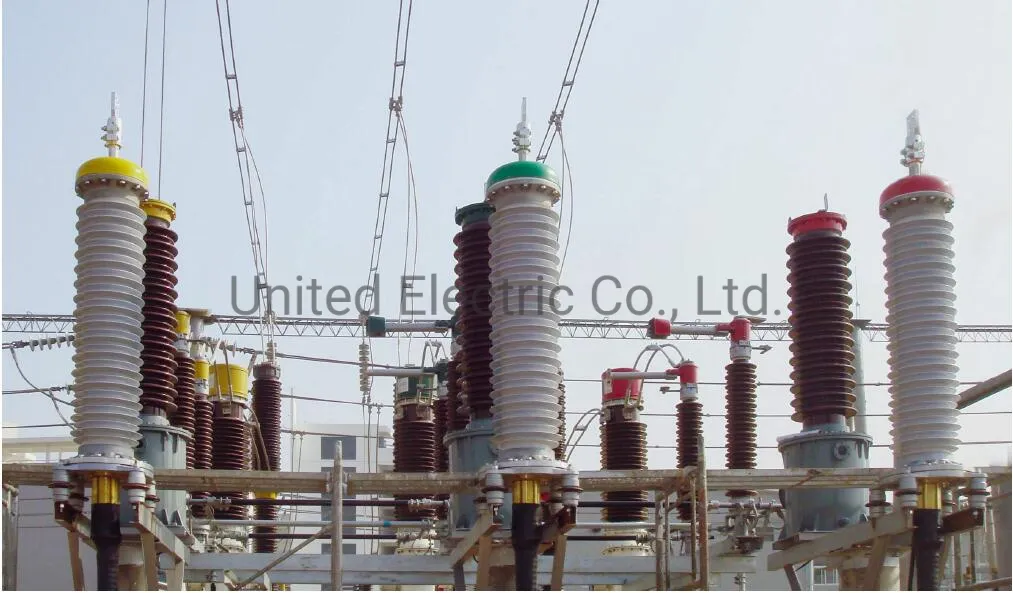

132kV dry type outdoor composited terminaiton installed in Wuhan Utility
Approved certificate KEMA132kV dry type outdoor composited terminaiton installed in Wuhan Utility
