70mm2 Silicone Rubber Sheathed Heating PVC Double Insulated Welding Copper Power Cables Flexible Electric Cable Wire
450/750V H07RN-F YC YH YCW flexible rubber power cable1.Applicationwelding cable are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparat......
Send Inquiry
Product Description

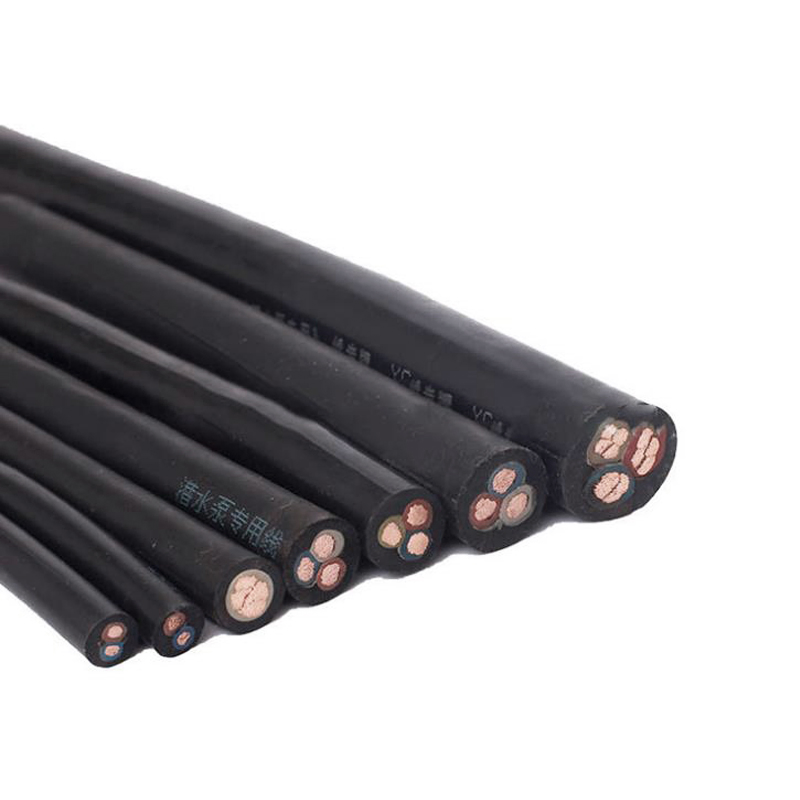

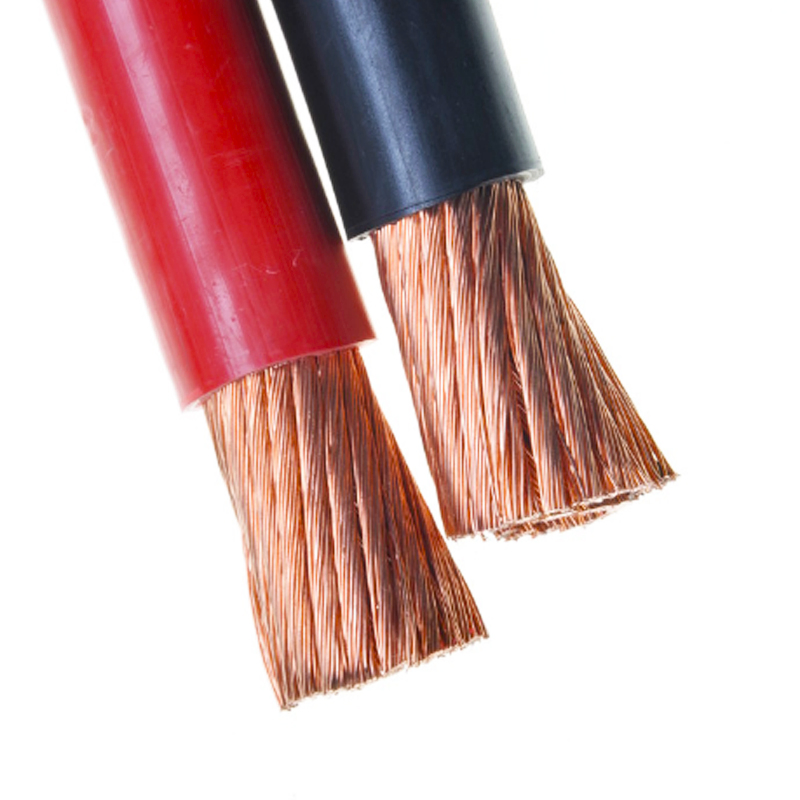

450/750V H07RN-F YC YH YCW flexible rubber power cable
1.Application
welding cable are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.
2.Standard
IEC 60245 and Chinese National Standards GB5013
We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ.
3.Specification
Welding cables to IEC 60245
Welding cable according to ASTM standard
Sea freight: FOB/C&F/CIF quotation are all available.
* For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.
About us

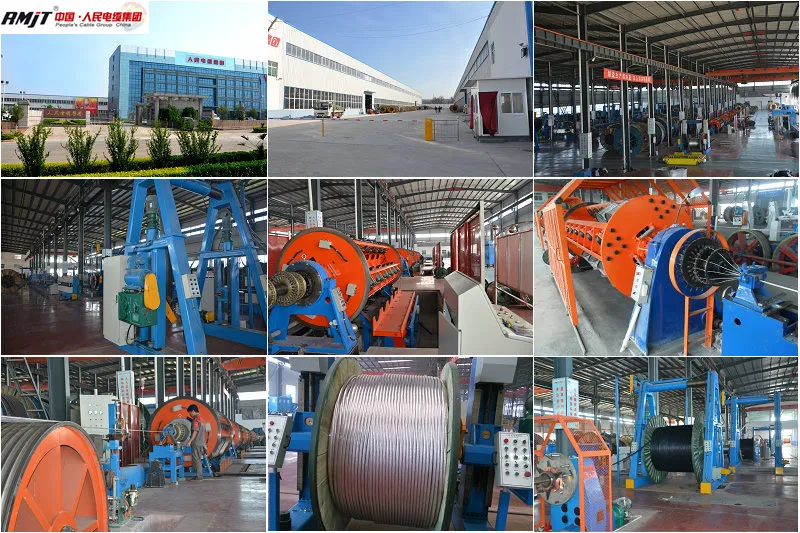

People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.
Certificate
People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
1.Application
welding cable are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.
2.Standard
IEC 60245 and Chinese National Standards GB5013
We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ.
3.Specification
Welding cables to IEC 60245
| Nominal section area (mm2) | No./diameter of stranding (mm) | Nominal sheath thickness (mm) | Overall diameter (mm) | Max. conductor resistance at 20ºC(Ω/km) | ||
| Min. | Max. | Without tinned | With tinned | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 1.19 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 0.780 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 0.552 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 0.390 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 0.276 |
| 95 | 2297/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 0.204 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 0.164 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 0.132 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 0.108 |
| 240 | 1908/0.40 | 3.8 | 25.0 | 35.0 | 0.0801 | 0.0817 |
Welding cable according to ASTM standard
| Size (AWG) | Nominal stranding | Nominal overall diameter | Approx. net weight (LBS/1000ft) | Max. conductor resistance at 20ºC(Ω/km) | ||
| AWG | mm | inch | mm | |||
| 6 | 259/30 | 259/0.254 | 0.430 | 10.92 | 152 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 215 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.540 | 13.72 | 296 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.580 | 14.73 | 360 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 424 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 513 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.720 | 18.29 | 644 | 0.21 |

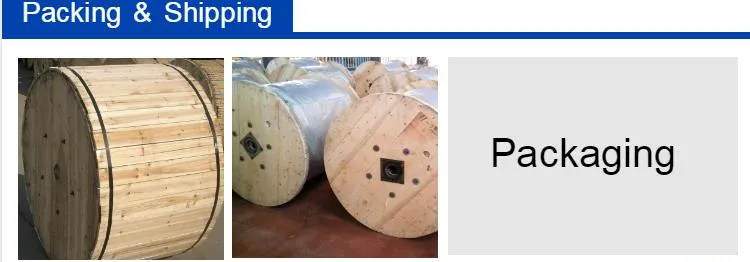

Packing
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

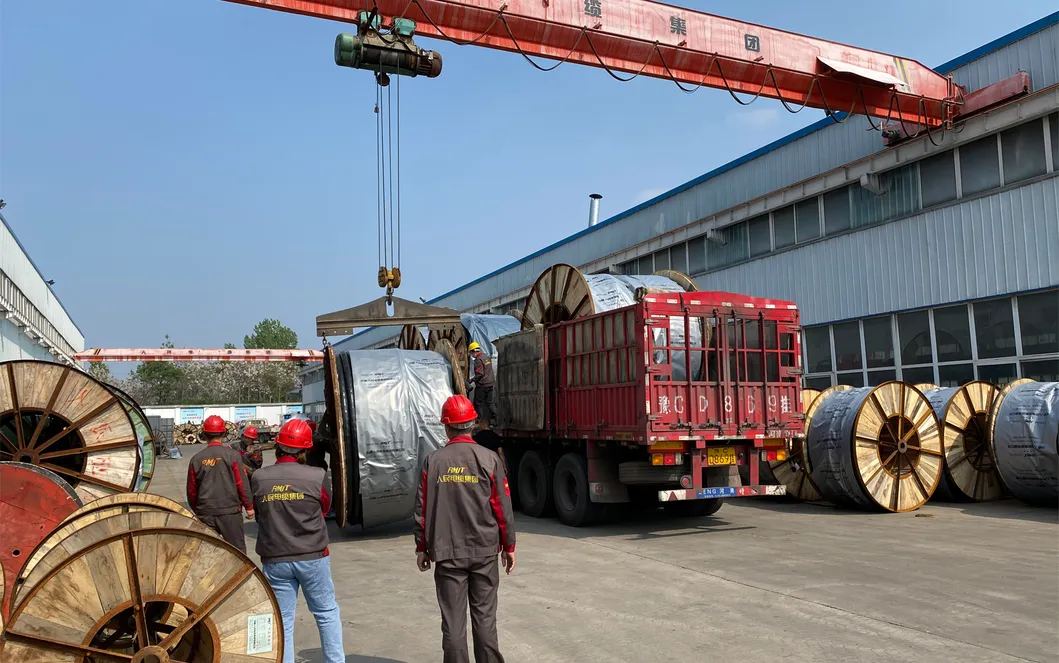

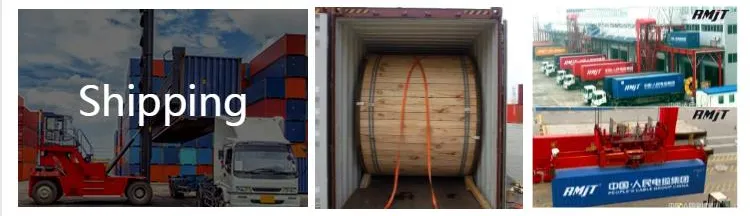

Delivery
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
* For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.
About us
People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.
Certificate
People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
