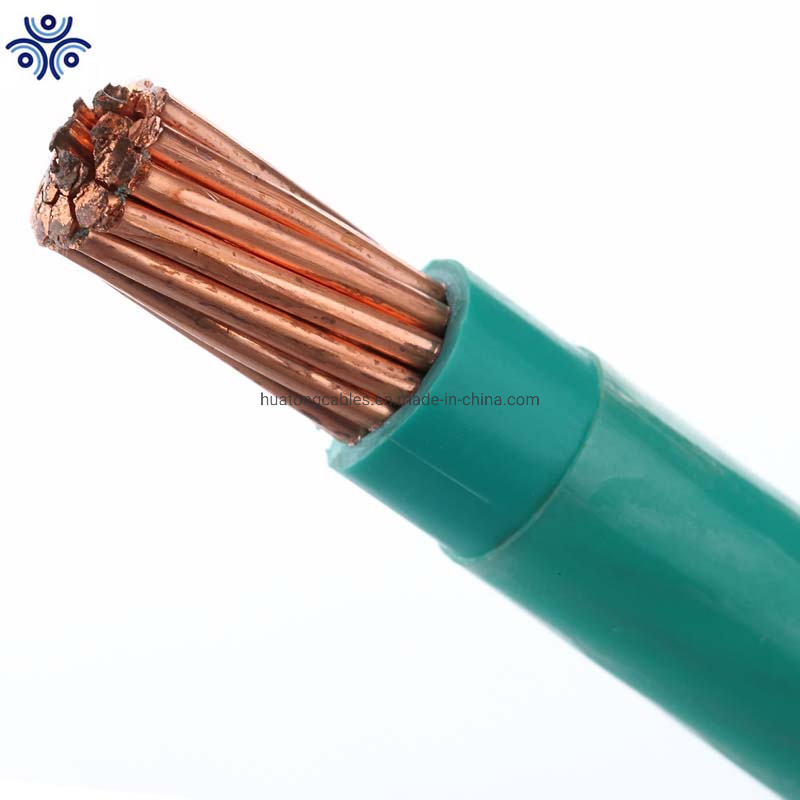

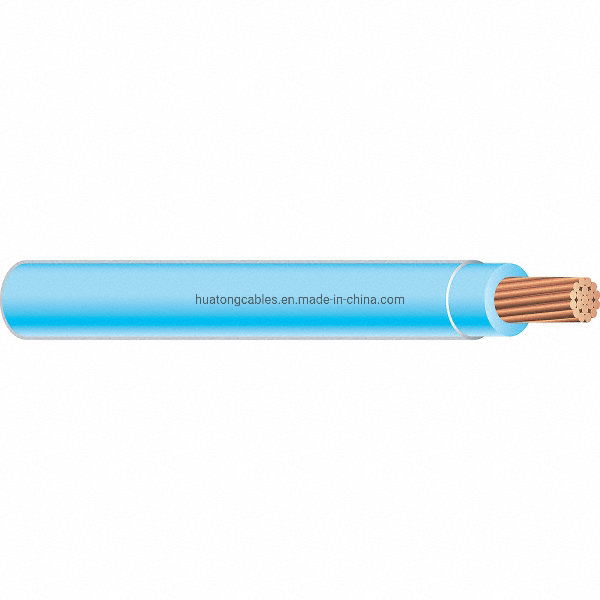

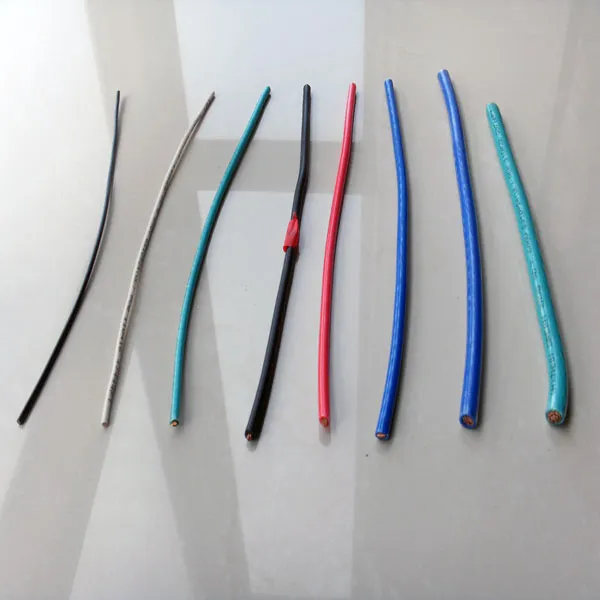

600V 8 AWG Stranding Cu/PVC/Nylon UL83 Certificated Building Wire

600V 8 awg CU/PVC/Nylon UL83 certificated building wire

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

THHN electrical wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring. Read on below for THHN wire specs.THHN Wire RoHS is general purpose wiring in accordance with the NEC. The wire is rated at 600 volts for installation in conduit or other recognized raceway. THHN Wire RoHS may also be used for wiring of machine tools, appliances and control circuits.TFFN and TFN Fixture Wire are general purpose wiring in accordance with the NEC. It is building wire rated at 600 volts, for installation in conduit or other recognized raceway. TFFN Wire and TFN Wire may also be used for wiring of machine tools, appliances and control circuits. TFN 18 1 can be used as dog fence wire.

Building Wire -TF,TFF,TFN,TFFN Wire Specifications:

            Conductor: Bare solid and stranded Copper, Soft Drawn

              Insulation: Polyvinylchloride (PVC)

              Jacket: Nylon

              Standard Colors (denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.

Building Wire - THHN Wire Ratings:

            THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V

             THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V

             MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V

             AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V

            AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V

            AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V

            T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V

            TWN 75: - Oil, 75°C Wet, - Dry, 600V

            TF:60°C, only 16 and 18 AWG

            TFF:60°C, only 16 and 18 AWG

            TFN:90°C, only 16 and 18 AWG

            TFFN:90°C, only 16 and 18 AWG
