300V 200c UL20368 Multi Core FEP Insulated Cable Wire
UL20368 Multi FEP Cable Description Name: Multi FEP WireModel:AWM 20368 Size:2*18~7*14AWG FeatureRated Voltage:300VRated Temperature:200ºC Structure Conductor: Tinned Copper,Nickel Plat......
Send Inquiry
Product Description

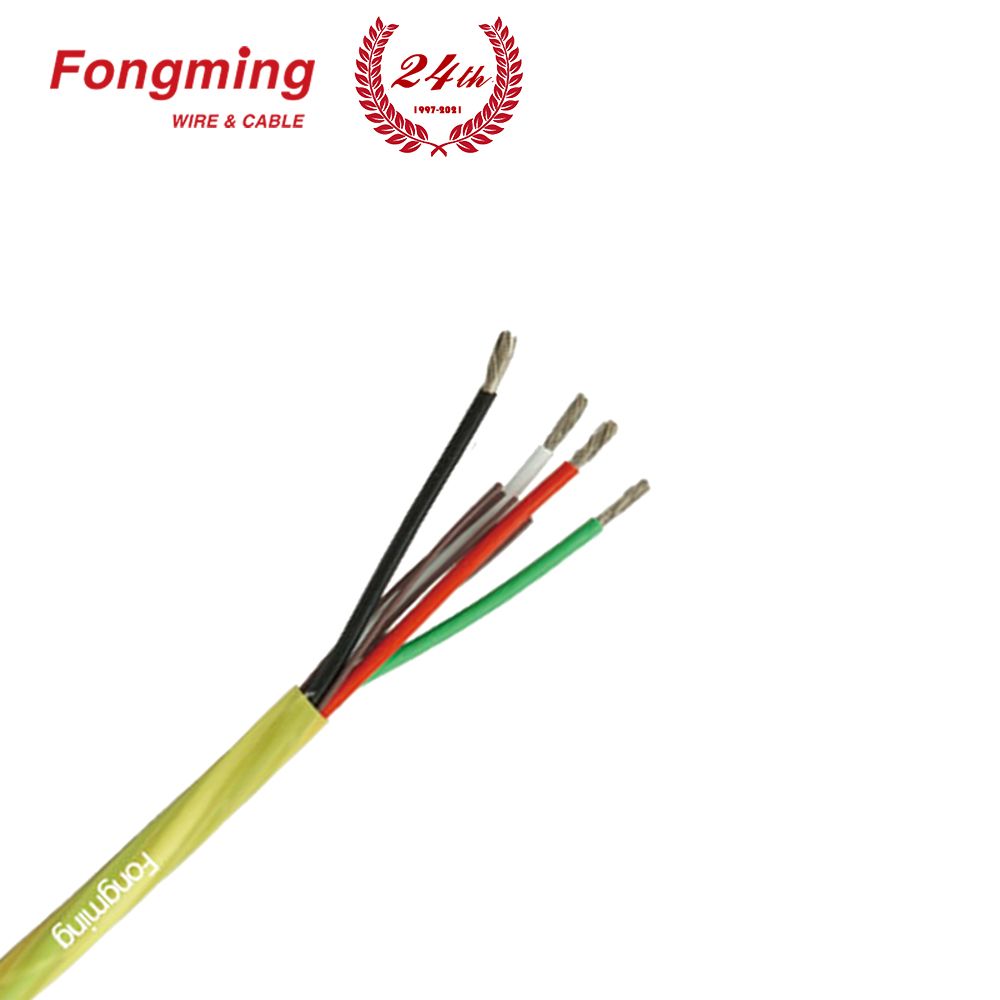

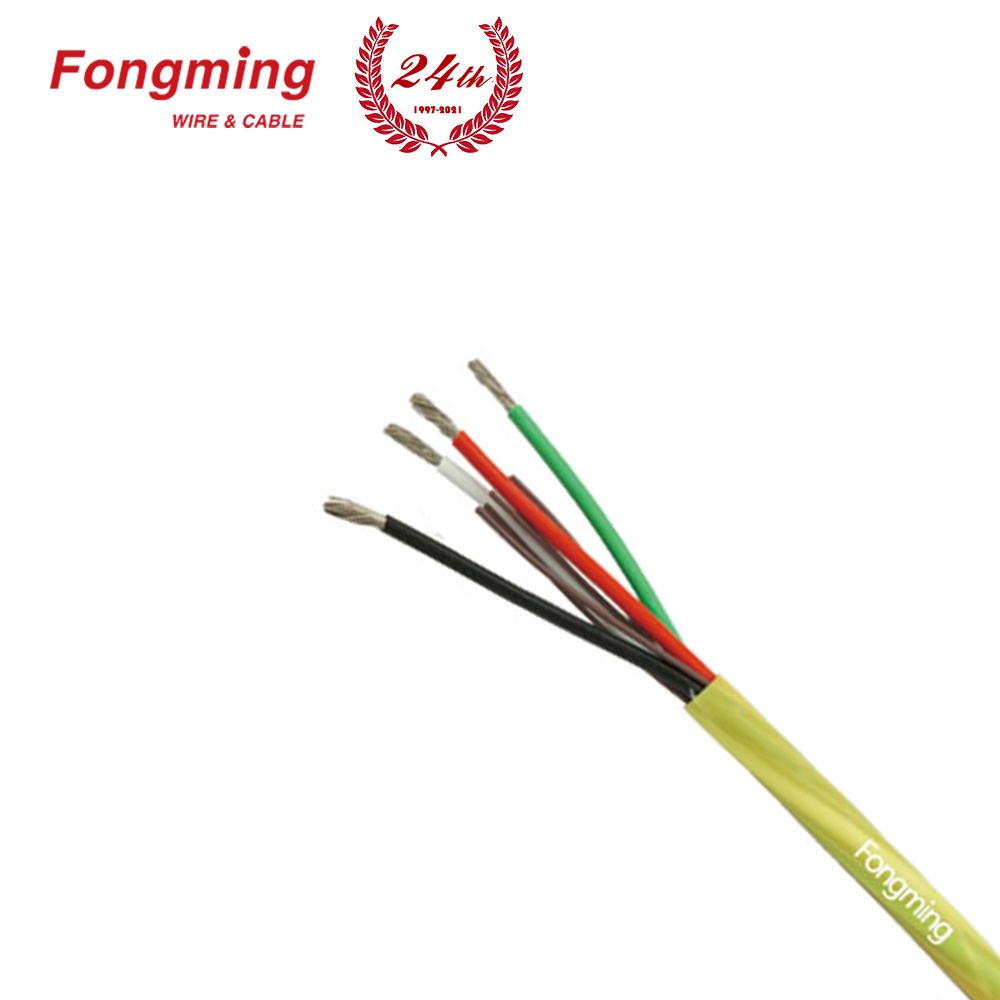

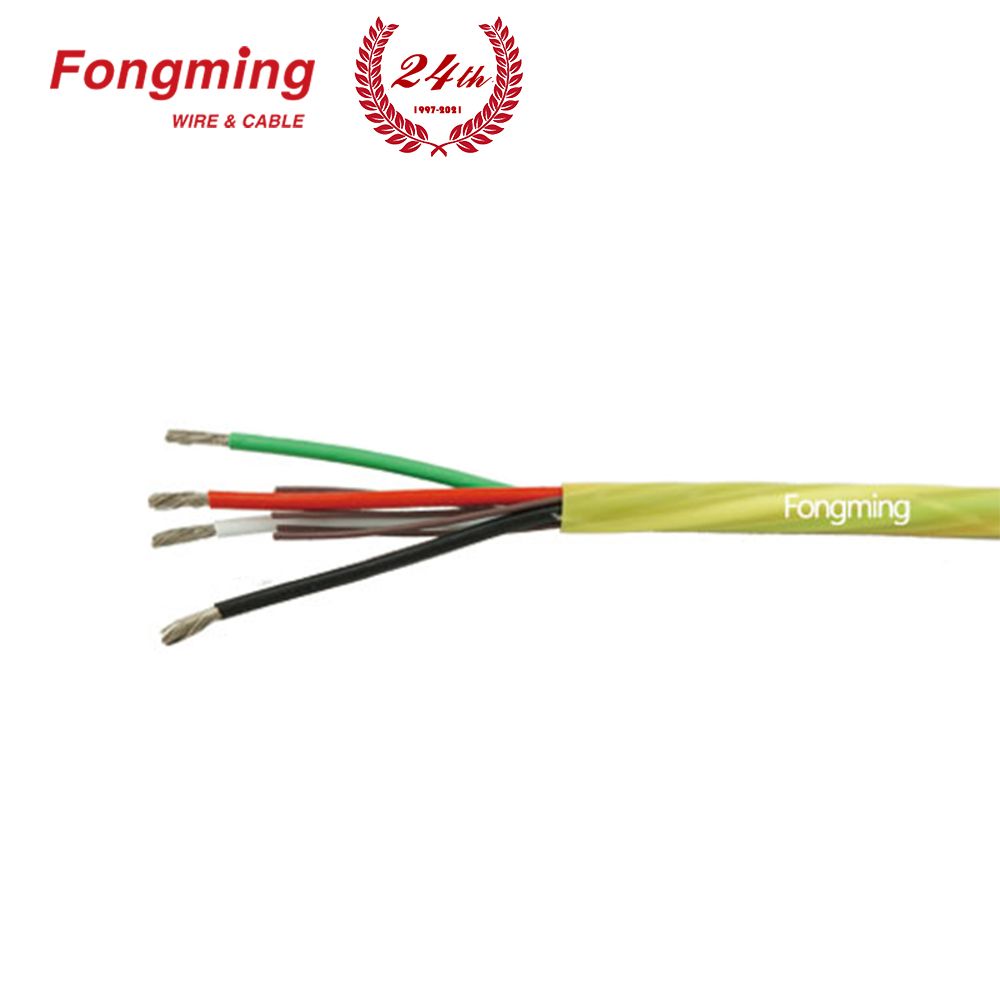

UL20368 Multi FEP Cable
Description
Name: Multi FEP Wire
Model:AWM 20368
Size:2*18~7*14AWG
Feature
Rated Voltage:300V
Rated Temperature:200ºC

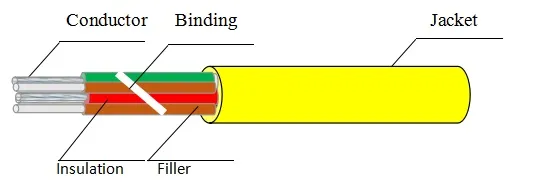

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
shield:Optional
Jacket:FEP
Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Description
Name: Multi FEP Wire
Model:AWM 20368
Size:2*18~7*14AWG
Feature
Rated Voltage:300V
Rated Temperature:200ºC
Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
shield:Optional
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.64 | 4.7±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.64 | 5.0±0.3 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.64 | 5.4±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.64 | 5.9±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.64 | 6.1±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.64 | 6.4±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.64 | 5.3±0.3 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.64 | 5.6±0.3 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.64 | 6.1±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.64 | 6.7±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.64 | 6.9±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.64 | 7.3±0.4 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.64 | 6.1±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.64 | 6.5±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.64 | 7.1±0.4 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.64 | 7.8±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.64 | 8.0±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.64 | 8.5±0.4 |
