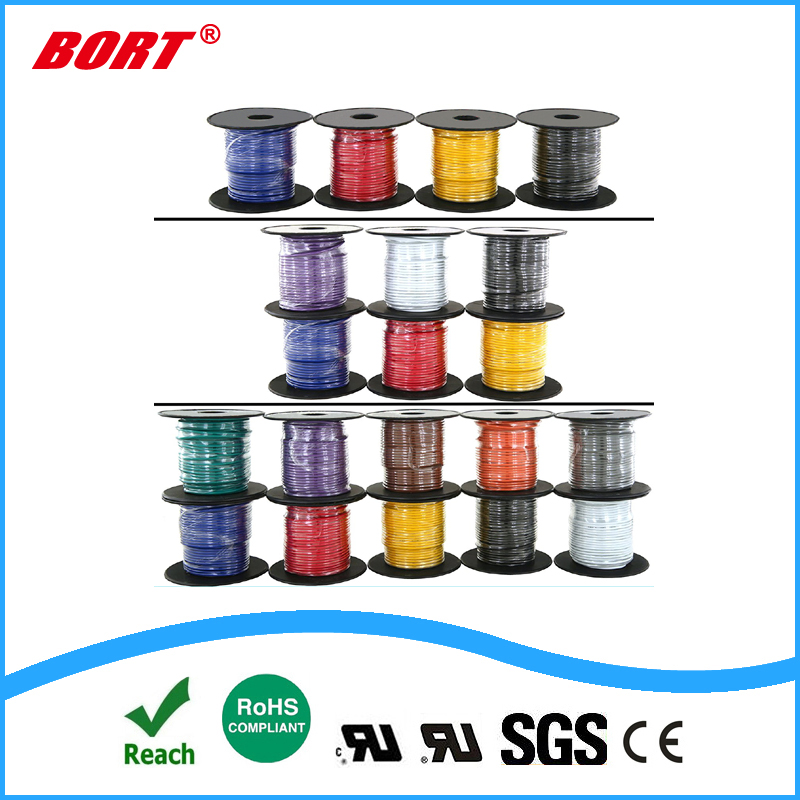

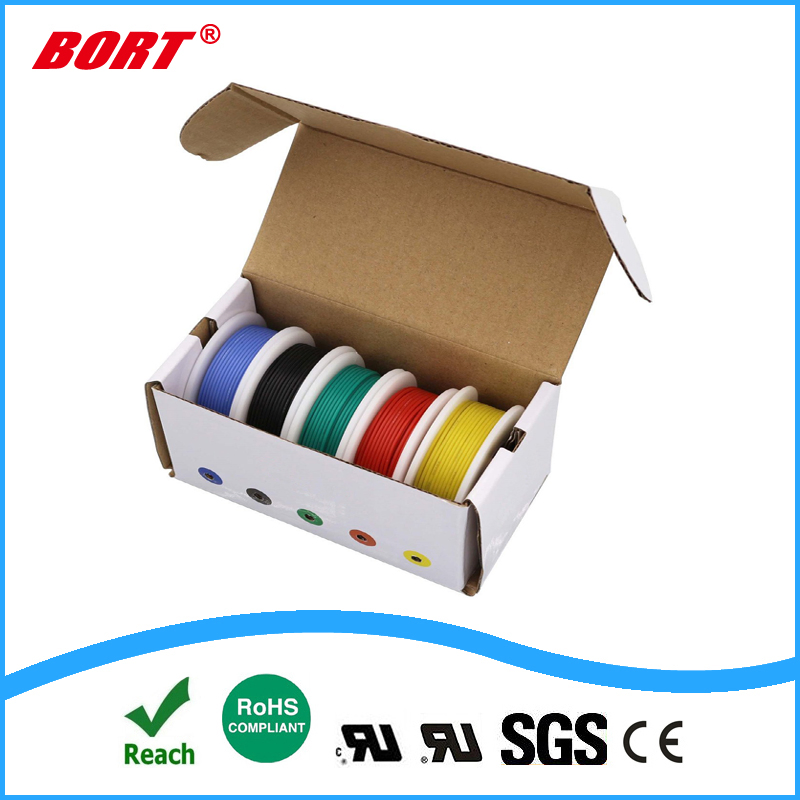

24 Gauge Hookup Wires Electronics Kit Stranded Tinned Copper Wire Flexible and Soft for DIY
PRODUCT DESCRIPTIONRated temperature:80ºCRated voltage:300VAccording to:UL Subject758,UL1581,C22.2Solid or stranded,tinned or bare copper conductor 32--16AWGPVC insulationPasses UL VW-1&CSA FT1 vertical flame testUniform insulation thickness of wire to ensure easy stripping and cutti......
Send Inquiry
Product Description
PRODUCT DESCRIPTION
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
32--16AWG
★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For general purpose internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 | 354.33 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 | 223.75 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 | 139.76 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 | 88.36 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 | 60.16 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 | 38.58 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 | 22.98 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 | 15.06 |
| 28 | 1/0.320 | 0.41 | 1.15 | 610 | 227.39 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 | 142.79 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 | 89.39 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 | 54.30 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 | 33.90 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 | 21.40 |
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
