China 20 Pin 24p 30 Conductor 40c AWG26 AWG28 Customized UL Electric Wire Flat Cable

Product Description

Description:

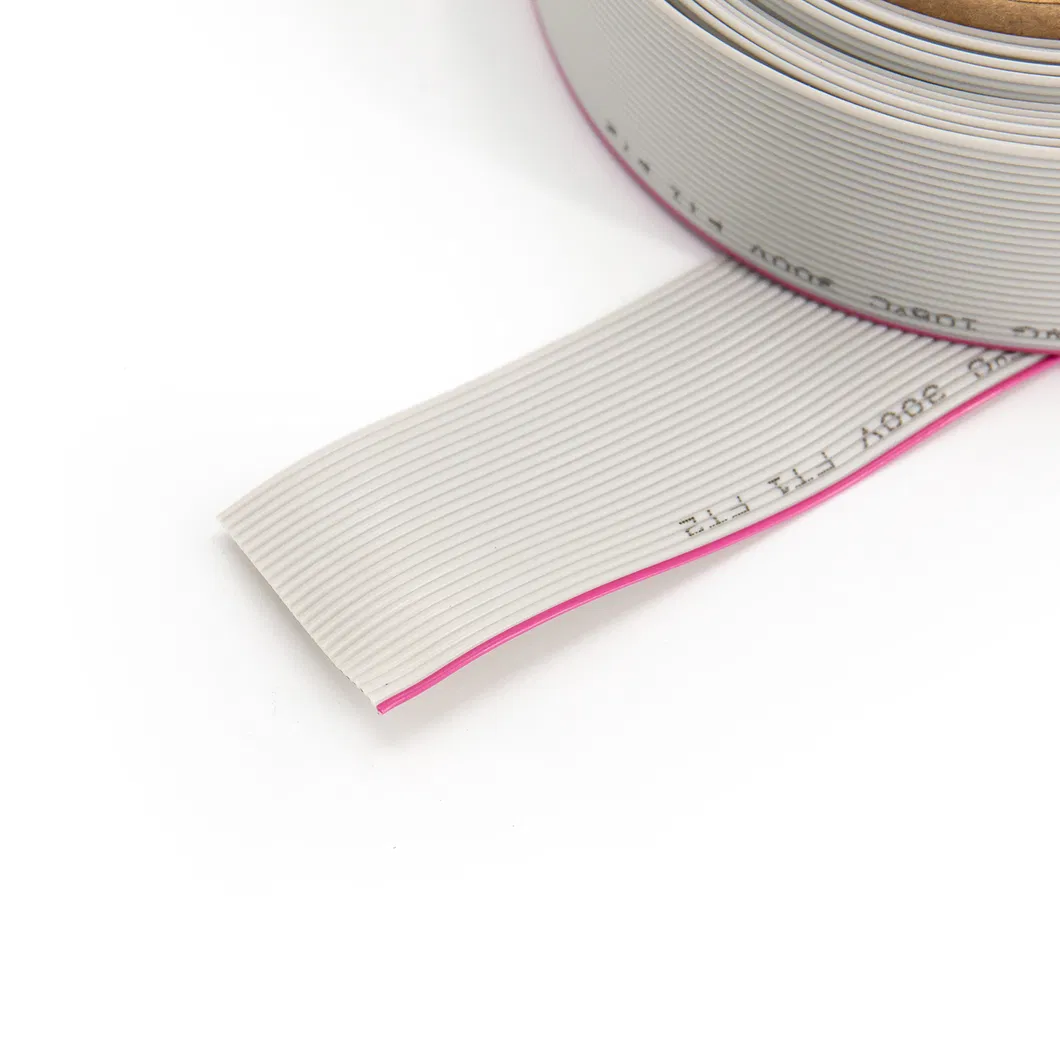

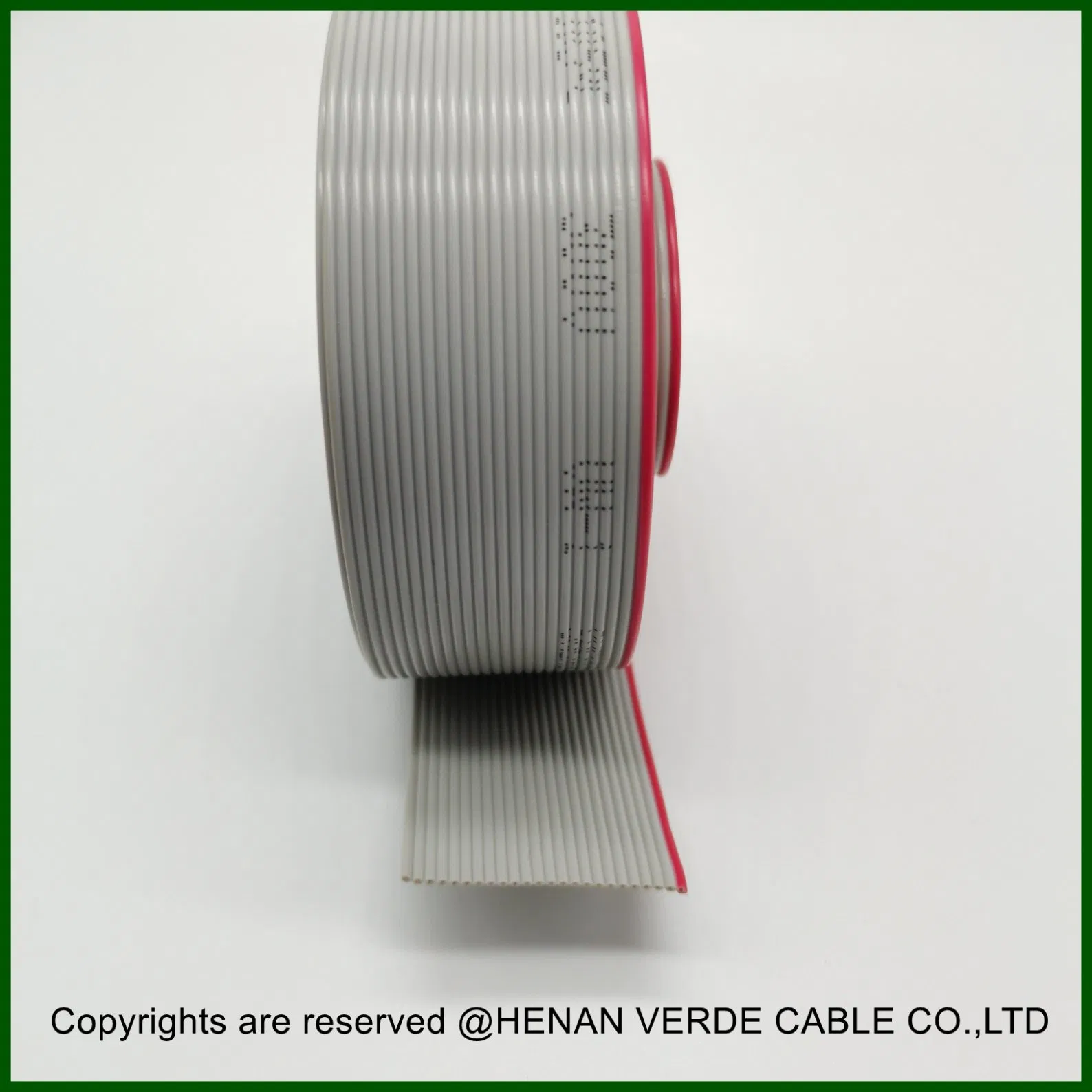

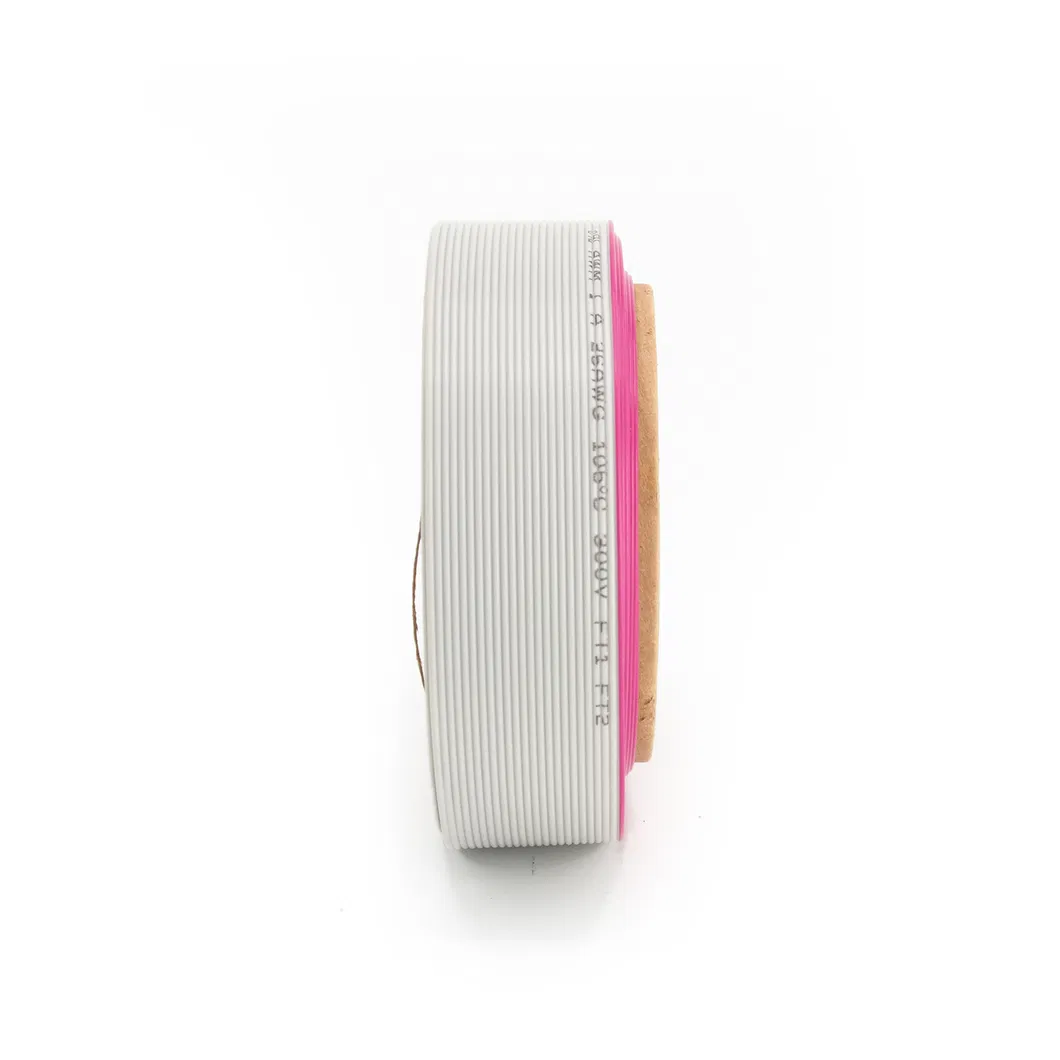

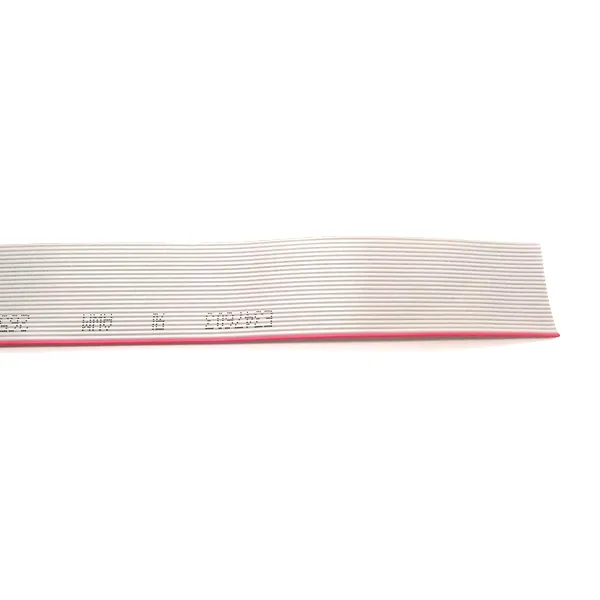

Tinned copper (REACH) PVC insulated grey with red flat signal cable

Application:
Flat signal cable is suitable for use as a data transmission cable between moving parts and the main board, board-to-board and miniaturized electrical equipment. At present, it is widely used in the connection between the print head of various printers and the main board.

Structure of flat ribbon cable:
Conductor:Tinned copper
Insulation:(REACH) PVC
Shape: flat
Core number: 8, 9, 10, 12, 14, 15, 16, 20, 24, 26, 30, 34, 40, 50, 60, 64
Size: AWG28 AWG26 AWG24 AWG30
Color: Gray with black, gray with Red, color can be customized according to the requirement of the customer.

Technical Data of flat signal cable:
Rated voltage: 300V
Maximum use temperature: 105ºC
Maximum conductor resistance at 20ºC: 25Ω/km
Standard: UL 2651 Style or Customize as per the customers' special required standard
Packing: 152.5m/roll or 305meter per roll

Specification of flat signal cable:

UL Specification	Maximum use temperature	Maximum operating voltage	Number of conductors	Conductor		Finished outer diameter
				Size	Wire number/wire diameter	Thickness mm±0.05	Width Wmm±0.2
				AWG	No./mm±0.05	Thickness mm±0.05	Width Wmm±0.2
2651	105ºC	300V	8	28	7/0.127	0.90	10.16
			9	28	7/0.127	0.90	11.43
			10	28	7/0.127	0.90	12.70
			12	28	7/0.127	0.90	15.24
			14	28	7/0.127	0.90	17.78
			16	28	7/0.127	0.90	20.32
			20	28	7/0.127	0.90	25.40
			26	28	7/0.127	0.90	33.02
			30	28	7/0.127	0.90	38.10
			34	28	7/0.127	0.90	43.18
			40	28	7/0.127	0.90	50.80
			50	28	7/0.127	0.90	63.50
			60	28	7/0.127	0.90	76.20
			64	28	7/0.127	0.90	81.28

Feature of flat signal cable:
1. Small size and light weight, it is the only solution to meet the miniaturization and mobile requirements of the equipment;
2. It can be moved, bent and twisted without damaging the wires, and can meet different shapes and special package sizes;
3. The gray cable has excellent electrical properties, dielectric properties and heat resistance;
4. The gray cable has higher assembly reliability and quality.

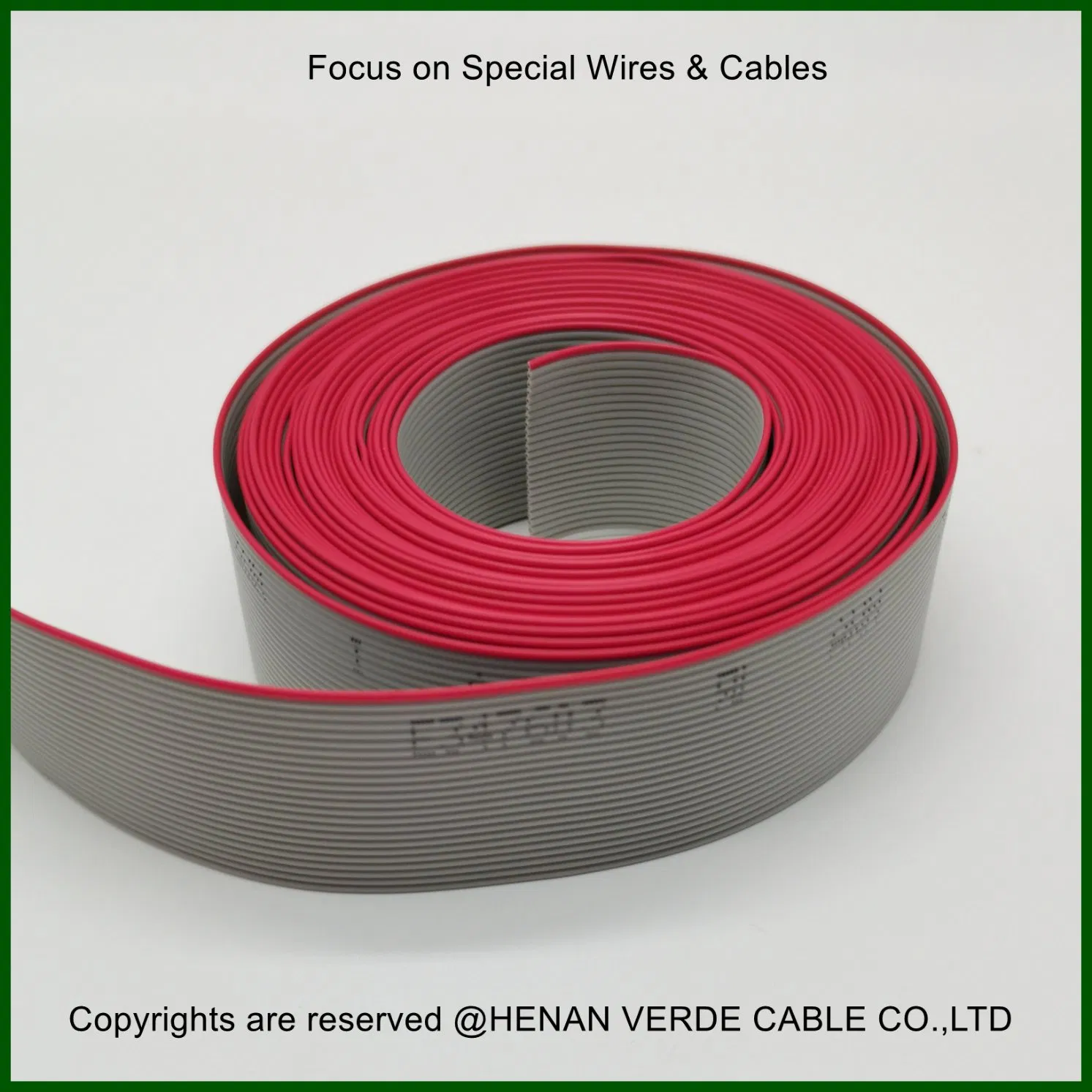

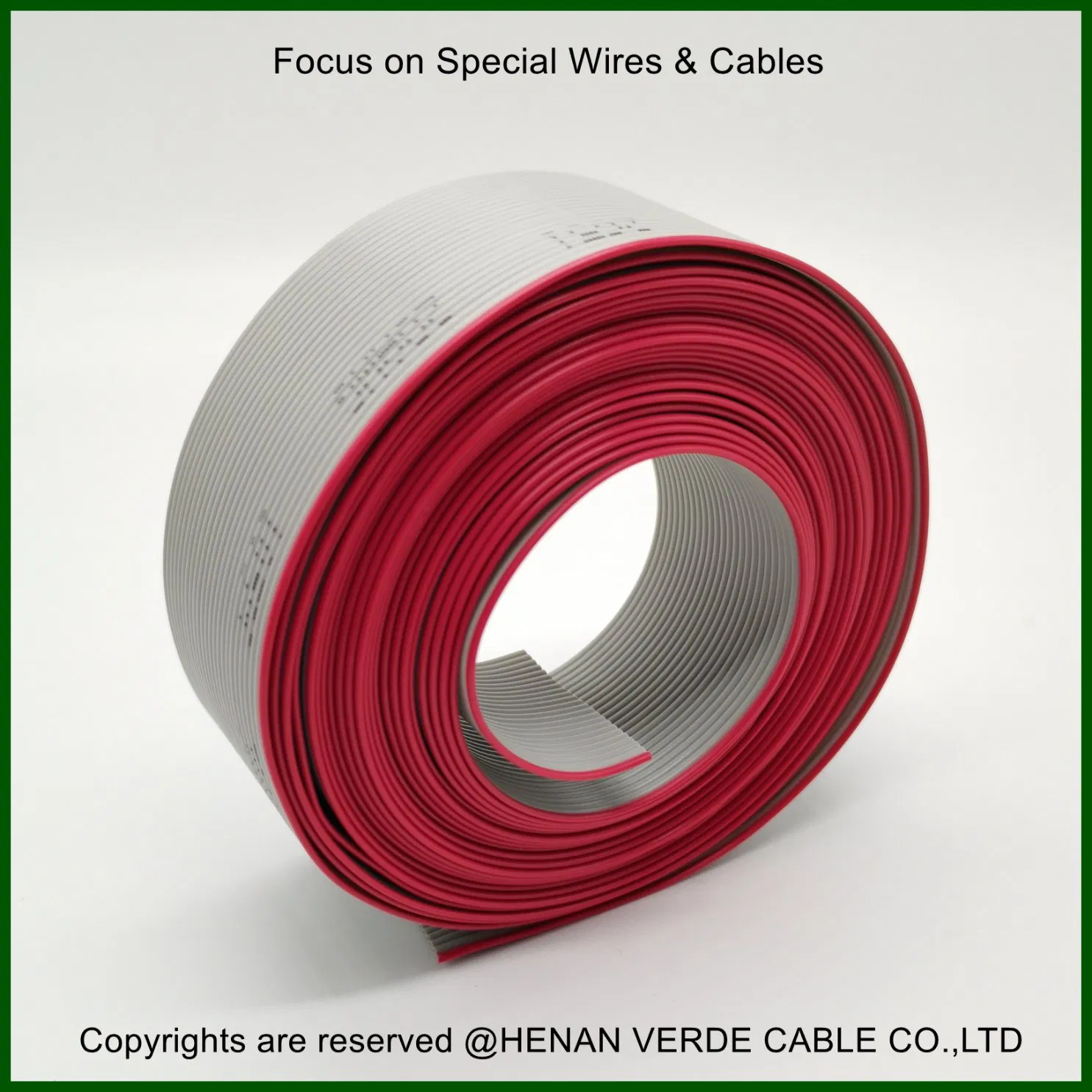

20 Pin 24p 30 Conductor 40c AWG26 AWG28 Customized UL Electric Wire Flat Cable

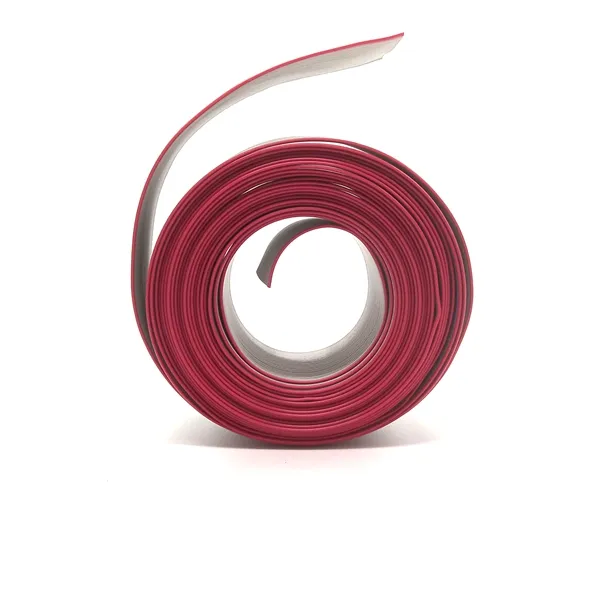

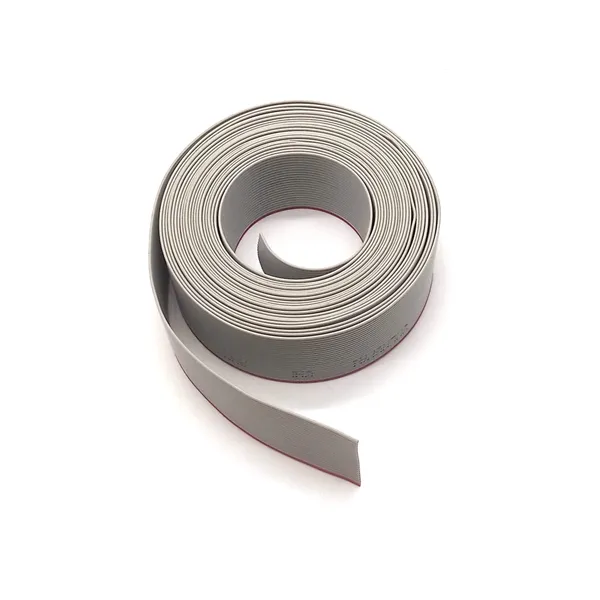

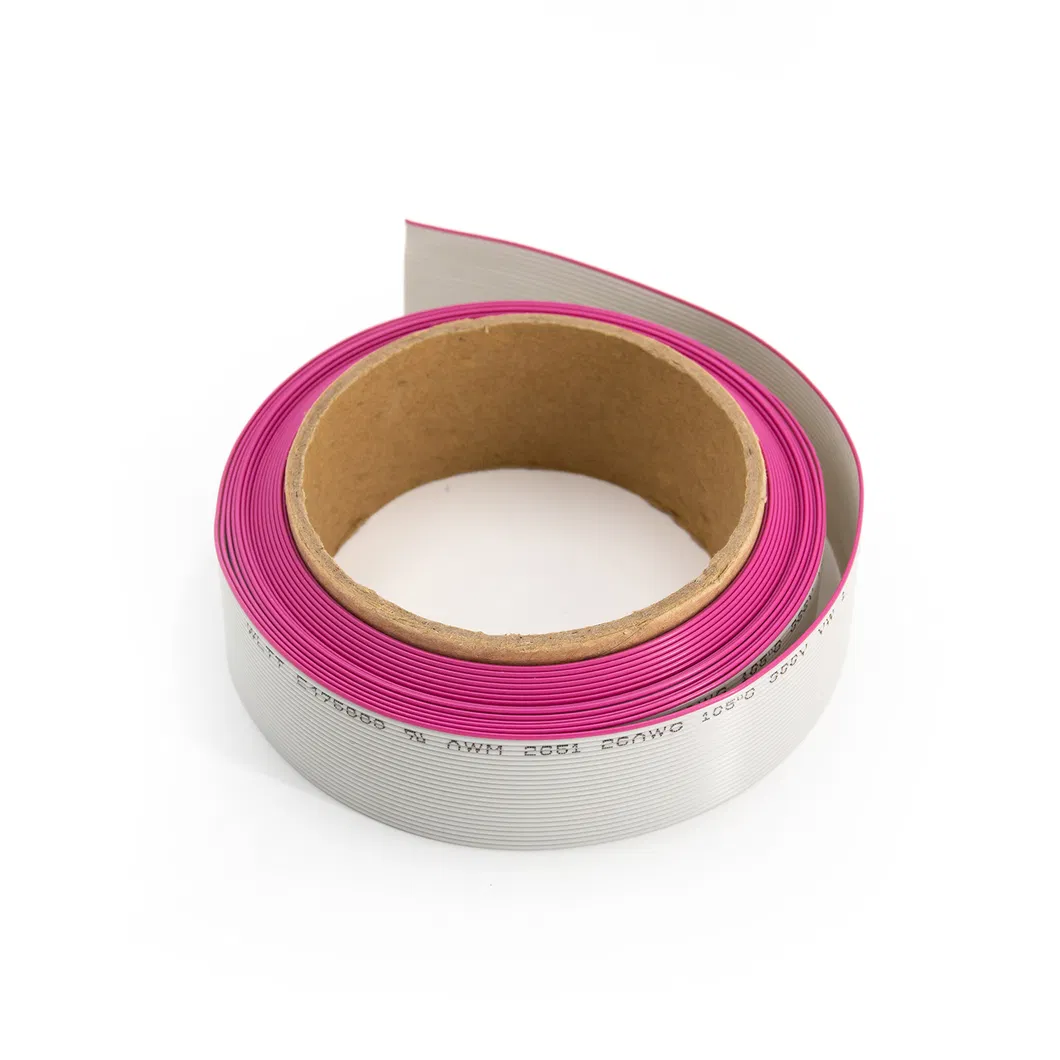

Packing ways for PVC cable for your choince.

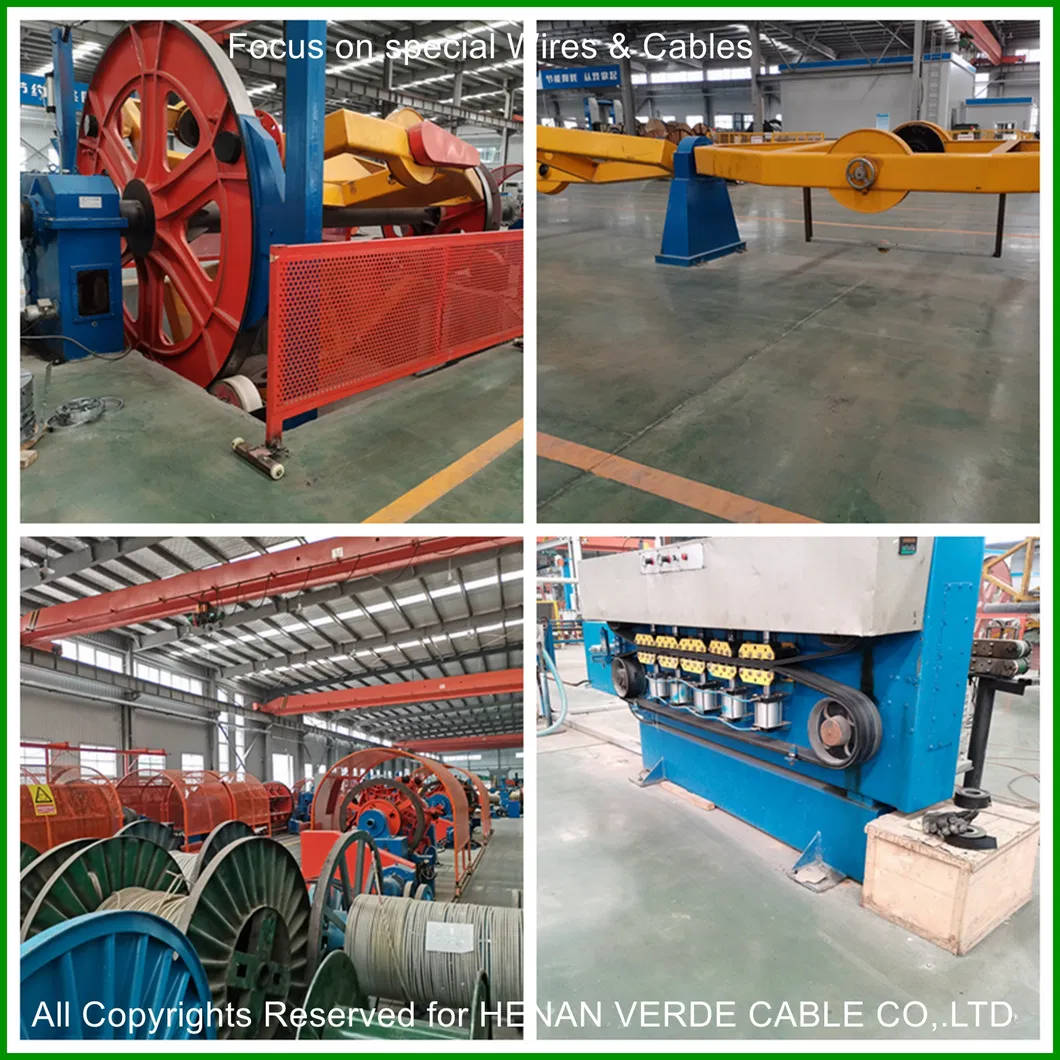

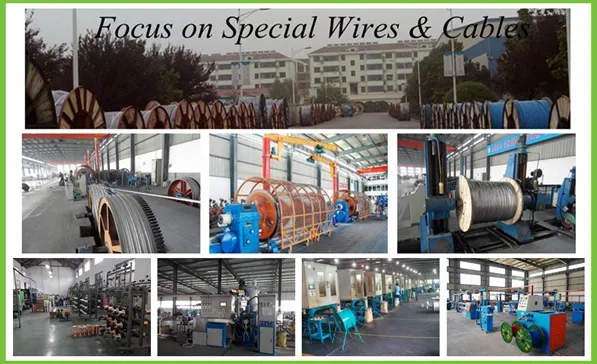

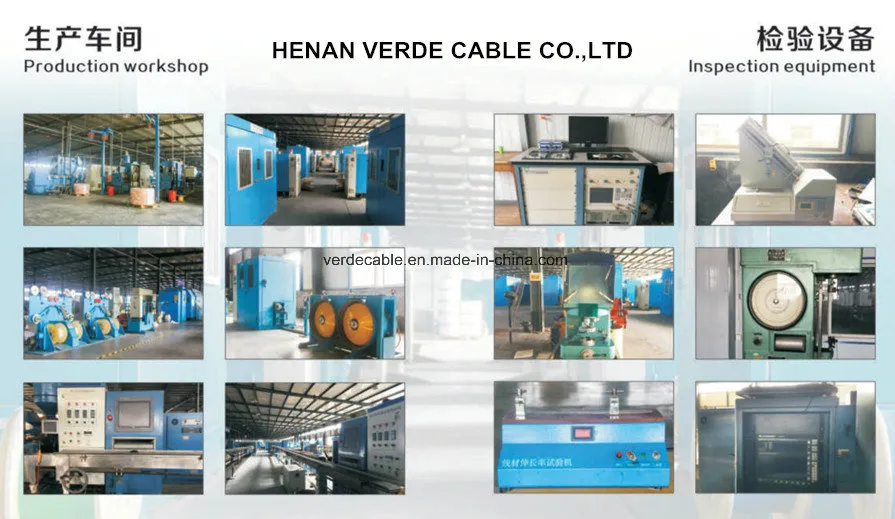

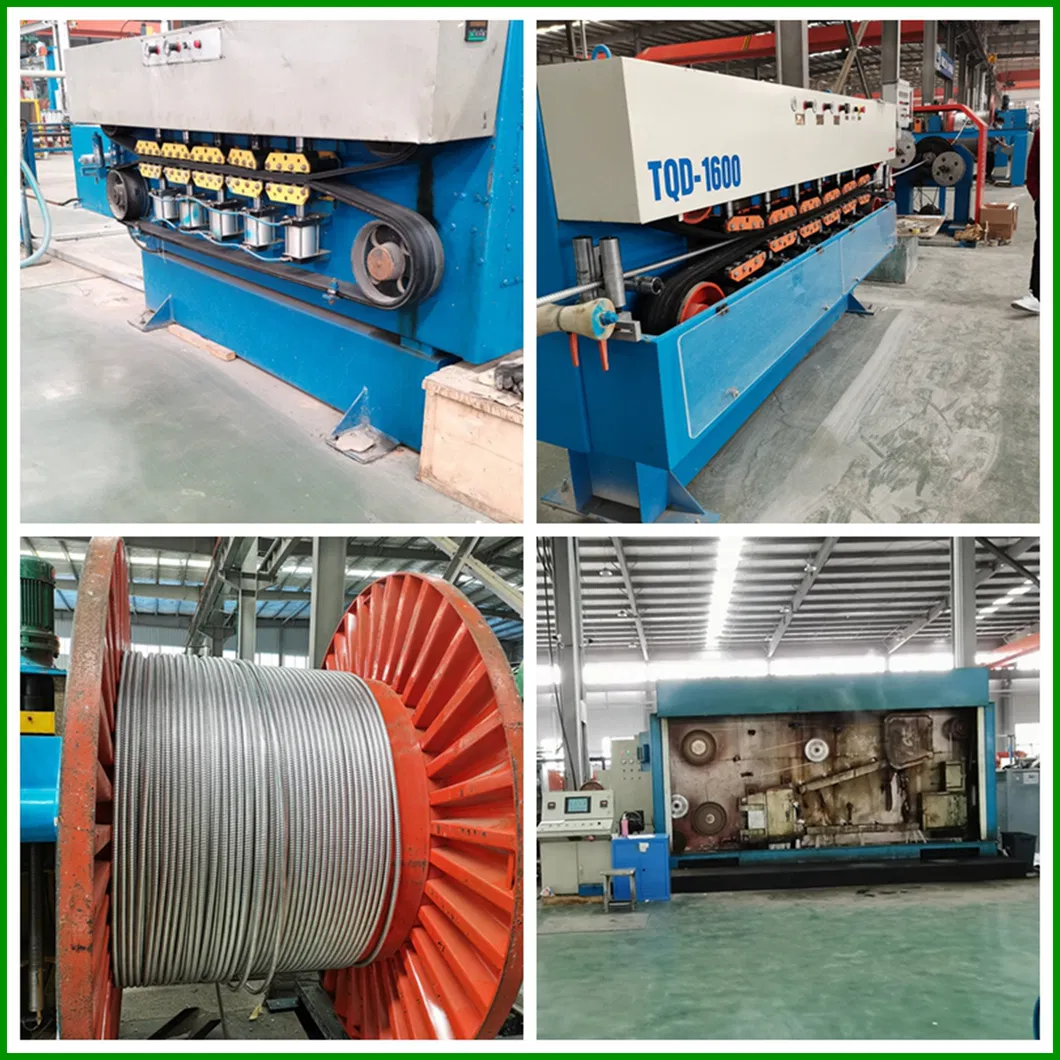

Our workshop:
20 Pin 24p 30 Conductor 40c AWG26 AWG28 Customized UL Electric Wire Flat Cable

Q&A:

1. Q:How to choose the sheath type of cable?
A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.

2. Q.:Are you a factory or trading company?
A: We are a factory, and we establised in 2007.

3. Q: What kind of electric wire and cable do you produce?
A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),Teflon wire and High temperature Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)

4. Q: Is sample supplied if requested?
A: Yes!

5. Q: What certificates do you have?
A: We have been qualified with IEC, CCC, CE, RoHS.

6. Q.:Which markets do you mainly involve in?
A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico, Guatemala, Nicaragua.
