15kv 250A Separable Deadbreak Connector 120mm2

Product Description

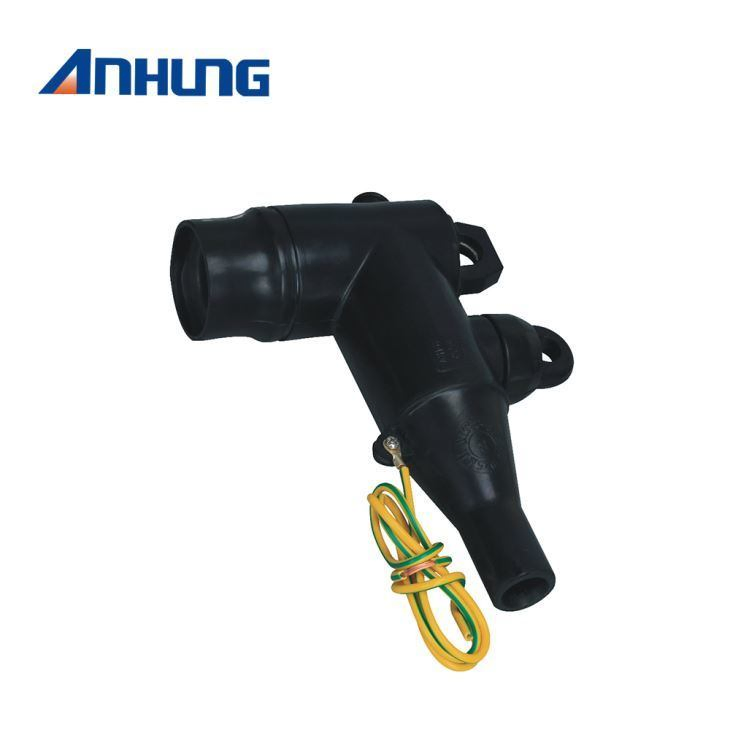

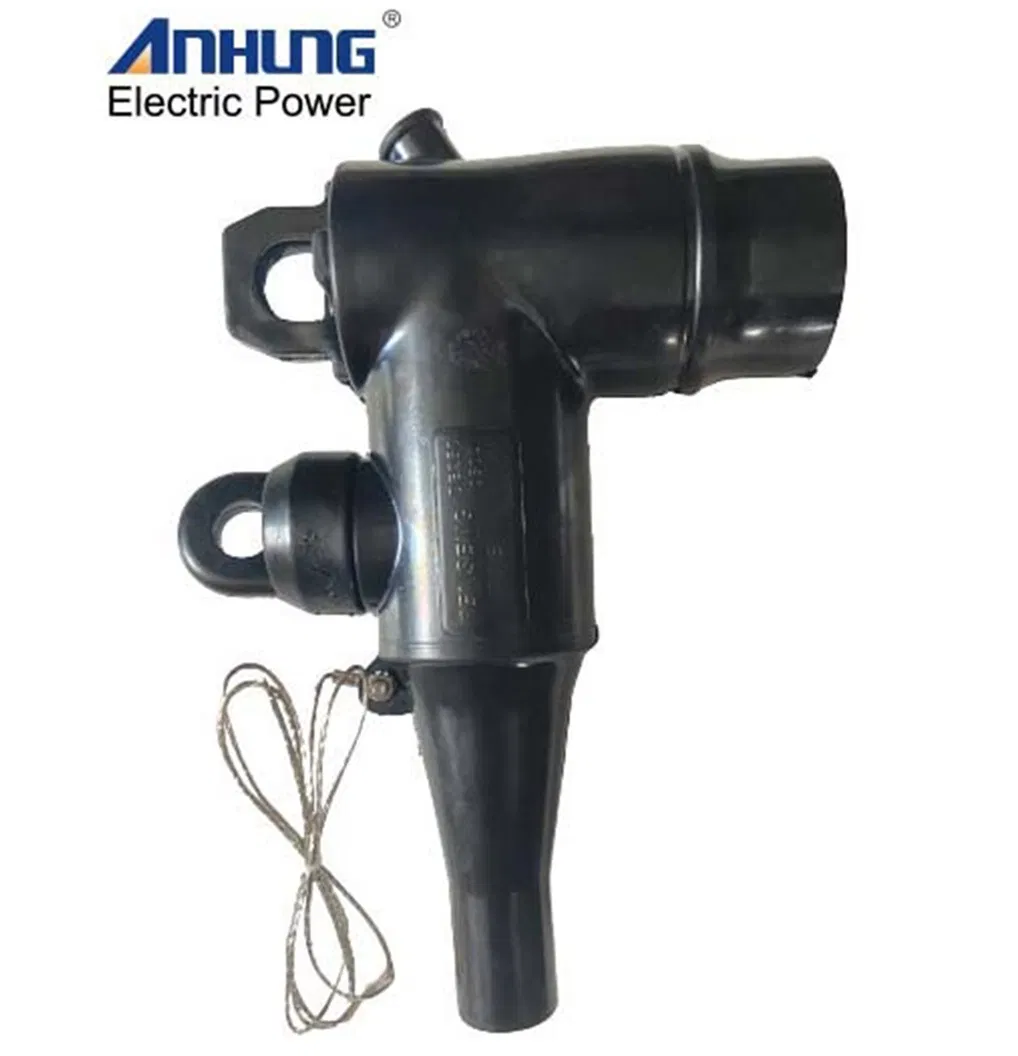

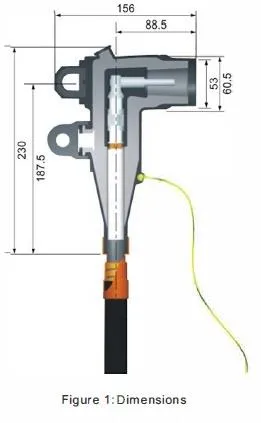

15kv 250A Separable Deadbreak Connector 120mm2 Product Details:

Features:

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.

Built-in capacitive test point to determine the circuit status or install a fault indicator.

No minimum phase clearance requirements.

Mounting can be vertical, horizontal, or any angle in between.

Application:

For connection of polymeric cable to transformers, switchgear, motors and other equipment with a pre-moulded separable connector.

For indoor and outdoor installations.

System voltage up to 24 kV.

Continuous current 250 A (300 A overload for 8 hours).

Cable particulars:

-Polymeric cable (XLPE, EPR, etc.)

- Copper or aluminum conductors

-Semiconducting or metallic screens

- Conductor size 25-120 mm²

Description	Reference No.	Conductor cross section (mm²)	Stretch range over insulation (mm)
15kV 250A Load break Elbow Connector	AH ZT-10/250-25	24	16.3-19.9
15kV 250A Load break Elbow Connector	AH ZT-10/250-35	35	16.3-19.9
15kV 250A Load break Elbow Connector	AH ZT-10/250-50	50	16.3-19.9
15kV 250A Load break Elbow Connector	AH ZT-10/250-70	70	19.8-23.5
15kV 250A Load break Elbow Connector	AH ZT-10/250-95	95	23.1-27.1
15kV 250A Load break Elbow Connector	AH ZT-10/250-120	120	23.1-27 .1
25kV 250A Load break Elbow Connector	AH ZT-25/250-35	35	23.1-27 .1
25kV 250A Load break Elbow Connector	AH ZT-25/250-50	50	23.1-27.1
25kV 250A Load break Elbow Connector	AH ZT-25/250-70	70	23.6-26.4
25kV 250A Load break Elbow Connector	AH ZT-25/250-95	95	23.6-26.4
25kV 250A Load break Elbow Connector	AH ZT-25/250-120	120	27.9-33.5
