10 AWG 12 AWG 14AWG Thhn Electric Copper Wire

Product Description

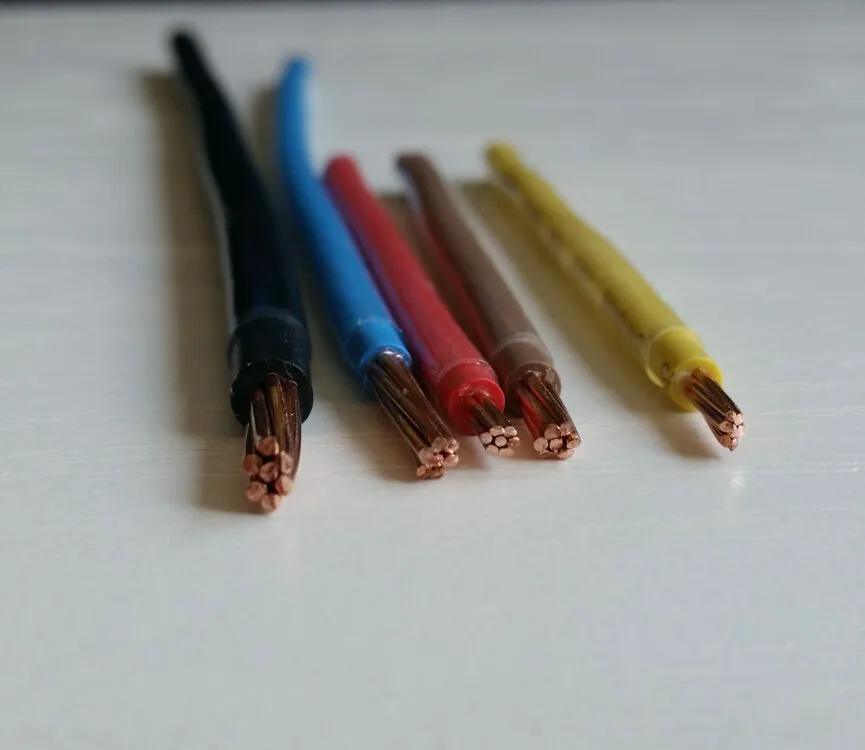

10 awg 12 awg 14awg thhn electric copper wire

1). Rated Voltage: 600V

2). Application:electric equipment, household, and electrical appliance.

3). Rated Temperature: 90ºC dry for THHN, 75ºC dry or 75ºC for THWN, 90ºC wet for THWN-2

4). Standards : UL83

5). Type size : 18 AWG 16AWG 14AWG 12AWG 10AWG 8AWG 6AWG 4AWG 3AWG 2AWG 1AWG 1/0AWG 2/0AWG 3/0AWG 4/0AWG 250Kcmil 300Kcmil 350Kcmil 400Kcmil 450Kcmil 500Kcmil 750Kcmil 1000Kcmil

6). Package : roll or drum

10 AWG 12 AWG 14AWG Thhn Electric Copper Wire

*Technical Data*

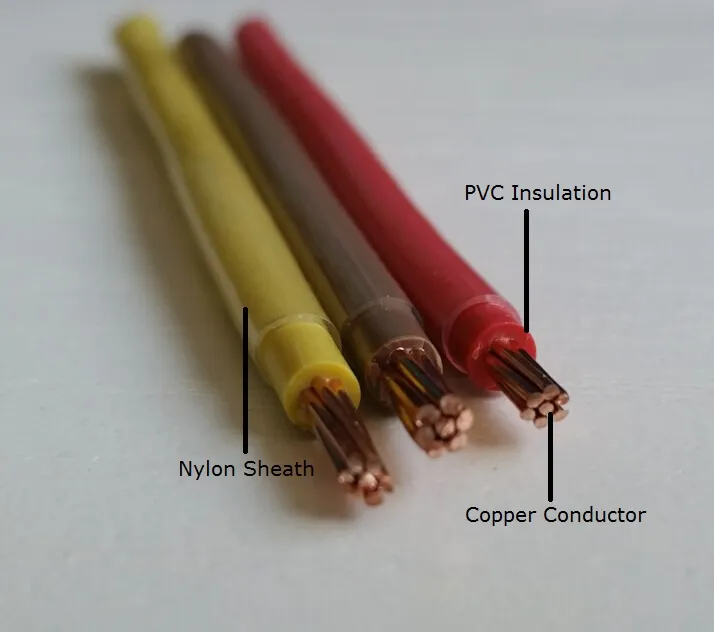

Type	Size (AWG)	Conductor (No./mm)	Insulation thickness (mm)	Sheath thickness (mm)	Approx.cable diameter (mm)	Approx.Cable weight (kg/km)	RESISTANCE C.D. Max. @ 30ºC (Ω/km)
THHN	14	1/1.63	0.38	0.10	2.59	23	8.81
	12	1/2.05	0.38	0.10	3.02	34	5.57
	10	1/2.59	0.51	0.10	3.81	55	3.49
	8	1/3.265	0.76	0.13	5.04	89	2.19
	6	1/4.115	0.76	0.13	5.89	136	1.37
	14	7/0.62	0.38	0.10	2.81	24	8.98
	12	7/0.77	0.38	0.10	3.29	36	5.68
	10	7/0.98	0.51	0.10	4.15	58	3.56
	8	7/1.234	0.76	0.13	5.48	95	2.23
	6	7/1.560	0.76	0.13	6.44	145	1.40
	4	19/1.191	1.02	0.13	8.09	229	0.88
	2	19/1.501	1.02	0.13	8.80	283	0.70

Packaging & Shipping

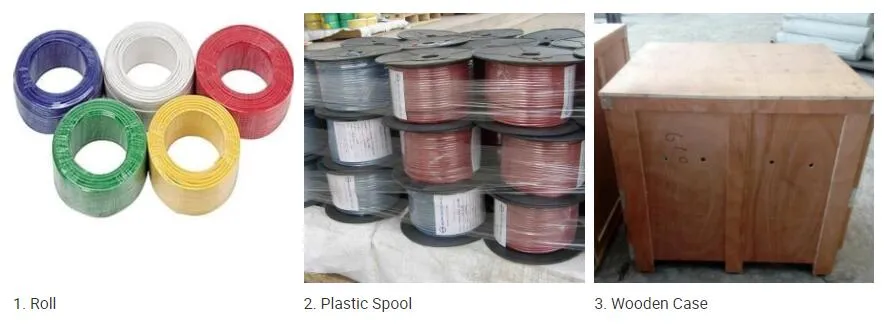

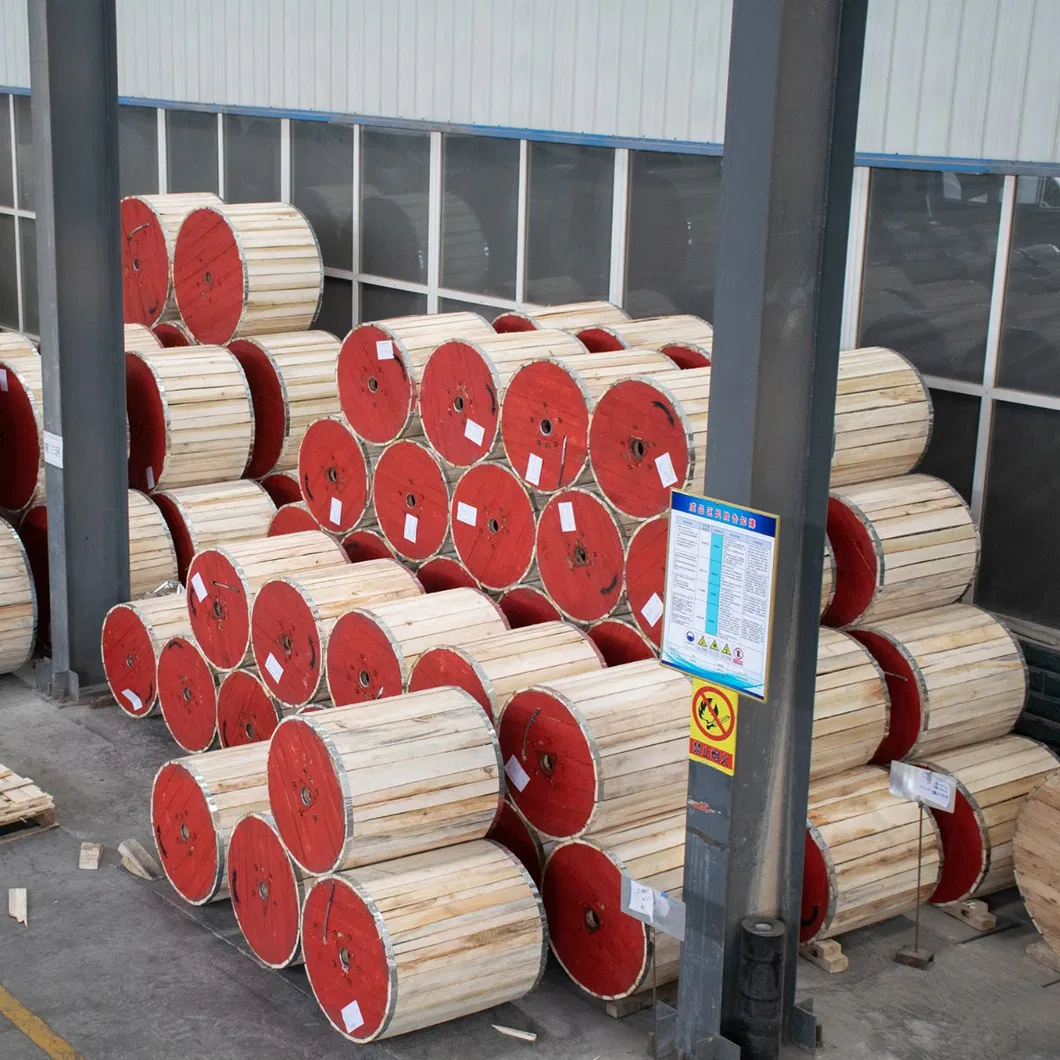

Packing Details : Roll, Plastic Spool, Wooden Case or your requirement.

Delivery Details : 3-30 days.

10 AWG 12 AWG 14AWG Thhn Electric Copper Wire

Company Information

Our main products:

* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.

* Power Cable including low voltage and high voltage up to 35kV and lower.

Our the other products:

*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.
