Why is XLPE Insulation More Effective Than PVC in High Voltage STA PVC Sheathed Power Cable Applications
2026-04-21
When selecting a power cable for high voltage transmission, the choice of insulation material directly impacts safety, efficiency, and longevity. In high voltage environments, XLPE Insulated STA PVC Sheathed Power Cable has become the industry benchmark. Yilan specializes in manufacturing these advanced cables, offering superior performance over traditional PVC-insulated alternatives.
The Technical Superiority of XLPE Over PVC
Cross-linked polyethylene (XLPE) undergoes a chemical or physical process that transforms its molecular structure into a three-dimensional network. This cross-linking provides distinct advantages over standard PVC insulation, particularly in high voltage applications where thermal and electrical stresses are extreme.
| Property | XLPE Insulation | PVC Insulation | Benefit of XLPE |
|---|---|---|---|
| Maximum Continuous Conductor Temperature | 90°C | 70°C | Higher current rating |
| Short Circuit Temperature (5 sec) | 250°C | 160°C | Better emergency overload capacity |
| Dielectric Constant (εr) | 2.3 - 2.4 | 3.0 - 8.0 | Lower capacitance, less power loss |
| Insulation Resistance | Very high | Moderate | Reduced leakage current |
| Moisture Absorption | < 0.01% | 0.2 - 0.5% | Stable electrical properties in wet conditions |
Why These Differences Matter in High Voltage Applications
For high voltage circuits, every material property impacts system reliability. XLPE’s low dielectric constant minimizes charging currents, a critical factor in long transmission lines. Its higher thermal rating allows XLPE Insulated STA PVC Sheathed Power Cable to carry more current without exceeding insulation limits. Furthermore, XLPE does not produce corrosive hydrogen chloride gas when burned, unlike PVC, enhancing fire safety in substations and industrial plants.

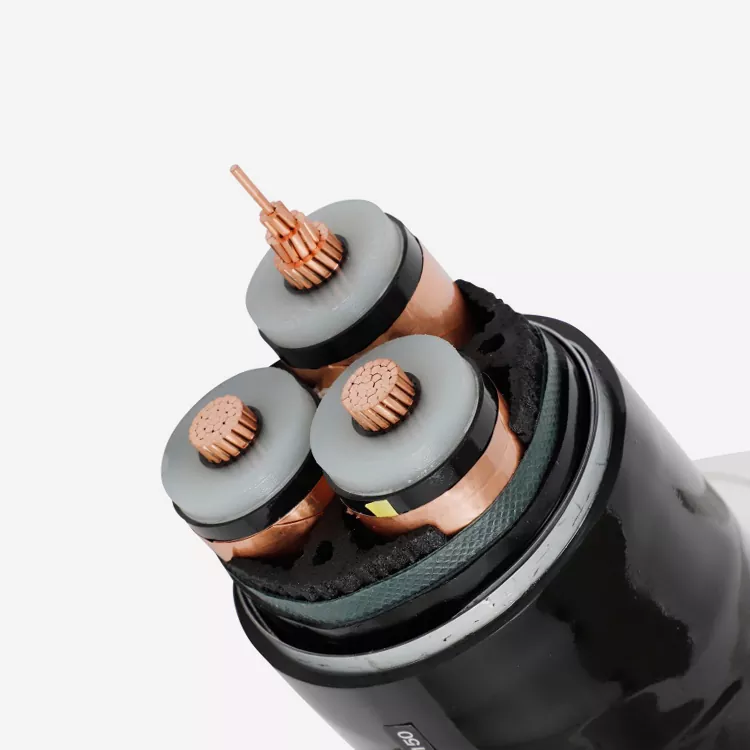

The Role of STA Armor and PVC Sheath
While XLPE handles the electrical stress, the steel tape armor (STA) provides robust mechanical protection against rodent bites, impact, and tensile forces during installation. The outer PVC sheath then resists moisture, UV radiation, and chemical corrosion. Yilan combines these layers with precision, ensuring the complete XLPE Insulated STA PVC Sheathed Power Cable performs reliably for decades.
XLPE Insulated STA PVC Sheathed Power Cable FAQ
Question 1: Can XLPE insulation withstand partial discharge better than PVC in high voltage cables?
Answer: Yes, significantly. XLPE has a much higher partial discharge inception voltage (PDIV) compared to PVC. In high voltage XLPE Insulated STA PVC Sheathed Power Cable, the cross-linked structure eliminates voids and contaminants more effectively during manufacturing. Partial discharge degrades PVC quickly because its amorphous structure lacks thermal stability. With XLPE, partial discharge resistance extends cable life by 10–15 years under normal operating conditions.
Question 2: Does the PVC sheath affect the thermal dissipation of the XLPE insulation?
Answer: The PVC sheath has minimal negative impact because it is the outermost layer, not the primary thermal barrier. The dominant thermal resistance comes from the inner bedding and the surrounding environment. Yilan designs XLPE Insulated STA PVC Sheathed Power Cable with optimized layer thicknesses to ensure heat generated in the conductor transfers efficiently through the XLPE insulation, then through the STA bedding, and finally through the PVC sheath. Field tests show that the PVC sheath reduces current carrying capacity by less than 3% compared to unsheathed designs, an acceptable trade-off for mechanical protection.
Question 3: Is XLPE Insulated STA PVC Sheathed Power Cable more expensive than PVC insulated alternatives, and is the cost justified?
Answer: The initial material cost of XLPE Insulated STA PVC Sheathed Power Cable is approximately 15-25% higher than equivalent PVC insulated cable. However, the total cost of ownership is lower for high voltage applications. XLPE allows smaller conductor sizes for the same power rating due to higher operating temperatures. Maintenance intervals are longer because XLPE resists thermal aging and water treeing. Over a 30-year service life, Yilan customers typically save 30-40% on replacement, energy loss, and downtime costs compared to PVC-insulated systems.
Real-World Performance Validation
Utilities and industrial operators worldwide have documented fewer failures with XLPE insulated designs. The combination of low dielectric losses, high short-circuit tolerance, and chemical stability makes XLPE Insulated STA PVC Sheathed Power Cable the rational choice for new high voltage infrastructure projects.
