Why Are Tinned Copper Flexible Braids Essential for Reliable Electrical Connections?
2025-11-05
Tinned Copper Flexible Braids are one of the most versatile and reliable components used in electrical systems today. As a manufacturer at Dongguan Quande Electronics Co., Ltd., I've seen firsthand how these braids provide stability, durability, and superior conductivity in both industrial and commercial applications. Whether you're dealing with grounding, current transfer, or electromagnetic shielding, Tinned Copper Flexible Braids deliver consistent performance even in harsh environments.
What Are Tinned Copper Flexible Braids?

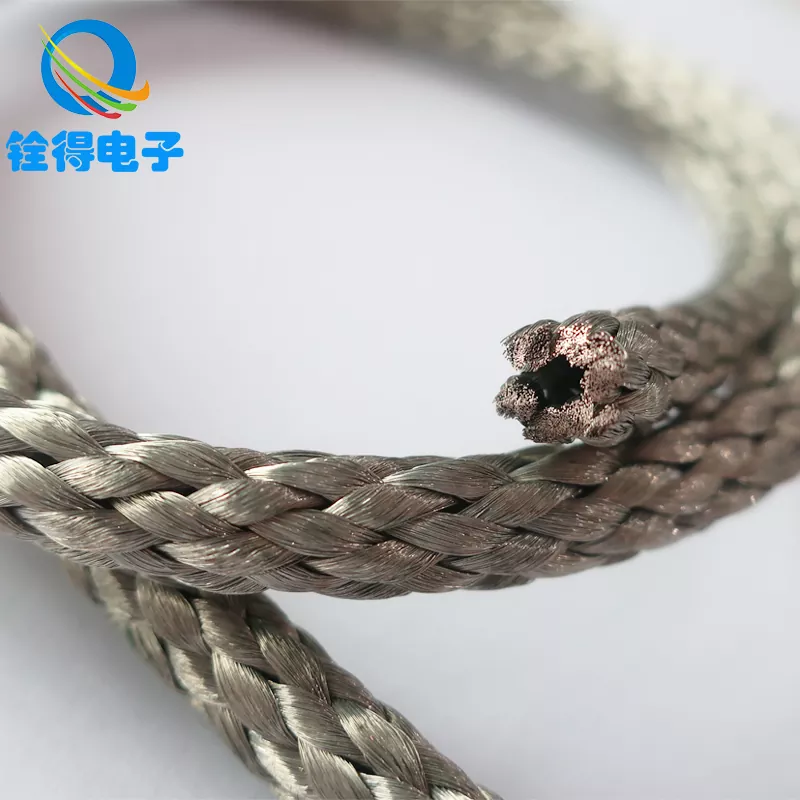

Tinned Copper Flexible Braids are made by intertwining multiple fine copper wires that are tinned to enhance corrosion resistance and electrical conductivity. The tin coating prevents oxidation, ensuring the braid remains conductive over long periods. This makes them ideal for applications exposed to moisture, vibration, and high temperature changes.
Here's a quick overview of their typical technical parameters:
| Parameter | Specification |
|---|---|
| Material | Tinned Copper Wire |
| Wire Diameter | 0.05mm – 0.20mm |
| Cross-Section Area | 1 mm² – 120 mm² |
| Temperature Range | -40°C to +150°C |
| Tensile Strength | ≥ 200 N/mm² |
| Surface Treatment | Electrolytic Tin Coating |
| Application | Grounding, Shielding, Power Transfer, etc. |
The Function and Performance of Tinned Copper Flexible Braids
The main function of Tinned Copper Flexible Braids is to serve as a flexible electrical connector that can withstand mechanical vibration and thermal expansion. In dynamic environments like automotive systems, switch cabinets, or transformers, rigid connections can fail due to stress and fatigue — this is where flexible braids excel.
Their key roles include:
-
⚡ Current Transfer: Maintain a low-resistance electrical path even under movement.
-
🛡️ Electromagnetic Shielding: Reduce interference in sensitive signal circuits.
-
🌧️ Corrosion Protection: The tin coating ensures long-lasting conductivity.
-
🔧 Mechanical Flexibility: Absorbs vibration and compensates for misalignment.
I often tell clients that a high-quality Tinned Copper Flexible Braid is not just a connector — it's a protection system for your entire electrical infrastructure.
Why Choose Tinned Copper Flexible Braids from Dongguan Quande Electronics Co., Ltd.?
At Dongguan Quande Electronics Co., Ltd., we focus on manufacturing precision-engineered Tinned Copper Flexible Braids that meet international standards. Our products go through rigorous testing for conductivity, tensile strength, and flexibility.
Key Advantages of Our Braids:
-
High electrical conductivity with minimal voltage drop.
-
Excellent corrosion resistance for long service life.
-
Custom sizes and configurations to fit your project needs.
-
RoHS-compliant, ensuring environmental safety.
-
Suitable for applications like power distribution, grounding systems, and EMI protection.
My Experience and Common Questions About Tinned Copper Flexible Braids
Q1: Why do we use tinned copper instead of bare copper in flexible braids?
A1: From my experience, tinned copper offers much better resistance to oxidation and humidity. While bare copper can corrode over time, the tin layer protects the strands, ensuring stable conductivity even in marine or outdoor environments.
Q2: How flexible are Tinned Copper Flexible Braids compared to solid conductors?
A2: I've personally handled both, and the difference is clear. Flexible braids can bend, twist, and absorb vibration without breaking, unlike solid wires that fatigue easily. This flexibility makes them essential in dynamic installations where motion or vibration is constant.
Q3: Can Tinned Copper Flexible Braids handle high current loads?
A3: Yes, absolutely. I've tested them in high-current transfer systems where they perform exceptionally well due to their large contact surface area and low resistance. The key is selecting the correct cross-section to match your current requirements.
The Importance of Using Quality Braids
Using inferior or poorly manufactured flexible braids can result in overheating, energy loss, and even system failure. Tinned Copper Flexible Braids ensure safety and performance consistency by maintaining a stable current path. In industrial automation, power transmission, or renewable energy systems, their importance cannot be overstated.
The reliability of your entire electrical network often depends on these seemingly small components. When you choose Dongguan Quande Electronics Co., Ltd., you are selecting a partner that prioritizes quality, performance, and precision.
In Summary
Tinned Copper Flexible Braids are an indispensable part of modern electrical engineering. Their superior conductivity, flexibility, and corrosion resistance make them ideal for a wide range of applications. Whether used in switchgear, transformers, or grounding systems, they provide long-lasting, efficient performance.
At Dongguan Quande Electronics Co., Ltd., we are proud to supply high-quality tinned copper braids tailored to your specifications. We believe every connection matters — and we make sure yours is reliable, durable, and efficient.
👉 If you are looking for premium Tinned Copper Flexible Braids for your project, contact us today at Dongguan Quande Electronics Co., Ltd. for a quotation or technical consultation — we'll be glad to assist you with expert advice and competitive pricing!
