What Makes PVC Insulated Sheathed Flat Cable Essential for Modern Wiring Systems?
2026-06-17
In today's rapidly developing electrical and construction industries, reliable and safe wiring solutions have become a critical requirement for residential, commercial, and industrial applications. Among the wide range of cable types available, PVC Insulated Sheathed Flat Cable stands out due to its flexibility, durability, cost-effectiveness, and stable electrical performance. It is widely used in power distribution systems, home appliances, lighting installations, and building wiring projects. With increasing demand for safe and efficient energy transmission, manufacturers like Qingdao Yilan Cable Co., Ltd. continue to innovate and supply high-quality flat cable solutions to global markets.
1. What is PVC Insulated Sheathed Flat Cable?

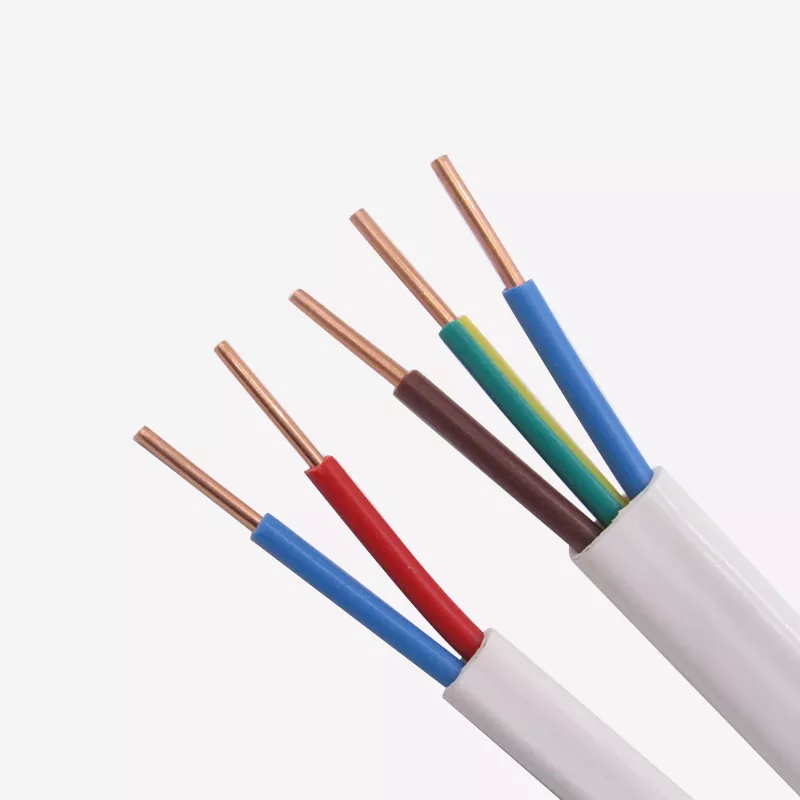

PVC Insulated Sheathed Flat Cable is a type of electrical cable designed with parallel conductors arranged in a flat structure, insulated and protected by PVC (Polyvinyl Chloride) material. This structure ensures both mechanical protection and electrical safety while maintaining flexibility for installation in tight spaces.
Key Characteristics:
- Flat and compact structure for easy installation
- PVC insulation for heat resistance and electrical safety
- High flexibility for bending and routing
- Stable conductivity with low transmission loss
- Suitable for indoor fixed wiring systems
2. Advantages of PVC Insulated Sheathed Flat Cable
The popularity of PVC Insulated Sheathed Flat Cable comes from its balanced performance in safety, durability, and cost.
Main Benefits:
- High Safety Level: PVC insulation provides excellent protection against electric leakage and short circuits
- Easy Installation: Flat design allows neat cable arrangement in walls, ceilings, and conduits
- Cost-Effective: Lower production cost compared to rubber or silicone cables
- Strong Durability: Resistant to moisture, abrasion, and moderate chemical exposure
- Space Saving: Ideal for compact wiring environments
3. PVC Insulated Sheathed Flat Cable vs Round Cable
Choosing between flat cable and round cable depends on installation requirements. Below is a simple comparison:
| Feature | Flat Cable | Round Cable |
|---|---|---|
| Structure | Parallel flat conductors | Circular bundled conductors |
| Installation | Easier in tight spaces | Better for flexible routing |
| Space Efficiency | High | Moderate |
| Heat Dissipation | Good | Very good |
| Cost | Generally lower | Slightly higher |
| Common Use | Indoor wiring, appliances | Industrial power systems |
From this comparison, PVC Insulated Sheathed Flat Cable is especially suitable for residential and light commercial wiring where space efficiency and cost control are important.
4. Applications of PVC Insulated Sheathed Flat Cable
PVC Insulated Sheathed Flat Cable is widely used across multiple industries due to its versatility.
Typical Applications:
- Residential building electrical wiring
- Lighting systems and ceiling installations
- Household appliances and internal wiring
- Office and commercial building power distribution
- Control systems and low-voltage applications
Its adaptability makes it a preferred choice for electricians and contractors worldwide.
5. Technical Structure and Performance
The performance of PVC Insulated Sheathed Flat Cable depends on its internal structure and material quality.
Structure Breakdown:
- Conductor: High-purity copper or aluminum
- Insulation Layer: PVC compound for electrical isolation
- Sheath Layer: Outer PVC protection for mechanical strength
Performance Table:
| Parameter | Standard Value | Function |
|---|---|---|
| Voltage Rating | 300/500V or 450/750V | Ensures safe operation |
| Temperature Range | -15°C to 70°C | Stable performance in different climates |
| Insulation Resistance | ≥ 100 MΩ·km | Prevents leakage current |
| Flame Retardant | Yes (optional grade) | Enhances fire safety |
6. Why Choose PVC Insulated Sheathed Flat Cable?
The demand for PVC Insulated Sheathed Flat Cable continues to grow because it provides a practical balance between performance and affordability. It is particularly valuable in projects where installation speed, cost control, and safety are key priorities.
Reasons to Choose It:
- Simplifies wiring layout in buildings
- Reduces installation time and labor cost
- Ensures long-term electrical safety
- Compatible with most standard electrical systems
- Widely available and easy to replace
7. Quality Assurance from Qingdao Yilan Cable Co., Ltd.
As a professional cable manufacturer, Qingdao Yilan Cable Co., Ltd. focuses on producing high-performance PVC Insulated Sheathed Flat Cable that meets international standards. The company emphasizes strict quality control, advanced production technology, and customized solutions for different project requirements.
Their products are widely used in domestic and overseas markets, ensuring stable performance in residential, commercial, and industrial installations.
8. Installation Tips and Best Practices
To ensure optimal performance of PVC Insulated Sheathed Flat Cable, proper installation is essential.
Best Practices:
- Avoid excessive bending or twisting during installation
- Use proper cable clips or conduits for fixation
- Do not exceed rated current capacity
- Keep away from high-heat sources
- Ensure proper grounding in electrical systems
Following these guidelines helps extend cable lifespan and improve safety.
Conclusion
PVC Insulated Sheathed Flat Cable plays a vital role in modern electrical infrastructure due to its safety, flexibility, and cost efficiency. Its flat design makes it especially suitable for compact wiring systems, while its PVC insulation ensures reliable electrical protection. Whether used in residential homes or commercial buildings, it remains a trusted solution for efficient power distribution.
With advanced manufacturing capabilities and strict quality standards, Qingdao Yilan Cable Co., Ltd. continues to provide high-quality cable products that meet global industry demands.
If you are looking for reliable and cost-effective PVC Insulated Sheathed Flat Cable solutions for your projects, contact us today to get professional support, technical specifications, and competitive quotations tailored to your needs.
