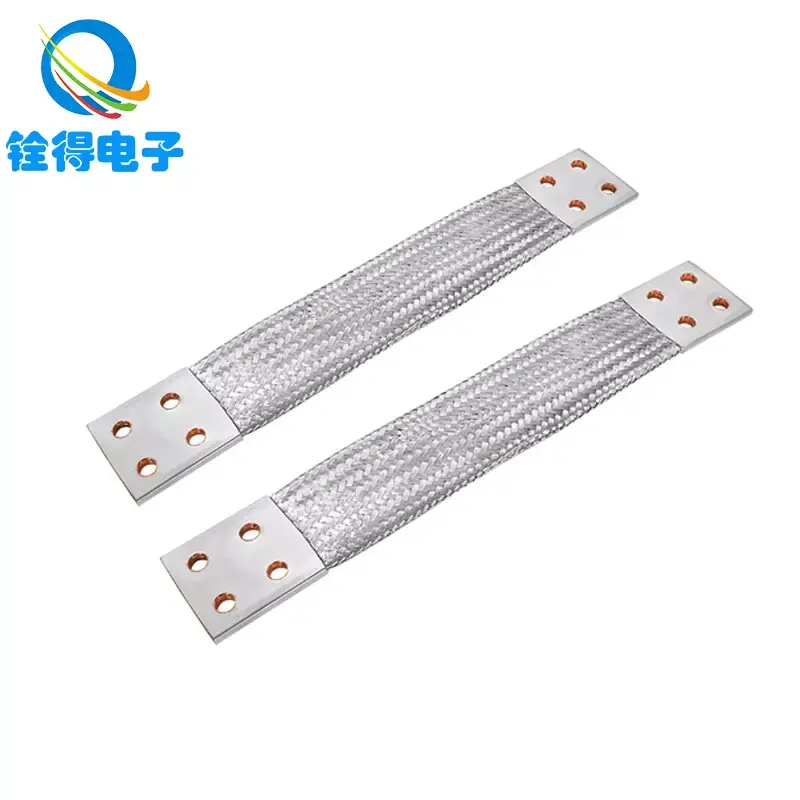

What makes copper braided terminal wire the preferred choice for flexible busbar connections
2026-04-29
When engineers design high-performance electrical systems, copper braided terminal wire often emerges as the optimal solution for flexible busbar connections. Quande has specialized in manufacturing this critical component, offering unmatched reliability across industries such as power distribution, electric vehicles, and industrial automation. The unique combination of flexibility, conductivity, and vibration resistance makes copper braided terminal wire indispensable where rigid copper bars would fail.
Key advantages of copper braided terminal wire for flexible busbars
| Property | Benefit for Busbar Connections |
|---|---|
| High strand count | Absorbs mechanical stress and thermal expansion |
| Tin or bare copper options | Corrosion resistance or maximum conductivity |
| Crimped or pressed terminals | Secure, low-resistance interfaces |
| Low electrical resistance | Minimizes energy loss and heat generation |
| Excellent fatigue life | Withstands repeated bending and vibration |
Why flexibility matters in busbar systems
Rigid busbars cannot accommodate movement from thermal cycling, equipment vibration, or installation tolerances. Copper braided terminal wire solves this by acting as a flexible jumper between busbar sections, transformers, switchgear, or battery modules. Quande designs each assembly to maintain full current rating while allowing multi-axis movement, preventing mechanical failure and reducing maintenance costs.
Comparison: Copper braided terminal wire vs. solid copper busbars
| Feature | Copper Braided Terminal Wire | Solid Copper Busbar |
|---|---|---|
| Flexibility | High – absorbs movement | None – rigid |
| Vibration resistance | Excellent | Poor – cracks likely |
| Installation ease | Adapts to misalignment | Requires precise alignment |
| Short-circuit withstand | Good – dampens forces | High but brittle |
| Space efficiency | Can route around obstacles | Straight runs only |
Frequently Asked Questions about Copper Braided Terminal Wire
Question 1: How does copper braided terminal wire maintain low electrical resistance despite being highly flexible?
Answer: Each individual strand in copper braided terminal wire is made of high-purity oxygen-free copper, typically with 99.95% conductivity. The braiding process creates multiple parallel current paths, so even if a few strands break over time, the remaining strands continue conducting. Additionally, Quande applies precise compression at terminal ends to eliminate air gaps between strands, ensuring contact resistance remains below 0.1 milliohm for most standard sizes.
Question 2: What environmental conditions require tinned copper braided terminal wire instead of bare copper?
Answer: Tinned copper braided terminal wire is necessary in high-humidity environments, marine applications, chemical plants, or outdoor installations where moisture and corrosive agents are present. The tin coating prevents the formation of copper oxide, which increases resistance and can lead to thermal runaway. Bare copper is suitable only for dry, indoor, or sealed environments. Quande offers both finishes and can provide salt spray test certifications upon request.
Question 3: How do I select the correct cross-section area of copper braided terminal wire for my busbar system?
Answer: First determine the continuous RMS current (e.g., 200A, 500A). Then apply a general industry rule: 1mm² of copper cross-section supports approximately 3-5A per mm² in free air for braided conductors, slightly lower than solid due to reduced cooling between strands. For example, a 100A system requires at least 25mm² copper braided terminal wire. Also consider short-circuit rating and duty cycle. Quande provides a free selection guide based on your system voltage, frequency, and ambient temperature.
Conclusion
For flexible busbar connections, copper braided terminal wire outperforms rigid alternatives in durability, vibration absorption, and installation convenience. Quande delivers custom lengths, terminal types, and plating finishes to match any industrial application.
Contact us today for a quote or technical consultation. Send your current, length, and terminal specifications to our engineering team, and receive a copper braided terminal wire sample within seven working days.
