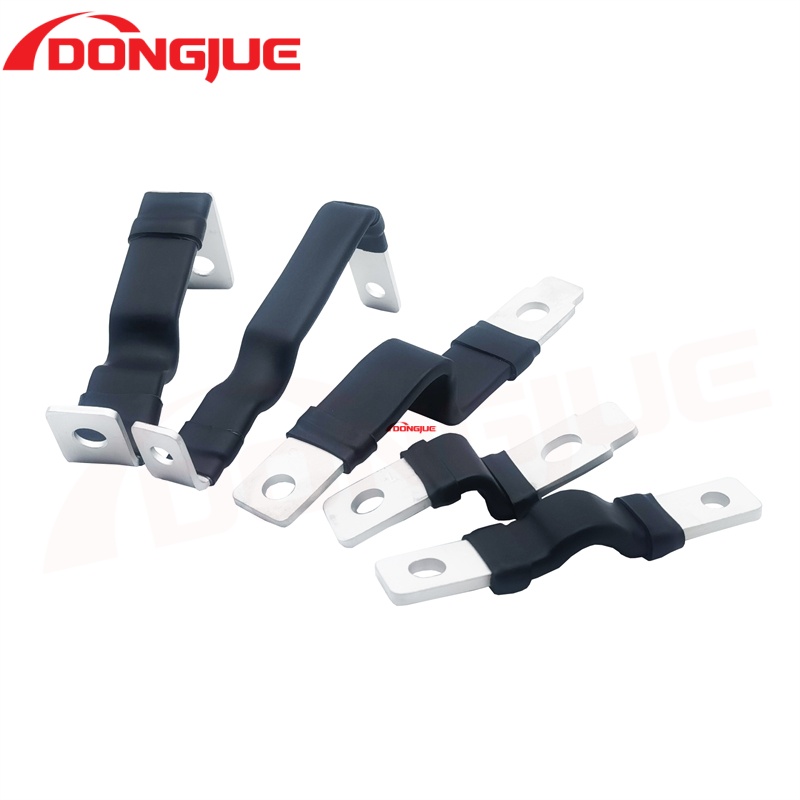

What Design Considerations Are Critical for Custom Flexible Copper Busbar Assemblies

When integrating a Flexible Copper Busbar into a sophisticated electrical system, off-the-shelf solutions often fall short. A custom-designed assembly from a proven manufacturer like Dongjue is key to unlocking optimal performance, reliability, and space efficiency. The criticality of the design phase cannot be overstated, as it directly impacts electrical safety, thermal management, and long-term durability. A successful custom design hinges on meticulously balancing several interrelated parameters.

Key Design Considerations for Optimal Performance

To ensure your custom Flexible Copper Busbar meets exact specifications, our engineers at Dongjue focus on these core aspects:

• Current Rating and Electrical Parameters: This is the foundational consideration. The design must account for continuous, peak, and short-circuit currents. We analyze cross-sectional area, skin effect at specific frequencies, and target resistance to minimize power loss and voltage drop.

• Thermal Management: Effective heat dissipation is non-negotiable. Design factors include ambient temperature, the busbar's inherent thermal conductivity, and the thermal profile of the connection points. Proper sizing and sometimes integrating cooling paths are essential to prevent overheating.

• Mechanical Dynamics: The assembly must withstand operational stresses. This includes evaluating:

  • Vibration resistance to prevent work-hardening and fatigue.

  • Flex life requirements—the number of bending cycles the busbar must endure.

  • Space constraints and the need for specific bending radii to avoid conductor damage.

• Connection and Termination: The interface points are common failure areas. Design specifies plating (e.g., tin, silver, nickel) for corrosion resistance and stable contact, as well as the hole size, pattern, and torque specifications for bolted connections.

For a clear comparison, here are typical specifications we customize at Dongjue:

Flexible Copper Busbar FAQ

Q: How does a flexible busbar compare to traditional cables in high-current applications?
A: Flexible Copper Busbars offer superior performance in compact, high-current settings. They provide a lower impedance path, better heat dissipation due to their surface area, and more reliable, uniform connections than a bundle of cables, reducing hot spots and saving significant space.

Q: Can Dongjue busbars be designed for extreme vibration environments?
A: Absolutely. This is a key strength of a custom Flexible Copper Busbar. Our engineers can specify the optimal annealed copper temper, layer configuration, and reinforcement strategies to achieve exceptional flex life and fatigue resistance, making them ideal for applications like electric vehicle battery packs or heavy machinery.

Q: What information do I need to provide for a custom design quote?
A: To ensure an accurate and optimal design from Dongjue, please prepare details on: electrical specs (current, voltage), mechanical constraints (dimensions, bend requirements), environmental conditions (temperature, exposure), and connection types. The more detailed your input, the more precise our solution will be.

Optimizing these design considerations is what transforms a standard component into a reliable, high-performance system core. As a leader in custom electrical solutions, Dongjue possesses the engineering expertise and manufacturing precision to translate your specific requirements into a Flexible Copper Busbar assembly that guarantees performance and durability.

Contact us today to discuss your project’s unique challenges. Our technical team is ready to collaborate with you on a custom design that perfectly integrates into your application, ensuring efficiency and reliability from the ground up.
