What Are the Advantages and Limitations of Using a Single Steel Tube Monopole Tower for High Voltage Lines
2026-04-10

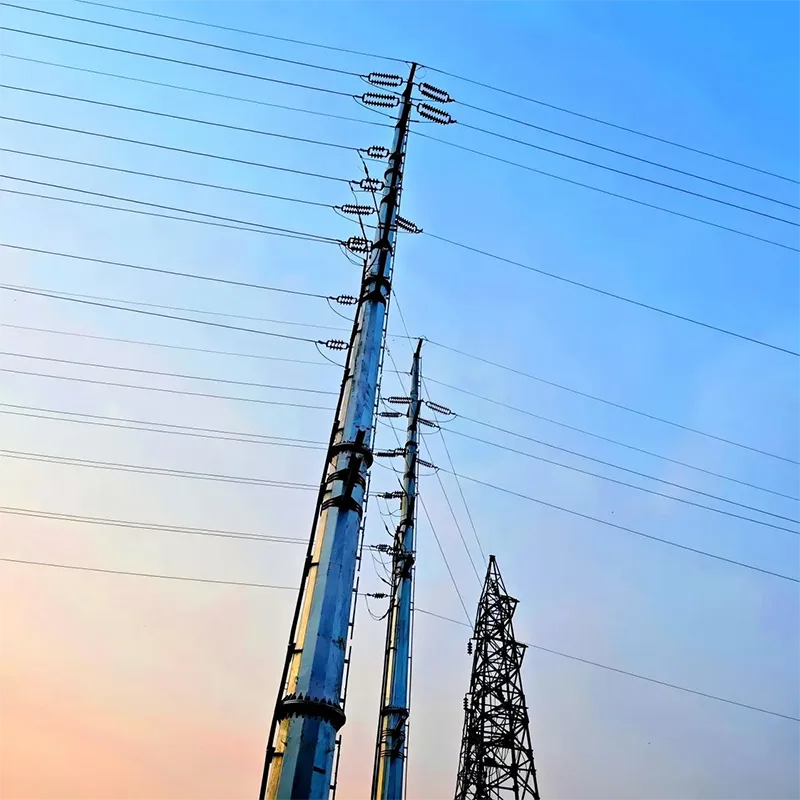

When planning high voltage transmission routes, engineers frequently evaluate the Monopole Transmission Line single Steel Tube Tower as a candidate solution. At Mao Tong, we have designed and supplied hundreds of such structures, and the choice between a single steel tube monopole and traditional lattice towers always comes down to project‑specific trade‑offs. Below is a professional assessment of the benefits and drawbacks.
Advantages of Single Steel Tube Monopole Towers
| Advantage | Description |
|---|---|
| Small Footprint | Requires significantly less land area than lattice towers, ideal for urban or right‑of‑way constrained corridors. |
| Visual Aesthetics | Smooth, tapered profile blends better with landscapes; preferred for scenic or residential zones. |
| Lower Construction Time | Pre‑fabricated sections enable rapid on‑site assembly with fewer bolted connections. |
| Reduced Corrosion Risk | Fewer crevices and joints minimize moisture trapping compared to lattice structures. |
| Wildlife Safety | Open design reduces perching and nesting hazards for large birds. |
Limitations of Single Steel Tube Monopole Towers
| Limitation | Impact |
|---|---|
| Higher Material Cost | Requires thicker steel walls and larger diameters to achieve equivalent stiffness, increasing raw material expense. |
| Limited Height for Very High Voltages | Above 345 kV, bundle conductors and longer insulator strings may demand lattice towers for economical design. |
| Transportation Constraints | Single tapered sections often exceed 18 m, requiring special permits and low‑bed trailers. |
| Foundation Sensitivity | High overturning moment demands deeper drilled shafts or larger spread footings, especially in weak soils. |
| Difficult Hot‑Line Maintenance | Enclosed cross‑section limits access for live‑line barehand techniques commonly used on lattice structures. |
Technical Comparison Table
| Parameter | Single Steel Tube Monopole | Lattice Tower |
|---|---|---|
| Typical voltage range | 69 kV – 345 kV | 69 kV – 765 kV+ |
| Land use per tower base | 3 – 5 m² | 20 – 50 m² |
| Average assembly time (per tower) | 6 – 8 hours | 16 – 24 hours |
| Visual obstruction | Low | High |
| Galvanizing difficulty | Moderate (internal/external coating required) | Low (open sections) |
Monopole Transmission Line single Steel Tube Tower FAQ
Q: Can a Monopole Transmission Line single Steel Tube Tower be used for double‑circuit high voltage lines?
A: Yes, but with design modifications. For voltages up to 220 kV, double‑circuit arms can be welded or bolted to the monopole shaft. However, the increased wind load and torsional moment require a larger base diameter (typically 1.5× to 2× that of a single‑circuit tower). Mao Tong has supplied double‑circuit monopoles up to 230 kV with bundled conductors, provided that foundation soils have minimum 150 kPa bearing capacity. Beyond 345 kV, lattice towers are generally more economical for double‑circuit configurations due to lower steel tonnage per circuit.
Q: How does the lightning performance of a single steel tube monopole compare to lattice towers?
A: Single steel tube monopoles inherently offer superior lightning protection because the continuous steel body provides a low‑impedance path to ground, reducing transient overvoltages. The smooth surface also prevents “streamer blocking” that can occur on lattice towers with sharp edges. For a typical 138 kV line, the monopole’s step voltage at the base is 30‑40% lower than a lattice tower of the same height. However, shielding angles must still be verified; Mao Tong recommends a 25‑degree shielding angle for monopoles above 30 m to protect against side flashes.
Q: What is the typical service life of a Monopole Transmission Line single Steel Tube Tower in coastal environments?
A: With proper corrosion protection, the service life ranges from 50 to 70 years. Mao Tong specifies hot‑dip galvanizing (minimum 110 µm coating thickness) plus a durable topcoat such as epoxy or polyurethane for C5‑M corrosion zones. The main limitation is internal surface corrosion — since monopoles are hollow, internal drainage holes and periodic dry‑film inspection are critical. In severe coastal areas, we recommend a sacrificial zinc anode system installed at the base, which extends life beyond 70 years. Lattice towers in the same environment often suffer accelerated corrosion at bolted joints, making monopoles a more reliable long‑term choice.
Conclusion
The Monopole Transmission Line single Steel Tube Tower offers clear advantages in land use, aesthetics, and construction speed, yet carries higher material cost and foundation demands. For projects up to 345 kV, especially in urban or environmentally sensitive areas, it often outperforms traditional lattice designs. Mao Tong specializes in optimizing monopole geometry, coating systems, and foundation solutions to overcome its limitations.
