The guidance of choosing Low Voltage Cable

Choosing the right low voltage cable is essential for safety, performance, and compliance with electrical standards. Here's a practical guide to help you make the right choice:

1. Determine the Application

Understand what the cable will be used for:

Domestic installations (e.g., lighting, power outlets)

Commercial buildings (e.g., office data systems)

Industrial equipment (e.g., control panels, motors)

Fire alarm or emergency systems

2. Voltage Rating

Ensure the cable is rated for your system voltage:

Low Voltage (LV): Up to 1,000 V AC or 1,500 V DC

3. Current Load (Amperage)

Calculate the expected current load:

Use the power (W) and voltage (V) to calculate current:

Current (A) = Power (W) / Voltage (V)

Select a cable size that can safely carry the load (check local cable sizing charts or standards like IEC or NEC).

4. Cable Size (Cross-Sectional Area)

Choose the appropriate conductor size (mm² or AWG):

Larger sizes reduce voltage drop and handle more current

Example: 1.5 mm² for lighting, 2.5 mm² for sockets, 4 mm²+ for air conditioners or kitchen appliances

5. Insulation Type

Match insulation to environment and safety requirements:

PVC: Common for indoor use, economical

XLPE: Higher temperature resistance, better for outdoor/industrial use

LSZH (Low Smoke Zero Halogen): Recommended for public buildings and enclosed spaces

6. Conductor Material

Copper: High conductivity, flexible, standard choice

Aluminum: Lighter, cheaper, but requires larger size for same performance

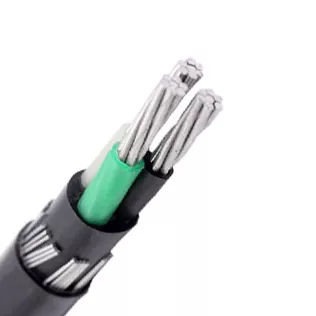

7. Cable Type and Armoring

Flexible vs. rigid cables

Armored cables (e.g., SWA – Steel Wire Armored) for mechanical protection in harsh environments

8. Compliance & Standards

Check for:

CE/UL/IEC/BS certifications depending on your region

Compliance with local electrical codes (e.g., NEC, IEC 60364)

9. Environmental Conditions

Account for:

Moisture/water exposure → use waterproof/underground-rated cables

UV exposure → UV-resistant sheath

Chemicals/oils → chemical-resistant sheath

10. Length & Voltage Drop

Long runs = higher voltage drop

Use voltage drop calculators to ensure performance is not compromised

Consider upsizing the cable for long distances
