How Does the Inner EPDM Tube Interact with Wire Polymer to Prevent Hose Collapse

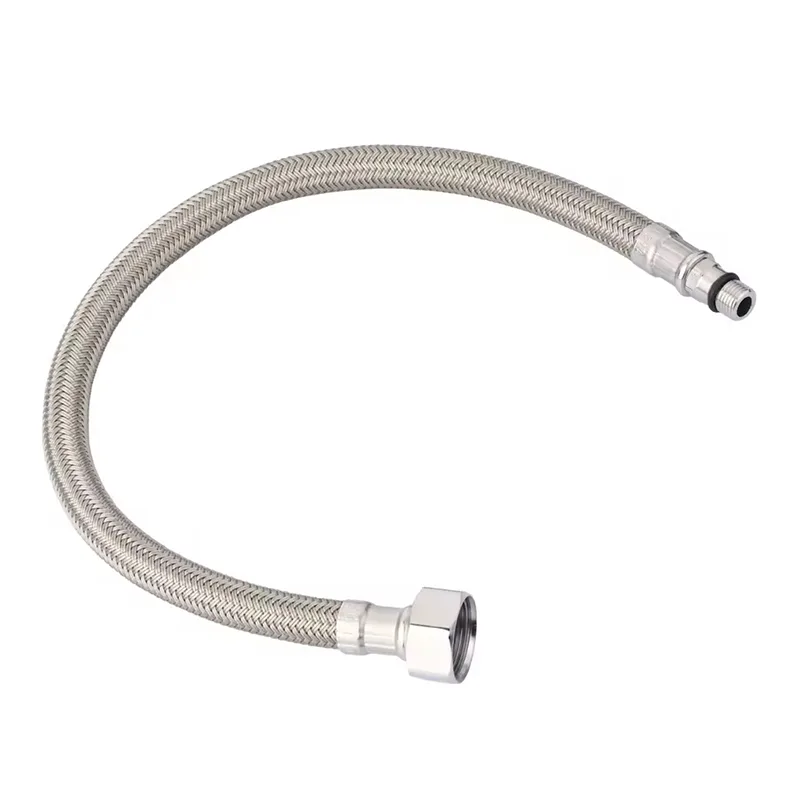

In modern hydraulic and pneumatic systems, the integrity of the hose assembly determines operational safety and efficiency. At MING DA HAI CHEN, we specialize in advanced fluid transfer solutions where the Wire Polymer Inner EPDM Tube Copper Fitting configuration plays a pivotal role. Understanding the interaction between the inner EPDM tube and the wire polymer reinforcement is essential for engineers seeking reliable, collapse-resistant systems.

The Mechanical Synergy Between EPDM and Wire Polymer

The inner EPDM tube serves as the primary fluid barrier, offering exceptional resistance to heat, ozone, and chemicals. However, without external support, even the highest quality rubber compound would succumb to vacuum pressure or external crushing forces. This is where the wire polymer reinforcement layer becomes critical.

The wire polymer layer is helically wound or braided directly over the inner EPDM tube. This configuration creates a composite structure where the rubber core distributes stress evenly while the polymer-coated wire absorbs tensile and compressive loads. When external pressure exceeds internal pressure, the wire polymer acts as a rigid skeleton, preventing the EPDM tube from collapsing inward.

Key Interaction Mechanisms

1. Load Distribution

Under vacuum conditions, the inner EPDM tube attempts to deform. The embedded wire polymer reinforcement immediately engages, transferring the collapse load from the flexible rubber to the high-tensile wire strands. This interaction ensures that the hose maintains its circular cross-section.

2. Elastic Recovery

The EPDM tube provides elastic memory. When pressure normalizes, the rubber's natural resilience helps the wire polymer return to its original geometry, preventing permanent kinking or set.

3. Dynamic Flexibility

Unlike all-metal hoses, the Wire Polymer Inner EPDM Tube Copper Fitting design allows for bending and vibration absorption. The wire polymer strands articulate while maintaining continuous support, thanks to the lubricating and cushioning properties of the surrounding EPDM.

Engineering Benefits of the Composite Design

• Vacuum Resistance: The wire polymer reinforcement prevents suction collapse in suction and return lines.

• Crush Resistance: External impacts are absorbed by the polymer-coated wire before reaching the inner EPDM tube.

• Weight Reduction: Compared to fully armored hoses, the wire polymer layer provides strength without excessive weight.

• Corrosion Protection: The polymer coating on the wire isolates it from the EPDM and environmental moisture.

Wire Polymer Inner EPDM Tube Copper Fitting FAQ

What specific role does the copper fitting play in the collapse resistance of the assembly?

The copper fitting serves as the termination point where the wire polymer reinforcement and inner EPDM tube are mechanically secured. High-quality copper fittings from MING DA HAI CHEN feature barbed or crimp designs that compress the wire polymer layer against the EPDM tube, creating a unified structure. This termination prevents the reinforcement from unraveling and ensures that the collapse-resistant properties extend all the way to the connection point. Without a properly engineered copper fitting, the reinforced hose would fail at the interface under vacuum conditions.

How does the polymer coating on the wire affect the long-term performance of the EPDM tube?

The polymer coating on the wire serves a dual purpose. First, it acts as a lubricious layer that allows the wire polymer to move independently of the EPDM tube during flexing, reducing abrasion and extending hose life. Second, it prevents galvanic corrosion between the wire and any exposed metal in the system. MING DA HAI CHEN utilizes advanced polymer formulations that bond chemically with the EPDM during vulcanization, creating a unified interface that resists delamination even under repeated pressure cycles.

Can the Wire Polymer Inner EPDM Tube Copper Fitting assembly be repaired if the inner tube is damaged?

Field repair of this specialized assembly is not recommended. The wire polymer reinforcement and EPDM tube are integrally bonded during manufacturing, and the copper fitting is permanently attached via cold forming or crimping. Any damage to the inner EPDM tube compromises the fluid barrier and allows media to attack the wire polymer layer, leading to rapid failure. MING DA HAI CHEN advises replacing the entire assembly and offers custom-length manufacturing to minimize waste and ensure optimal performance.

Industry Applications

The Wire Polymer Inner EPDM Tube Copper Fitting configuration is widely specified in:

• Automotive cooling and turbocharger systems

• Industrial suction and discharge hoses

• Marine engine fluid transfer

• Compressed air and vacuum systems

Why Choose MING DA HAI CHEN

With decades of experience in rubber compounding and fitting engineering, MING DA HAI CHEN delivers assemblies where the inner EPDM tube and wire polymer reinforcement are perfectly balanced. Our copper fittings are precision-machined to ensure consistent compression and leak-free performance.

Contact Us

Ensure your fluid systems operate without failure. For technical specifications, custom designs, or volume pricing on Wire Polymer Inner EPDM Tube Copper Fitting assemblies, contact our engineering team today.
