How Does Solderable Triple Insulated Wire Improve Electrical Safety?
2026-05-14
Abstract: Solderable Triple Insulated Wire is revolutionizing electrical applications by providing enhanced safety, flexibility, and durability. In this article, we explore the benefits, applications, and technical details of this specialized wire, helping engineers, technicians, and hobbyists understand why choosing the right wire can prevent accidents and improve overall system reliability.
Table of Contents
- What is Solderable Triple Insulated Wire?
- Why Choose Solderable Triple Insulated Wire?
- How It Works
- Applications
- Advantages Over Traditional Wire
- Frequently Asked Questions
- Contact Huizhou Huaying Electronic Technology Co., Ltd.
What is Solderable Triple Insulated Wire?
Solderable Triple Insulated Wire (STIW) is a high-performance electrical wire featuring three layers of insulation: a conductor coating, a primary insulation layer, and an additional protective layer. This structure provides exceptional protection against heat, abrasion, and chemical corrosion while ensuring excellent solderability. Unlike standard wires, STIW is specifically designed for high-stress environments and precision applications.
| Feature | Description |
|---|---|
| Conductor | High-purity copper or tinned copper for optimal conductivity |
| Primary Insulation | Polyimide or PTFE for high-temperature resistance |
| Secondary Insulation | Fluoropolymer or similar protective layer for chemical and abrasion resistance |
| Solderable Coating | Facilitates easy soldering without removing insulation |
Why Choose Solderable Triple Insulated Wire?
Choosing the right wire is crucial for safety, efficiency, and durability. STIW offers distinct advantages:
- Enhanced Safety: Triple insulation reduces the risk of short circuits and electrical fires.
- Durability: Resistant to abrasion, chemicals, and high temperatures, making it ideal for industrial and aerospace applications.
- Ease of Use: Solderable design allows quick and reliable connections without stripping insulation.
- Space Efficiency: Thin yet robust insulation enables compact wiring in electronic devices.
How Solderable Triple Insulated Wire Works
The operation of STIW relies on its multi-layer design:
- Conduction: The high-purity copper core efficiently carries electrical current with minimal loss.
- Primary Protection: The first insulation layer ensures thermal resistance and prevents leakage.
- Secondary Protection: The outer layer protects against mechanical damage, chemical exposure, and electrical interference.
- Solderable Layer: Coating allows solder to bond directly, reducing labor and error in assembly.
Each layer works synergistically to maximize safety, reliability, and longevity of electrical circuits.

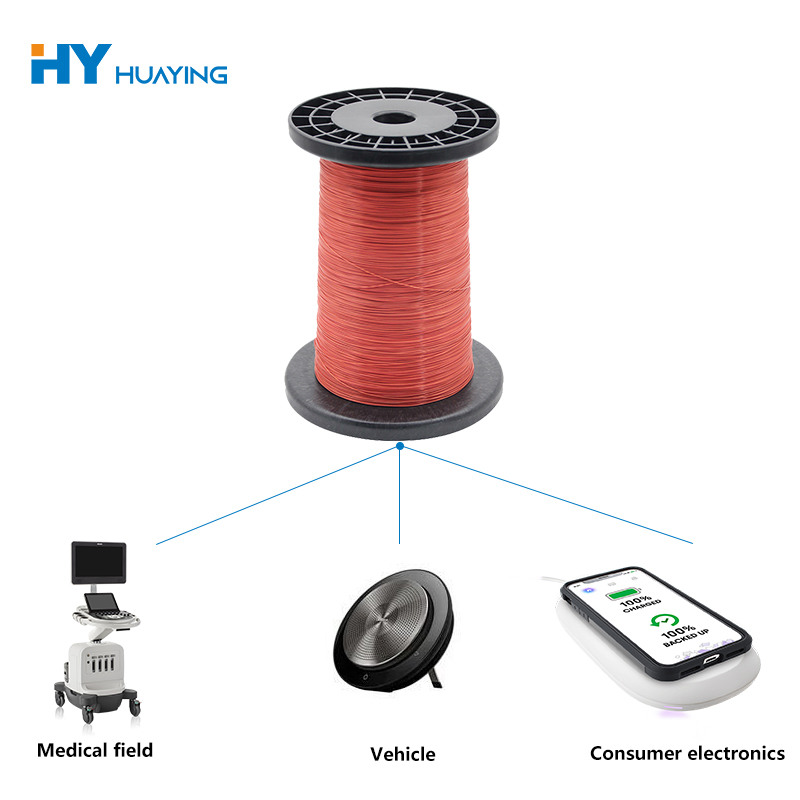

Applications
Solderable Triple Insulated Wire is widely used in sectors requiring compact, high-reliability wiring:
- Aerospace and aviation electronics
- Medical devices and instrumentation
- Automotive electronics
- Consumer electronics and high-end audio equipment
- Industrial automation and robotics
Advantages Over Traditional Wire
| Property | STIW | Traditional Wire |
|---|---|---|
| Insulation Layers | Three (triple-insulated) | Single or double |
| Temperature Resistance | Up to 260°C | Typically 105–150°C |
| Durability | High resistance to abrasion and chemicals | Moderate, prone to wear and tear |
| Solderability | Direct soldering possible | Often requires stripping or flux application |
Frequently Asked Questions
Q1: Can STIW be used in high-vibration environments?
A1: Yes, the triple insulation provides excellent mechanical stability, making it suitable for high-vibration conditions.
Q2: Is stripping necessary before soldering?
A2: No, the wire is designed to be solderable without removing the insulation, which saves time and reduces error.
Q3: What are the available sizes and colors?
A3: STIW is available in a range of diameters from 0.05mm² to 2.5mm² and multiple colors for easy identification.
Q4: Can it handle high-current applications?
A4: Yes, depending on the wire gauge, STIW can safely conduct high currents while maintaining insulation integrity.
Contact Huizhou Huaying Electronic Technology Co., Ltd.
If you are looking for reliable, high-performance Solderable Triple Insulated Wire for your next project, Huizhou Huaying Electronic Technology Co., Ltd. offers a comprehensive selection tailored to industrial, medical, and consumer electronics applications. Visit our product page and contact us today to request samples or a quote!
