How Does Cable Length Affect the Performance of a Welding Machine

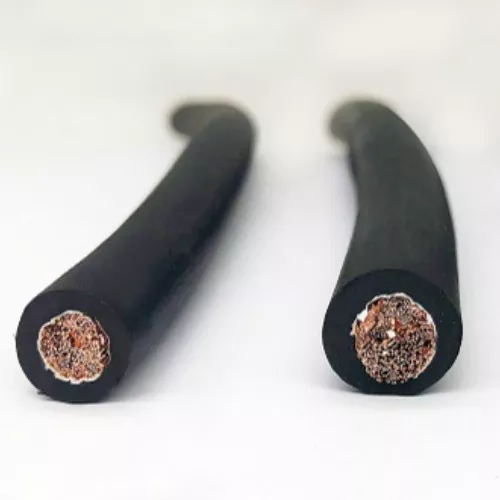

When setting up your welding workstation, every detail matters, from the power source to the consumables. One critical but often overlooked component is the Welding Machine Cable. The length of your electrode and ground cables is not merely a convenience factor; it directly impacts the efficiency, safety, and quality of your weld. As a leader in durable and high-performance welding solutions, Yilan understands that the right cable setup is foundational to achieving optimal results.

In electrical terms, all cables have inherent resistance. The longer the Welding Machine Cable, the greater the total resistance. This resistance leads to a voltage drop between the welding machine and the arc. The consequences are tangible and can affect your project's outcome.

Primary Effects of Excessive Cable Length:

• Reduced Available Voltage & Heat: Voltage drop diminishes the heat at the arc, leading to poor penetration, irregular bead shape, and difficulty striking or maintaining the arc.

• Increased Power Waste: Energy is lost as heat within the cable itself, forcing your machine to work harder and increasing operational costs.

• Machine Stress: To compensate, welders may increase the amperage setting, potentially pushing the Yilan welding machine beyond its efficient range and causing premature wear.

Choosing the Correct Cable Length: A Quick Guide
Select the shortest cable that allows you to work comfortably and safely. Use this simple reference table for general guidance on copper Welding Machine Cable:

Welding Machine Cable FAQ

Q: Can I use two shorter cables connected together instead of one very long cable
A: It is possible using proper connectors, but each connection point introduces additional resistance and a potential failure point. For the cleanest power delivery and reliability, a single, continuous Yilan cable of the correct length is always preferred over joining multiple segments.

Q: Does using a longer ground cable have the same effect as a longer electrode cable
A: Yes, absolutely. The total circuit length is the combined length of both the electrode (stinger) and ground (work) cables. A long ground cable contributes equally to voltage drop. Always keep both cables as short as practicable.

Q: How can I mitigate voltage drop if a long cable run is absolutely necessary
A: The solution is to increase the cable diameter (use a lower AWG number). A thicker Welding Machine Cable has lower resistance per foot, which helps counteract the voltage drop over longer distances. Consult Yilan specifications for heavy-duty cable options suitable for extended runs.

Optimizing your Welding Machine Cable setup is a simple yet powerful step toward more consistent, high-quality welds and enhanced equipment longevity. Using the correct length and gauge ensures your Yilan machine delivers its full, rated power precisely where you need it—at the arc. For complex applications or specific questions about configuring your system for maximum performance, our technical experts are ready to assist.

Contact us today at Yilan for personalized advice on selecting the perfect cables and accessories to unlock the full potential of your welding equipment.
