How Does a Galvo Laser Control System Improve Precision and Productivity in Laser Processing?

1. Understanding a Galvo Laser Control System

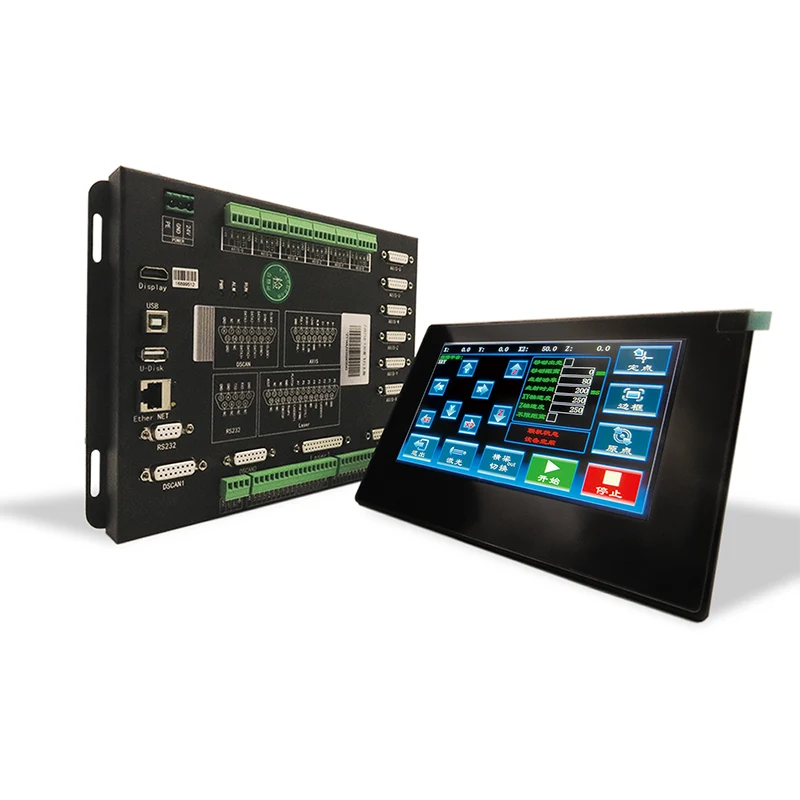

A Galvo Laser Control System is an electronic and optical control arrangement used to move a laser beam rapidly across a work surface. The term "galvo" comes from galvanometer technology. In a typical system, small mirrors are mounted on galvanometer-driven motors, allowing the beam to be deflected along the X and Y axes.

Instead of physically moving the entire laser head or workpiece for every marking movement, the galvo system changes the beam direction electronically and mechanically through high-speed mirror positioning. This makes it particularly useful for applications where short processing times and precise beam placement are important.

A complete galvo laser control solution may therefore include scanning mirrors, galvanometer motors, driver electronics, digital signal interfaces, a controller, software, and a suitable scan lens. The exact architecture varies according to the laser type and application.

2. How Galvo Laser Beam Control Works

The basic operating principle is straightforward: electrical control signals command the galvanometer motors, which rotate small mirrors to change the direction of the laser beam. The control system coordinates these movements with laser firing and processing instructions.

Step 1: Processing Data Is Created

A marking or processing pattern is first generated through compatible software. The design may contain text, serial numbers, barcodes, QR codes, graphics, contours, or other geometric information.

Step 2: Motion Commands Are Calculated

The controller converts the design into movement instructions. These instructions determine where the beam should travel, how quickly it should move, and when the laser should be activated or deactivated.

Step 3: Galvanometer Motors Move the Mirrors

The X and Y galvanometer axes respond to control signals and rotate their respective mirrors. Small angular movements can redirect the beam to different positions within the scanning field.

Step 4: The Scan Lens Focuses the Beam

A scan lens, often called an F-theta lens in marking systems, converts the changing beam angles into a controlled working position on the target plane. Lens selection must correspond to the required wavelength, field size, and optical design.

Step 5: The Laser Performs the Process

The controller coordinates beam movement with laser parameters such as power, pulse frequency, and processing speed. The result is a controlled pattern or process path on the workpiece.

The synchronization between scanner movement and laser emission is critical. Even a high-quality scanner can produce poor results if the controller, laser source, optics, and processing parameters are not properly matched.

3. Main Components of a Galvo Laser Control System

A reliable laser scanning system is built from several coordinated components. Each component contributes to overall positioning accuracy and processing consistency.

The most common purchasing mistake is treating the scanner as an isolated component. In practice, the complete optical and electronic chain must be considered. A scanner capable of high angular speed does not automatically guarantee high marking speed or high-quality results if the lens, laser source, controller, or process settings become the limiting factor.

4. Key Performance Benefits

High-Speed Beam Positioning

Galvo scanning allows the laser beam to move rapidly without mechanically translating the entire laser head. This can significantly improve cycle time for many marking and engraving applications, especially when patterns contain numerous short vectors or repeated features.

High Positioning Responsiveness

Galvanometer-based movement provides fast response to digital control commands. When properly tuned, the scanner can position the beam accurately across the working field and maintain repeatable motion.

Compact Equipment Design

Because beam movement is achieved through mirror deflection, a galvo marking head can remain relatively compact. This makes the technology suitable for integrated production lines, enclosed marking machines, automated stations, and robotic systems.

Flexible Pattern Processing

Galvo systems can process text, graphics, codes, serial numbers, logos, and complex vector patterns. This flexibility is valuable for manufacturers that need product identification or frequent design changes.

Automation Compatibility

A suitable control system can communicate with external equipment such as PLCs, sensors, production databases, or automated handling systems. This allows laser processing to become part of a larger manufacturing workflow.

5. Industrial Applications

Galvo laser control technology is used across a wide range of manufacturing processes. The required scanner specifications vary depending on material, laser wavelength, working field, marking depth, and production speed.

Laser Marking

Permanent marking is one of the most common applications. Manufacturers can mark serial numbers, model numbers, logos, identification codes, barcodes, and traceability information onto metal, plastic, coated surfaces, and other compatible materials.

Laser Engraving

Galvo systems can direct the laser along detailed patterns for engraving applications. The required scanner speed and accuracy depend on the desired engraving depth, pattern complexity, and material response.

Electronics Manufacturing

Electronics manufacturers may use laser systems for component identification, PCB marking, housing marking, and other precision applications where non-contact processing and small feature sizes are important.

Automotive Components

Automotive parts often require permanent traceability information. Galvo-controlled lasers can process identification marks at production-line speeds when the scanner, laser, optics, and material are appropriately matched.

Medical and Industrial Components

Medical devices, tools, industrial components, and precision parts can require durable identification. The process must be developed according to the material, surface requirements, cleanliness requirements, and applicable industry procedures.

6. How to Select a Suitable Galvo Laser Control System

Selecting a galvo system should begin with the laser process rather than with a scanner speed specification alone. A technically balanced system generally delivers more predictable results than one optimized around a single headline parameter.

Determine the Laser Wavelength

The scanning mirrors and optical coatings must be compatible with the laser wavelength. Common industrial laser wavelengths include infrared, visible, and ultraviolet ranges, and optical components are normally designed for particular wavelength bands.

Define the Working Field

The required marking area determines the appropriate scan lens and optical configuration. A larger field may affect spot size, resolution, and available energy density, so field size should be evaluated together with the required marking quality.

Evaluate Speed Requirements

High scanner speed can be valuable for high-volume production, but actual throughput also depends on laser power, pattern geometry, acceleration and deceleration behavior, laser response, and processing parameters.

Check Accuracy and Repeatability

Precision applications require attention to positioning accuracy and repeatability. These specifications should be evaluated together with calibration quality and the optical characteristics of the complete system.

Consider Aperture Requirements

The scanner aperture must accommodate the laser beam diameter and optical path. An inappropriate aperture can introduce beam clipping or other optical limitations.

Review Communication Interfaces

If the scanner controller will be integrated into automated equipment, verify available interfaces and communication protocols. The control architecture should support the required start signals, status feedback, parameter management, and synchronization.

• Laser wavelength and source type
• Required marking or processing field
• Maximum beam diameter and optical aperture
• Required positioning accuracy
• Target processing speed
• Laser control and synchronization requirements
• Software compatibility
• PLC or automation integration
• Operating temperature and environmental conditions

7. Integration With Laser Equipment

Integration is often where system performance is won or lost. A scanner may perform well during laboratory testing but produce inconsistent results after installation if optical alignment, software settings, communication signals, or mechanical mounting are not properly coordinated.

Mechanical Integration

The galvo head should be mounted securely to prevent vibration and movement during operation. The optical axis should be aligned with the intended work surface and focal position.

Electrical Integration

Power supplies, signal cables, grounding, and control interfaces should follow the manufacturer's requirements. Poor electrical connections or electromagnetic interference can cause unstable signals or communication problems.

Software Integration

Processing software must correctly communicate with the controller. File formats, marking parameters, coordinate systems, calibration data, and device configuration should all be checked during commissioning.

Laser Synchronization

The timing relationship between scanner movement and laser emission is critical for line quality. Delays, premature laser firing, or insufficient response compensation can produce overshoot, inconsistent corners, or unwanted marks.

8. Factors Affecting Marking Accuracy

High precision is not determined by the scanner alone. Several factors influence the final position and appearance of a laser mark.

Optical Calibration

The relationship between scanner command coordinates and physical positions on the workpiece must be calibrated. Poor calibration can result in dimensional errors, distorted graphics, or position deviations across the working field.

Focus Position

The workpiece should be positioned within the intended focal plane. Defocusing changes the spot size and energy density and can significantly affect marking quality.

Mechanical Stability

Vibration from nearby machinery can affect precision, especially for fine markings or long processing sequences. The scanner and workpiece should be mounted on a sufficiently stable structure.

Thermal Conditions

Electronic and optical components can be sensitive to temperature changes. Stable environmental conditions help maintain predictable operation, while equipment should always be operated within its specified temperature range.

Material Variation

Two workpieces made from nominally similar materials can react differently because of surface finish, coating, composition, or manufacturing variation. Process parameters should therefore be validated against representative production material.

9. Common Problems and Troubleshooting

When a galvo laser system does not produce the expected result, troubleshooting should begin with the simplest potential causes and progress toward calibration and component-level diagnosis.

Operators should avoid changing multiple parameters simultaneously. Record the original configuration, identify one potential cause at a time, and verify the result after each controlled adjustment. This makes troubleshooting faster and prevents an otherwise manageable calibration problem from becoming a larger configuration issue.

10. Maintenance and Long-Term Reliability

Galvo systems are precision equipment and should be maintained accordingly. Preventive care can help preserve optical performance and reduce unexpected production interruptions.

Keep Optical Components Clean

Dust or contamination on optical surfaces can affect beam quality and, in high-power applications, may damage optical components. Cleaning procedures should follow the manufacturer's recommendations and use appropriate materials.

Inspect Cables and Connections

Periodically check signal and power connections for looseness, damage, or signs of overheating. Cable routing should also minimize unnecessary mechanical stress and electromagnetic interference.

Monitor Calibration

If marking dimensions or positioning accuracy begin to change, calibration should be checked. A change in performance may indicate optical, mechanical, electronic, or environmental issues.

Maintain Stable Operating Conditions

Excessive dust, vibration, temperature fluctuations, or humidity can affect equipment reliability. Keeping the laser workstation within its specified operating environment supports more consistent performance.

• Follow the manufacturer's inspection schedule.
• Keep the optical path clean and protected.
• Inspect electrical connections regularly.
• Monitor unusual noise, vibration, or scanner behavior.
• Record calibration and maintenance activities.
• Use qualified personnel for electrical or optical servicing.

11. Frequently Asked Questions

12. Final Considerations for Galvo Laser Control System Selection

A Galvo Laser Control System provides an efficient method for rapidly directing a laser beam with precise electronic and mechanical control. Its ability to combine high-speed scanning, accurate positioning, compact construction, and automation compatibility makes it an important technology for modern laser marking and processing equipment.

However, the scanner should never be evaluated independently from the rest of the laser system. Laser wavelength, optical aperture, scan lens, working field, controller, software, material, processing parameters, and environmental conditions all influence the final result.

For equipment manufacturers and industrial users, the most reliable approach is to define the application first and then select the scanner and control architecture around measurable requirements. Clear communication about laser specifications, marking dimensions, expected production speed, accuracy, and integration requirements can significantly reduce compatibility problems during installation.
