Article Summary
A reliable switching device is essential for protecting medium voltage electrical networks from faults, equipment damage, and unexpected downtime. A 24kV Vacuum Circuit Breaker is designed to provide safe and efficient interruption of electrical currents by using vacuum technology as the arc extinguishing medium. Compared with traditional circuit breakers, it offers advantages such as higher operational reliability, longer service life, lower maintenance requirements, and improved environmental performance.
This article explains how a 24kV Vacuum Circuit Breaker works, why it is widely used in industrial and power distribution applications, what challenges customers usually face when selecting medium voltage protection equipment, and how choosing a suitable solution from experienced manufacturers like Youbian can improve system stability and operational efficiency.
Article Outline
-
Understanding the operating principle of vacuum interruption technology
-
Exploring the structure and important components
-
Analyzing the benefits for modern electrical systems
-
Identifying common customer concerns and solutions
-
Learning how to choose and maintain reliable equipment

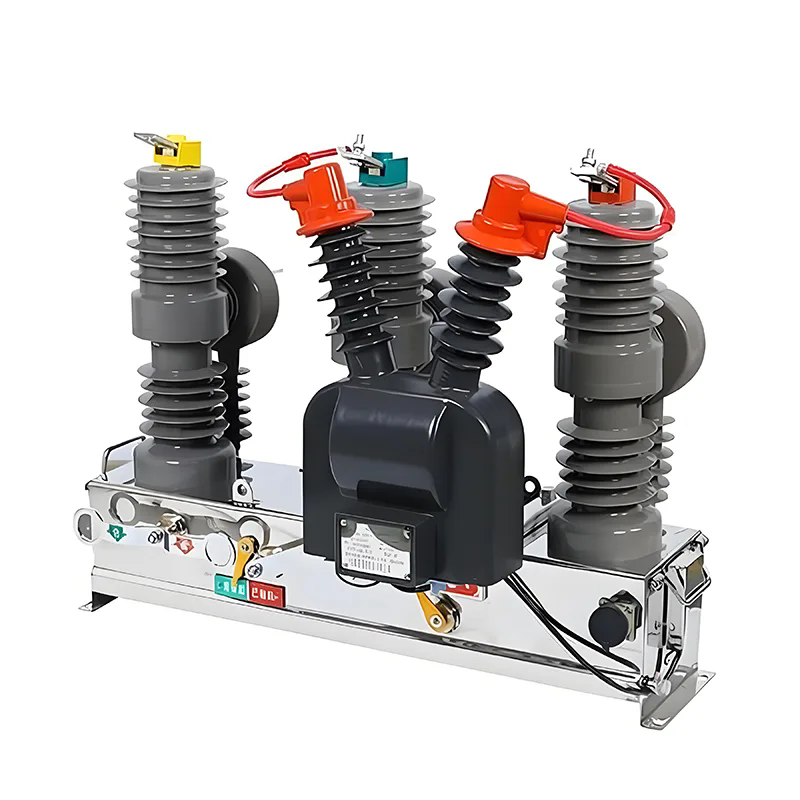

How Does a 24kV Vacuum Circuit Breaker Work?
A 24kV Vacuum Circuit Breaker is a medium voltage switching device that protects electrical systems by interrupting abnormal current conditions. The core technology behind this equipment is the vacuum interrupter, which creates an environment without air or other gases between electrical contacts.
When a fault occurs, such as a short circuit or overload, the circuit breaker receives a signal from the protection system and separates its contacts. During this separation process, an electrical arc is generated. Instead of using oil or gas to extinguish the arc, the vacuum environment quickly removes the arc by reducing the availability of conductive particles.
After the current reaches zero, the vacuum interrupter rapidly restores insulation strength between the contacts. This allows the electrical system to return to a safe condition and prevents further damage to transformers, cables, generators, and other important equipment.
|
Operating Process
|
Function
|
|
Fault Detection
|
The protection system identifies abnormal electrical conditions.
|
|
Contact Separation
|
The breaker opens the circuit to stop dangerous current flow.
|
|
Arc Extinguishing
|
The vacuum interrupter eliminates the arc quickly and safely.
|
|
System Recovery
|
The circuit returns to stable operating conditions.
|
What Are the Main Components of a 24kV Vacuum Circuit Breaker?
Understanding the internal structure of a 24kV Vacuum Circuit Breaker helps users make better decisions when purchasing and maintaining medium voltage equipment. Each component plays an important role in ensuring safe and reliable operation.
|
Component
|
Main Function
|
|
Vacuum Interrupter
|
Provides arc extinguishing and electrical isolation during switching operations.
|
|
Operating Mechanism
|
Controls opening and closing actions with accurate mechanical movement.
|
|
Insulation System
|
Maintains electrical safety between high voltage parts.
|
|
Conductive Circuit
|
Transfers electrical current during normal operation.
|
|
Control Unit
|
Receives protection signals and manages breaker operation.
|
The quality of these components directly affects equipment reliability. Youbian focuses on providing dependable medium voltage circuit breaker solutions designed to meet demanding power distribution requirements.
Why Choose a 24kV Vacuum Circuit Breaker for Medium Voltage Systems?
Many customers face challenges when selecting circuit protection equipment, including frequent maintenance, limited service life, environmental concerns, and unreliable switching performance. A 24kV Vacuum Circuit Breaker addresses these issues through advanced vacuum interruption technology.
-
Excellent Fault Protection: It quickly interrupts fault currents, helping reduce damage to electrical equipment.
-
Long Mechanical Life: Vacuum technology reduces contact wear and supports thousands of switching operations.
-
Lower Maintenance Requirements: Unlike oil circuit breakers, vacuum breakers do not require oil replacement or leakage management.
-
Improved Environmental Safety: The vacuum interruption method avoids the use of insulating oil that may create pollution risks.
-
High Operational Reliability: Stable performance makes it suitable for critical power distribution systems.
|
Feature
|
Traditional Circuit Breaker
|
24kV Vacuum Circuit Breaker
|
|
Arc Extinguishing Method
|
Oil or gas medium
|
Vacuum technology
|
|
Maintenance Frequency
|
Higher maintenance requirements
|
Lower maintenance demand
|
|
Environmental Impact
|
Possible oil or gas concerns
|
Cleaner operation
|
|
Service Life
|
Depends on medium condition
|
Long operational lifespan
|
Where Are 24kV Vacuum Circuit Breakers Used?
A 24kV Vacuum Circuit Breaker is widely applied in medium voltage power networks where safety and reliability are essential. Typical applications include:
-
Industrial manufacturing facilities
-
Power distribution substations
-
Commercial buildings
-
Mining and energy projects
-
Renewable energy systems
-
Infrastructure electrical networks
Industries with continuous production requirements especially benefit from reliable circuit protection because unexpected electrical failures can result in production losses, equipment damage, and increased operating costs.
How to Select the Right 24kV Vacuum Circuit Breaker?
Choosing the correct circuit breaker requires careful consideration of electrical parameters, operating conditions, and application requirements. Incorrect selection may lead to poor protection performance or unnecessary investment costs.
|
Selection Factor
|
Important Consideration
|
|
Rated Voltage
|
Confirm that the breaker matches the system voltage level.
|
|
Rated Current
|
Select according to the normal operating load requirements.
|
|
Breaking Capacity
|
Ensure the breaker can safely interrupt expected fault currents.
|
|
Installation Environment
|
Consider indoor conditions, temperature, humidity, and protection requirements.
|
|
Manufacturer Reliability
|
Choose suppliers with professional manufacturing experience and quality control.
|
Working with a professional manufacturer such as Youbian helps customers obtain suitable circuit breaker solutions according to different power system requirements.
How Can Maintenance Improve Circuit Breaker Performance?
Although vacuum circuit breakers require less maintenance compared with many traditional technologies, regular inspection remains important for ensuring long-term reliability.
-
Check mechanical operating performance regularly.
-
Inspect electrical connections for looseness or overheating.
-
Verify control circuit operation.
-
Monitor abnormal noise or switching problems.
-
Follow manufacturer maintenance recommendations.
Proper maintenance helps identify potential problems before they become serious failures. This improves system availability and extends equipment service life.
Frequently Asked Questions About 24kV Vacuum Circuit Breakers
Q1: What voltage level is a 24kV Vacuum Circuit Breaker suitable for?
A 24kV Vacuum Circuit Breaker is mainly designed for medium voltage applications where the operating voltage is up to 24kV. It is commonly used in industrial and distribution power systems.
Q2: Why is vacuum technology used in circuit breakers?
Vacuum technology provides fast arc extinguishing performance, strong insulation recovery, and reliable switching operation without requiring insulating oil.
Q3: How long can a 24kV Vacuum Circuit Breaker operate?
The service life depends on operating conditions, switching frequency, and maintenance quality. Properly designed vacuum breakers can provide many years of dependable operation.
Q4: What problems can a vacuum circuit breaker solve?
It helps solve common customer concerns such as frequent equipment failure, high maintenance costs, slow fault interruption, and environmental risks associated with traditional technologies.
Q5: Why choose Youbian for a 24kV Vacuum Circuit Breaker?
Youbian provides professional medium voltage electrical solutions with attention to product reliability, engineering requirements, and customer application needs.
Conclusion
A 24kV Vacuum Circuit Breaker plays an important role in modern medium voltage electrical protection systems. Through advanced vacuum interruption technology, it delivers reliable fault protection, reduced maintenance requirements, and safer operation compared with many conventional solutions.
For industries seeking stable power distribution performance, selecting a high-quality circuit breaker from an experienced supplier is essential. Youbian continues to provide dependable medium voltage equipment designed to support efficient and secure electrical operations.
If you are looking for a reliable 24kV Vacuum Circuit Breaker solution tailored to your project requirements, please contact us today. Youbian is ready to provide professional support and customized electrical solutions to help improve your power system safety and efficiency.
