How Do You Select the Right Flexible Busbar for High Current Applications
2025-09-29
Choosing the correct Flexible Copper Busbar for high-current systems is a critical decision that impacts safety, efficiency, and long-term reliability. It is not just about finding a component that fits; it is about finding one that performs under pressure. So, how do you navigate the selection process?
The key lies in analyzing three core technical parameters. First, the current-carrying capacity, which is directly determined by the cross-sectional area. Second, the thermal performance, ensuring the busbar can dissipate heat effectively. Third, the mechanical requirements, such as vibration resistance and flexibility cycles.
Key Parameters for Your Checklist
-
Current Rating & Cross-Section: Match the busbar's ampacity to your peak and continuous current needs.
-
Material & Plating: High-purity copper is standard; select plating (e.g., tin, silver, nickel) for corrosion resistance and low contact resistance.
-
Temperature Range: Verify the operational range to ensure performance in your environment.
-
Insulation Type: Options like PVC or silicone rubber provide necessary dielectric strength.

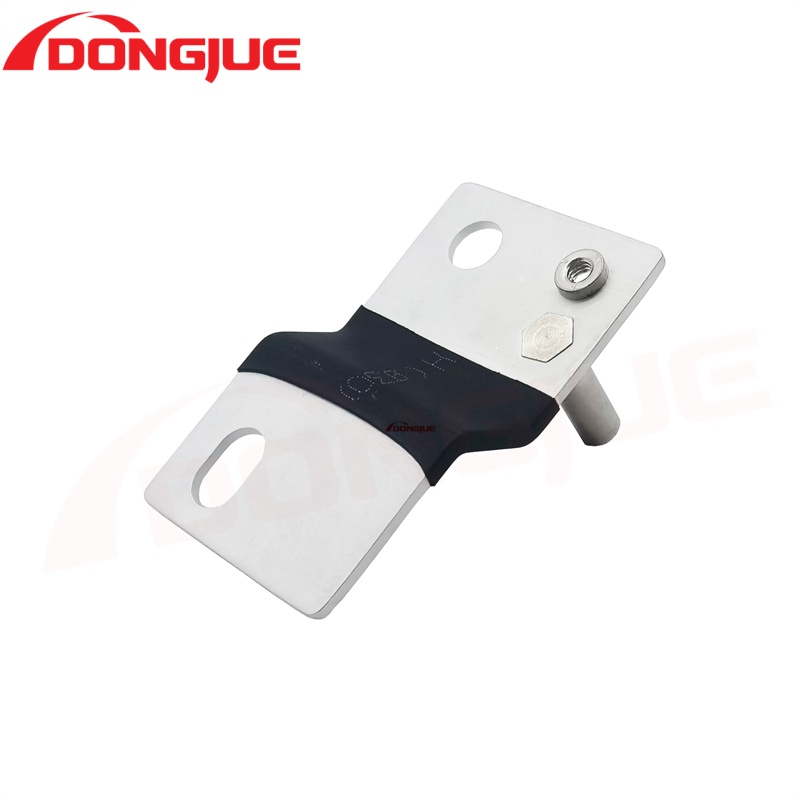

For a clearer perspective, here is a comparison of standard options from Dongjue:
| Product Code | Cross-Section (mm²) | Current Rating (Amps) | Plating | Insulation |
|---|---|---|---|---|
| DJ-FBB-80 | 80 | 360 | Tin | PVC |
| DJ-FBB-120 | 120 | 480 | Silver | Silicone Rubber |
| DJ-FBB-150 | 150 | 550 | Nickel | Non-Insulated |
Flexible Copper Busbar FAQ
How does the flexibility impact the current rating
The flexibility, achieved through layered foils, does not negatively impact the current rating. The total cross-sectional area defines the ampacity. A Dongjue Flexible Copper Busbar is engineered to provide optimal flex life without compromising its electrical performance.
Can I use a standard busbar for a high-vibration environment
Using a rigid busbar in high-vibration environments is a leading cause of failure. The Flexible Copper Busbar is specifically designed to absorb stress and compensate for movement, preventing fatigue and connection loosening that plagues rigid designs.
Why choose Dongjue over other brands
Dongjue specializes in high-performance Flexible Copper Busbar solutions. We use 99.95% purity copper and offer expert engineering support to ensure our product exceeds the demands of your high-current application, providing unmatched reliability.
Do not leave your project's performance to chance. Contact us today for a free technical consultation. Let our team help you select the perfect Dongjue Flexible Copper Busbar for your needs.
