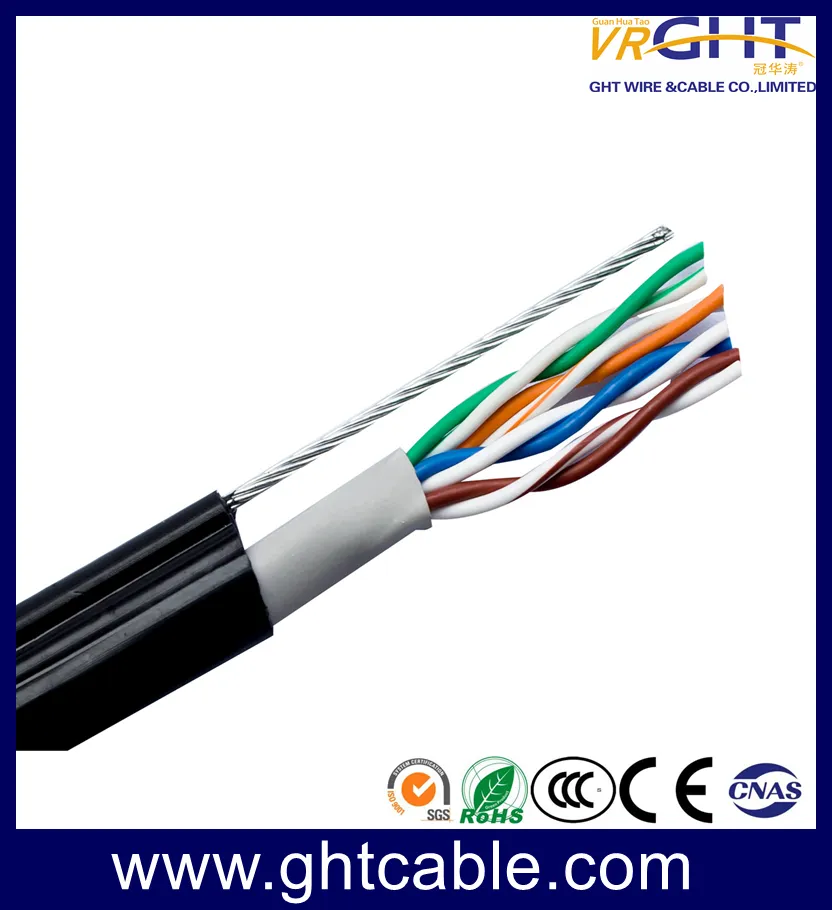

Waterproof UTP Cat5e Outdoor LAN Cable with Steel Messenger
Product OverviewApplication structured cabling, CCTV system , Alarm system , Telecom project etc.Compared with cat5 and cat5e,ethernet cable cat6 outdoor with messenger features more stringent specifications for crosstalk and system noise.Can be used for voice, integrated service data network (ISDN)......
Send Inquiry
Product Description
- Application structured cabling, CCTV system , Alarm system , Telecom project etc.
- Compared with cat5 and cat5e,ethernet cable cat6 outdoor with messenger features more stringent specifications for crosstalk and system noise.
- Can be used for voice, integrated service data network (ISDN), ATM155Mbps,100 Mbps TPDDI , fast ethernet and gigabit ethernet.
Long transmission distance, small transmission loss, wear resistance, resistance to pressure
Conductor Diameter | 0.5±0.01mm(24awg) |
Conductor Material | Bare cooper/CCA |
Type of Conductor | Solid |
Dielectric(Insulation) Diameter | 1.05±0.01mm |
Dielectric(Insulation) Material | Solid PE |
Shielding Material | Aluminium foil Tinned copper drain wire+Braid |
Shielding Coverage | 100%/80% |
Jacket(sheath) Diameter | 7.0±0.02mm |
Jacket(sheath) Material | Flame retardant PVC+PE |
Pair Identification | Pair 1: Blue,White / Blue |
Pair 2: Orange,White / Orange | |
Pair 3: Green,White / Green | |
Pair 4: Brown,White / Brown | |
Number of Pair | 4 pairs |
Weight (kgs/305M) | 500 |
Compliance With:
>>ISO/IEC 11801
>>TIA/EIA-568-8.2
>>IEC-60332-1
>>CE
>>RoHS
1) Packing Lengths: 305m/roll other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's requests.
Factory Presentation&Certification
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
