UL LAN Cable CAT6 FTP Dual Jacket with Ce RoHS
Lan Cable CAT6 UTP CableCable description: ModelCat 6 UTP Cable Conductor Size23AWG, 24AWG, 25AWG SOLIDConductor MaterialBC/CCU/CCA/OFC/CCSNuber Of Conductor4PShiledUTP/FTP/STP/SFTP /SSTPFlammability Grade:CMX,CM,MP,CMG,MPG,CMR,MPRIndoor / OutdoorSingle jacket(PVC) / Double jacket(PVC+PE)Insulation......
Send Inquiry
Product Description
Lan Cable CAT6 UTP Cable
Cable description:
Cable photo
Package
Workshop
More Cables & Products
Cables:
1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".
Cable Related Products:
1) Coaxial Cable Connector (F, BNC, RCA, Female, Male);
2) Cable Crimping Tool, Wire Stripper, Insertion Punch Tool;
3) Optical Transmission Equipments, CATV amplifier, Taps, Splitters.
Cable description:
| Model | Cat 6 UTP Cable |
| Conductor Size | 23AWG, 24AWG, 25AWG |
| SOLID | |
| Conductor Material | BC/CCU/CCA/OFC/CCS |
| Nuber Of Conductor | 4P |
| Shiled | UTP/FTP/STP/SFTP /SSTP |
| Flammability Grade: | CMX,CM,MP,CMG,MPG,CMR,MPR |
| Indoor / Outdoor | Single jacket(PVC) / Double jacket(PVC+PE) |
| Insulation Material | PE , HDPE |
| Insulation Thickness | 0.55mm |
Number of pairs: 4 pairs | Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Jacket Thickness | 0.92-0.95mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -20 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Print Words On Cable | CAT6 4P 23AWG VERIFIED TO EIA/TIA 568B.ISO/IEC 11801 EN501 or clients' request |

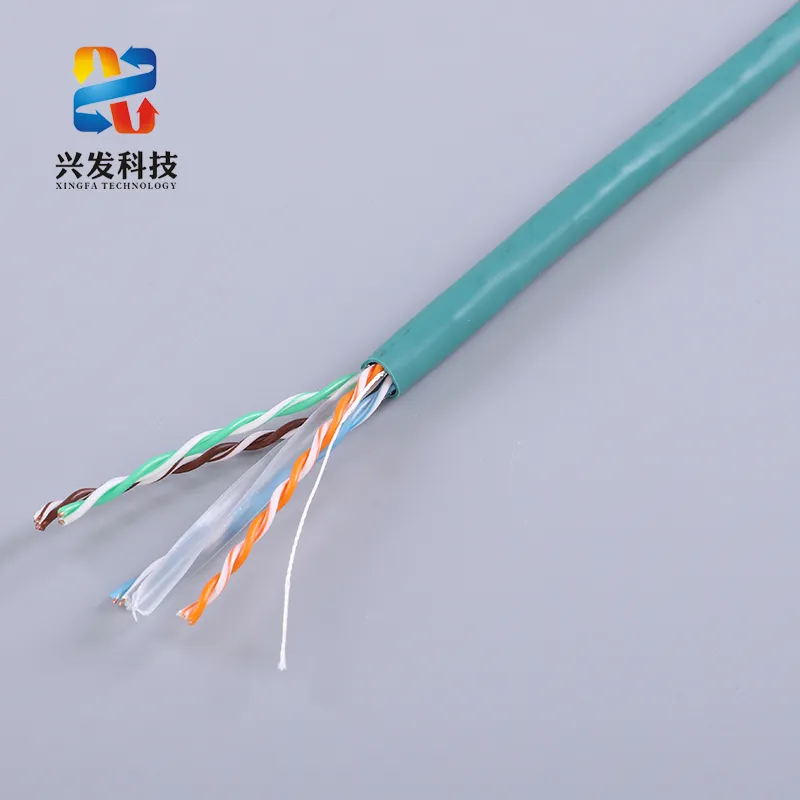

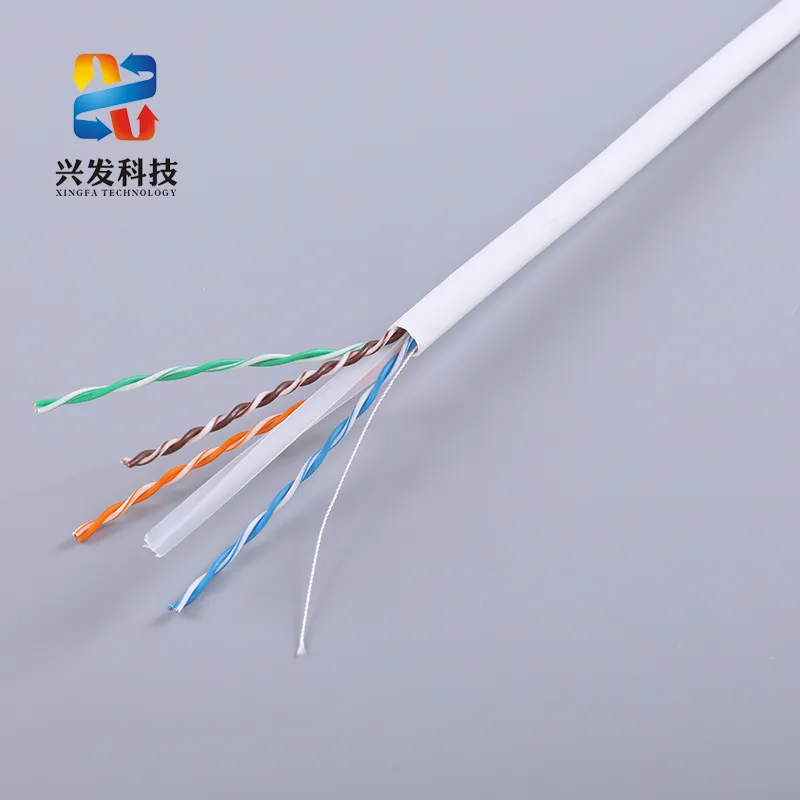

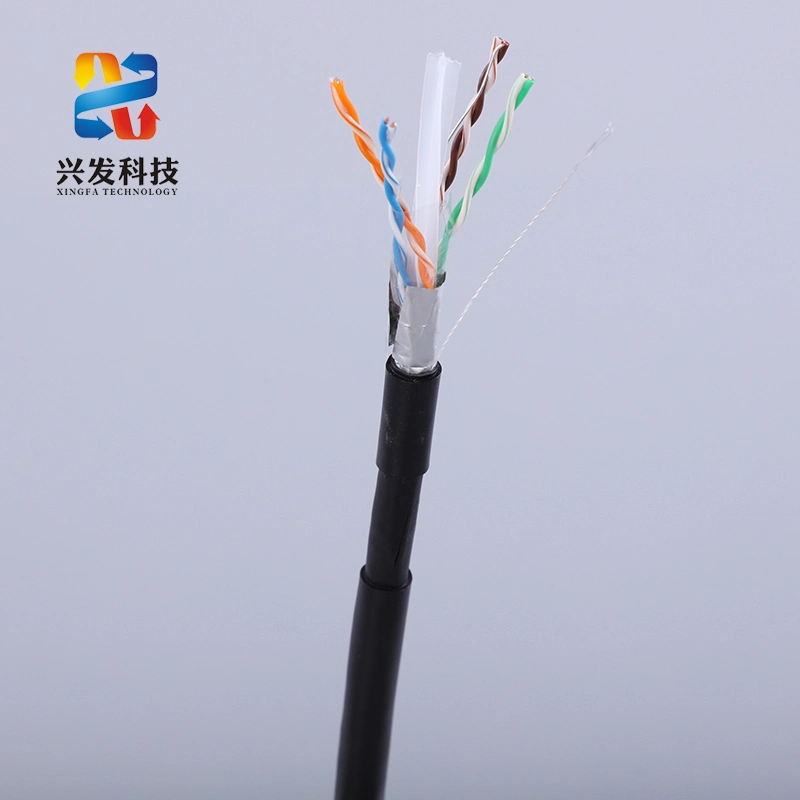

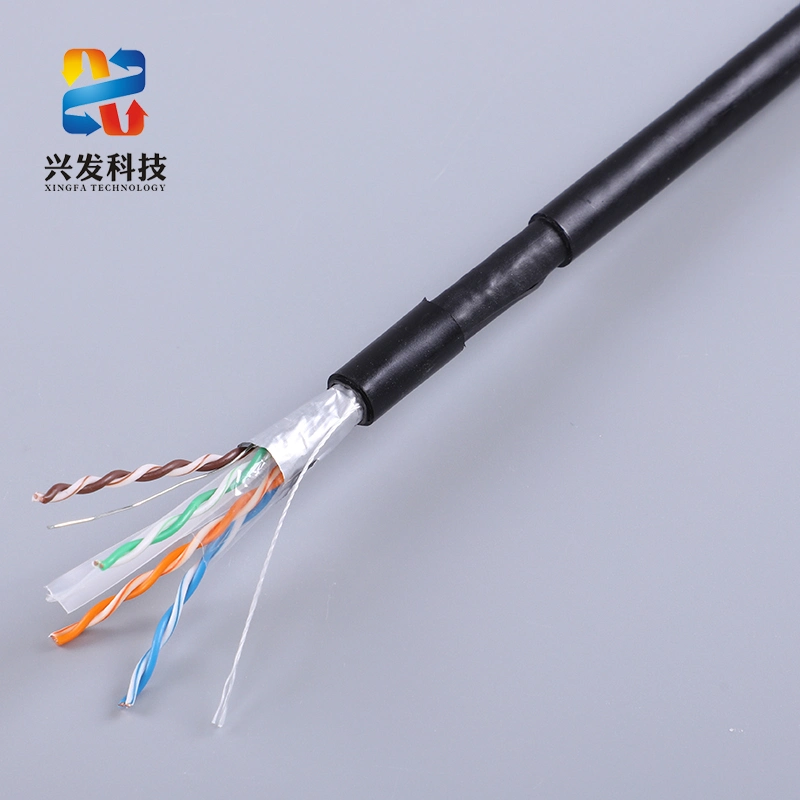

Cable photo

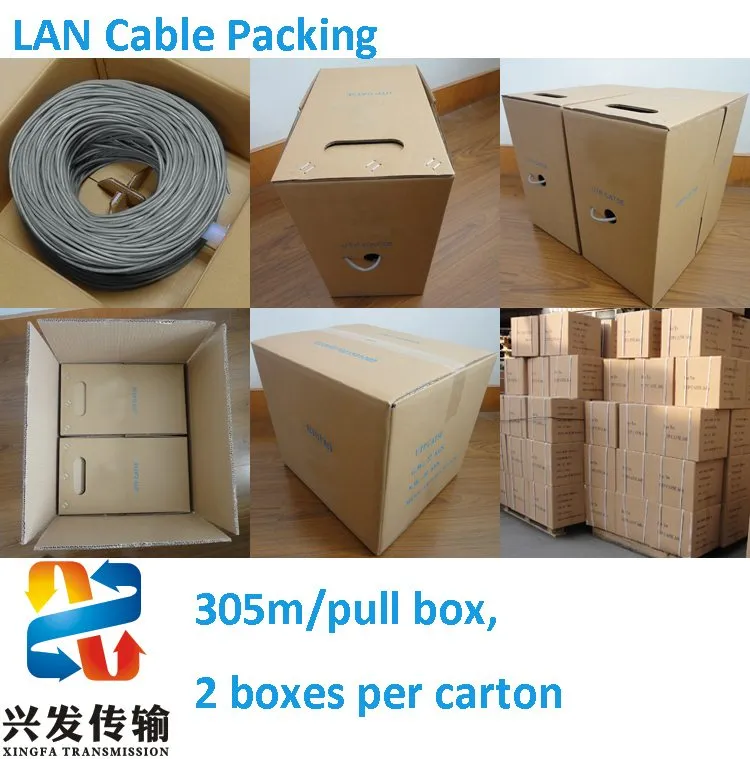

Package

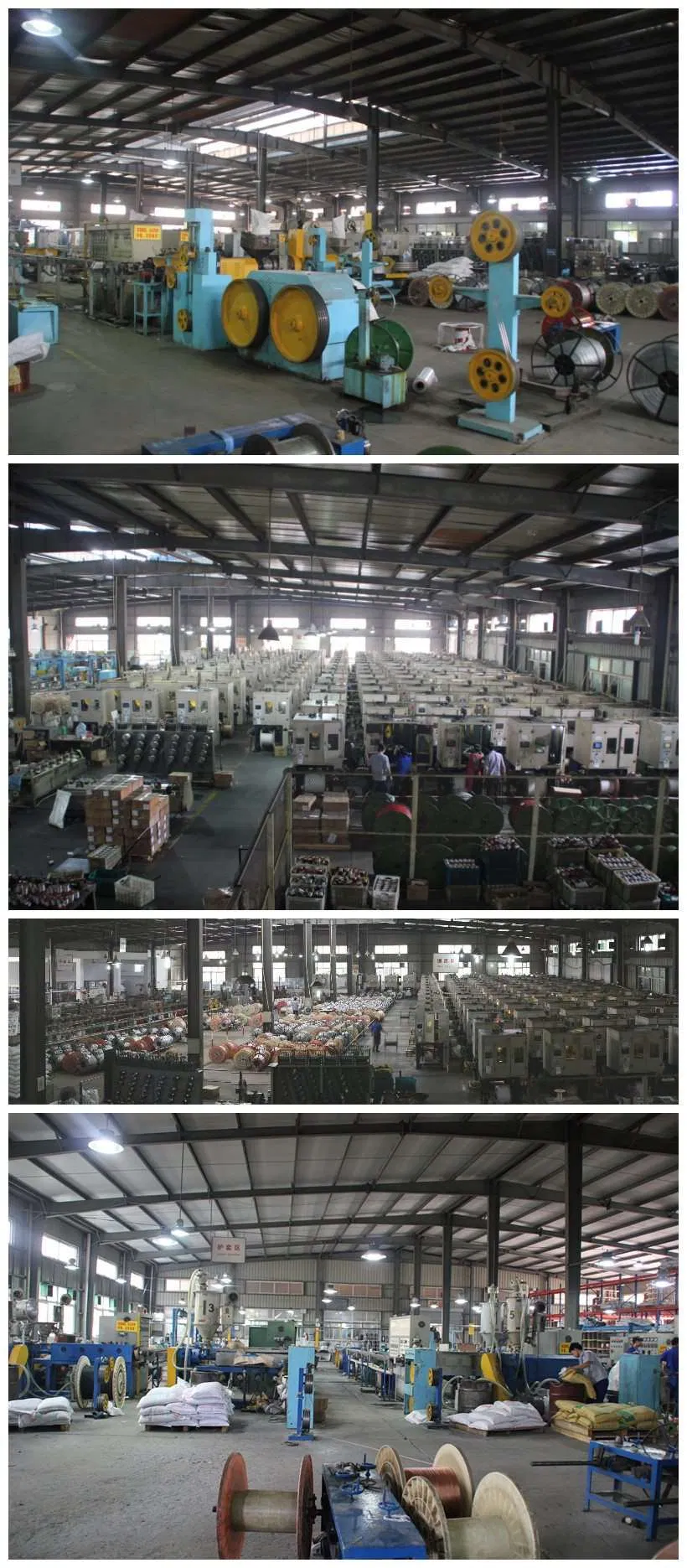

Workshop
More Cables & Products
Cables:
1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".
Cable Related Products:
1) Coaxial Cable Connector (F, BNC, RCA, Female, Male);
2) Cable Crimping Tool, Wire Stripper, Insertion Punch Tool;
3) Optical Transmission Equipments, CATV amplifier, Taps, Splitters.
