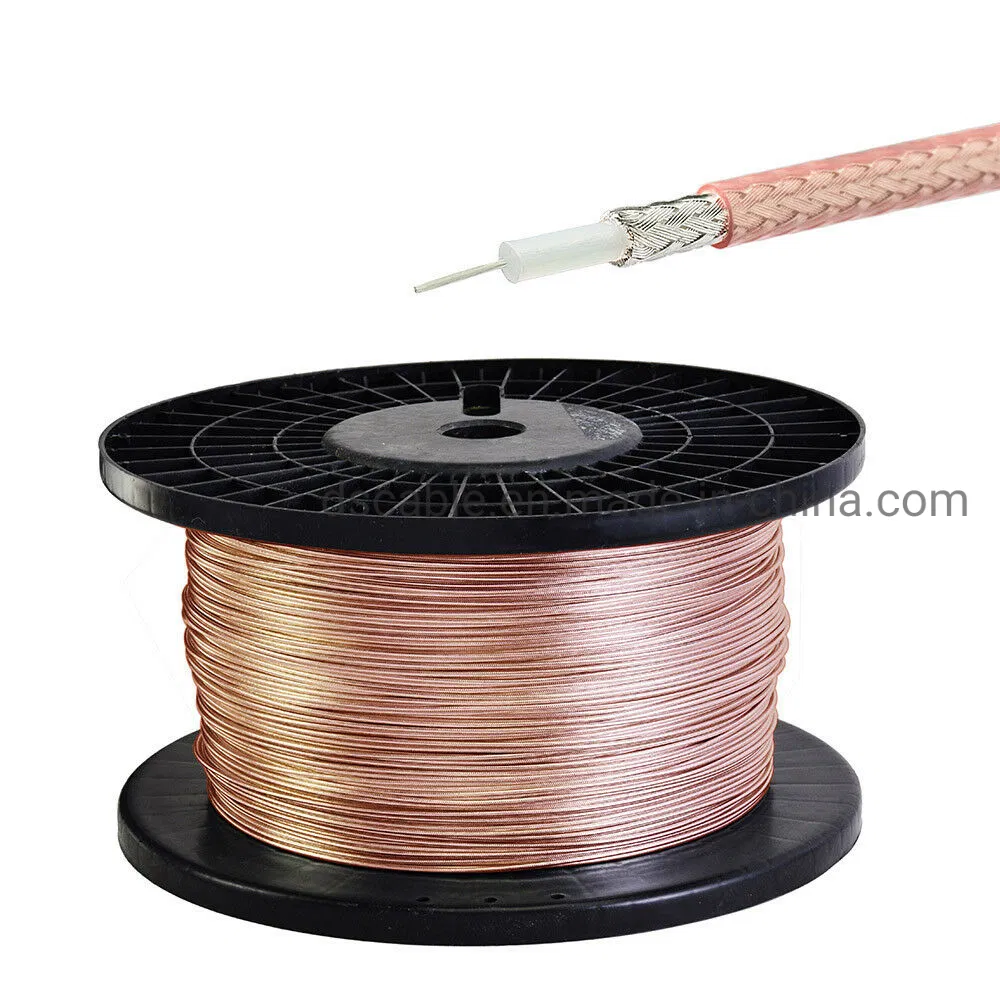

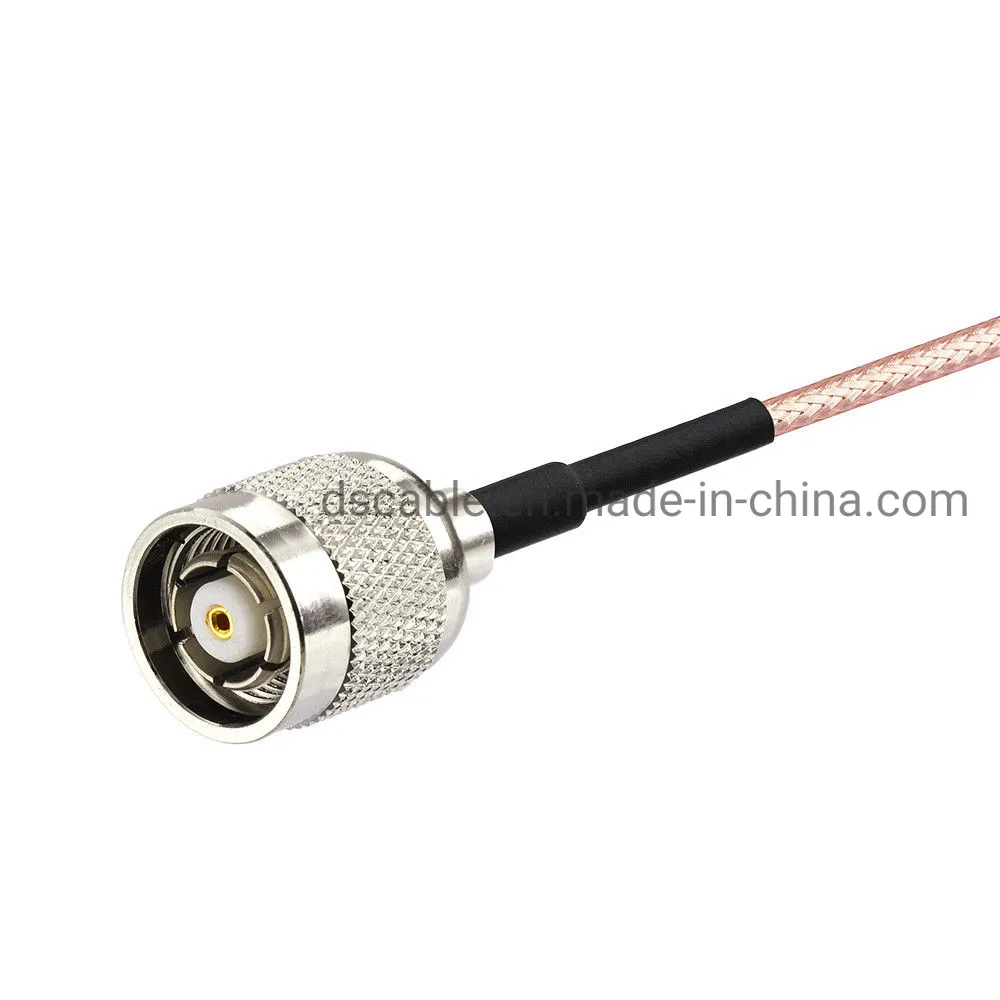

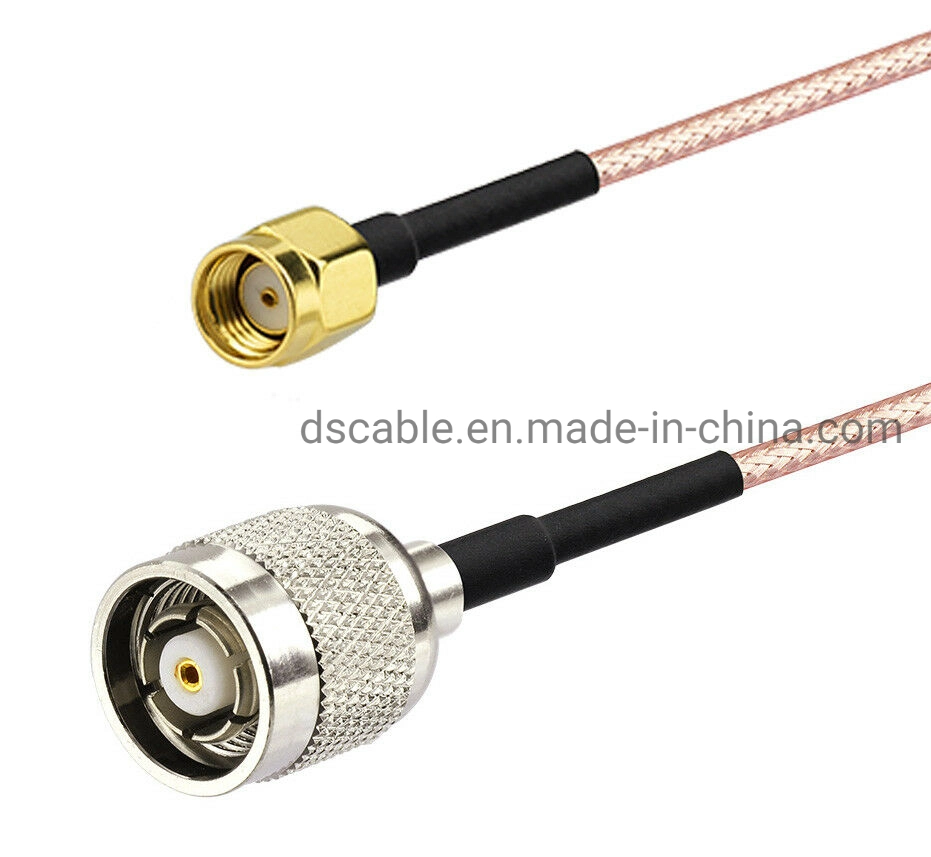

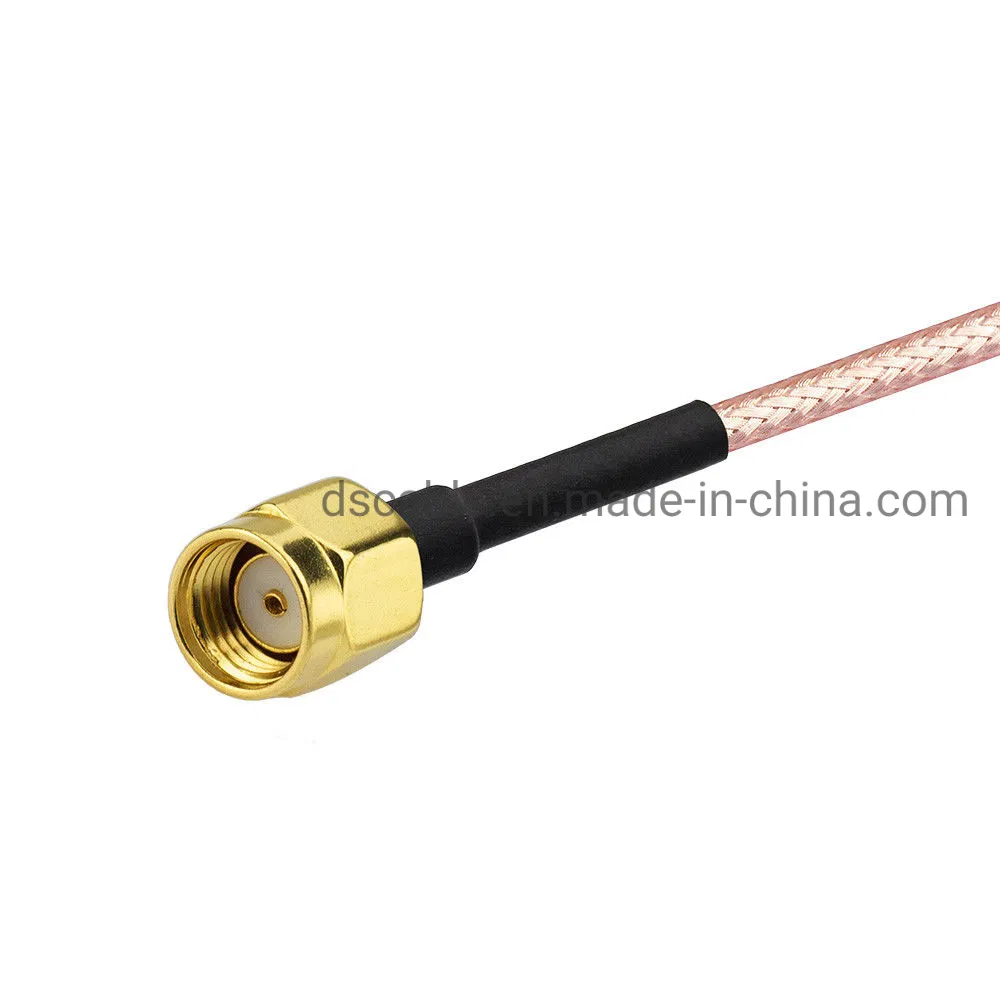

RP-SMA Female to RP-TNC Female RG316 Coaxial Pigtail Cable

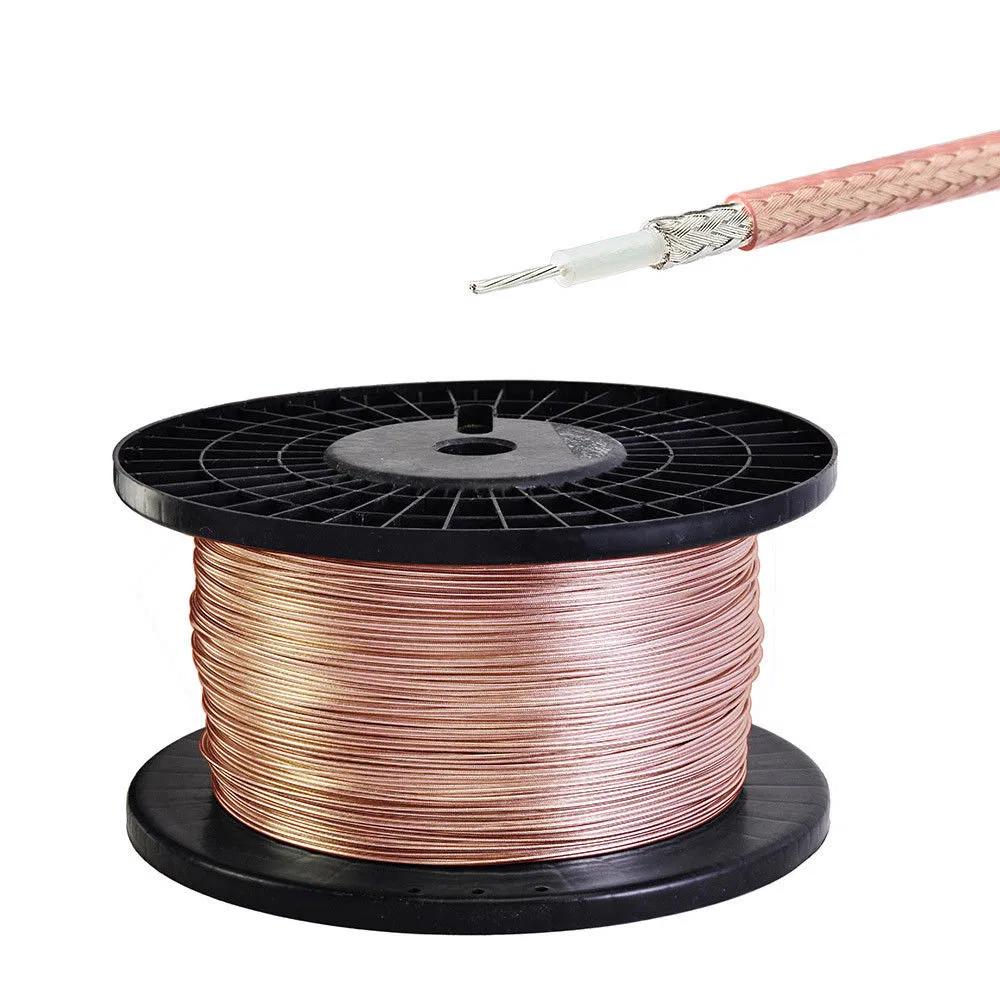

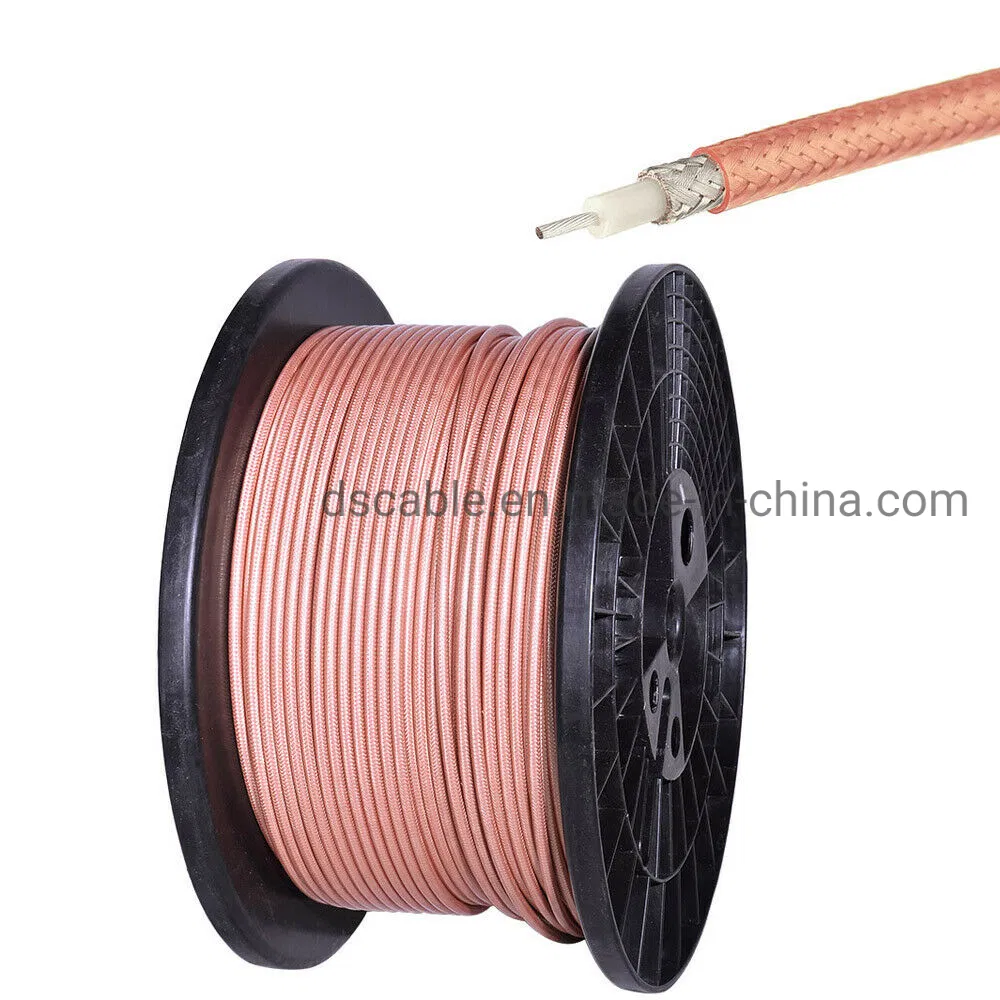

MIL Standard high quality FEP coaxial cable RG179, Silver Plated CCS Coax Cable
These kinds of cable are typically 50 ohm coaxial cables used in wireless communication, RF and microwave transmission, data transmission and instrumentation control. These cables are based upon MIL-Spec designs and are often referred to by their RG type number. MIL-C-17 is the government specification document used to standardize coaxial cables, it has been in use since the 1940's.

Features:
1. Light weight.
2. Great flexibility,
3. Heat resistance,
4. Moisture resistance and corrosion resistance.
Meanwhile, it owns prominent electrical propertiesand mechanical properties, such as great shield, low attenuation, small VSWR.
Application:
It is widely used in RF signal transmission of communication, electronic countermeasure, military navigation, radar and aviation etc.

Other Related Products:
RG178, RG179,RG316

Assembly: UFL, SMB, SMA

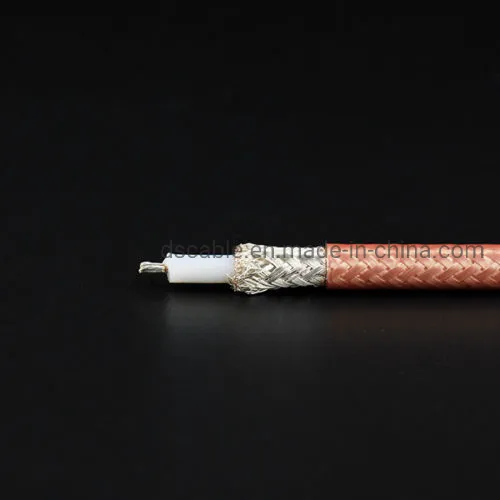

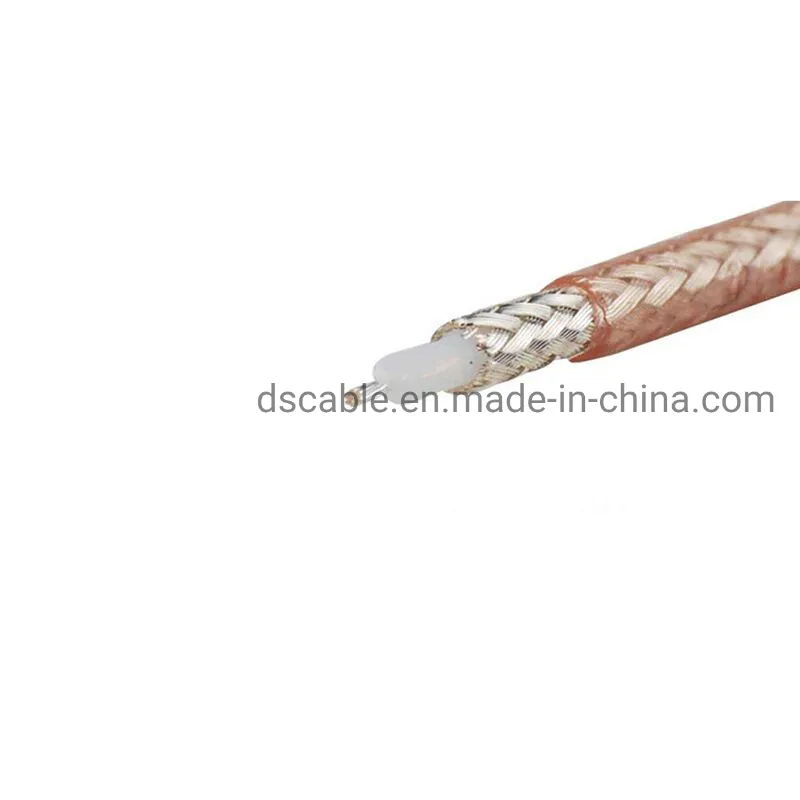

Construction
Inner conductor	Silver plated copper covered steel	7 x 0.10 mm
Dielectric	Solid PTFE	Φ1.60±0.10mm
Outer conductor(shield)	Silver plated copper (0.1mm)	Φ2.15±0.10mm
Outer sheath	FEP	Φ2.55±0.10mm
Electrical & Mechanical Characteristics
Impedance	75±5 Ohm
Nominal capacitance	63 pF/m
Velocity of propagation	70%
Inner conductor resistance	800.5 Ohm/Km
Outer conductor resistance	27.9 Ohm/Km
Operatig Voltage(max)	0.9 KV
Operating temperature range	-55°C - +200 °C
Cable weight (approx.)	31 Kg/Km
Screening effectiveness	>60 dB
Attenuation
Frequency (MHz)	Max. Attenuation
(MHz)	(dB/100 m)	(dB/100ft)
100	28	8.5
200	39	11.9
400	56	17.1
900	85	25.9
1200	98	29.9
1500	110	33.5
1800	121	36.9
2000	128	39
2500	144	43.9
