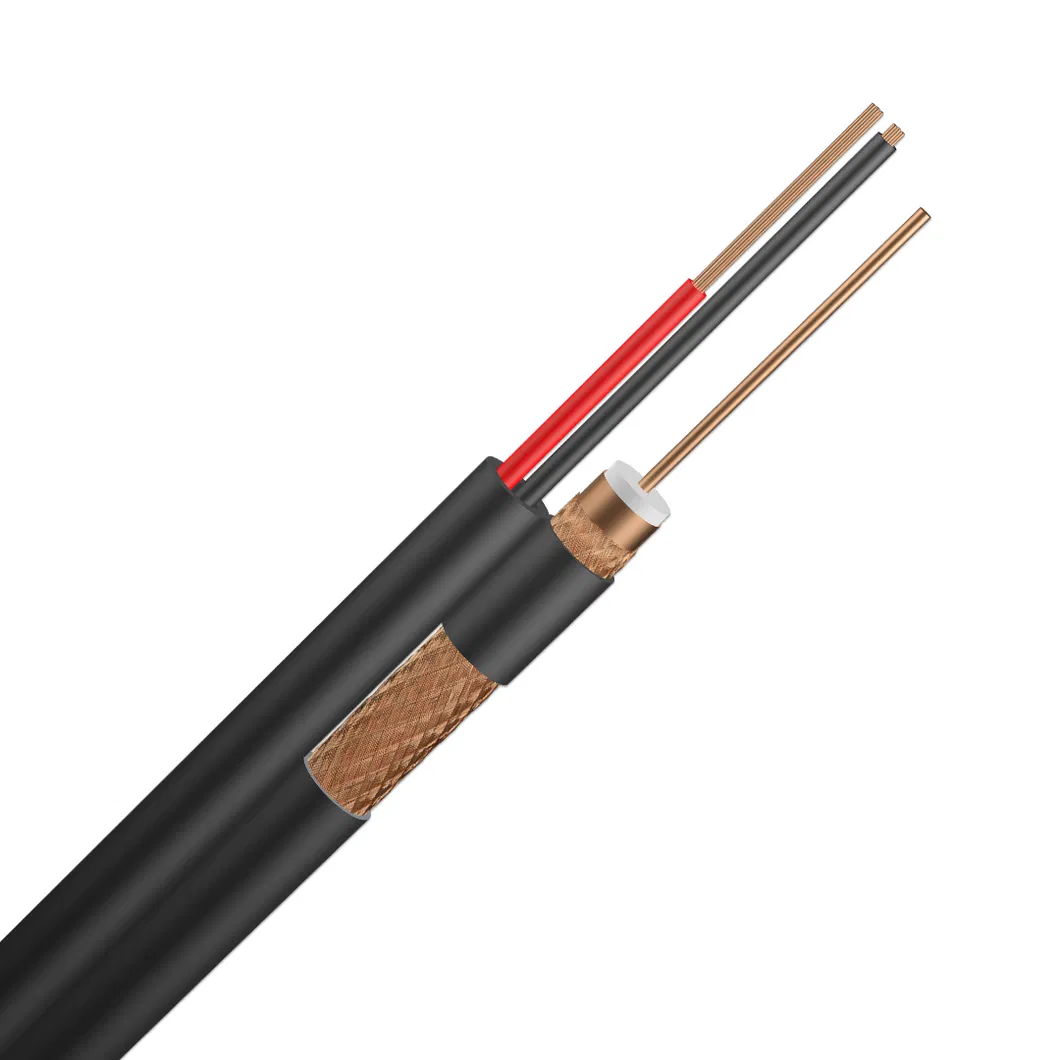

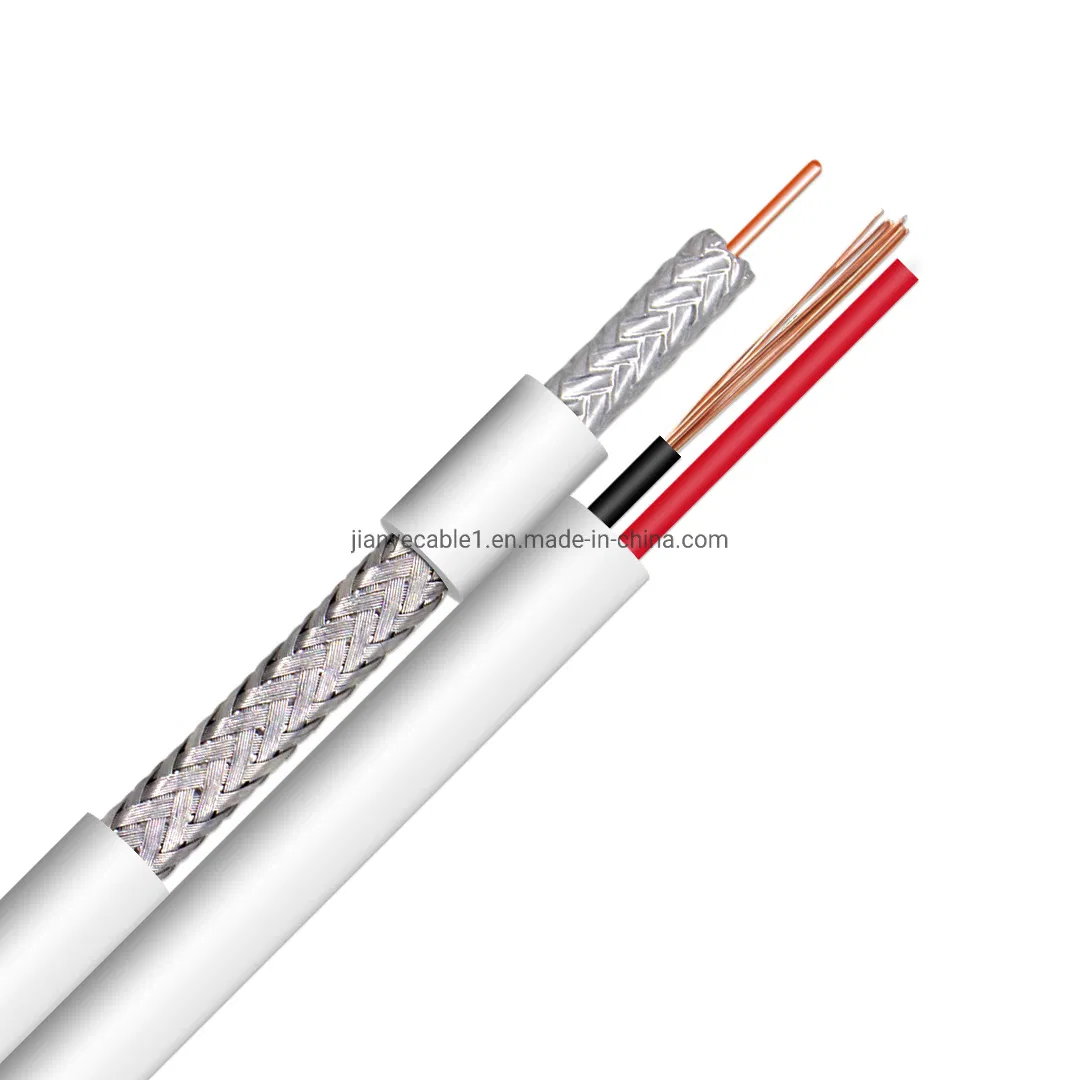

Rg59 75ohm Security Camera Al Foil Rg59+2c Siamese Coaxial Cable with 2c Cable
Rg59 75ohm Security Camera Al Foil Rg59+2c Siamese Coaxial Cable with 2c CableProduct Description CCS copper conductor Rg59+2c 0.75mm2 0.50mm2 power wire Siamese Camera Coaxial cable cctv pvc jacket RG59 cable with powerVideo Surveillance Systems use 3 in 1 cctv coaxial rg59 with power cable 0.8......
Send Inquiry
Product Description
Rg59 75ohm Security Camera Al Foil Rg59+2c Siamese Coaxial Cable with 2c Cable

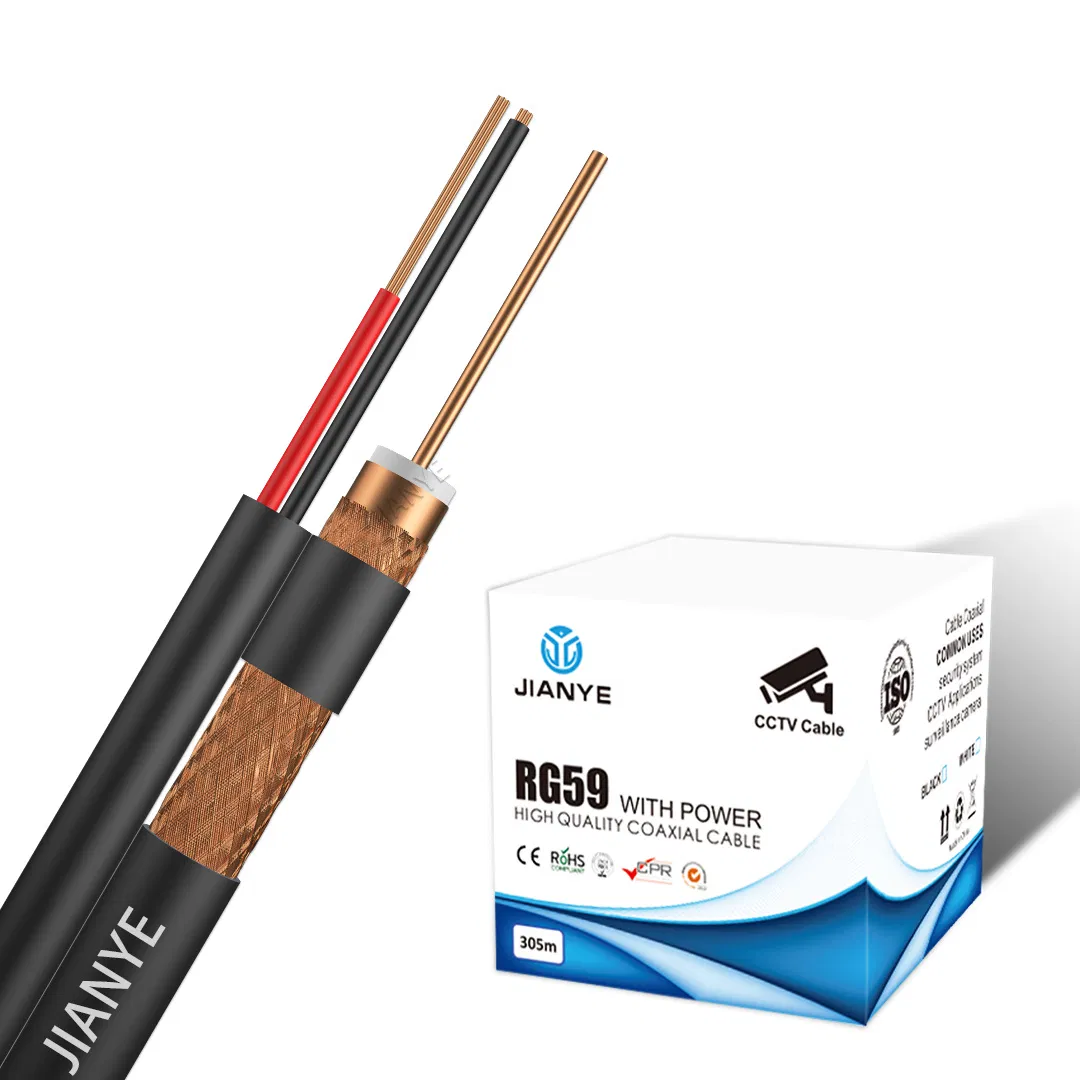

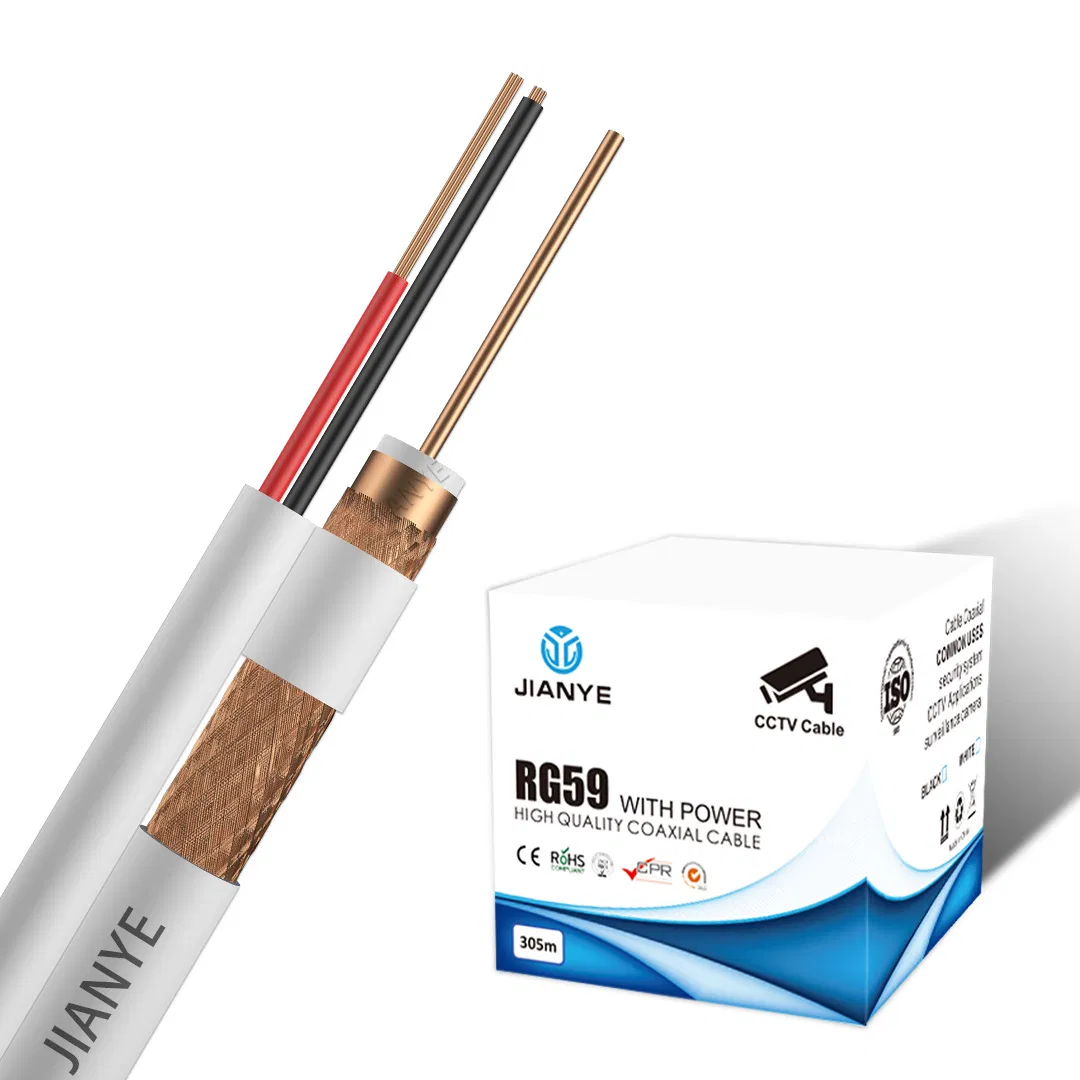

CCS copper conductor Rg59+2c 0.75mm2 0.50mm2 power wire Siamese Camera Coaxial cable cctv pvc jacket RG59 cable with power

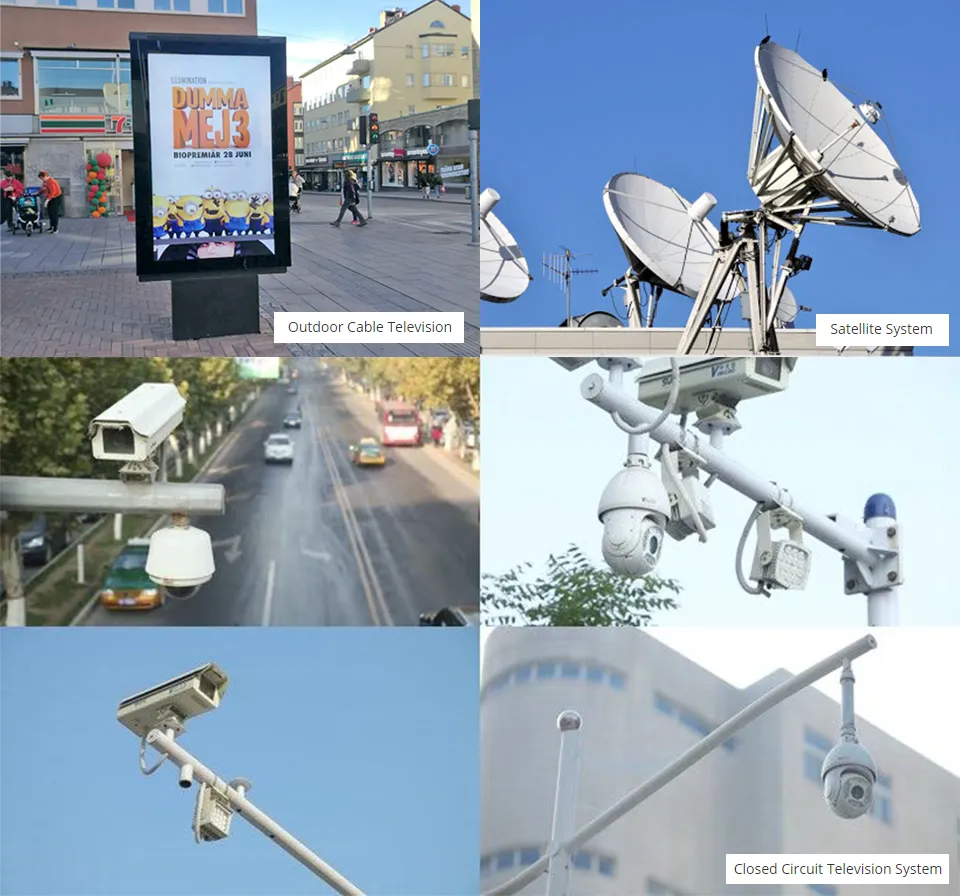

Video Surveillance Systems use 3 in 1 cctv coaxial rg59 with power cable
Video Surveillance Systems use 3 in 1 cctv coaxial rg59 with power cable
0.81CCS+3.66FPE + Al Foil/blue/bonded +80*0.12AL+6.1PVC(White/Black)
Inner Conductor (mm): 0.81± 0.01 BC / CCS
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE

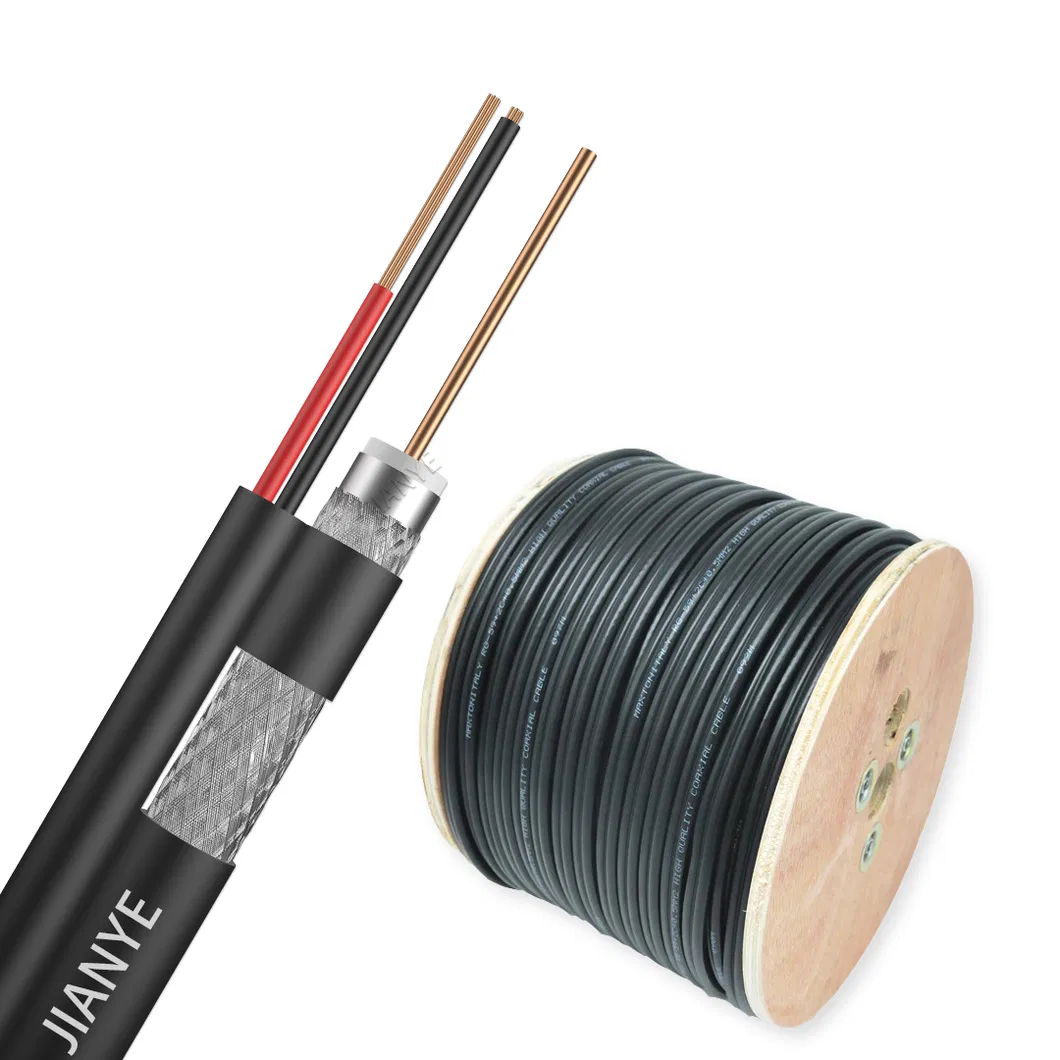

Packing :
50m/100m/200m per roll

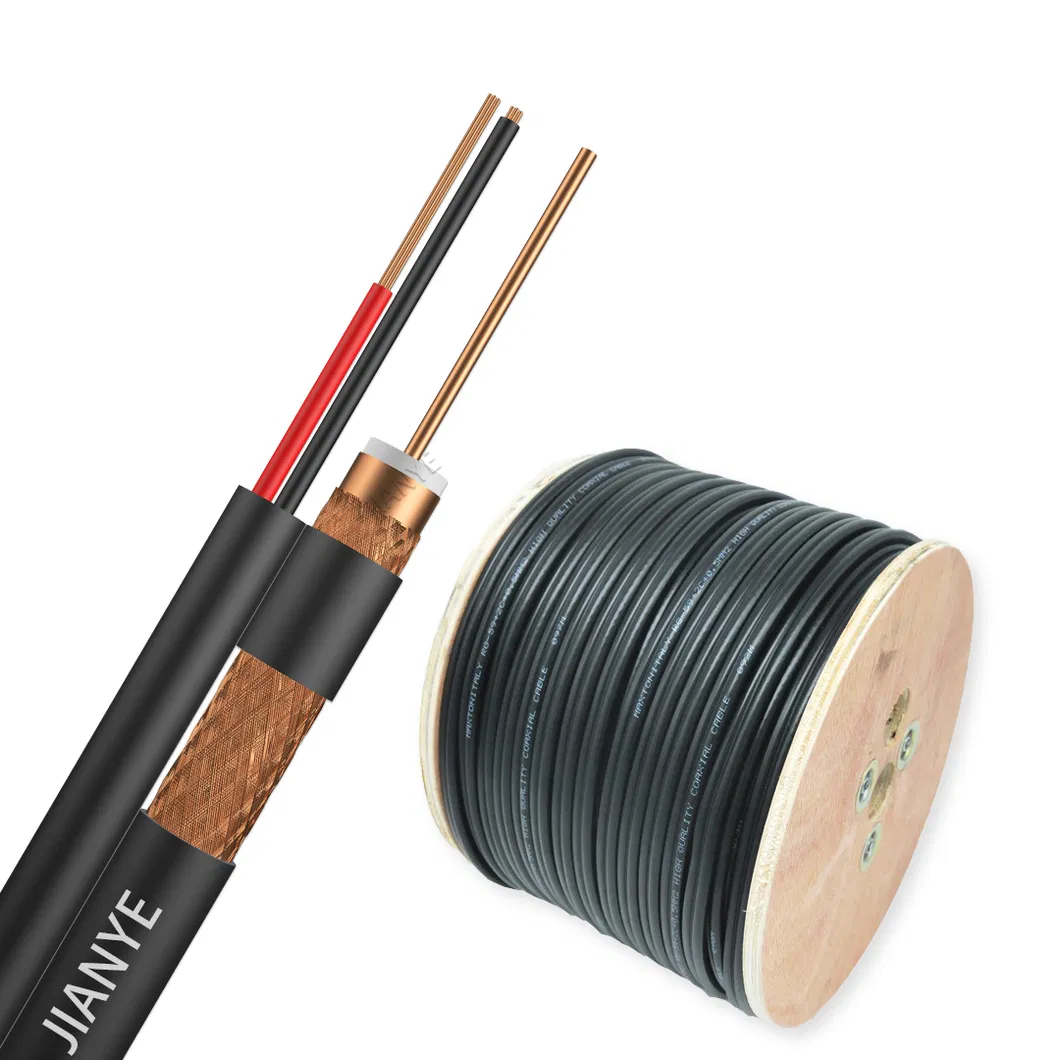

305m/500m per wood drum
Customized package .
50m/100m/200m per roll
305m/500m per wood drum
Customized package .
| RG59 with power cable specification | |
| Inner conductor | 0.81mm BC/CCS |
| Insulation | 3.66mm FPE |
| Shield | Aluminum foil |
| Braids | Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage : 40%~96% |
| Jacket | PVC |
| Color | Black /White or as per customer's requirement |
| Power cable (have 2.5mm²/ 0.5mm²/ 0.75mm²/ 1.0mm²),18 AWG | |
| Inner conductor | (7*0.37mm14*0.15mm/ 16*0.2mm/ 24*0.2mm) CCA or Bare Copper |
| Insulation | (1.25mm/ 1.8mm/ 2.0mm) PE |
| Over jacket | (3.5*3.5mm / 6.0*3.5mm) PVC |
| Length | 100m/ 200m/ coil/ cardboard reel/ 305M/wooden reel/ or as per customer's requirement. |
