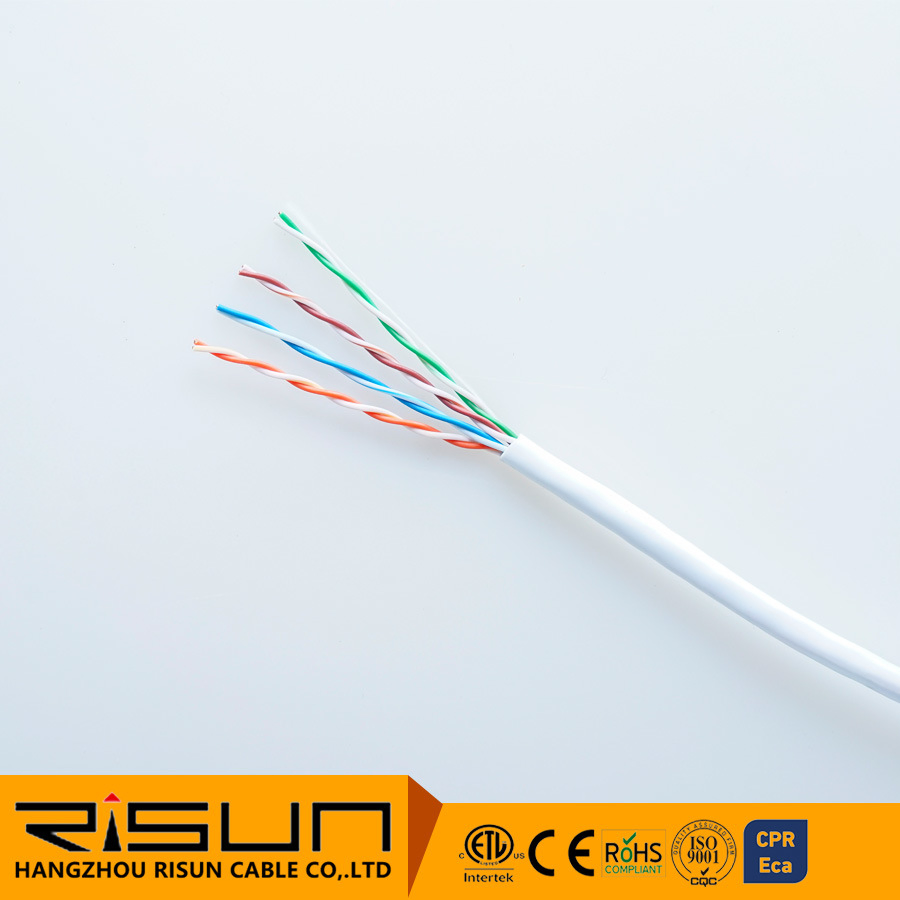

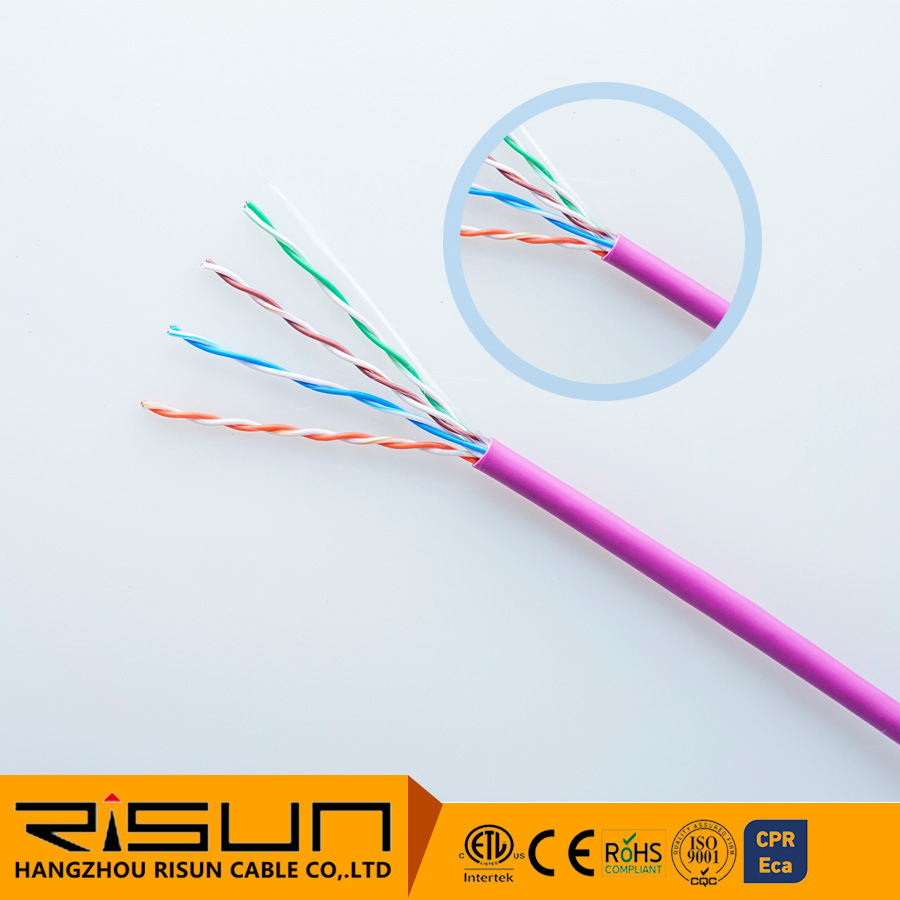

China Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box Internet Cable

Product Description

construction:

conductor	24awg (solid or strand) cu/cca/ccs
insulation	hdpe 0.90±0.02mm
sheath	5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	8/4

mechanical properties:

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

electrical properties:

resistance	max. 9.38 ohm/100m
resistance unbalance	max. 2%
insulation resistance	150 ohm/km
mutual capacitance	max. 5600pf/100m
capacitance unbalance	max. 330pf/100m
impedance	100+/-15 ohm
spark test	2000v
velocity of propagation	67%

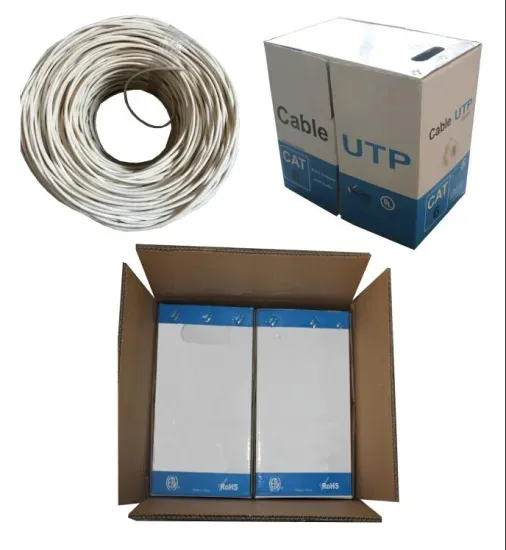

packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

Outdoor Use UTP Cat5e PE Jacket 305m/ Pull Box Internet Cable

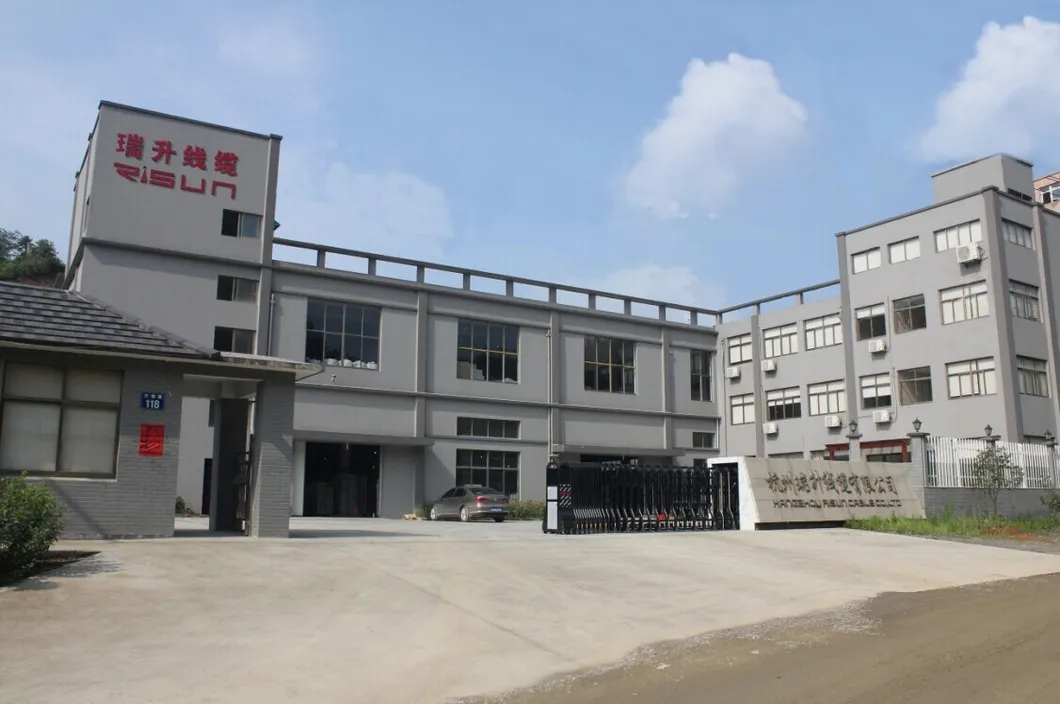

company profile

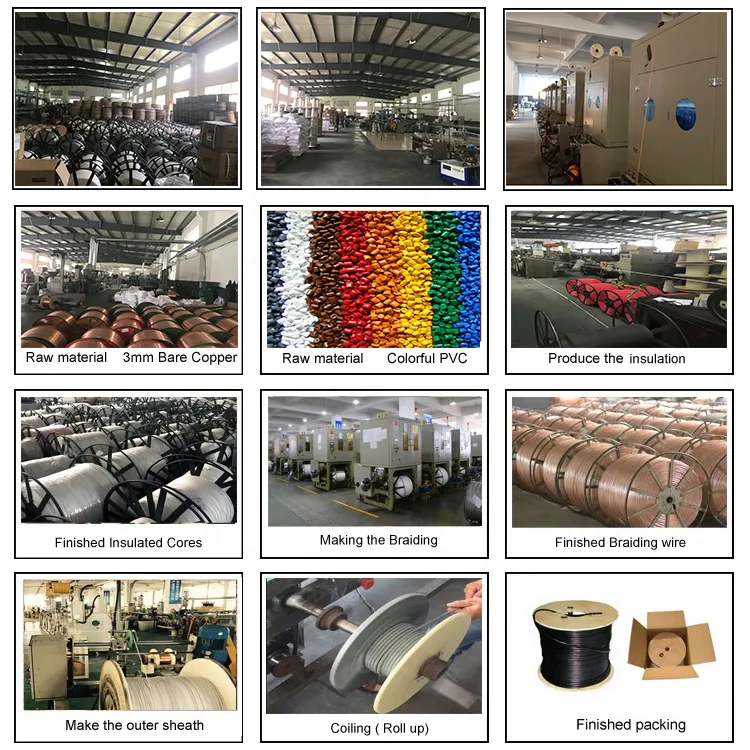

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
