Outdoor 4pairs UTP CAT6A Ethernet Cable 23AWG CCA Bc Network
We can provide comprehensive cable products,such as Network Cable(UTP,FTP,SFTP,F/UTP,F/FTP Cat5e/Cat6/Cat6a/Cat7 cables),Security(Alarm) Cable,Speaker/Audio Cable,Coaxial Cable,Telephone Cable, and OEM for different use as customize.a)We are an experienced factory.Our main markets are Europe and Sou......
Send Inquiry
Product Description
We can provide comprehensive cable products,such as Network Cable(UTP,FTP,SFTP,F/UTP,F/FTP Cat5e/Cat6/Cat6a/Cat7 cables),Security(Alarm) Cable,Speaker/Audio Cable,Coaxial Cable,Telephone Cable, and OEM for different use as customize.
a)We are an experienced factory.Our main markets are Europe and South America,We are a leader in producing cables with high quality and competitive price since 2007.
b)All our cables are manufactured in production facilities accredited with full traceability ISO 9001 Management Systems for your assurance of quality product.

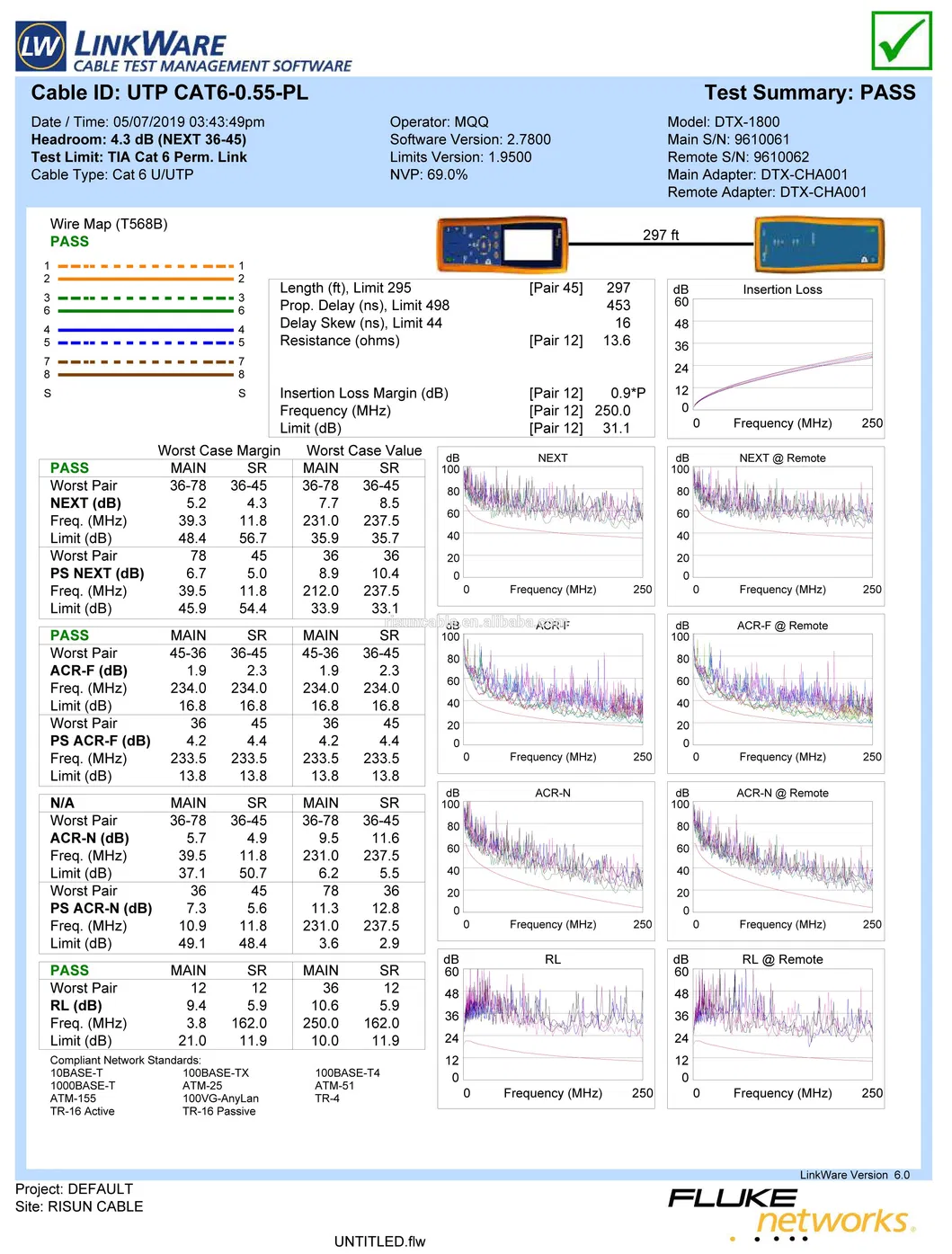

c)Cables produced by Risun cable Company are approved to Fluke Test,CE,ETL,RoHS and CPR.
d)We all hold the principle that customer comes first.
a)We are an experienced factory.Our main markets are Europe and South America,We are a leader in producing cables with high quality and competitive price since 2007.
b)All our cables are manufactured in production facilities accredited with full traceability ISO 9001 Management Systems for your assurance of quality product.
c)Cables produced by Risun cable Company are approved to Fluke Test,CE,ETL,RoHS and CPR.
d)We all hold the principle that customer comes first.

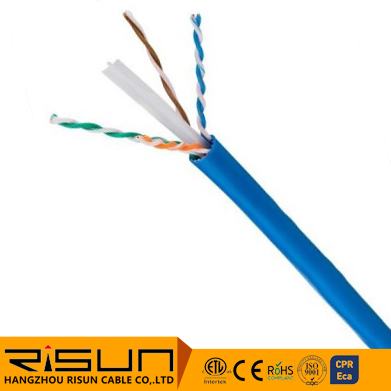

outdoor 4Pairs UTP Cat6a ethernet cable 23AWG CCA BC network

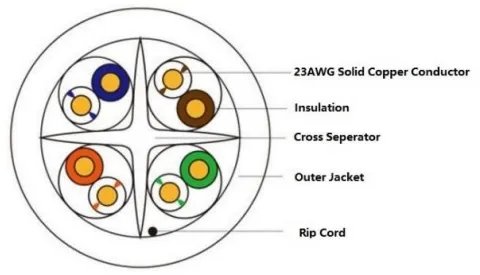

Construction :
| UTP CAT6a solid | |
Conductors | 23AWG solid copper |
Insulation | 1.04±0.05mm HDPE |
Shielding | None |
Pair Color Codes | Pair 1: White/Blue, and Blue Pair 2: White/Orange, and Orange Pair 3: White/Green, and Green Pair 4:White/Brown, and Brown |
Jacket | 6.9mm±0.2mm LSZH |

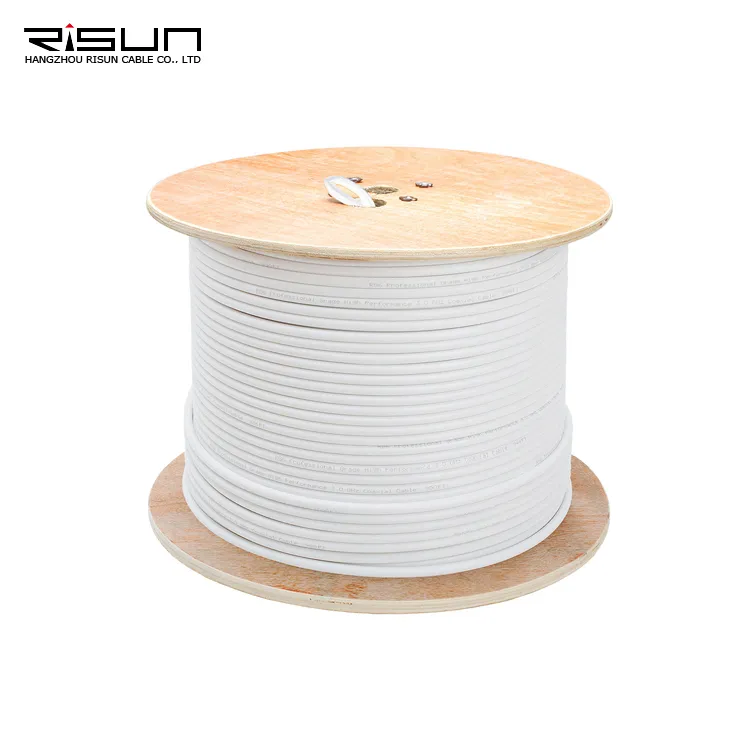

| Package | 305M/1000ft, Wooden Reel, Carton, Pallet |
| Delivery time | Normally 25 days after received the deposit. |
| Application | Supports category 6A (Class EA) networks running up to 500MHz applications Horizontal and backbone in structured cabling installations |
ELECTRICAL & MECHANICAL CHARACTERISTICS :
Temperature Range | Storage Temp:-20ºC to +70ºC Operation Temp:-20ºC to +60ºC Installation Temp:0ºC to +50ºC |
Characteristic Impedance | 100 ±15Ω(1-100MHz) 100 ±18Ω(100-250MHz) 100 ±25Ω(250-500MHz) |
DC Resistance | ≤ 9.38Ω/100m max. |
Resistance Unbalance | ≤ 2% |
Capacitance Unbalance to Earth | ≤ 330 pF/km |
Delay Skew | ≤ 45ns/100m |
Nominal Velocity of Propagation | 68% |
Propagation Delay (Nominal) | 533ns/100m at 500MHz |
Test Voltage (d.c. for 1 minute) Conductor /Conductor | 1000V |
Insulation Resistance (500V d.c) | ≥ 500MΩ/KM |

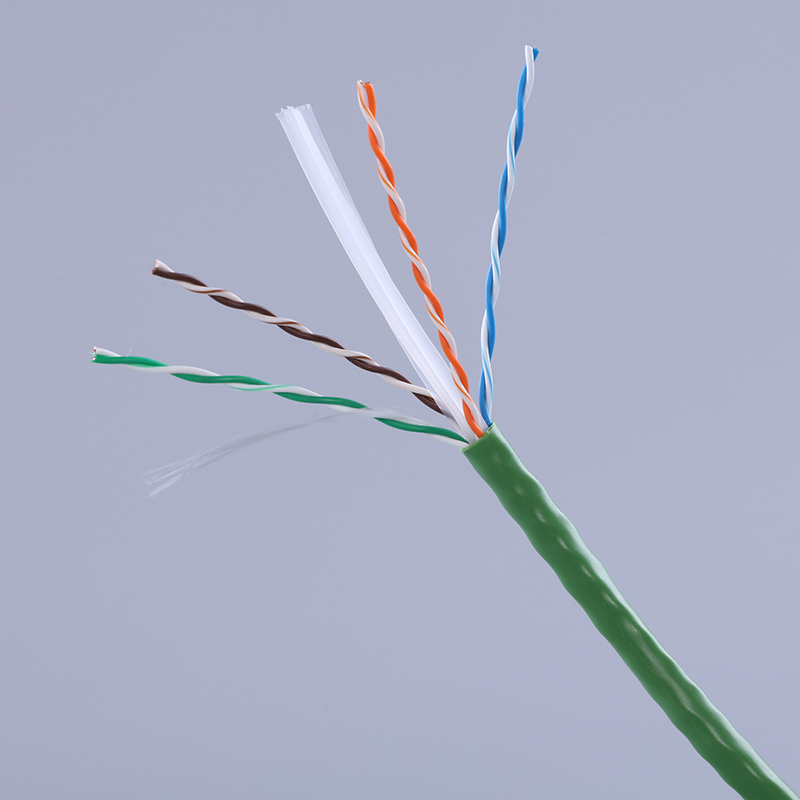

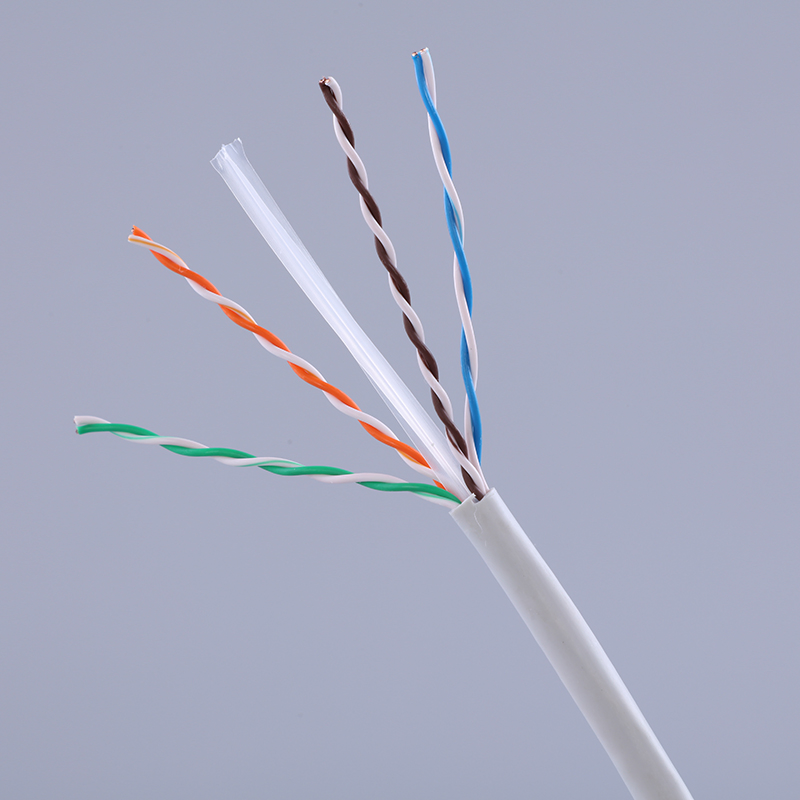

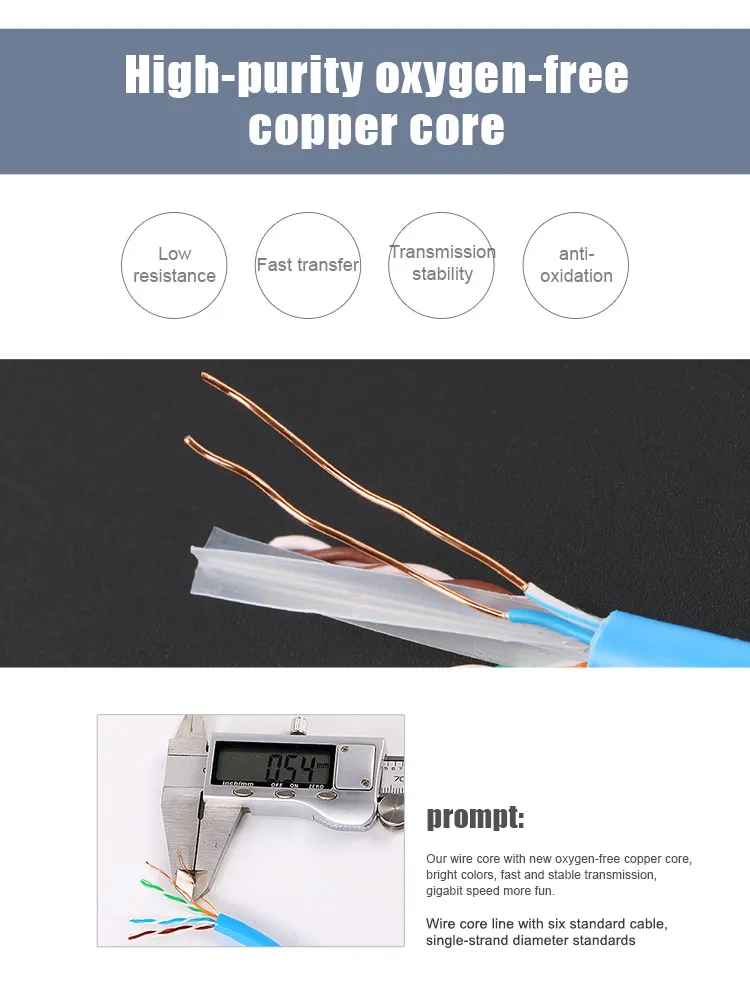

Details Images:
Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
