N Male to SMA Male 18GHz RF Coaxial Cable

Product Description

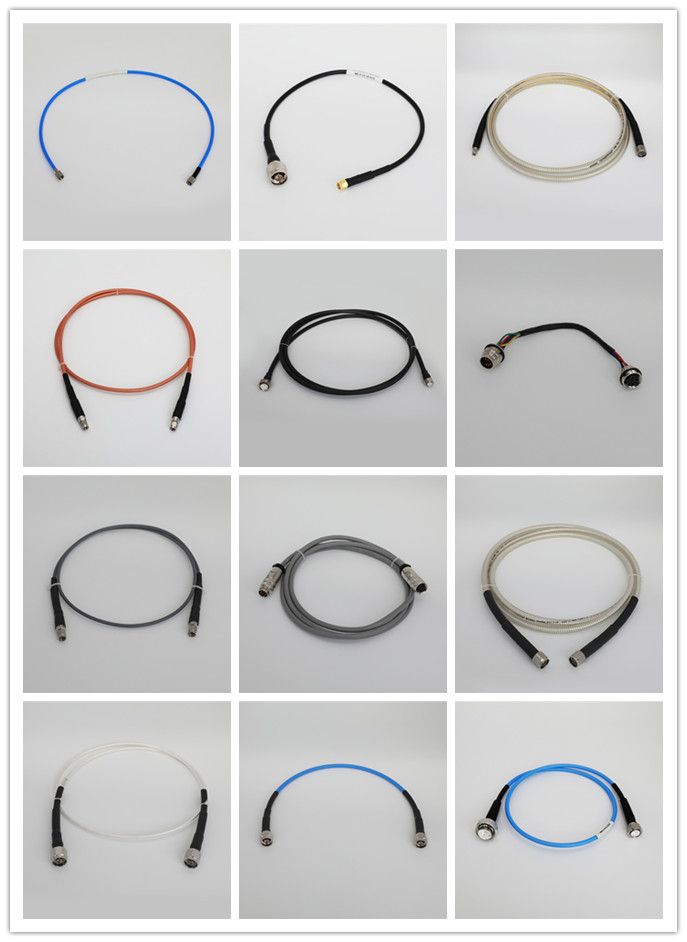

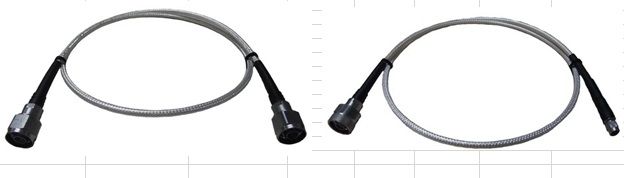

PIM Test Cable

Product data
Part Number	Description		Insertion loss (dB) 25ºC
Part Number	Connectors	Cable Length	up to 2GHz	2 to 3GHz	3 to 6GHz	6 to 10GHz	10to 18GHz
	N, Male, Straight / N, Male, Straight	1000mm	< 0.68	< 0.87	< 1.24	< 1.67	< 2.36
	N, Male, Straight / SMA, Male, Straight	1000mm	< 0.68	< 0.87	< 1.24	< 1.67	< 2.36


Electrical Data
Impedance			50	Ω
Operating frequency			18	GHz
Insulation resistance			≥5000	MΩ
Dielectric withstand voltage AC r.m.s			≤1500	V
Capacitance			96.4	pF/m
Velocity of propagation			70%
Shielding effectiveness			>-90	dB
Return loss			≤-30dB(upto3GHz) ≤-27dB(3to6GHz) ≤-21dB(6to12GHz) ≤-19dB(12to18GHz)
Return loss
			up to 1GHz	1 to 2GHz	2 to 3GHz	3 to 5GHz	5 to 6GHz
Insertion loss vs.shaking (dB)			< 0.03	< 0.03	< 0.03	< 0.03	< 0.03
Insertion loss vs.bending (dB)			< 0.03	< 0.03	< 0.03	< 0.05	< 0.05
Phase stability vs. bending (degree)			+/-2.0	+/-3.0	+/-4.0	+/-6.0	+/-6.0

Mechanical Data
Min. bending radius dynamic			50		mm
Recommended mating torque			0.7~1.1		Nm

Environmental Data
Operating termperature			-55ºC to +85ºC
2002/95/EC (ROHS)			compliant

Material Data
Piece Parts			Material			Surface Plating
center contact			Beryllium copper			Au
body			Stainless steel			Passivated
coupling nut			Stainless steel			Passivated
insulator			TPX RT18			-

ALL THE PRICES ARE BASED ON THE LENGTH OF 1 METER
