Local Communication Round Wire Feinan Wooden Drum/Carton/Easy Pull Box LAN Cat5e Cable
Product DescriptionCAT5e FTP CABLE 1. Meet the 100MHz bandwidth requirements specified by the TIA/EIA568-C.2 standard for Cat.5E.2. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 24 AWG3. Plug and pull cycle>1050 times PRODUCT & SPEC.CAT5E UT......
Send Inquiry
Product Description

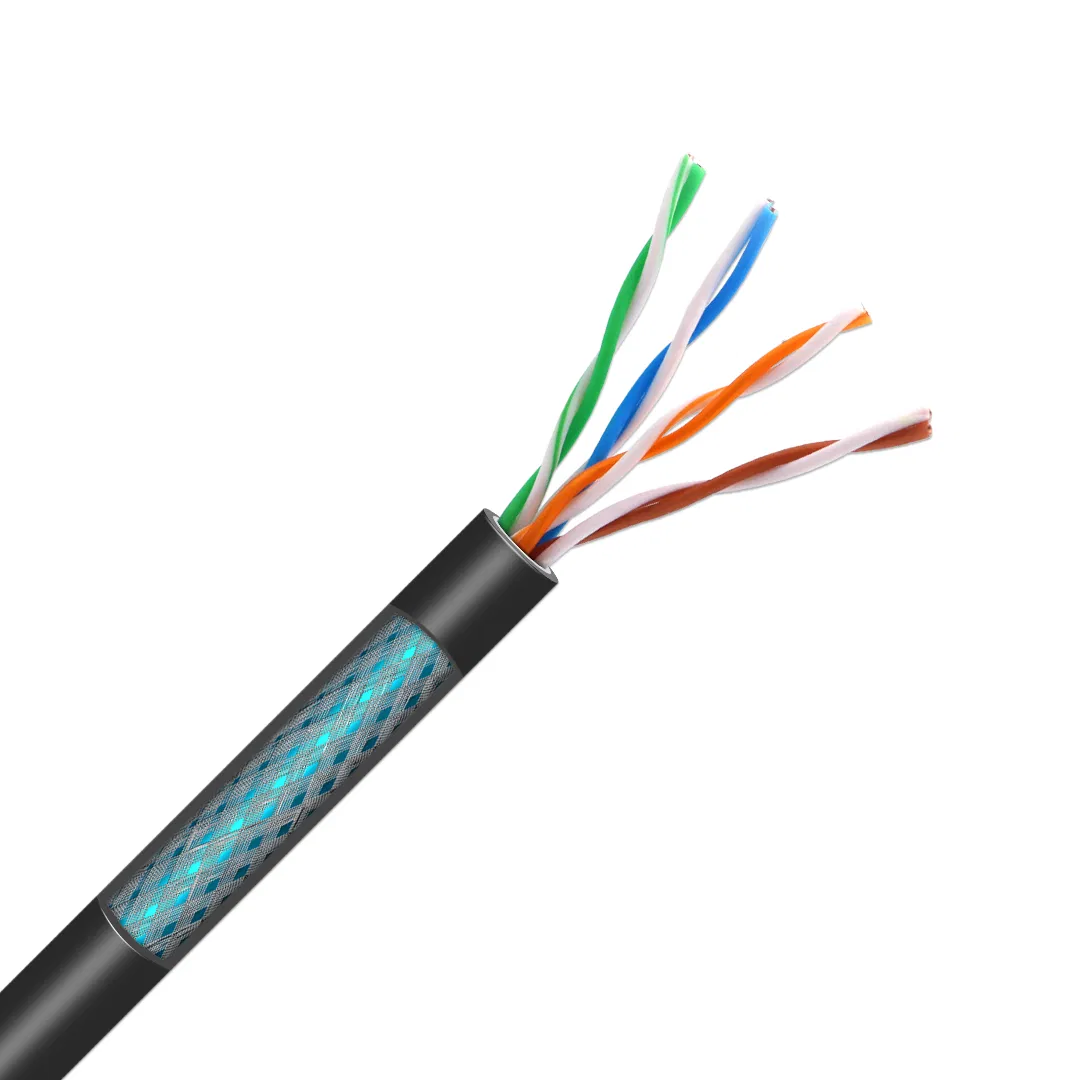

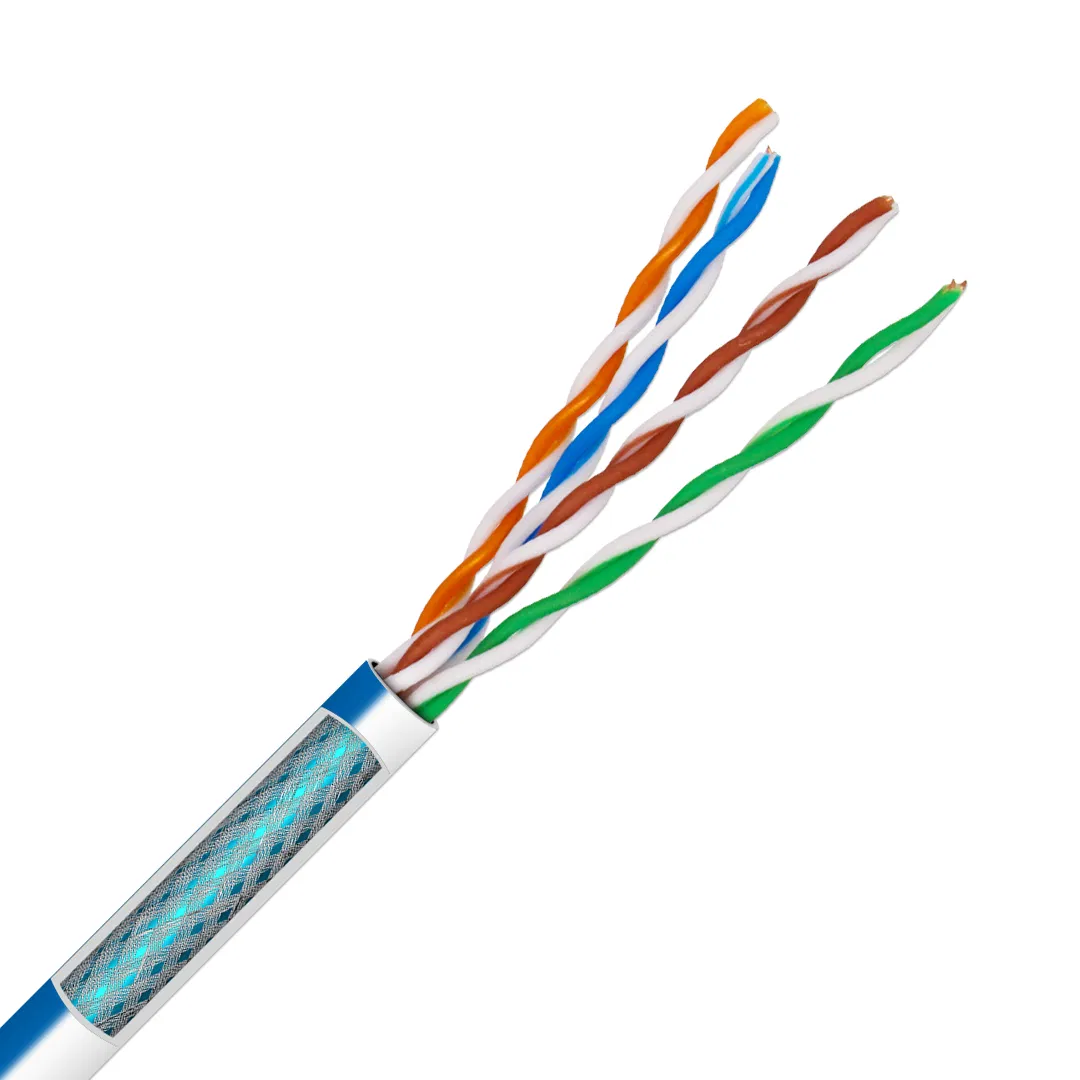

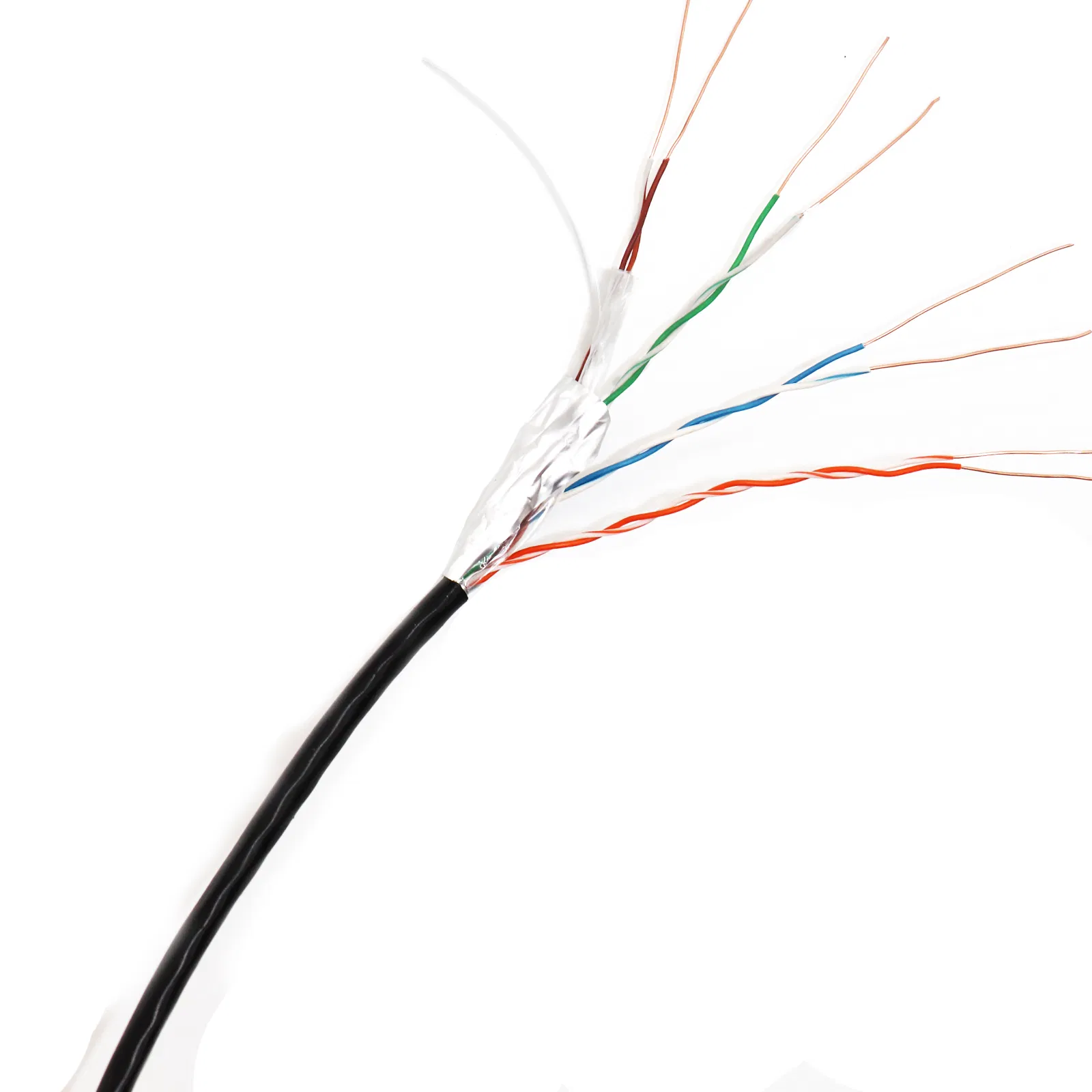

CAT5e FTP CABLE
2. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 24 AWG
3. Plug and pull cycle>1050 times

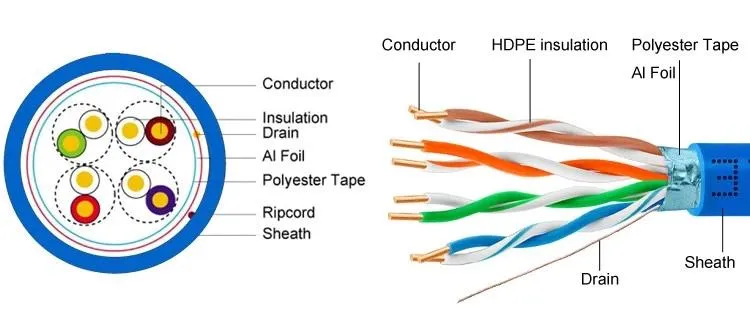

PRODUCT & SPEC. | CAT5E UTP/FTP/STP/SFTP | |
CONDUCTOR | Material | BC/OFC/CCA/CCU/CCS |

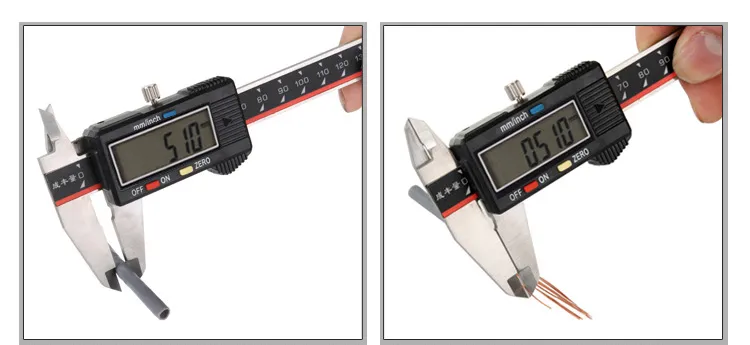

OD | 4X2X0.5mm±0.005mm, 24AWG | |
Number | 4Pairs | |
INSULATION | Material | HDPE |
OD | Φ0.91±0.05mm | |
JACKET | Material | PVC/LSZH |
Color | As client's request | |
OD | Φ5.1mm±0.1MM | |
PERFORMANCE | DC Resistance(Max.) | 9.5Ω/100m |
DC Resistance Imbalance | 2.5% | |
Working Capacitance(Max.) | 5.4nF/100m | |
Insulation Resistance | 10000 MΩ.km | |
NVP | 69% | |
Operating temperature(ºC) | -20ºC~+70ºC | |
