LAN Cable CPR Approved UTP CAT6 Data Cable Computer Cable Copper Wire with Patch Cord RJ45/48 Network Cable
Key Features:Cable Type: CAT6CableLength (meter): 305 meters (1000ft)Cable Conductor Material: CopperCable Jacket Material: PVC/LSZHCable Gauge: 24 AWG or 23 AWGCable Color: Blue/yellow/orange/black/greyCable Performance: 500 MHzCable Structure: Solid/strandedTechnical Performance (100m):FrequencyRL......
Send Inquiry
Product Description
Key Features:
Cable Type: CAT6Cable
Length (meter): 305 meters (1000ft)
Cable Conductor Material: Copper
Cable Jacket Material: PVC/LSZH
Cable Gauge: 24 AWG or 23 AWG
Cable Color: Blue/yellow/orange/black/grey
Cable Performance: 500 MHz
Cable Structure: Solid/stranded
| Technical Performance (100m): | ||||||||
| Frequency | RL | ATT(20ºC) | NEXT | PHASE DELAY | Frequency | PSNEXT | ELFEXT | PSELFEXT |
| (MHz) | ≥dB | ≤dB | ≥dB | ≤ns | (MHz) | ≥dB | ≥dB | ≥dB |
| 1 | 20.0 | 2.03 | 74.3 | 570.00 | 1 | 72.3 | 67.8 | 64.8 |
| 4.0 | 23.0 | 3.78 | 65.3 | 552.00 | 4 | 63.3 | 55.8 | 52.8 |
| 8.0 | 24.5 | 5.32 | 60.8 | 546.73 | 8 | 58.8 | 49.7 | 46.7 |
| 10.0 | 25.0 | 5.95 | 59.3 | 545.38 | 10 | 57.3 | 47.8 | 44.8 |
| 16.0 | 25.0 | 7.55 | 56.2 | 543.00 | 16 | 54.2 | 43.7 | 40.7 |
| 20.0 | 25.0 | 8.47 | 54.8 | 542.05 | 20 | 52.8 | 41.8 | 38.8 |
| 25.0 | 24.3 | 9.51 | 53.3 | 541.20 | 25 | 41.3 | 39.8 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 31.25 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 62.5 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.80 | 44.3 | 537.60 | 100 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 200 | 37.8 | 21.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 250 | 36.3 | 19.8 | 16.8 |

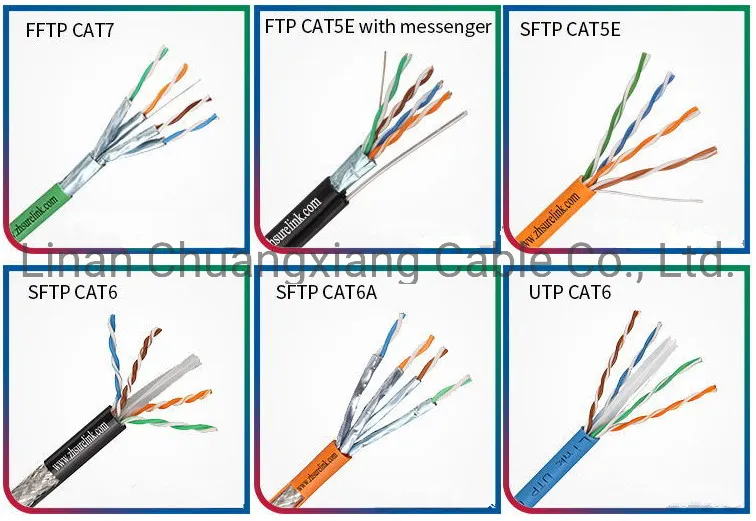

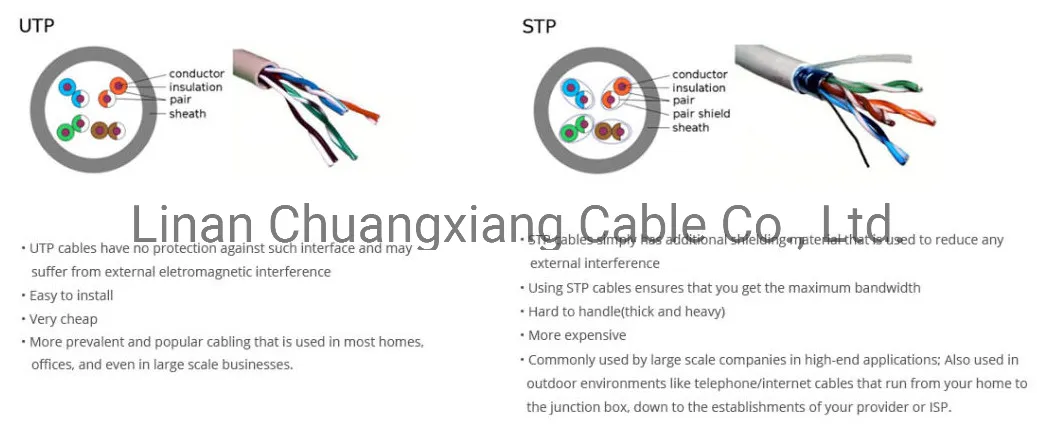

The S stands for Shielded, the U stands for Unshielded, and the TP stands for twisted pair for both
For most common uses, it does not really matter whether you use STP or UTP as both would probably perform well

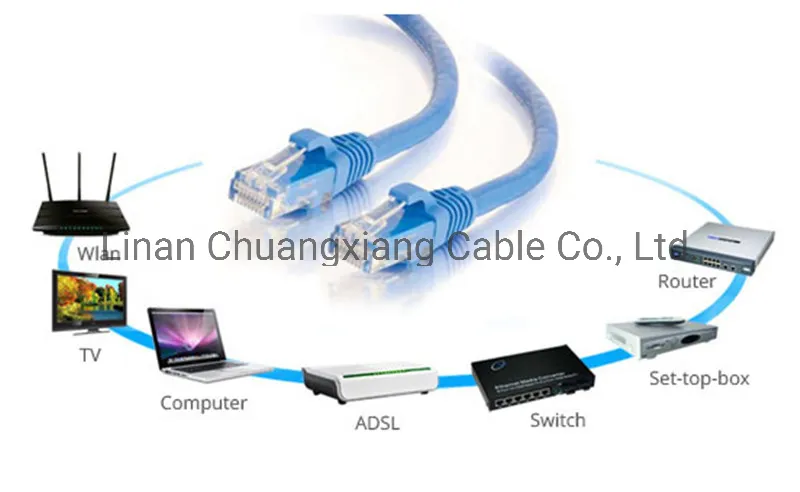

Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat6 standards. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels, and provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, etc
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interestd in our competitive products,pls call me,let's talk more!
