China FTP CAT6 Ethernet Cable 1000FT Fluke Test Pass

Product Description

Product Description

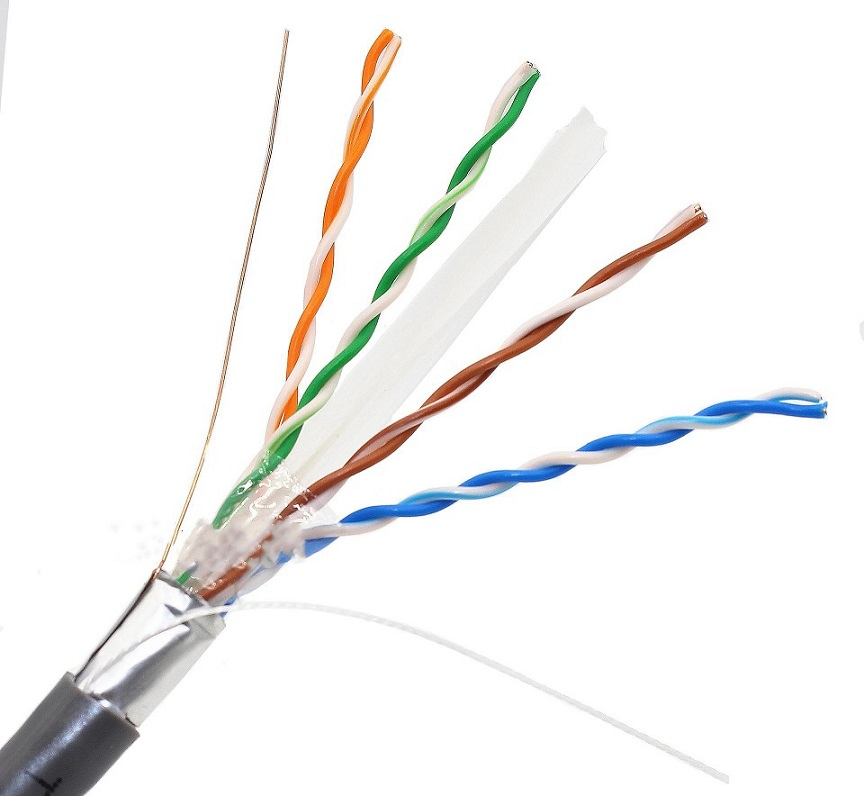

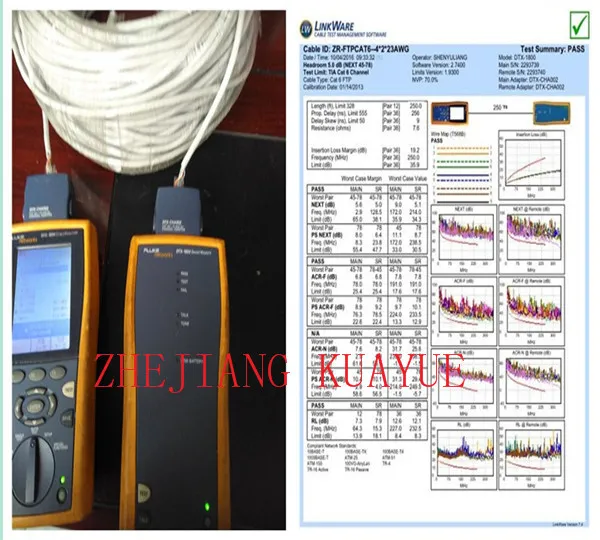

FTP CAT6 Ethernet Cable 1000FT Fluke Test Pass

Lan Cables

Product Name/Code: FTP Cat 6 PVC		Performance
Application:		Frequency	RL	Attenuation	NEXT	PSNEXT
100 Base-T4		(MHz)	(dB)	(dB/100m)
100 Base-TX			min.	max	min (dB)	min (dB)
100VG - AnyLAN		1.000	20.00	2.00	74.30	72.30
1000 Base-T (Gigabit Ethernet)		4.000	23.00	3.80	65.30	63.30
155 Mbps ATM		8.000	24.50	5.30	60.80	58.80
622 Mbps AT		10.00	25.00	6.00	59.30	57.30
Reference Standard		16.00	25.00	7.60	56.20	54.20
EIA/TIA 568B & ISO/IEC 11801		20.00	25.00	8.50	54.80	52.80

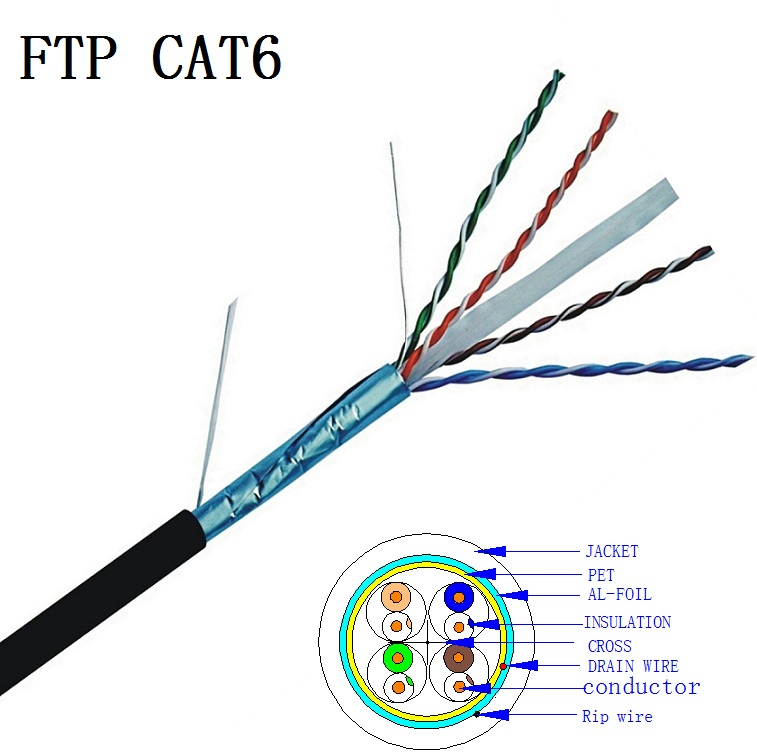

Cable Construction		25.00	24.30	9.50	53.30	51.30
Conductor	Solid Bare Copper	31.25	23.60	10.70	51.90	49.90
AWG	23	62.50	21.50	15.40	47.40	45.40
Conductor Diameter(mm)	0.574	100.00	20.10	19.80	44.30	42.30
Insulation	Solid PE	200.00	18.00	29.00	39.80	37.80
Insulation	Solid PE	250.00	17.30	32.80	38.30	36.30
Average Thickness (mm)	0.2	Frequency	ELFEXT	PSELFEXT		ACR
Insulation Diameter(mm)	1.00	(MHz)
Drain wire	Tinned copper		min (dB)	min (dB)
Construction (mm)	7/0.2	1.000	67.80	64.80		72.30
Al foil	Aluminium/PET fiol	4.000	55.80	52.80		61.50
		8.000	49.70	46.70		55.50
		10.00	47.80	44.80		53.30
Sheathing	PVC /FRPVC	16.00	43.70	40.70		48.60
Thickness(mm)	1.1	20.00	41.80	38.80		46.30
Diameter(mm)	6.1	25.00	39.80	36.80		43.80
		31.25	37.90	34.90		41.20
Core Identificatin/Color Code	According to customer request	62.50	31.90	28.90		32.00
Bending Radius	6xOverall Diameter	100.00	27.80	24.80		24.50
		200.00	21.80	18.80		10.80
		250.00	19.80	16.80		5.50
Fire Performance		Electrical Performance
Flame propagation Test to IEC 332 Part 1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3		Max.Conductor DC Resistance at 20 ºC(Ω/Km)				<93.8
		Operating Temperature( ºC )				70
		Velocity of propagation				74%
		Impedance(ohm)				100±15

FTP CAT6 Ethernet Cable 1000FT Fluke Test Pass/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

FTP CAT6 Ethernet Cable 1000FT Fluke Test Pass

Our Services
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days
