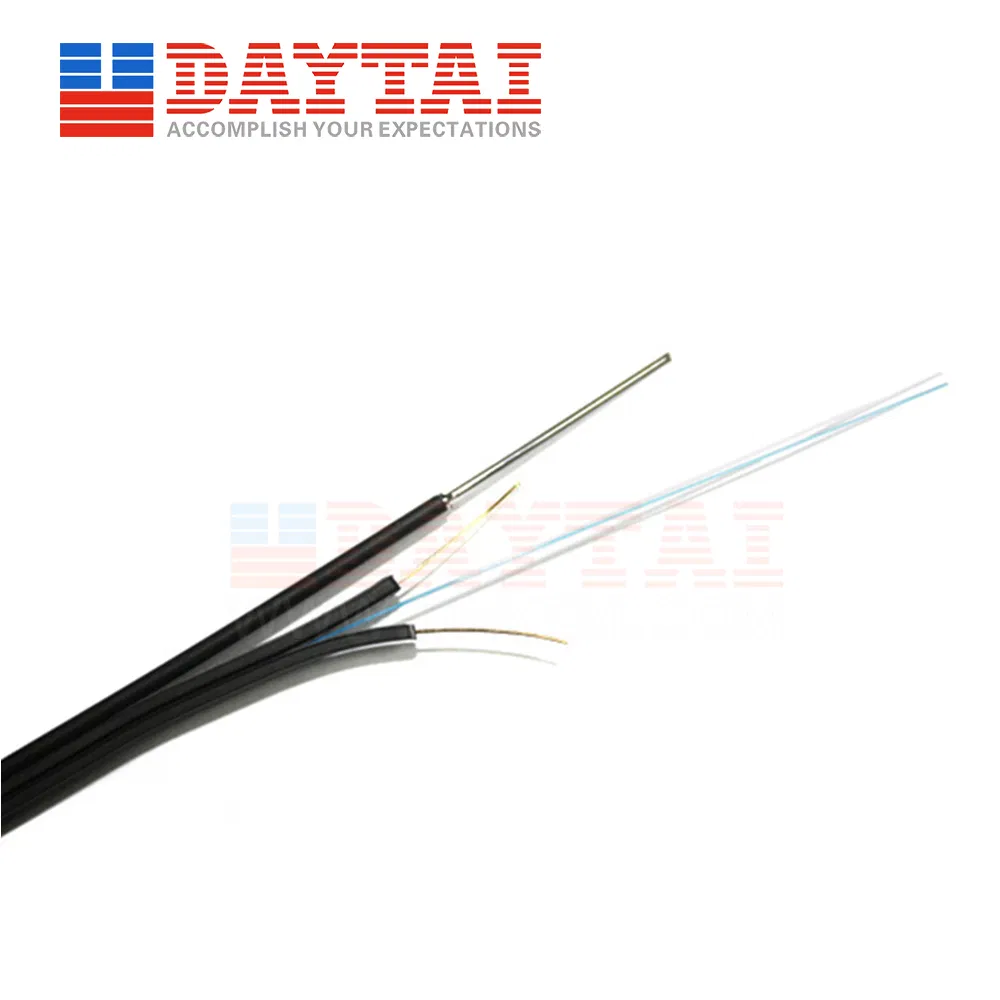

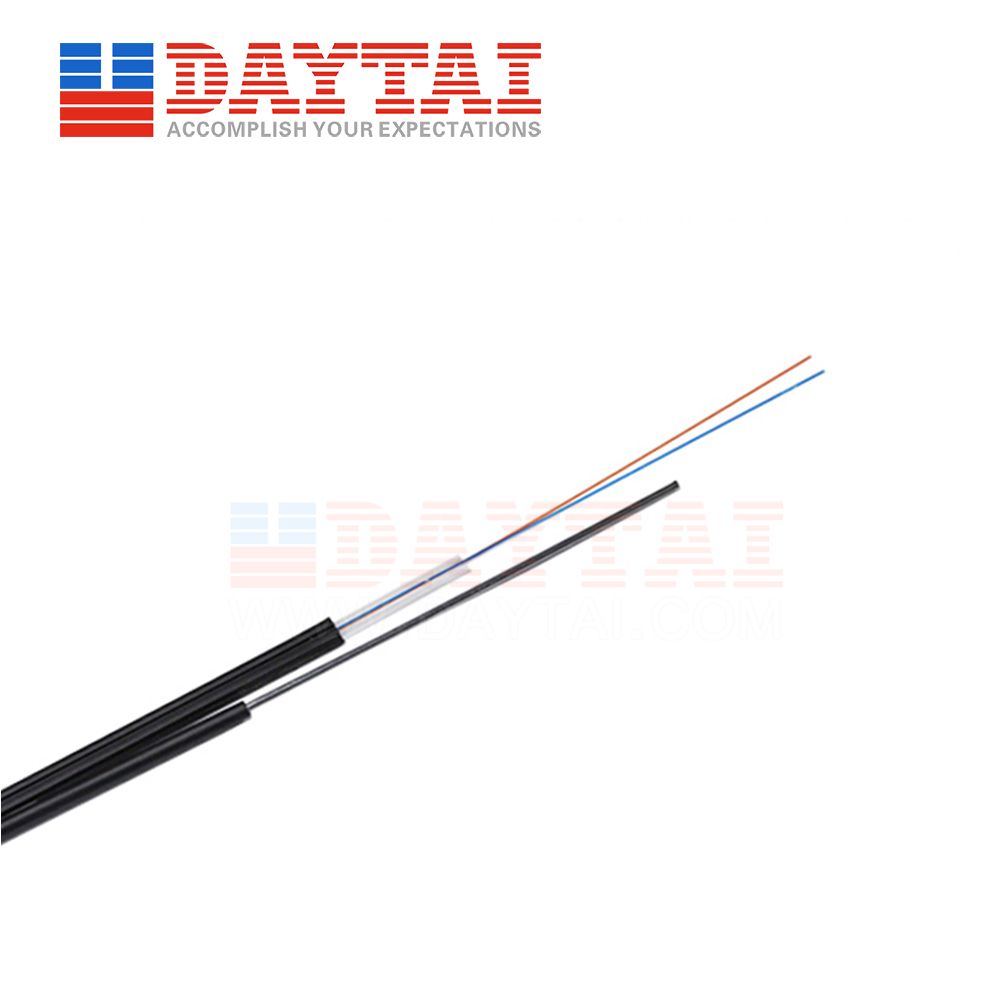

China FRP Messenger GJYXFCH-1, 2, 4 Core G657A FTTH Fiber Optic Drop Cable

Product Description

FRP Messenger GJYXFCH-1,2,4 Core G657A FTTH Fiber Optic Drop Cable

★ Description

FRP Messenger GJYXFCH-1,2,4 Core G657A FTTH Fiber Optic Drop Cable

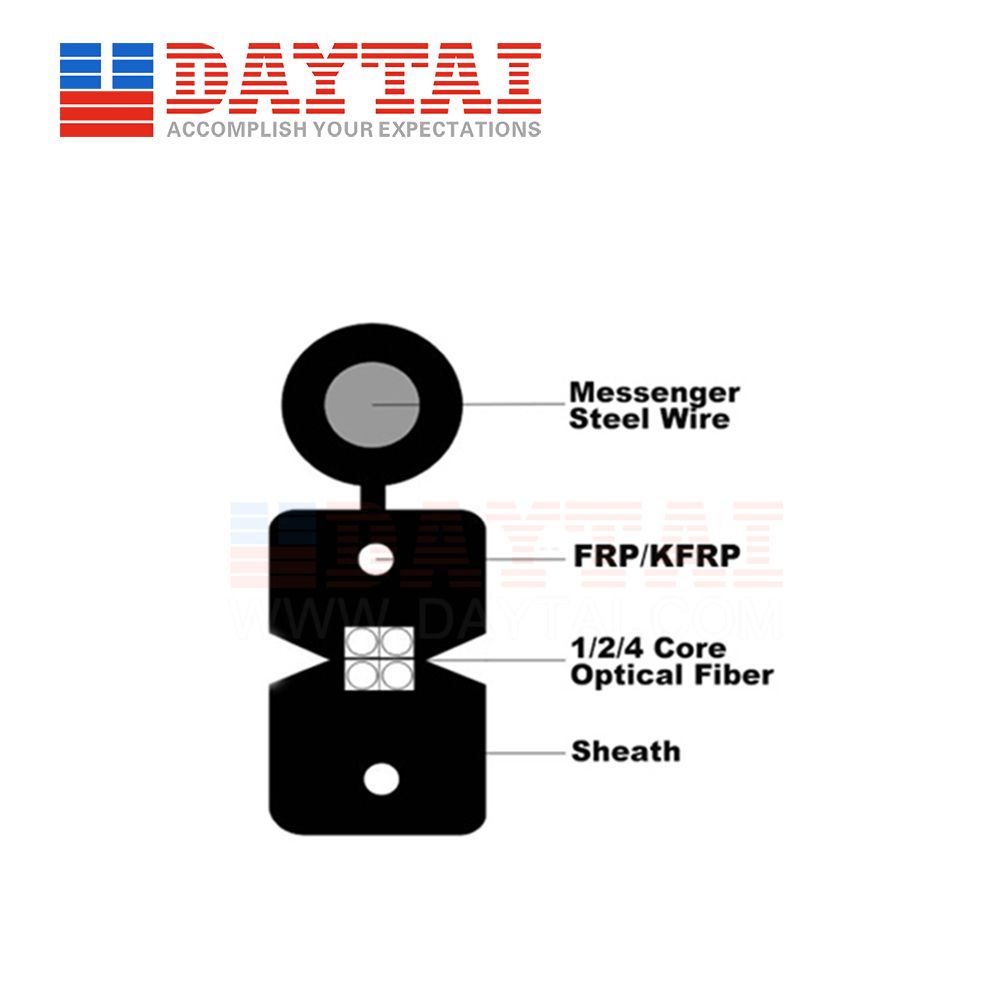

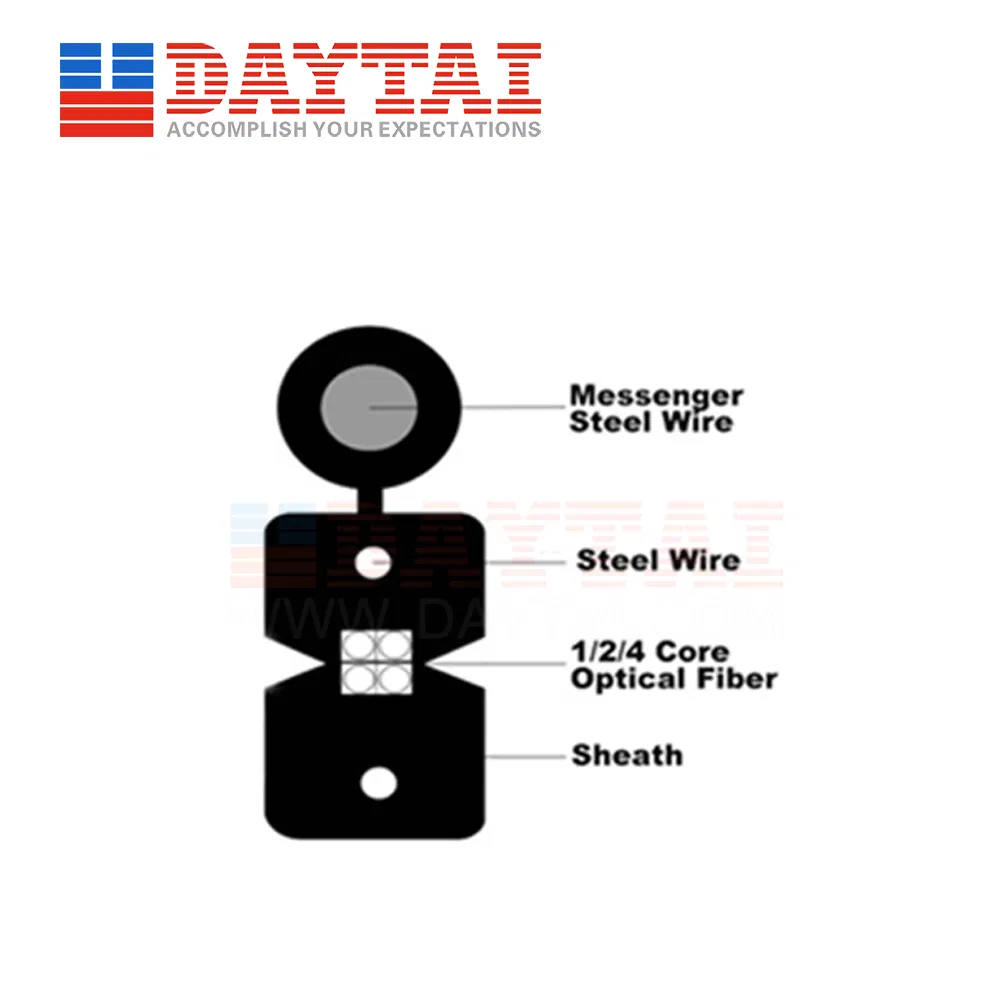

FTTH Drop cable,GJYXFCH 1,2,4 core B6 9/125(G657A2) fiber, fiber color:Nature,Blue,Orange,Green,Attenuation:<= 0.336 at 1310nm, <= 0.198 at 1550nm (dB/KM),Min. bending radius :10mm(Static),25mm(Dynamic),FRP and Messenger Strength member,Crush resistance:2200N/100mm.Sheath material:LSZH,Cable size:5.2mm*2.0mm.

★Applications
With the development of the telecommunications industry, the communications networksdevelop from theunitary voice service to the full-service integratedcommunications networkwith various digital services of voice, data, and video.The construction ofoptical networks develops from the backbone network, corenetwork to the MANand access net works. Since the fiber withfrequencybandwidth has the strengths of high transmission capacity and lowattenuation,FTTH supports various kinds of services, the features such aswider bandwidth,convenient maintenance are the foundation for our company todesign the dropoptical cable, which is applicable to the accession of the user'send in thebroadband access network.

★Features
⊙The optical cable has small diameter, lightweight, low cost, lowconstruction cost.
⊙It is suitable for mechanical splicing technology, fast, and flexible.
⊙The optical cable has high-tension and anti-squashforce,self-supportingstructure can meet the requirement of 50 meters pull-fly.
⊙Ituses aromatic polyamide materials to be the strengthen material.
⊙The optical cable is soft, good bending performance, and ensure that thebendingperformance can meet the requirements.
⊙It uses low smoke zero-halogen material, ensure that the cable can meettherequirements for the flame-retardant materials indoor.
⊙The optical fiber is the bend insensitive fiber which can meet requirementofITU-T G.657.
⊙High-carbon steel wire should be used for Self-supporting strengthendevice of optical cable, superior tensile properties contented.

★Technology Specification

Item	Technology parameter
Cable type	GJYXFCH-1,2,4B6.A2 (FTTH Fiber Optic Drop Cable)
Cable Dimension	5.2mm x 2.0mm
Fiber type	9/125 (G.657A2)
Fiber Counts	1	2	4
Tight buffer color	Nature	Nature,Blue	Nature,Blue,Orange,Green
Sheath material	LSZH
Sheath Color	White or Black
Cable weight	17.0Kg/Km
Min. bending radius	120mm
Min.bending radius(rip off the messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	<= 0.336 at 1310nm, <= 0.198 at 1550nm
Short term tensile	600N
Crush resistance	2200N/100mm
Operation temperature ºC	-20~+70

Note: the product is in accord with the instruction of EU RoHS.
